FCVVS

Application and Description

FCVVS cables are used for supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.

Reference Standard

IEC 60502-1

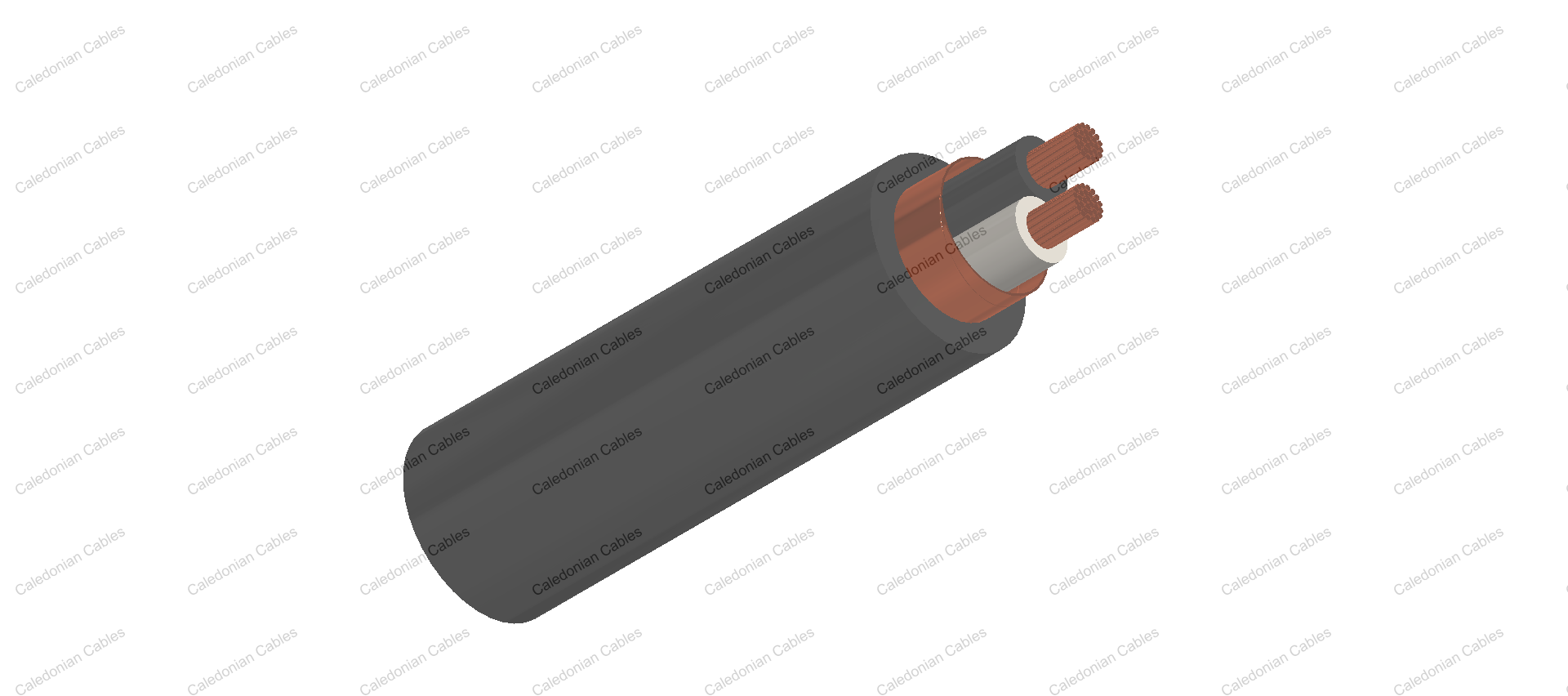

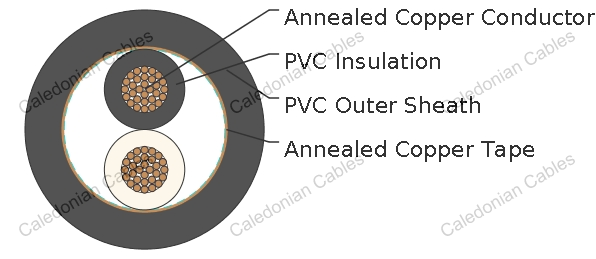

Cable Construction

Conductor	Flexible stranded annealed copper wires, Sizes : 0.5 mm² up to 6 mm²
Insulation	Polyvinyl chloride (PVC)
Color	2-4 cores : Black, White, Red and Green
Color	More than 4 cores : Black core with marking numbers
Filler	Non-hygroscopic material(optional)
Binding tape	Polyester (Mylar) tape (optional)
Shield	Annealed copper tape, 0.1mm
Outer sheath	Polyvinyl chloride (PVC), Black color (A special flame retardant can be supplied)

Technical Characteristics

Maximum conductor temperature 70°C

Circuit voltage not exceeding 600 volts

Test voltage 3500 volts

Cable Parameter

NO. OF CORES	CONDUCTOR			INSULATION THICKNESS	OUTER SHEATH THICKNESS	OVERALL DIAMETER	MAX. CONDUCTOR RESISTANCE (AT 20°C)	MIN. INSULATION RESISTANCE (AT70°C)	CABLE WEIGHT
	SIZE	NO. & DIA. OF WIRES	DIAMETER	INSULATION THICKNESS	OUTER SHEATH THICKNESS	OVERALL DIAMETER	MAX. CONDUCTOR RESISTANCE (AT 20°C)	MIN. INSULATION RESISTANCE (AT70°C)	CABLE WEIGHT
	MM²	NO./MM	MM	MM	MM	MM	OHM/KM	MOHM/KM	KG/KM
2	0.5	16/0.20	0.92	0.6	1.2	10.5	39.0	0.0130	130
	0.75	24/0.20	1.13	0.6	1.2	11	26.0	0.0114	140
	1	32/0.20	1.31	0.6	1.2	11.5	19.5	0.0104	150
	1.5	30/0.25	1.58	0.6	1.3	12	13.3	0.0089	180
	2.5	50/0.25	2.04	0.7	1.3	13.5	7.98	0.0081	230
	4	56/0.30	2.59	0.8	1.3	15	4.95	0.0076	300
	6	84/0.30	3.6	0.8	1.4	17	3.30	0.0061	400
3	0.5	16/0.20	0.92	0.6	1.2	11	39.0	0.0130	140
	0.75	24/0.20	1.13	0.6	1.2	11.5	26.0	0.0114	160
	1	32/0.20	1.31	0.6	1.2	12	19.5	0.0104	170
	1.5	30/0.25	1.58	0.6	1.3	12.5	13.3	0.0089	200
	2.5	50/0.25	2.04	0.7	1.3	14	7.98	0.0081	270
	4	56/0.30	2.59	0.8	1.4	16	4.95	0.0076	360
	6	84/0.30	3.6	0.8	1.4	18	3.30	0.0061	480
4	0.5	16/0.20	0.92	0.6	1.2	11.5	39.0	0.0130	160
	0.75	24/0.20	1.13	0.6	1.3	12	26.0	0.0114	180
	1	32/0.20	1.31	0.6	1.3	12.5	19.5	0.0104	200
	1.5	30/0.25	1.58	0.6	1.3	13.5	13.3	0.0089	240
	2.5	50/0.25	2.04	0.7	1.3	15	7.98	0.0081	320
	4	56/0.30	2.59	0.8	1.4	17	4.95	0.0076	430
	6	84/0.30	3.6	0.8	1.4	19.5	3.30	0.0061	580
5	0.5	16/0.20	0.92	0.6	1.3	12.5	39.0	0.0130	190
	0.75	24/0.20	1.13	0.6	1.3	13	26.0	0.0114	210
	1	32/0.20	1.31	0.6	1.3	13.5	19.5	0.0104	230
	1.5	30/0.25	1.58	0.6	1.3	14	13.3	0.0089	280
	2.5	50/0.25	2.04	0.7	1.4	16	7.98	0.0081	380
	4	56/0.30	2.59	0.8	1.4	18.5	4.95	0.0076	520
	6	84/0.30	3.6	0.8	1.5	21	3.30	0.0061	700
6	0.5	16/0.20	0.92	0.6	1.3	13	39.0	0.0130	200
	0.75	24/0.20	1.13	0.6	1.3	13.5	26.0	0.0114	230
	1	32/0.20	1.31	0.6	1.3	14	19.5	0.0104	250
	1.5	30/0.25	1.58	0.6	1.3	15	13.3	0.0089	300
	2.5	50/0.25	2.04	0.7	1.4	17.5	7.98	0.0081	410
	4	56/0.30	2.59	0.8	1.5	20	4.95	0.0076	570
	6	84/0.30	3.6	0.8	1.5	23	3.30	0.0061	760
7	0.5	16/0.20	0.92	0.6	1.3	13	39.0	0.0130	200
	0.75	24/0.20	1.13	0.6	1.3	13.5	26.0	0.0114	230
	1	32/0.20	1.31	0.6	1.3	14	19.5	0.0104	260
	1.5	30/0.25	1.58	0.6	1.3	15	13.3	0.0089	310
	2.5	50/0.25	2.04	0.7	1.4	17.5	7.98	0.0081	440
	4	56/0.30	2.59	0.8	1.5	20	4.95	0.0076	610
	6	84/0.30	3.6	0.8	1.5	23	3.30	0.0061	820
8	0.5	16/0.20	0.92	0.6	1.3	13.5	39.0	0.0130	220
	0.75	24/0.20	1.13	0.6	1.3	14.5	26.0	0.0114	260
	1	32/0.20	1.31	0.6	1.4	15	19.5	0.0104	300
	1.5	30/0.25	1.58	0.6	1.4	16	13.3	0.0089	350
	2.5	50/0.25	2.04	0.7	1.5	18.5	7.98	0.0081	490
	4	56/0.30	2.59	0.8	1.5	21	4.95	0.0076	680
	6	84/0.30	3.6	0.8	1.6	25	3.30	0.0061	930
9	0.5	16/0.20	0.92	0.6	1.3	14.5	39.0	0.0130	240
	0.75	24/0.20	1.13	0.6	1.4	15.5	26.0	0.0114	290
	1	32/0.20	1.31	0.6	1.4	16	19.5	0.0104	330
	1.5	30/0.25	1.58	0.6	1.4	17	13.3	0.0089	390
	2.5	50/0.25	2.04	0.7	1.5	20	7.98	0.0081	550
	4	56/0.30	2.59	0.8	1.6	23	4.95	0.0076	770
	6	84/0.30	3.6	0.8	1.7	26.5	3.30	0.0061	1050
10	0.5	16/0.20	0.92	0.6	1.3	15.5	39.0	0.0130	260
	0.75	24/0.20	1.13	0.6	1.4	16.5	26.0	0.0114	310
	1	32/0.20	1.31	0.6	1.4	17	19.5	0.0104	350
	1.5	30/0.25	1.58	0.6	1.4	18	13.3	0.0089	420
	2.5	50/0.25	2.04	0.7	1.5	21	7.98	0.0081	600
	4	56/0.30	2.59	0.8	1.6	24.5	4.95	0.0076	840
	6	84/0.30	3.6	0.8	1.7	29	3.30	0.0061	1150
11	0.5	16/0.20	0.92	0.6	1.3	15.5	39.0	0.0130	280
	0.75	24/0.20	1.13	0.6	1.4	17	26.0	0.0114	340
	1	32/0.20	1.31	0.6	1.4	17.5	19.5	0.0104	380
	1.5	30/0.25	1.58	0.6	1.4	18.5	13.3	0.0089	460
	2.5	50/0.25	2.04	0.7	1.5	21.5	7.98	0.0081	650
	4	56/0.30	2.59	0.8	1.6	25	4.95	0.0076	920
	6	84/0.30	3.6	0.8	1.7	29.5	3.30	0.0061	1260
12	0.5	16/0.20	0.92	0.6	1.4	16	39.0	0.0130	290
	0.75	24/0.20	1.13	0.6	1.4	17	26.0	0.0114	340
	1	32/0.20	1.31	0.6	1.4	17.5	19.5	0.0104	390
	1.5	30/0.25	1.58	0.6	1.4	18.5	13.3	0.0089	470
	2.5	50/0.25	2.04	0.7	1.5	21.5	7.98	0.0081	670
	4	56/0.30	2.59	0.8	1.6	25	4.95	0.0076	960
	6	84/0.30	3.6	0.8	1.7	29.5	3.30	0.0061	1310
13	0.5	16/0.20	0.92	0.6	1.4	16.5	39.0	0.0130	320
	0.75	24/0.20	1.13	0.6	1.4	17.5	26.0	0.0114	370
	1	32/0.20	1.31	0.6	1.4	18	19.5	0.0104	420
	1.5	30/0.25	1.58	0.6	1.5	19.5	13.3	0.0089	520
	2.5	50/0.25	2.04	0.7	1.6	23	7.98	0.0081	740
	4	56/0.30	2.59	0.8	1.7	26.5	4.95	0.0076	1060
	6	84/0.30	3.6	0.8	1.7	31	3.30	0.0061	1430
14	0.5	16/0.20	0.92	0.6	1.4	16.5	39.0	0.0130	320
	0.75	24/0.20	1.13	0.6	1.4	17.5	26.0	0.0114	380
	1	32/0.20	1.31	0.6	1.4	18	19.5	0.0104	430
	1.5	30/0.25	1.58	0.6	1.5	19.5	13.3	0.0089	530
	2.5	50/0.25	2.04	0.7	1.6	23	7.98	0.0081	760
	4	56/0.30	2.59	0.8	1.7	26.5	4.95	0.0076	1090
	6	84/0.30	3.6	0.8	1.7	31	3.30	0.0061	1480
15	0.5	16/0.20	0.92	0.6	1.4	17	39.0	0.0130	350
	0.75	24/0.20	1.13	0.6	1.4	18	26.0	0.0114	410
	1	32/0.20	1.31	0.6	1.5	19	19.5	0.0104	480
	1.5	30/0.25	1.58	0.6	1.5	20.5	13.3	0.0089	580
	2.5	50/0.25	2.04	0.7	1.6	24	7.98	0.0081	830
	4	56/0.30	2.59	0.8	1.7	28	4.95	0.0076	1190
	6	84/0.30	3.6	0.8	1.8	33	3.30	0.0061	1630
16	0.5	16/0.20	0.92	0.6	1.4	17	39.0	0.0130	350
	0.75	24/0.20	1.13	0.6	1.4	18	26.0	0.0114	420
	1	32/0.20	1.31	0.6	1.5	19	19.5	0.0104	480
	1.5	30/0.25	1.58	0.6	1.5	20.5	13.3	0.0089	590
	2.5	50/0.25	2.04	0.7	1.6	24	7.98	0.0081	850
	4	56/0.30	2.59	0.8	1.7	28	4.95	0.0076	1220
	6	84/0.30	3.6	0.8	1.8	33	3.30	0.0061	1680
17	0.5	16/0.20	0.92	0.6	1.4	18	39.0	0.0130	380
	0.75	24/0.20	1.13	0.6	1.5	19	26.0	0.0114	460
	1	32/0.20	1.31	0.6	1.5	20	19.5	0.0104	520
	1.5	30/0.25	1.58	0.6	1.5	21.5	13.3	0.0089	640
	2.5	50/0.25	2.04	0.7	1.6	25	7.98	0.0081	920
	4	56/0.30	2.59	0.8	1.8	29.5	4.95	0.0076	1340
	6	84/0.30	3.6	0.8	1.8	34.5	3.30	0.0061	1820
18	0.5	16/0.20	0.92	0.6	1.4	18	39.0	0.0130	380
	0.75	24/0.20	1.13	0.6	1.5	19	26.0	0.0114	460
	1	32/0.20	1.31	0.6	1.5	20	19.5	0.0104	530
	1.5	30/0.25	1.58	0.6	1.5	21.5	13.3	0.0089	650
	2.5	50/0.25	2.04	0.7	1.6	25	7.98	0.0081	940
	4	56/0.30	2.59	0.8	1.8	29.5	4.95	0.0076	1370
	6	84/0.30	3.6	0.8	1.8	34.5	3.30	0.0061	1870
19	0.5	16/0.20	0.92	0.6	1.4	18	39.0	0.0130	390
	0.75	24/0.20	1.13	0.6	1.5	19	26.0	0.0114	470
	1	32/0.20	1.31	0.6	1.5	20	19.5	0.0104	540
	1.5	30/0.25	1.58	0.6	1.5	21.5	13.3	0.0089	660
	2.5	50/0.25	2.04	0.7	1.6	25	7.98	0.0081	960
	4	56/0.30	2.59	0.8	1.8	29.5	4.95	0.0076	1400
	6	84/0.30	3.6	0.8	1.8	34.5	3.30	0.0061	1920
20	0.5	16/0.20	0.92	0.6	1.4	18.5	39.0	0.0130	420
	0.75	24/0.20	1.13	0.6	1.5	20	26.0	0.0114	500
	1	32/0.20	1.31	0.6	1.5	21	19.5	0.0104	580
	1.5	30/0.25	1.58	0.6	1.6	22.5	13.3	0.0089	720
	2.5	50/0.25	2.04	0.7	1.7	26.5	7.98	0.0081	1050
	4	56/0.30	2.59	0.8	1.8	31	4.95	0.0076	1510
	6	84/0.30	3.6	0.8	1.9	36.5	3.30	0.0061	2080
21	0.5	16/0.20	0.92	0.6	1.4	18.5	39.0	0.0130	420
	0.75	24/0.20	1.13	0.6	1.5	20	26.0	0.0114	510
	1	32/0.20	1.31	0.6	1.5	21	19.5	0.0104	580
	1.5	30/0.25	1.58	0.6	1.6	22.5	13.3	0.0089	730
	2.5	50/0.25	2.04	0.7	1.7	26.5	7.98	0.0081	1060
	4	56/0.30	2.59	0.8	1.8	31	4.95	0.0076	1530
	6	84/0.30	3.6	0.8	1.9	36.5	3.30	0.0061	2120
22	0.5	16/0.20	0.92	0.6	1.5	19.5	39.0	0.0130	460
	0.75	24/0.20	1.13	0.6	1.5	20.5	26.0	0.0114	550
	1	32/0.20	1.31	0.6	1.5	21.5	19.5	0.0104	630
	1.5	30/0.25	1.58	0.6	1.6	23.5	13.3	0.0089	780
	2.5	50/0.25	2.04	0.7	1.7	27.5	7.98	0.0081	1140
	4	56/0.30	2.59	0.8	1.8	32	4.95	0.0076	1650
	6	84/0.30	3.6	0.8	1.9	38	3.30	0.0061	2280
23	0.5	16/0.20	0.92	0.6	1.5	19.5	39.0	0.0130	460
	0.75	24/0.20	1.13	0.6	1.5	20.5	26.0	0.0114	550
	1	32/0.20	1.31	0.6	1.5	21.5	19.5	0.0104	630
	1.5	30/0.25	1.58	0.6	1.6	23.5	13.3	0.0089	790
	2.5	50/0.25	2.04	0.7	1.7	27.5	7.98	0.0081	1150
	4	56/0.30	2.59	0.8	1.8	32	4.95	0.0076	1660
	6	84/0.30	3.6	0.8	1.9	38	3.30	0.0061	2310
24	0.5	16/0.20	0.92	0.6	1.5	20.5	39.0	0.0130	480
	0.75	24/0.20	1.13	0.6	1.5	21.5	26.0	0.0114	570
	1	32/0.20	1.31	0.6	1.6	23	19.5	0.0104	670
	1.5	30/0.25	1.58	0.6	1.6	24.5	13.3	0.0089	820
	2.5	50/0.25	2.04	0.7	1.7	29	7.98	0.0081	1200
	4	56/0.30	2.59	0.8	1.9	34	4.95	0.0076	1750
	6	84/0.30	3.6	0.8	2	41	3.30	0.0061	2460
25	0.5	16/0.20	0.92	0.6	1.5	21	39.0	0.0130	500
	0.75	24/0.20	1.13	0.6	1.5	22	26.0	0.0114	600
	1	32/0.20	1.31	0.6	1.6	23.5	19.5	0.0104	700
	1.5	30/0.25	1.58	0.6	1.6	25	13.3	0.0089	870
	2.5	50/0.25	2.04	0.7	1.7	29.5	7.98	0.0081	1270
	4	56/0.30	2.59	0.8	1.9	35	4.95	0.0076	1850
	6	84/0.30	3.6	0.8	2	41.5	3.30	0.0061	2600
26	0.5	16/0.20	0.92	0.6	1.5	21	39.0	0.0130	510
	0.75	24/0.20	1.13	0.6	1.5	22	26.0	0.0114	610
	1	32/0.20	1.31	0.6	1.6	23.5	19.5	0.0104	710
	1.5	30/0.25	1.58	0.6	1.6	25	13.3	0.0089	880
	2.5	50/0.25	2.04	0.7	1.7	29.5	7.98	0.0081	1290
	4	56/0.30	2.59	0.8	1.9	35	4.95	0.0076	1880
	6	84/0.30	3.6	0.8	2	41.5	3.30	0.0061	2650
27	0.5	16/0.20	0.92	0.6	1.5	21	39.0	0.0130	510
	0.75	24/0.20	1.13	0.6	1.5	22	26.0	0.0114	610
	1	32/0.20	1.31	0.6	1.6	23.5	19.5	0.0104	720
	1.5	30/0.25	1.58	0.6	1.6	25	13.3	0.0089	890
	2.5	50/0.25	2.04	0.7	1.8	29.5	7.98	0.0081	1320
	4	56/0.30	2.59	0.8	1.9	35	4.95	0.0076	1920
	6	84/0.30	3.6	0.8	2	41.5	3.30	0.0061	2700
28	0.5	16/0.20	0.92	0.6	1.5	21.5	39.0	0.0130	540
	0.75	24/0.20	1.13	0.6	1.6	23	26.0	0.0114	660
	1	32/0.20	1.31	0.6	1.6	24	19.5	0.0104	760
	1.5	30/0.25	1.58	0.6	1.7	26	13.3	0.0089	950
	2.5	50/0.25	2.04	0.7	1.8	30.5	7.98	0.0081	1390
	4	56/0.30	2.59	0.8	1.9	36	4.95	0.0076	2020
	6	84/0.30	3.6	0.8	2.1	43.5	3.30	0.0061	2870
29	0.5	16/0.20	0.92	0.6	1.5	21.5	39.0	0.0130	540
	0.75	24/0.20	1.13	0.6	1.6	23	26.0	0.0114	660
	1	32/0.20	1.31	0.6	1.6	24	19.5	0.0104	770
	1.5	30/0.25	1.58	0.6	1.7	26	13.3	0.0089	960
	2.5	50/0.25	2.04	0.7	1.8	30.5	7.98	0.0081	1420
	4	56/0.30	2.59	0.8	1.9	36	4.95	0.0076	2060
	6	84/0.30	3.6	0.8	2.1	43.5	3.30	0.0061	2920
30	0.5	16/0.20	0.92	0.6	1.5	21.5	39.0	0.0130	550
	0.75	24/0.20	1.13	0.6	1.6	23	26.0	0.0114	670
	1	32/0.20	1.31	0.6	1.6	24	19.5	0.0104	780
	1.5	30/0.25	1.58	0.6	1.7	26	13.3	0.0089	980
	2.5	50/0.25	2.04	0.7	1.8	30.5	7.98	0.0081	1440
	4	56/0.30	2.59	0.8	1.9	36	4.95	0.0076	2090
	6	84/0.30	3.6	0.8	2.1	43.5	3.30	0.0061	2970
31	0.5	16/0.20	0.92	0.6	1.5	22	39.0	0.0130	580
	0.75	24/0.20	1.13	0.6	1.6	23.5	26.0	0.0114	710
	1	32/0.20	1.31	0.6	1.6	25	19.5	0.0104	820
	1.5	30/0.25	1.58	0.6	1.7	27	13.3	0.0089	1030
	2.5	50/0.25	2.04	0.7	1.8	31.5	7.98	0.0081	1520
	4	56/0.30	2.59	0.8	2	38	4.95	0.0076	2260
	6	84/0.30	3.6	0.8	2.1	45	3.30	0.0061	3140
32	0.5	16/0.20	0.92	0.6	1.5	22	39.0	0.0130	580
	0.75	24/0.20	1.13	0.6	1.6	23.5	26.0	0.0114	710
	1	32/0.20	1.31	0.6	1.6	25	19.5	0.0104	830
	1.5	30/0.25	1.58	0.6	1.7	27	13.3	0.0089	1040
	2.5	50/0.25	2.04	0.7	1.8	31.5	7.98	0.0081	1540
	4	56/0.30	2.59	0.8	2	38	4.95	0.0076	2290
	6	84/0.30	3.6	0.8	2.1	45	3.30	0.0061	3190
33	0.5	16/0.20	0.92	0.6	1.5	22	39.0	0.0130	590
	0.75	24/0.20	1.13	0.6	1.6	23.5	26.0	0.0114	720
	1	32/0.20	1.31	0.6	1.6	25	19.5	0.0104	840
	1.5	30/0.25	1.58	0.6	1.7	27	13.3	0.0089	1060
	2.5	50/0.25	2.04	0.7	1.8	31.5	7.98	0.0081	1560
	4	56/0.30	2.59	0.8	2	38	4.95	0.0076	2330
	6	84/0.30	3.6	0.8	2.1	45	3.30	0.0061	3240
34	0.5	16/0.20	0.92	0.6	1.6	23	39.0	0.0130	630
	0.75	24/0.20	1.13	0.6	1.6	24.5	26.0	0.0114	760
	1	32/0.20	1.31	0.6	1.6	25.5	19.5	0.0104	880
	1.5	30/0.25	1.58	0.6	1.7	27.5	13.3	0.0089	1110
	2.5	50/0.25	2.04	0.7	1.9	33	7.98	0.0081	1660
	4	56/0.30	2.59	0.8	2	39	4.95	0.0076	2450
	6	84/0.30	3.6	0.8	2.2	46.5	3.30	0.0061	3420
35	0.5	16/0.20	0.92	0.6	1.6	23	39.0	0.0130	640
	0.75	24/0.20	1.13	0.6	1.6	24.5	26.0	0.0114	770
	1	32/0.20	1.31	0.6	1.6	25.5	19.5	0.0104	890
	1.5	30/0.25	1.58	0.6	1.7	27.5	13.3	0.0089	1120
	2.5	50/0.25	2.04	0.7	1.9	33	7.98	0.0081	1680
	4	56/0.30	2.59	0.8	2	39	4.95	0.0076	2480
	6	84/0.30	3.6	0.8	2.2	46.5	3.30	0.0061	3480
36	0.5	16/0.20	0.92	0.6	1.6	23	39.0	0.0130	640
	0.75	24/0.20	1.13	0.6	1.6	24.5	26.0	0.0114	770
	1	32/0.20	1.31	0.6	1.6	25.5	19.5	0.0104	900
	1.5	30/0.25	1.58	0.6	1.7	27.5	13.3	0.0089	1140
	2.5	50/0.25	2.04	0.7	1.9	33	7.98	0.0081	1700
	4	56/0.30	2.59	0.8	2	39	4.95	0.0076	2520
	6	84/0.30	3.6	0.8	2.2	46.5	3.30	0.0061	3530
37	0.5	16/0.20	0.92	0.6	1.6	23	39.0	0.0130	640
	0.75	24/0.20	1.13	0.6	1.6	24.5	26.0	0.0114	780
	1	32/0.20	1.31	0.6	1.6	25.5	19.5	0.0104	910
	1.5	30/0.25	1.58	0.6	1.7	27.5	13.3	0.0089	1150
	2.5	50/0.25	2.04	0.7	1.9	33	7.98	0.0081	1720
	4	56/0.30	2.59	0.8	2	39	4.95	0.0076	2550
	6	84/0.30	3.6	0.8	2.2	46.5	3.30	0.0061	3580
38	0.5	16/0.20	0.92	0.6	1.6	23.5	39.0	0.0130	680
	0.75	24/0.20	1.13	0.6	1.6	25	26.0	0.0114	820
	1	32/0.20	1.31	0.6	1.7	26.5	19.5	0.0104	970
	1.5	30/0.25	1.58	0.6	1.7	28.5	13.3	0.0089	1210
	2.5	50/0.25	2.04	0.7	1.9	34	7.98	0.0081	1800
	4	56/0.30	2.59	0.8	2.1	41	4.95	0.0076	2700
	6	84/0.30	3.6	0.8	2.2	48.5	3.30	0.0061	3750
39	0.5	16/0.20	0.92	0.6	1.6	23.5	39.0	0.0130	680
	0.75	24/0.20	1.13	0.6	1.6	25	26.0	0.0114	830
	1	32/0.20	1.31	0.6	1.7	26.5	19.5	0.0104	980
	1.5	30/0.25	1.58	0.6	1.7	28.5	13.3	0.0089	1220
	2.5	50/0.25	2.04	0.7	1.9	34	7.98	0.0081	1830
	4	56/0.30	2.59	0.8	2.1	41	4.95	0.0076	2730
	6	84/0.30	3.6	0.8	2.2	48.5	3.30	0.0061	3800
40	0.5	16/0.20	0.92	0.6	1.6	23.5	39.0	0.0130	680
	0.75	24/0.20	1.13	0.6	1.6	25	26.0	0.0114	830
	1	32/0.20	1.31	0.6	1.7	26.5	19.5	0.0104	980
	1.5	30/0.25	1.58	0.6	1.7	28.5	13.3	0.0089	1230
	2.5	50/0.25	2.04	0.7	1.9	34	7.98	0.0081	1840
	4	56/0.30	2.59	0.8	2.1	41	4.95	0.0076	2750
	6	84/0.30	3.6	0.8	2.2	48.5	3.30	0.0061	3840
41	0.5	16/0.20	0.92	0.6	1.6	25	39.0	0.0130	740
	0.75	24/0.20	1.13	0.6	1.7	27	26.0	0.0114	900
	1	32/0.20	1.31	0.6	1.7	28.5	19.5	0.0104	1050
	1.5	30/0.25	1.58	0.6	1.8	31	13.3	0.0089	1320
	2.5	50/0.25	2.04	0.7	1.9	36.5	7.98	0.0081	1960
	4	56/0.30	2.59	0.8	2.1	44	4.95	0.0076	2920
	6	84/0.30	3.6	0.8	2.3	52.5	3.30	0.0061	4090
42	0.5	16/0.20	0.92	0.6	1.6	25	39.0	0.0130	740
	0.75	24/0.20	1.13	0.6	1.7	27	26.0	0.0114	910
	1	32/0.20	1.31	0.6	1.7	28.5	19.5	0.0104	1060
	1.5	30/0.25	1.58	0.6	1.8	31	13.3	0.0089	1330
	2.5	50/0.25	2.04	0.7	1.9	36.5	7.98	0.0081	1980
	4	56/0.30	2.59	0.8	2.1	44	4.95	0.0076	2960
	6	84/0.30	3.6	0.8	2.3	52.5	3.30	0.0061	4140
43	0.5	16/0.20	0.92	0.6	1.6	25	39.0	0.0130	740
	0.75	24/0.20	1.13	0.6	1.7	27	26.0	0.0114	910
	1	32/0.20	1.31	0.6	1.7	28.5	19.5	0.0104	1060
	1.5	30/0.25	1.58	0.6	1.8	31	13.3	0.0089	1340
	2.5	50/0.25	2.04	0.7	1.9	36.5	7.98	0.0081	1990
	4	56/0.30	2.59	0.8	2.1	44	4.95	0.0076	2970
	6	84/0.30	3.6	0.8	2.3	52.5	3.30	0.0061	4170
44	0.5	16/0.20	0.92	0.6	1.6	25	39.0	0.0130	750
	0.75	24/0.20	1.13	0.6	1.7	27	26.0	0.0114	920
	1	32/0.20	1.31	0.6	1.7	28.5	19.5	0.0104	1070
	1.5	30/0.25	1.58	0.6	1.8	31	13.3	0.0089	1350
	2.5	50/0.25	2.04	0.7	2	37.5	7.98	0.0081	2070
	4	56/0.30	2.59	0.8	2.2	44	4.95	0.0076	3030
	6	84/0.30	3.6	0.8	2.3	53	3.30	0.0061	4280
45	0.5	16/0.20	0.92	0.6	1.6	25.5	39.0	0.0130	780
	0.75	24/0.20	1.13	0.6	1.7	27.5	26.0	0.0114	960
	1	32/0.20	1.31	0.6	1.7	29	19.5	0.0104	1120
	1.5	30/0.25	1.58	0.6	1.8	31.5	13.3	0.0089	1420
	2.5	50/0.25	2.04	0.7	2	38	7.98	0.0081	2170
	4	56/0.30	2.59	0.8	2.2	45	4.95	0.0076	3180
	6	84/0.30	3.6	0.8	2.3	53.5	3.30	0.0061	4480
46	0.5	16/0.20	0.92	0.6	1.6	25.5	39.0	0.0130	780
	0.75	24/0.20	1.13	0.6	1.7	27.5	26.0	0.0114	960
	1	32/0.20	1.31	0.6	1.7	29	19.5	0.0104	1120
	1.5	30/0.25	1.58	0.6	1.8	31.5	13.3	0.0089	1420
	2.5	50/0.25	2.04	0.7	2	38	7.98	0.0081	2170
	4	56/0.30	2.59	0.8	2.2	45	4.95	0.0076	3190
	6	84/0.30	3.6	0.8	2.3	53.5	3.30	0.0061	4500
47	0.5	16/0.20	0.92	0.6	1.6	25.5	39.0	0.0130	780
	0.75	24/0.20	1.13	0.6	1.7	27.5	26.0	0.0114	970
	1	32/0.20	1.31	0.6	1.7	29	19.5	0.0104	1130
	1.5	30/0.25	1.58	0.6	1.8	31.5	13.3	0.0089	1430
	2.5	50/0.25	2.04	0.7	2	38	7.98	0.0081	2190
	4	56/0.30	2.59	0.8	2.2	45	4.95	0.0076	3220
	6	84/0.30	3.6	0.8	2.3	53.5	3.30	0.0061	4550
48	0.5	16/0.20	0.92	0.6	1.6	25.5	39.0	0.0130	790
	0.75	24/0.20	1.13	0.6	1.7	27.5	26.0	0.0114	980
	1	32/0.20	1.31	0.6	1.7	29	19.5	0.0104	1140
	1.5	30/0.25	1.58	0.6	1.8	31.5	13.3	0.0089	1450
	2.5	50/0.25	2.04	0.7	2	38	7.98	0.0081	2220
	4	56/0.30	2.59	0.8	2.2	45	4.95	0.0076	3270
	6	84/0.30	3.6	0.8	2.4	54	3.30	0.0061	4650

Products

Contact Us

Hot

Certificate

Join the newsletter

FCVVS

Application and Description

Reference Standard

Cable Construction

Technical Characteristics

Cable Parameter

Instant Messaging

WhatsApp :

Skype :

Wechat :
