    CVV

    Application and Description

    CVV cables are used for supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.

    Reference Standard

    IEC 60502-1

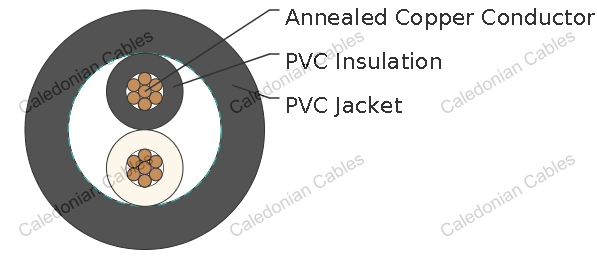

    Cable Construction

    Conductor Stranded annealed copper wires, Sizes: 0.5 mm² up to 6 mm²
    Insulation Polyvinyl chloride (PVC)
    Color 2-4 cores : Black, White, Red and Green
    More than 4 cores : Black core with marking numbers
    Filler Non-hygroscopic material(optional)
    Binding tape Polyester (Mylar) tape (optional)
    Sheath Polyvinyl chloride (PVC), Black color (A special flame retardant sheath can be supplied)

    Technical Characteristics

    Maximum conductor temperature 70°C

    Circuit voltage not exceeding 600 volts

    Test voltage 3500 volts

    Cable Parameter

    NO. OF CORES CONDUCTOR THICKNESS OF INSULATION THICKNESS OF SHEATH OVERALL DIAMETER MAXIMUM CONDUCTOR RESISTANCE (AT 20°C) MINIMUM INSULATION RESISTANCE (AT 70°C) CABLE WEIGHT
    NOMINAL CROSS-SECTIONAL AREA NO.& DIA. OF WIRES DIAMETER
    MM2 MM MM MM MM MM OHM/KM OHM/KM KG/KM
    2 0.5 7/0.30 0.9 0.8 1.8 9.5 36 0.0162 100
    0.75 7/0.37 1.11 0.8 1.8 10 24.5 0.0142 110
    1 7/0.43 1.29 0.8 1.8 10.5 18.1 0.0128 120
    1.5 7/0.52 1.56 0.8 1.8 11 12.1 0.0112 140
    2.5 7/0.67 2.01 0.8 1.8 12 7.41 0.0093 180
    4 7/0.85 2.55 1 1.8 14 4.61 0.0092 250
    6 7/1.04 3.12 1 1.8 15.5 3.08 0.0078 310
    3 0.5 7/0.30 0.9 0.8 1.8 10 36 0.0162 110
    0.75 7/0.37 1.11 0.8 1.8 10.5 24.5 0.0142 130
    1 7/0.43 1.29 0.8 1.8 11 18.1 0.0128 140
    1.5 7/0.52 1.56 0.8 1.8 12 12.1 0.0112 170
    2.5 7/0.67 2.01 0.8 1.8 13 7.41 0.0093 210
    4 7/0.85 2.55 1 1.8 15 4.61 0.0092 310
    6 7/1.04 3.12 1 1.8 16 3.08 0.0078 390
    4 0.5 7/0.30 0.9 0.8 1.8 11 36 0.0162 130
    0.75 7/0.37 1.11 0.8 1.8 11.5 24.5 0.0142 150
    1 7/0.43 1.29 0.8 1.8 12 18.1 0.0128 170
    1.5 7/0.52 1.56 0.8 1.8 12.5 12.1 0.0112 200
    2.5 7/0.67 2.01 0.8 1.8 14 7.41 0.0093 260
    4 7/0.85 2.55 1 1.8 16 4.61 0.0092 380
    6 7/1.04 3.12 1 1.8 17.5 3.08 0.0078 490
    5 0.5 7/0.30 0.9 0.8 1.8 12 36 0.0162 150
    0.75 7/0.37 1.11 0.8 1.8 12.5 24.5 0.0142 180
    1 7/0.43 1.29 0.8 1.8 13 18.1 0.0128 200
    1.5 7/0.52 1.56 0.8 1.8 13.5 12.1 0.0112 240
    2.5 7/0.67 2.01 0.8 1.8 15 7.41 0.0093 320
    4 7/0.85 2.55 1 1.8 17.5 4.61 0.0092 470
    6 7/1.04 3.12 1 1.8 19 3.08 0.0078 600
    6 0.5 7/0.30 0.9 0.8 1.8 12.5 36 0.0162 160
    0.75 7/0.37 1.11 0.8 1.8 13.5 24.5 0.0142 190
    1 7/0.43 1.29 0.8 1.8 14 18.1 0.0128 220
    1.5 7/0.52 1.56 0.8 1.8 14.5 12.1 0.0112 260
    2.5 7/0.67 2.01 0.8 1.8 16 7.41 0.0093 340
    4 7/0.85 2.55 1 1.8 19 4.61 0.0092 510
    6 7/1.04 3.12 1 1.8 20.5 3.08 0.0078 660
    7 0.5 7/0.30 0.9 0.8 1.8 12.5 36 0.0162 170
    0.75 7/0.37 1.11 0.8 1.8 13.5 24.5 0.0142 200
    1 7/0.43 1.29 0.8 1.8 14 18.1 0.0128 230
    1.5 7/0.52 1.56 0.8 1.8 14.5 12.1 0.0112 270
    2.5 7/0.67 2.01 0.8 1.8 16 7.41 0.0093 370
    4 7/0.85 2.55 1 1.8 19 4.61 0.0092 540
    6 7/1.04 3.12 1 1.8 20.5 3.08 0.0078 720
    8 0.5 7/0.30 0.9 0.8 1.8 13.5 36 0.0162 190
    0.75 7/0.37 1.11 0.8 1.8 14 24.5 0.0142 220
    1 7/0.43 1.29 0.8 1.8 15 18.1 0.0128 250
    1.5 7/0.52 1.56 0.8 1.8 15.5 12.1 0.0112 310
    2.5 7/0.67 2.01 0.8 1.8 17 7.41 0.0093 410
    4 7/0.85 2.55 1 1.8 20.5 4.61 0.0092 610
    6 7/1.04 3.12 1 1.8 22.5 3.08 0.0078 810
    9 0.5 7/0.30 0.9 0.8 1.8 14.5 36 0.0162 210
    0.75 7/0.37 1.11 0.8 1.8 15 24.5 0.0142 250
    1 7/0.43 1.29 0.8 1.8 16 18.1 0.0128 280
    1.5 7/0.52 1.56 0.8 1.8 17 12.1 0.0112 340
    2.5 7/0.67 2.01 0.8 1.8 18.5 7.41 0.0093 460
    4 7/0.85 2.55 1 1.8 22 4.61 0.0092 690
    6 7/1.04 3.12 1 1.8 24 3.08 0.0078 920
    10 0.5 7/0.30 0.9 0.8 1.8 15.5 36 0.0162 230
    0.75 7/0.37 1.11 0.8 1.8 16 24.5 0.0142 270
    1 7/0.43 1.29 0.8 1.8 17 18.1 0.0128 310
    1.5 7/0.52 1.56 0.8 1.8 18 12.1 0.0112 370
    2.5 7/0.67 2.01 0.8 1.8 20 7.41 0.0093 510
    4 7/0.85 2.55 1 1.8 24 4.61 0.0092 760
    6 7/1.04 3.12 1 1.8 26 3.08 0.0078 1000
    11 0.5 7/0.30 0.9 0.8 1.8 16 36 0.0162 250
    0.75 7/0.37 1.11 0.8 1.8 16.5 24.5 0.0142 290
    1 7/0.43 1.29 0.8 1.8 17.5 18.1 0.0128 340
    1.5 7/0.52 1.56 0.8 1.8 18.5 12.1 0.0112 410
    2.5 7/0.67 2.01 0.8 1.8 20.5 7.41 0.0093 560
    4 7/0.85 2.55 1 1.8 24.5 4.61 0.0092 840
    6 7/1.04 3.12 1 1.8 27 3.08 0.0078 1120
    12 0.5 7/0.30 0.9 0.8 1.8 16 36 0.0162 250
    0.75 7/0.37 1.11 0.8 1.8 16.5 24.5 0.0142 300
    1 7/0.43 1.29 0.8 1.8 17.5 18.1 0.0128 350
    1.5 7/0.52 1.56 0.8 1.8 18.5 12.1 0.0112 430
    2.5 7/0.67 2.01 0.8 1.8 20.5 7.41 0.0093 580
    4 7/0.85 2.55 1 1.8 24.5 4.61 0.0092 880
    6 7/1.04 3.12 1 1.8 27 3.08 0.0078 1170
    13 0.5 7/0.30 0.9 0.8 1.8 16.5 36 0.0162 280
    0.75 7/0.37 1.11 0.8 1.8 17.5 24.5 0.0142 330
    1 7/0.43 1.29 0.8 1.8 18.5 18.1 0.0128 380
    1.5 7/0.52 1.56 0.8 1.8 19.5 12.1 0.0112 470
    2.5 7/0.67 2.01 0.8 1.8 21.5 7.41 0.0093 640
    4 7/0.85 2.55 1 1.8 26 4.61 0.0092 970
    6 7/1.04 3.12 1 1.8 28.5 3.08 0.0078 1290
    14 0.5 7/0.30 0.9 0.8 1.8 16.5 36 0.0162 280
    0.75 7/0.37 1.11 0.8 1.8 17.5 24.5 0.0142 340
    1 7/0.43 1.29 0.8 1.8 18.5 18.1 0.0128 390
    1.5 7/0.52 1.56 0.8 1.8 19.5 12.1 0.0112 480
    2.5 7/0.67 2.01 0.8 1.8 21.5 7.41 0.0093 660
    4 7/0.85 2.55 1 1.8 26 4.61 0.0092 1000
    6 7/1.04 3.12 1 1.8 28.5 3.08 0.0078 1340
    15 0.5 7/0.30 0.9 0.8 1.8 17.5 36 0.0162 310
    0.75 7/0.37 1.11 0.8 1.8 18.5 24.5 0.0142 370
    1 7/0.43 1.29 0.8 1.8 19 18.1 0.0128 430
    1.5 7/0.52 1.56 0.8 1.8 20.5 12.1 0.0112 530
    2.5 7/0.67 2.01 0.8 1.8 22.5 7.41 0.0093 730
    4 7/0.85 2.55 1 1.8 27 4.61 0.0092 1100
    6 7/1.04 3.12 1 1.8 30 3.08 0.0078 1480
    16 0.5 7/0.30 0.9 0.8 1.8 17.5 36 0.0162 320
    0.75 7/0.37 1.11 0.8 1.8 18.5 24.5 0.0142 380
    1 7/0.43 1.29 0.8 1.8 19 18.1 0.0128 440
    1.5 7/0.52 1.56 0.8 1.8 20.5 12.1 0.0112 540
    2.5 7/0.67 2.01 0.8 1.8 22.5 7.41 0.0093 750
    4 7/0.85 2.55 1 1.8 27 4.61 0.0092 1140
    6 7/1.04 3.12 1 1.8 30 3.08 0.0078 1530
    17 0.5 7/0.30 0.9 0.8 1.8 18 36 0.0162 340
    0.75 7/0.37 1.11 0.8 1.8 19 24.5 0.0142 410
    1 7/0.43 1.29 0.8 1.8 20 18.1 0.0128 480
    1.5 7/0.52 1.56 0.8 1.8 21.5 12.1 0.0112 590
    2.5 7/0.67 2.01 0.8 1.8 23.5 7.41 0.0093 820
    4 7/0.85 2.55 1 1.8 28.5 4.61 0.0092 1240
    6 7/1.04 3.12 1 1.9 31.5 3.08 0.0078 1660
    18 0.5 7/0.30 0.9 0.8 1.8 18 36 0.0162 350
    0.75 7/0.37 1.11 0.8 1.8 19 24.5 0.0142 420
    1 7/0.43 1.29 0.8 1.8 20 18.1 0.0128 490
    1.5 7/0.52 1.56 0.8 1.8 21.5 12.1 0.0112 610
    2.5 7/0.67 2.01 0.8 1.8 23.5 7.41 0.0093 840
    4 7/0.85 2.55 1 1.8 28.5 4.61 0.0092 1280
    6 7/1.04 3.12 1 1.8 31.5 3.08 0.0078 1720
    19 0.5 7/0.30 0.9 0.8 1.8 18 36 0.0162 360
    0.75 7/0.37 1.11 0.8 1.8 19 24.5 0.0142 430
    1 7/0.43 1.29 0.8 1.8 20 18.1 0.0128 500
    1.5 7/0.52 1.56 0.8 1.8 21.5 12.1 0.0112 620
    2.5 7/0.67 2.01 0.8 1.8 23.5 7.41 0.0093 860
    4 7/0.85 2.55 1 1.8 28.5 4.61 0.0092 1310
    6 7/1.04 3.12 1 1.8 31.5 3.08 0.0078 1770
    20 0.5 7/0.30 0.9 0.8 1.8 19 36 0.0162 380
    0.75 7/0.37 1.11 0.8 1.8 20 24.5 0.0142 460
    1 7/0.43 1.29 0.8 1.8 21 18.1 0.0128 540
    1.5 7/0.52 1.56 0.8 1.8 22.5 12.1 0.0112 670
    2.5 7/0.67 2.01 0.8 1.8 25 7.41 0.0093 930
    4 7/0.85 2.55 1 1.8 30 4.61 0.0092 1420
    6 7/1.04 3.12 1 1.9 33.5 3.08 0.0078 1920
    21 0.5 7/0.30 0.9 0.8 1.8 19 36 0.0162 390
    0.75 7/0.37 1.11 0.8 1.8 20 24.5 0.0142 470
    1 7/0.43 1.29 0.8 1.8 21 18.1 0.0128 550
    1.5 7/0.52 1.56 0.8 1.8 22.5 12.1 0.0112 680
    2.5 7/0.67 2.01 0.8 1.8 25 7.41 0.0093 940
    4 7/0.85 2.55 1 1.8 30 4.61 0.0092 1440
    6 7/1.04 3.12 1 1.9 33.5 3.08 0.0078 1960
    22 0.5 7/0.30 0.9 0.8 1.8 20 36 0.0162 420
    0.75 7/0.37 1.11 0.8 1.8 21 24.5 0.0142 510
    1 7/0.43 1.29 0.8 1.8 22 18.1 0.0128 590
    1.5 7/0.52 1.56 0.8 1.8 23.5 12.1 0.0112 740
    2.5 7/0.67 2.01 0.8 1.8 26 7.41 0.0093 1030
    4 7/0.85 2.55 1 1.9 32 4.61 0.0092 1580
    6 7/1.04 3.12 1 2 35.5 3.08 0.0078 2140
    23 0.5 7/0.30 0.9 0.8 1.8 20 36 0.0162 430
    0.75 7/0.37 1.11 0.8 1.8 21 24.5 0.0142 520
    1 7/0.43 1.29 0.8 1.8 22 18.1 0.0128 600
    1.5 7/0.52 1.56 0.8 1.8 23.5 12.1 0.0112 750
    2.5 7/0.67 2.01 0.8 1.8 26 7.41 0.0093 1050
    4 7/0.85 2.55 1 1.9 32 4.61 0.0092 1620
    6 7/1.04 3.12 1 2 35.5 3.08 0.0078 2190
    24 0.5 7/0.30 0.9 0.8 1.8 21 36 0.0162 440
    0.75 7/0.37 1.11 0.8 1.8 22 24.5 0.0142 530
    1 7/0.43 1.29 0.8 1.8 23 18.1 0.0128 620
    1.5 7/0.52 1.56 0.8 1.8 25 12.1 0.0112 770
    2.5 7/0.67 2.01 0.8 1.8 27.5 7.41 0.0093 1070
    4 7/0.85 2.55 1 1.9 34 4.61 0.0092 1660
    6 7/1.04 3.12 1 2 37.5 3.08 0.0078 2250
    25 0.5 7/0.30 0.9 0.8 1.8 21.5 36 0.0162 460
    0.75 7/0.37 1.11 0.8 1.8 22.5 24.5 0.0142 560
    1 7/0.43 1.29 0.8 1.8 23.5 18.1 0.0128 660
    1.5 7/0.52 1.56 0.8 1.8 25.5 12.1 0.0112 820
    2.5 7/0.67 2.01 0.8 1.8 28 7.41 0.0093 1140
    4 7/0.85 2.55 1 1.9 34.5 4.61 0.0092 1760
    6 7/1.04 3.12 1 2 38.5 3.08 0.0078 2390
    26 0.5 7/0.30 0.9 0.8 1.8 21.5 36 0.0162 470
    0.75 7/0.37 1.11 0.8 1.8 22.5 24.5 0.0142 570
    1 7/0.43 1.29 0.8 1.8 23.5 18.1 0.0128 670
    1.5 7/0.52 1.56 0.8 1.8 25.5 12.1 0.0112 830
    2.5 7/0.67 2.01 0.8 1.8 28 7.41 0.0093 1160
    4 7/0.85 2.55 1 1.9 34.5 4.61 0.0092 1800
    6 7/1.04 3.12 1 2 38.5 3.08 0.0078 2440
    27 0.5 7/0.30 0.9 0.8 1.8 21.5 36 0.0162 480
    0.75 7/0.37 1.11 0.8 1.8 22.5 24.5 0.0142 580
    1 7/0.43 1.29 0.8 1.8 23.5 18.1 0.0128 680
    1.5 7/0.52 1.56 0.8 1.8 25.5 12.1 0.0112 840
    2.5 7/0.67 2.01 0.8 1.8 28 7.41 0.0093 1190
    4 7/0.85 2.55 1 1.9 34.5 4.61 0.0092 1830
    6 7/1.04 3.12 1 2 38.5 3.08 0.0078 2500
    28 0.5 7/0.30 0.9 0.8 1.8 22 36 0.0162 500
    0.75 7/0.37 1.11 0.8 1.8 23.5 24.5 0.0142 610
    1 7/0.43 1.29 0.8 1.8 24.5 18.1 0.0128 720
    1.5 7/0.52 1.56 0.8 1.8 26.5 12.1 0.0112 900
    2.5 7/0.67 2.01 0.8 1.8 29 7.41 0.0093 1260
    4 7/0.85 2.55 1 2 36 4.61 0.0092 1960
    6 7/1.04 3.12 1 2.1 40 3.08 0.0078 2660
    29 0.5 7/0.30 0.9 0.8 1.8 22 36 0.0162 510
    0.75 7/0.37 1.11 0.8 1.8 23.5 24.5 0.0142 620
    1 7/0.43 1.29 0.8 1.8 24.5 18.1 0.0128 730
    1.5 7/0.52 1.56 0.8 1.8 26.5 12.1 0.0112 910
    2.5 7/0.67 2.01 0.8 1.8 29 7.41 0.0093 1280
    4 7/0.85 2.55 1 2 36 4.61 0.0092 2000
    6 7/1.04 3.12 1 2.1 40 3.08 0.0078 2720
    30 0.5 7/0.30 0.9 0.8 1.8 22 36 0.0162 520
    0.75 7/0.37 1.11 0.8 1.8 23.5 24.5 0.0142 630
    1 7/0.43 1.29 0.8 1.8 24.5 18.1 0.0128 740
    1.5 7/0.52 1.56 0.8 1.8 26.5 12.1 0.0112 930
    2.5 7/0.67 2.01 0.8 1.8 29 7.41 0.0093 1300
    4 7/0.85 2.55 1 2 36 4.61 0.0092 2030
    6 7/1.04 3.12 1 2.1 40 3.08 0.0078 2770
