CVV-SWA

Application and Description

CVV-SWA cables are used in duct, tray and for direct burying in ground. The cable is subject to immerse in water all the line.

Reference Standard

IEC 60502-1

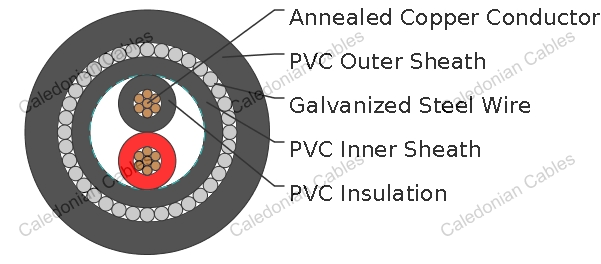

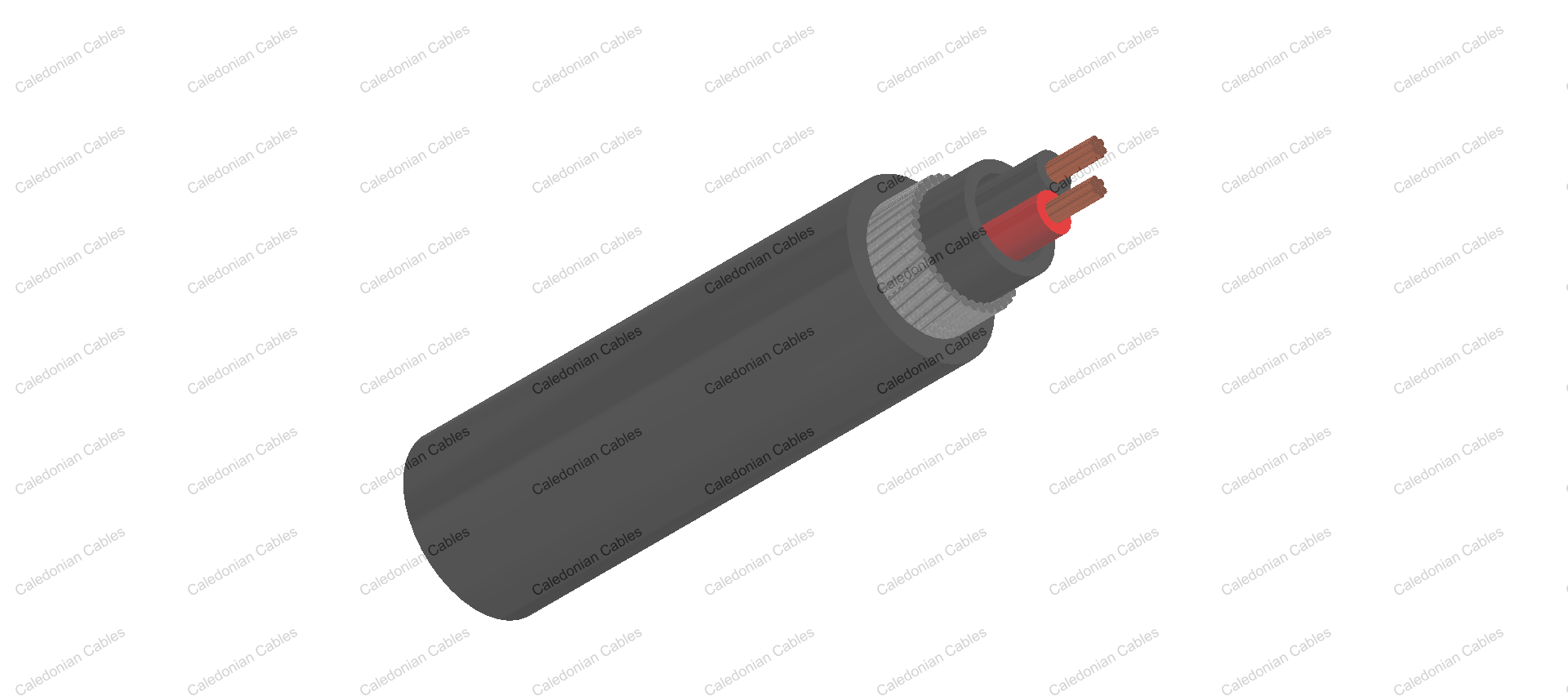

Cable Construction

Conductor	Stranded annealed copper wires, Sizes: 0.5 mm² up to 6 mm²
Insulation	Polyvinyl chloride (PVC)
Color	2-4 cores : Black, White, Red and Green
Color	More than 4 cores : Black core with marking numbers
Filler	Non-hygroscopic material(optional)
Binding tape	Polyester (Mylar) tape (optional)
Inner sheath	Polyvinyl chloride (PVC), Black color
Armour	Galvanized steel wire
Separator Tape	Polyester (Mylar) tape
Outer sheath	Polyvinyl chloride (PVC), Black color(A special flame retardant can be supplied)

Technical Characteristics

Maximum conductor temperature 70°C

Circuit voltage not exceeding 600 volts

Test voltage 3500 volts

Cable Parameter

NO. OF CORES	CONDUCTOR			THICK- NESS OF INSULATION	THICK- NESS OF INNER SHEATH	DIAMETER OF STEEL WIRE ARMOUR	THICK- NESS OF OUTER SHEATH	OVERALL DIAMETER	MAXIMUM CONDUCTOR RESISTANCE (AT 20°C)	MINIMUM INSULATION RESISTANCE (AT 70°C)	CABLE WEIGHT
	NOMINAL CROSS- SECTIONAL AREA	NO.& DIA. OF WIRES	DIAMETER	THICK- NESS OF INSULATION	THICK- NESS OF INNER SHEATH	DIAMETER OF STEEL WIRE ARMOUR	THICK- NESS OF OUTER SHEATH	OVERALL DIAMETER	MAXIMUM CONDUCTOR RESISTANCE (AT 20°C)	MINIMUM INSULATION RESISTANCE (AT 70°C)	CABLE WEIGHT
	MM²	MM	MM	MM	MM	MM	MM	OHM/KM	OHM/KM	KG/KM	MM
2	0.5	7/0.30	0.9	0.8	1	0.8	1.8	14.5	36	0.0162	300
	0.75	7/0.37	1.11	0.8	1	0.8	1.8	15	24.5	0.0142	320
	1	7/0.43	1.29	0.8	1	0.8	1.8	15.5	18.1	0.0128	340
	1.5	7/0.52	1.56	0.8	1	0.8	1.8	16	12.1	0.0112	370
	2.5	7/0.67	2.01	0.8	1	0.8	1.8	17	7.41	0.0093	430
	4	7/0.85	2.55	1	1	1.25	1.8	20	4.61	0.0092	670
	6	7/1.04	3.12	1	1	1.25	1.8	21	3.08	0.0078	760
3	0.5	7/0.30	0.9	0.8	1	0.8	1.8	15	36	0.0162	320
	0.75	7/0.37	1.11	0.8	1	0.8	1.8	15.5	24.5	0.0142	350
	1	7/0.43	1.29	0.8	1	0.8	1.8	16	18.1	0.0128	370
	1.5	7/0.52	1.56	0.8	1	0.8	1.8	16.5	12.1	0.0112	410
	2.5	7/0.67	2.01	0.8	1	0.8	1.8	17.5	7.41	0.0093	480
	4	7/0.85	2.55	1	1	1.25	1.8	20.5	4.61	0.0092	750
	6	7/1.04	3.12	1	1	1.25	1.8	22	3.08	0.0078	870
4	0.5	7/0.30	0.9	0.8	1	0.8	1.8	16	36	0.0162	360
	0.75	7/0.37	1.11	0.8	1	0.8	1.8	16.5	24.5	0.0142	390
	1	7/0.43	1.29	0.8	1	0.8	1.8	17	18.1	0.0128	420
	1.5	7/0.52	1.56	0.8	1	0.8	1.8	17.5	12.1	0.0112	460
	2.5	7/0.67	2.01	0.8	1	1.25	1.8	19.5	7.41	0.0093	660
	4	7/0.85	2.55	1	1	1.25	1.8	22	4.61	0.0092	860
	6	7/1.04	3.12	1	1	1.25	1.8	23.5	3.08	0.0078	1010
5	0.5	7/0.30	0.9	0.8	1	0.8	1.8	16.5	36	0.0162	400
	0.75	7/0.37	1.11	0.8	1	0.8	1.8	17.5	24.5	0.0142	430
	1	7/0.43	1.29	0.8	1	0.8	1.8	18	18.1	0.0128	470
	1.5	7/0.52	1.56	0.8	1	1.25	1.8	19.5	12.1	0.0112	640
	2.5	7/0.67	2.01	0.8	1	1.25	1.8	20.5	7.41	0.0093	760
	4	7/0.85	2.55	1	1	1.25	1.8	23.5	4.61	0.0092	990
	6	7/1.04	3.12	1	1	1.25	1.8	25	3.08	0.0078	1170
6	0.5	7/0.30	0.9	0.8	1	0.8	1.8	17.5	36	0.0162	420
	0.75	7/0.37	1.11	0.8	1	0.8	1.8	18	24.5	0.0142	470
	1	7/0.43	1.29	0.8	1	1.25	1.8	19.5	18.1	0.0128	620
	1.5	7/0.52	1.56	0.8	1	1.25	1.8	20.5	12.1	0.0112	690
	2.5	7/0.67	2.01	0.8	1	1.25	1.8	22	7.41	0.0093	820
	4	7/0.85	2.55	1	1	1.25	1.8	25	4.61	0.0092	1070
	6	7/1.04	3.12	1	1	1.6	1.8	27	3.08	0.0078	1420
7	0.5	7/0.30	0.9	0.8	1	0.8	1.8	17.5	36	0.0162	430
	0.75	7/0.37	1.11	0.8	1	0.8	1.8	18	24.5	0.0142	480
	1	7/0.43	1.29	0.8	1	1.25	1.8	19.5	18.1	0.0128	630
	1.5	7/0.52	1.56	0.8	1	1.25	1.8	20.5	12.1	0.0112	700
	2.5	7/0.67	2.01	0.8	1	1.25	1.8	22	7.41	0.0093	840
	4	7/0.85	2.55	1	1	1.25	1.8	25	4.61	0.0092	1100
	6	7/1.04	3.12	1	1	1.6	1.8	27	3.08	0.0078	1470
8	0.5	7/0.30	0.9	0.8	1	1.25	1.8	19.5	36	0.0162	580
	0.75	7/0.37	1.11	0.8	1	1.25	1.8	20	24.5	0.0142	640
	1	7/0.43	1.29	0.8	1	1.25	1.8	20.5	18.1	0.0128	690
	1.5	7/0.52	1.56	0.8	1	1.25	1.8	21.5	12.1	0.0112	770
	2.5	7/0.67	2.01	0.8	1	1.25	1.8	23	7.41	0.0093	930
	4	7/0.85	2.55	1	1	1.6	1.8	27	4.61	0.0092	1370
	6	7/1.04	3.12	1	1	1.6	1.8	29	3.08	0.0078	1640
9	0.5	7/0.30	0.9	0.8	1	1.25	1.8	20	36	0.0162	640
	0.75	7/0.37	1.11	0.8	1	1.25	1.8	21	24.5	0.0142	700
	1	7/0.43	1.29	0.8	1	1.25	1.8	21.5	18.1	0.0128	750
	1.5	7/0.52	1.56	0.8	1	1.25	1.8	22.5	12.1	0.0112	840
	2.5	7/0.67	2.01	0.8	1	1.25	1.8	24	7.41	0.0093	1010
	4	7/0.85	2.55	1	1	1.6	1.8	28.5	4.61	0.0092	1500
	6	7/1.04	3.12	1	1	1.6	1.8	30.5	3.08	0.0078	1800
10	0.5	7/0.30	0.9	0.8	1	1.25	1.8	21	36	0.0162	680
	0.75	7/0.37	1.11	0.8	1	1.25	1.8	22	24.5	0.0142	740
	1	7/0.43	1.29	0.8	1	1.25	1.8	23	18.1	0.0128	810
	1.5	7/0.52	1.56	0.8	1	1.25	1.8	24	12.1	0.0112	910
	2.5	7/0.67	2.01	0.8	1	1.6	1.8	26.5	7.41	0.0093	1240
	4	7/0.85	2.55	1	1	1.6	1.8	30.5	4.61	0.0092	1620
	6	7/1.04	3.12	1	1	1.6	1.9	33	3.08	0.0078	1980
11	0.5	7/0.30	0.9	0.8	1	1.25	1.8	21.5	36	0.0162	710
	0.75	7/0.37	1.11	0.8	1	1.25	1.8	22.5	24.5	0.0142	790
	1	7/0.43	1.29	0.8	1	1.25	1.8	23.5	18.1	0.0128	850
	1.5	7/0.52	1.56	0.8	1	1.25	1.8	24.5	12.1	0.0112	960
	2.5	7/0.67	2.01	0.8	1	1.6	1.8	27	7.41	0.0093	1310
	4	7/0.85	2.55	1	1	1.6	1.8	31	4.61	0.0092	1750
	6	7/1.04	3.12	1	1	1.6	1.9	33.5	3.08	0.0078	2130
12	0.5	7/0.30	0.9	0.8	1	1.25	1.8	21.5	36	0.0162	720
	0.75	7/0.37	1.11	0.8	1	1.25	1.8	22.5	24.5	0.0142	800
	1	7/0.43	1.29	0.8	1	1.25	1.8	23.5	18.1	0.0128	860
	1.5	7/0.52	1.56	0.8	1	1.25	1.8	24.5	12.1	0.0112	980
	2.5	7/0.67	2.01	0.8	1	1.6	1.8	27	7.41	0.0093	1330
	4	7/0.85	2.55	1	1	1.6	1.8	31	4.61	0.0092	1780
	6	7/1.04	3.12	1	1	1.6	1.9	33.5	3.08	0.0078	2190
13	0.5	7/0.30	0.9	0.8	1	1.25	1.8	22.5	36	0.0162	760
	0.75	7/0.37	1.11	0.8	1	1.25	1.8	23.5	24.5	0.0142	840
	1	7/0.43	1.29	0.8	1	1.25	1.8	24	18.1	0.0128	920
	1.5	7/0.52	1.56	0.8	1	1.6	1.8	26	12.1	0.0112	1190
	2.5	7/0.67	2.01	0.8	1	1.6	1.8	28	7.41	0.0093	1430
	4	7/0.85	2.55	1	1	1.6	1.8	32.5	4.61	0.0092	1910
	6	7/1.04	3.12	1	1	1.6	1.9	35	3.08	0.0078	2350
14	0.5	7/0.30	0.9	0.8	1	1.25	1.8	22.5	36	0.0162	770
	0.75	7/0.37	1.11	0.8	1	1.25	1.8	23.5	24.5	0.0142	850
	1	7/0.43	1.29	0.8	1	1.25	1.8	24	18.1	0.0128	930
	1.5	7/0.52	1.56	0.8	1	1.6	1.8	26	12.1	0.0112	1200
	2.5	7/0.67	2.01	0.8	1	1.6	1.8	28	7.41	0.0093	1450
	4	7/0.85	2.55	1	1	1.6	1.8	32.5	4.61	0.0092	1950
	6	7/1.04	3.12	1	1	1.6	1.9	35	3.08	0.0078	2400
15	0.5	7/0.30	0.9	0.8	1	1.25	1.8	23	36	0.0162	820
	0.75	7/0.37	1.11	0.8	1	1.25	1.8	24	24.5	0.0142	920
	1	7/0.43	1.29	0.8	1	1.25	1.8	25	18.1	0.0128	1000
	1.5	7/0.52	1.56	0.8	1	1.6	1.8	27	12.1	0.0112	1280
	2.5	7/0.67	2.01	0.8	1	1.6	1.8	29	7.41	0.0093	1560
	4	7/0.85	2.55	1	1	1.6	1.9	34	4.61	0.0092	2120
	6	7/1.04	3.12	1	1	1.6	2	37	3.08	0.0078	2600
16	0.5	7/0.30	0.9	0.8	1	1.25	1.8	23	36	0.0162	830
	0.75	7/0.37	1.11	0.8	1	1.25	1.8	24	24.5	0.0142	930
	1	7/0.43	1.29	0.8	1	1.25	1.8	25	18.1	0.0128	1010
	1.5	7/0.52	1.56	0.8	1	1.6	1.8	27	12.1	0.0112	1300
	2.5	7/0.67	2.01	0.8	1	1.6	1.8	29	7.41	0.0093	1580
	4	7/0.85	2.55	1	1	1.6	1.9	34	4.61	0.0092	2160
	6	7/1.04	3.12	1	1	1.6	2	37	3.08	0.0078	2660
17	0.5	7/0.30	0.9	0.8	1	1.25	1.8	24	36	0.0162	880
	0.75	7/0.37	1.11	0.8	1	1.25	1.8	25	24.5	0.0142	980
	1	7/0.43	1.29	0.8	1	1.6	1.8	26.5	18.1	0.0128	1220
	1.5	7/0.52	1.56	0.8	1	1.6	1.8	28	12.1	0.0112	1390
	2.5	7/0.67	2.01	0.8	1	1.6	1.8	30	7.41	0.0093	1690
	4	7/0.85	2.55	1	1	1.6	1.9	35.5	4.61	0.0092	2320
	6	7/1.04	3.12	1	1	2	2	39.5	3.08	0.0078	3120
18	0.5	7/0.30	0.9	0.8	1	1.25	1.8	24	36	0.0162	890
	0.75	7/0.37	1.11	0.8	1	1.25	1.8	25	24.5	0.0142	990
	1	7/0.43	1.29	0.8	1	1.6	1.8	26.5	18.1	0.0128	1230
	1.5	7/0.52	1.56	0.8	1	1.6	1.8	28	12.1	0.0112	1400
	2.5	7/0.67	2.01	0.8	1	1.6	1.8	30	7.41	0.0093	1700
	4	7/0.85	2.55	1	1	1.6	1.9	35.5	4.61	0.0092	2350
	6	7/1.04	3.12	1	1	2	2	39.5	3.08	0.0078	3170
19	0.5	7/0.30	0.9	0.8	1	1.25	1.8	24	36	0.0162	900
	0.75	7/0.37	1.11	0.8	1	1.25	1.8	25	24.5	0.0142	1000
	1	7/0.43	1.29	0.8	1	1.6	1.8	26.5	18.1	0.0128	1240
	1.5	7/0.52	1.56	0.8	1	1.6	1.8	28	12.1	0.0112	1410
	2.5	7/0.67	2.01	0.8	1	1.6	1.8	30	7.41	0.0093	1730
	4	7/0.85	2.55	1	1	1.6	1.9	35.5	4.61	0.0092	2390
	6	7/1.04	3.12	1	1	2	2	39.5	3.08	0.0078	3220
20	0.5	7/0.30	0.9	0.8	1	1.25	1.8	25	36	0.0162	940
	0.75	7/0.37	1.11	0.8	1	1.6	1.8	26.5	24.5	0.0142	1200
	1	7/0.43	1.29	0.8	1	1.6	1.8	27.5	18.1	0.0128	1310
	1.5	7/0.52	1.56	0.8	1	1.6	1.8	29	12.1	0.0112	1500
	2.5	7/0.67	2.01	0.8	1	1.6	1.8	31.5	7.41	0.0093	1860
	4	7/0.85	2.55	1	1	1.6	2	37	4.61	0.0092	2570
	6	7/1.04	3.12	1	1.2	2	2.1	41.5	3.08	0.0078	3500
21	0.5	7/0.30	0.9	0.8	1	1.25	1.8	25	36	0.0162	950
	0.75	7/0.37	1.11	0.8	1	1.6	1.8	26.5	24.5	0.0142	1210
	1	7/0.43	1.29	0.8	1	1.6	1.8	27.5	18.1	0.0128	1320
	1.5	7/0.52	1.56	0.8	1	1.6	1.8	29	12.1	0.0112	1510
	2.5	7/0.67	2.01	0.8	1	1.6	1.8	31.5	7.41	0.0093	1870
	4	7/0.85	2.55	1	1	1.6	2	37	4.61	0.0092	2590
	6	7/1.04	3.12	1	1.2	2	2.1	41.5	3.08	0.0078	3540
22	0.5	7/0.30	0.9	0.8	1	1.6	1.8	26.5	36	0.0162	1150
	0.75	7/0.37	1.11	0.8	1	1.6	1.8	27.5	24.5	0.0142	1280
	1	7/0.43	1.29	0.8	1	1.6	1.8	28.5	18.1	0.0128	1400
	1.5	7/0.52	1.56	0.8	1	1.6	1.8	30	12.1	0.0112	1600
	2.5	7/0.67	2.01	0.8	1	1.6	1.9	33	7.41	0.0093	2000
	4	7/0.85	2.55	1	1	2	2.1	39.5	4.61	0.0092	3040
	6	7/1.04	3.12	1	1.2	2	2.2	43.5	3.08	0.0078	3810
23	0.5	7/0.30	0.9	0.8	1	1.6	1.8	26.5	36	0.0162	1160
	0.75	7/0.37	1.11	0.8	1	1.6	1.8	27.5	24.5	0.0142	1290
	1	7/0.43	1.29	0.8	1	1.6	1.8	28.5	18.1	0.0128	1420
	1.5	7/0.52	1.56	0.8	1	1.6	1.8	30	12.1	0.0112	1620
	2.5	7/0.67	2.01	0.8	1	1.6	1.9	33	7.41	0.0093	2030
	4	7/0.85	2.55	1	1	2	2.1	39.5	4.61	0.0092	3080
	6	7/1.04	3.12	1	1.2	2	2.2	43.5	3.08	0.0078	3870
24	0.5	7/0.30	0.9	0.8	1	1.6	1.8	27.5	36	0.0162	1210
	0.75	7/0.37	1.11	0.8	1	1.6	1.8	28.5	24.5	0.0142	1340
	1	7/0.43	1.29	0.8	1	1.6	1.8	29.5	18.1	0.0128	1470
	1.5	7/0.52	1.56	0.8	1	1.6	1.8	31.5	12.1	0.0112	1680
	2.5	7/0.67	2.01	0.8	1	1.6	1.9	34.5	7.41	0.0093	2110
	4	7/0.85	2.55	1	1.2	2	2.1	42	4.61	0.0092	3260
	6	7/1.04	3.12	1	1.2	2	2.2	45.5	3.08	0.0078	4010
25	0.5	7/0.30	0.9	0.8	1	1.6	1.8	28	36	0.0162	1250
	0.75	7/0.37	1.11	0.8	1	1.6	1.8	29	24.5	0.0142	1390
	1	7/0.43	1.29	0.8	1	1.6	1.8	30	18.1	0.0128	1530
	1.5	7/0.52	1.56	0.8	1	1.6	1.8	32	12.1	0.0112	1760
	2.5	7/0.67	2.01	0.8	1	1.6	1.9	35	7.41	0.0093	2200
	4	7/0.85	2.55	1	1.2	2	2.1	43	4.61	0.0092	3400
	6	7/1.04	3.12	1	1.2	2	2.2	46.5	3.08	0.0078	4220
26	0.5	7/0.30	0.9	0.8	1	1.6	1.8	28	36	0.0162	1260
	0.75	7/0.37	1.11	0.8	1	1.6	1.8	29	24.5	0.0142	1400
	1	7/0.43	1.29	0.8	1	1.6	1.8	30	18.1	0.0128	1540
	1.5	7/0.52	1.56	0.8	1	1.6	1.8	32	12.1	0.0112	1780
	2.5	7/0.67	2.01	0.8	1	1.6	1.9	35	7.41	0.0093	2220
	4	7/0.85	2.55	1	1.2	2	2.1	43	4.61	0.0092	3440
	6	7/1.04	3.12	1	1.2	2	2.2	46.5	3.08	0.0078	4270
27	0.5	7/0.30	0.9	0.8	1	1.6	1.8	28	36	0.0162	1270
	0.75	7/0.37	1.11	0.8	1	1.6	1.8	29	24.5	0.0142	1410
	1	7/0.43	1.29	0.8	1	1.6	1.8	30	18.1	0.0128	1550
	1.5	7/0.52	1.56	0.8	1	1.6	1.8	32	12.1	0.0112	1790
	2.5	7/0.67	2.01	0.8	1	1.6	1.9	35	7.41	0.0093	2240
	4	7/0.85	2.55	1	1.2	2	2.1	43	4.61	0.0092	3470
	6	7/1.04	3.12	1	1.2	2	2.2	46.5	3.08	0.0078	4320
28	0.5	7/0.30	0.9	0.8	1	1.6	1.8	28.5	36	0.0162	1310
	0.75	7/0.37	1.11	0.8	1	1.6	1.8	30	24.5	0.0142	1480
	1	7/0.43	1.29	0.8	1	1.6	1.8	31	18.1	0.0128	1630
	1.5	7/0.52	1.56	0.8	1	1.6	1.8	33	12.1	0.0112	1880
	2.5	7/0.67	2.01	0.8	1	1.6	1.9	36	7.41	0.0093	2350
	4	7/0.85	2.55	1	1.2	2	2.2	44.5	4.61	0.0092	3670
	6	7/1.04	3.12	1	1.2	2	2.3	48	3.08	0.0078	4550
29	0.5	7/0.30	0.9	0.8	1	1.6	1.8	28.5	36	0.0162	1320
	0.75	7/0.37	1.11	0.8	1	1.6	1.8	30	24.5	0.0142	1490
	1	7/0.43	1.29	0.8	1	1.6	1.8	31	18.1	0.0128	1640
	1.5	7/0.52	1.56	0.8	1	1.6	1.9	33	12.1	0.0112	1900
	2.5	7/0.67	2.01	0.8	1	1.6	1.9	36	7.41	0.0093	2370
	4	7/0.85	2.55	1	1.2	2	2.2	44.5	4.61	0.0092	3700
	6	7/1.04	3.12	1	1.2	2	2.3	48	3.08	0.0078	4600
30	0.5	7/0.30	0.9	0.8	1	1.6	1.8	28.5	36	0.0162	1330
	0.75	7/0.37	1.11	0.8	1	1.6	1.8	30	24.5	0.0142	1500
	1	7/0.43	1.29	0.8	1	1.6	1.8	31	18.1	0.0128	1650
	1.5	7/0.52	1.56	0.8	1	1.6	1.9	33	12.1	0.0112	1910
	2.5	7/0.67	2.01	0.8	1	1.6	1.9	36	7.41	0.0093	2400
	4	7/0.85	2.55	1	1.2	2	2.2	44.5	4.61	0.0092	3740
	6	7/1.04	3.12	1	1.2	2	2.3	48	3.08	0.0078	4660

Products

Contact Us

Hot

Certificate

Join the newsletter

CVV-SWA

Application and Description

Reference Standard

Cable Construction

Technical Characteristics

Cable Parameter

Instant Messaging

WhatsApp :

Skype :

Wechat :
