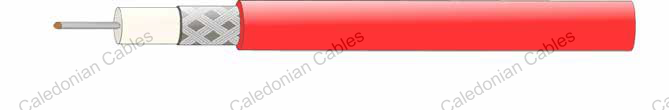

    25kV DC Screened Silicon Wire

    Applications

    The single core cables are suitable for high-voltage cabinet, power system, high voltage electric machineries, television receivers, transformers,high-voltage cables for electronic instruments, etc.

    Rated Voltage

    25kV

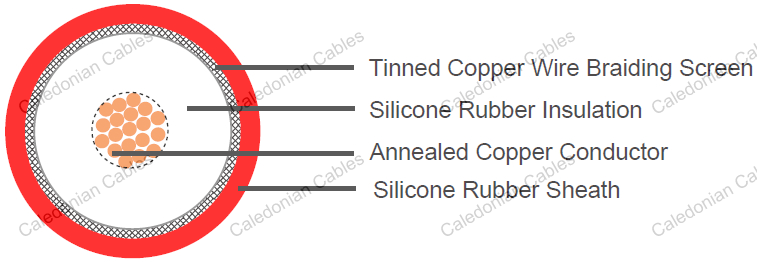

    Construction

    Conductor : Annealed copper conductor, class 5.

    Insulation : Silicon rubber.

    Screen : Tinned copper wire braiding.

    Sheath : Silicon rubber.

    Color Code

    Red, (other colours upon request).

    Physical Properties

    Operating Temperature : -45°C - 180°C

    Dimension Data

    Part NO. Conductor Approx. Overall Diameter
    No. of Core × Cross Section No./Nominal Diameter of Strands Nominal Diameter
      mm² No./mm mm mm
    25DC-SCS-1C0.20 1x0.20 7/0.20 0.6 7.1
    25DC-SCS-1C0.35 1x0.35 19/0.16 0.8 7.3
    25DC-SCS-1C0.50 1x0.50 16/0.2 0.94 7.5
    25DC-SCS-1C0.75 1x0.75 24/0.2 1.2 8.3
    25DC-SCS-1C1.0 1x1.0 32/0.2 1.34 8.5
    25DC-SCS-1C1.5 1x1.5 30/0.25 1.6 8.7
    25DC-SCS-1C2.5 1x2.5 49/0.25 2.1 10.0
    25DC-SCS-1C4.0 1x4.0 56/0.3 2.61 11.0
    25DC-SCS-1C6.0 1x6.0 84/0.3 3.21 11.8
