The single core cables are suitable for high-voltage cabinet, power system, high voltage electric machineries, television receivers, transformers,high-voltage cables for electronic instruments, etc.
15kV

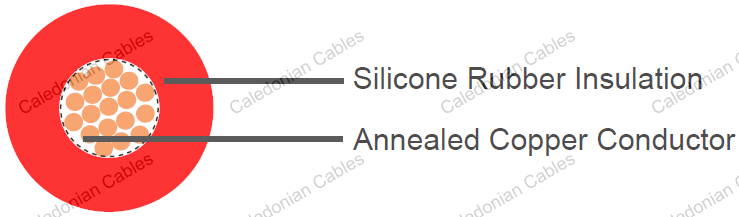

Conductor : Annealed copper conductor, class 5.
Insulation : Silicon rubber.
Red, (other colours upon request).
Operating Temperature : -45°C - 180°C
| Part NO. | Conductor | Approx. Overall Diameter | ||
|---|---|---|---|---|
| No. of Core × Cross Section | No./Nominal Diameter of Strands | Nominal Diameter | ||
| mm² | No./mm | mm | mm | |
| 15DC-S-1C0.20 | 1x0.20 | 7/0.20 | 0.6 | 4.0 |
| 15DC-S-1C0.35 | 1x0.35 | 19/0.16 | 0.8 | 4.2 |
| 15DC-S-1C0.50 | 1x0.50 | 16/0.2 | 0.94 | 4.4 |
| 15DC-S-1C0.75 | 1x0.75 | 24/0.2 | 1.2 | 5.2 |
| 15DC-S-1C1.0 | 1x1.0 | 32/0.2 | 1.34 | 5.3 |
| 15DC-S-1C1.5 | 1x1.5 | 30/0.25 | 1.6 | 6.0 |
| 15DC-S-1C2.5 | 1x2.5 | 49/0.25 | 2.1 | 6.6 |
| 15DC-S-1C4.0 | 1x4.0 | 56/0.3 | 2.61 | 7.6 |
| 15DC-S-1C6.0 | 1x6.0 | 84/0.3 | 3.21 | 8.4 |
