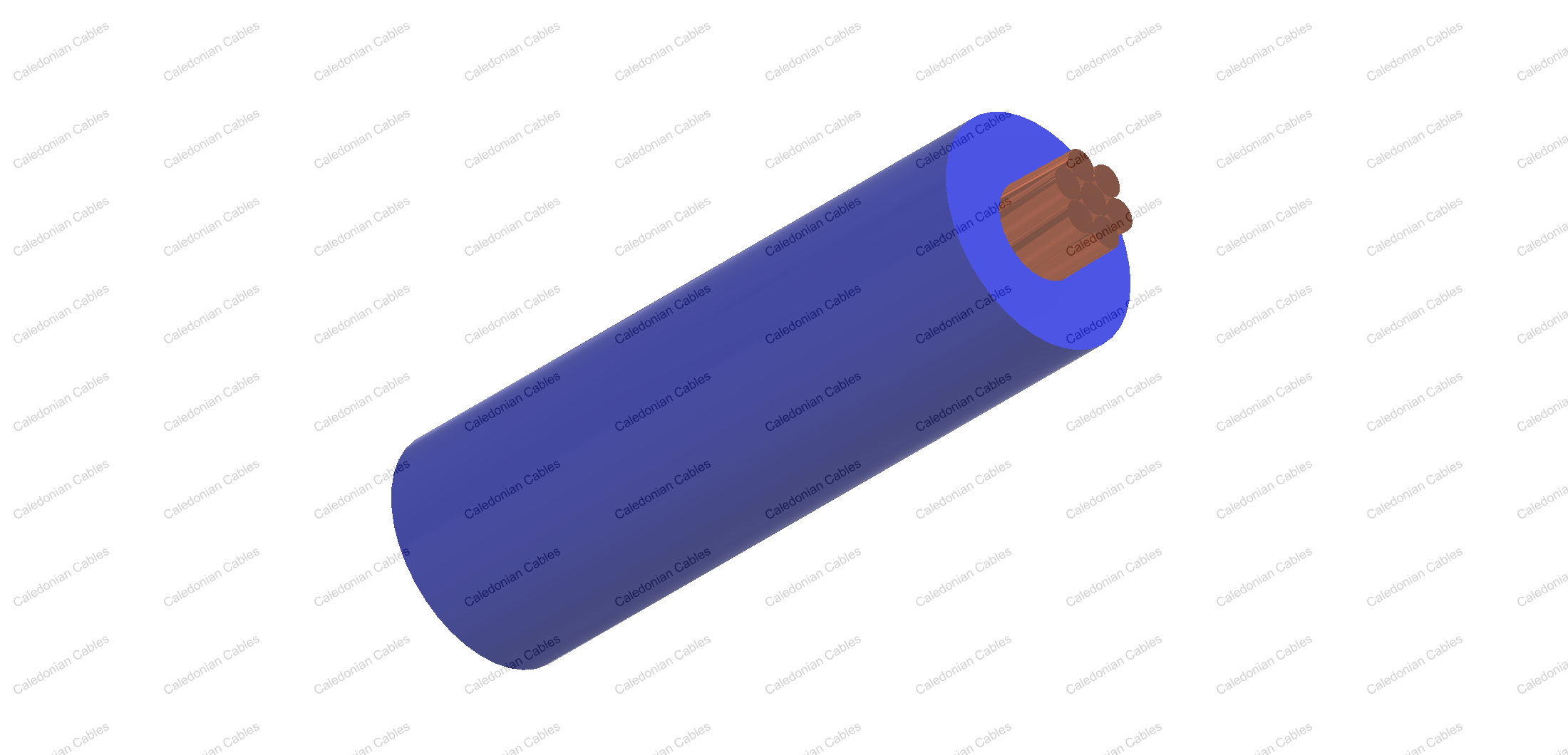

6491B is equivalent to harmonized code H07Z-R, these cables are designed for fixed wiring purposes in domestic and industrial power/ lighting applications. Can be used in trunking or conduit, or may be surface mounted when used for earthing. and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gasses when burnt which is particularly important where electronic equipment is installed.

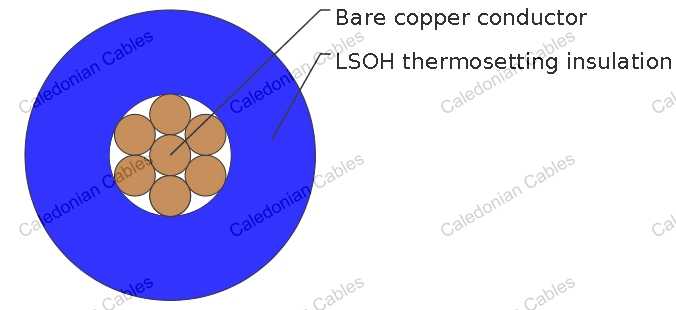

Strands to IEC 60228 Cl-2 LSOH thermosetting insulation
Thermosetting core insulation type EI5
LSOH - low smoke, zero halogen
Black, Blue, Green/Yellow, Red, Yellow, White, Violet, Brown, Grey, Orange, Pink
Working voltage : 450/750v
Test voltage : 2500 volts
Minimum bending radius : up to 10 mm² - 3 x overall diameter,above 25 mm² -6 x overall diameter
Flexing temperature : 0ºC to +90ºC
Short circuit temperature : +250ºC
Insulation resistance : 10 MΩ x km
Flame retardant : IEC 60332.1
Smoke density acc. to EN 50268 / IEC 61034
Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2
Flame test : flame-retardant acc. to EN 50265-2-1, IEC 60332.1
| AWG | No. Of Cores × Nominal Cross Sectional Area | Nominal Thickness Of Insulation | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight | Minimum Insulation Resistance At 90 °C |
|---|---|---|---|---|---|---|
| # × mm² | mm | mm | kg/km | kg/km | mΩ·km | |
| 16(7/24) | 1 x 1.5 | 0.7 | 2.7-3.4 | 14.4 | 21 | 0.010 |
| 14(7/22) | 1 x 2.5 | 0.8 | 3.3-4.1 | 24 | 33 | 0.009 |
| 12(7/20) | 1 x 4 | 0.8 | 3.8-4.7 | 39 | 49 | 0.0077 |
| 10(7/18) | 1 x 6 | 0.8 | 4.3-5.4 | 58 | 71 | 0.0065 |
| 8(7/16) | 1 x 10 | 1 | 5.6-7.0 | 94 | 114 | 0.0065 |
| 6(7/14) | 1 x 16 | 1 | 6.4-8.0 | 154 | 172 | 0.0050 |
| 4(7/12) | 1 x 25 | 1.2 | 8.1-10.1 | 240 | 265 | 0.0050 |
| 2(7/10) | 1 x 35 | 1.2 | 9.0-11.3 | 350 | 397 | 0.0043 |
| 1(19/13) | 1 x 50 | 1.4 | 10.6-13.2 | 480 | 534 | 0.0043 |
| 2/0(19/11) | 1 x 70 | 1.4 | 12.1-15.1 | 672 | 830 | 0.0035 |
| 3/0(19/10) | 1 x 95 | 1.6 | 14.1-17.6 | 912 | 1054 | 0.0035 |
| 4/0(37/12) | 1 x 120 | 1.6 | 15.6-19.4 | 1152 | 1274 | 0.0032 |
| 300MCM(37/11) | 1 x 150 | 1.8 | 17.3-21.6 | 1440 | 1604 | 0.0032 |
| 350MCM(37/10) | 1 x 185 | 2.0 | 19.3-24.1 | 1776 | 2030 | 0.0032 |
| 500MCM(61/11) | 1 x 240 | 2.2 | 22.0-27.5 | 2400 | 2630 | 0.0032 |
| -(61/10) | 1 x 300 | 2.4 | 24.5-30.6 | 3010 | 3330 | 0.0030 |
| -(61/9) | 1 x 400 | 2.6 | 27.5-34.3 | 3820 | 4190 | 0.0028 |
| -(61/8) | 1 x 500 | 2.8 | 30.5-38.2 | 4800 | 5240 | 0.0028 |
| -(127/10) | 1 x 630 | 2.8 | 34.0-42.5 | 6350 | 6820 | 0.0025 |
