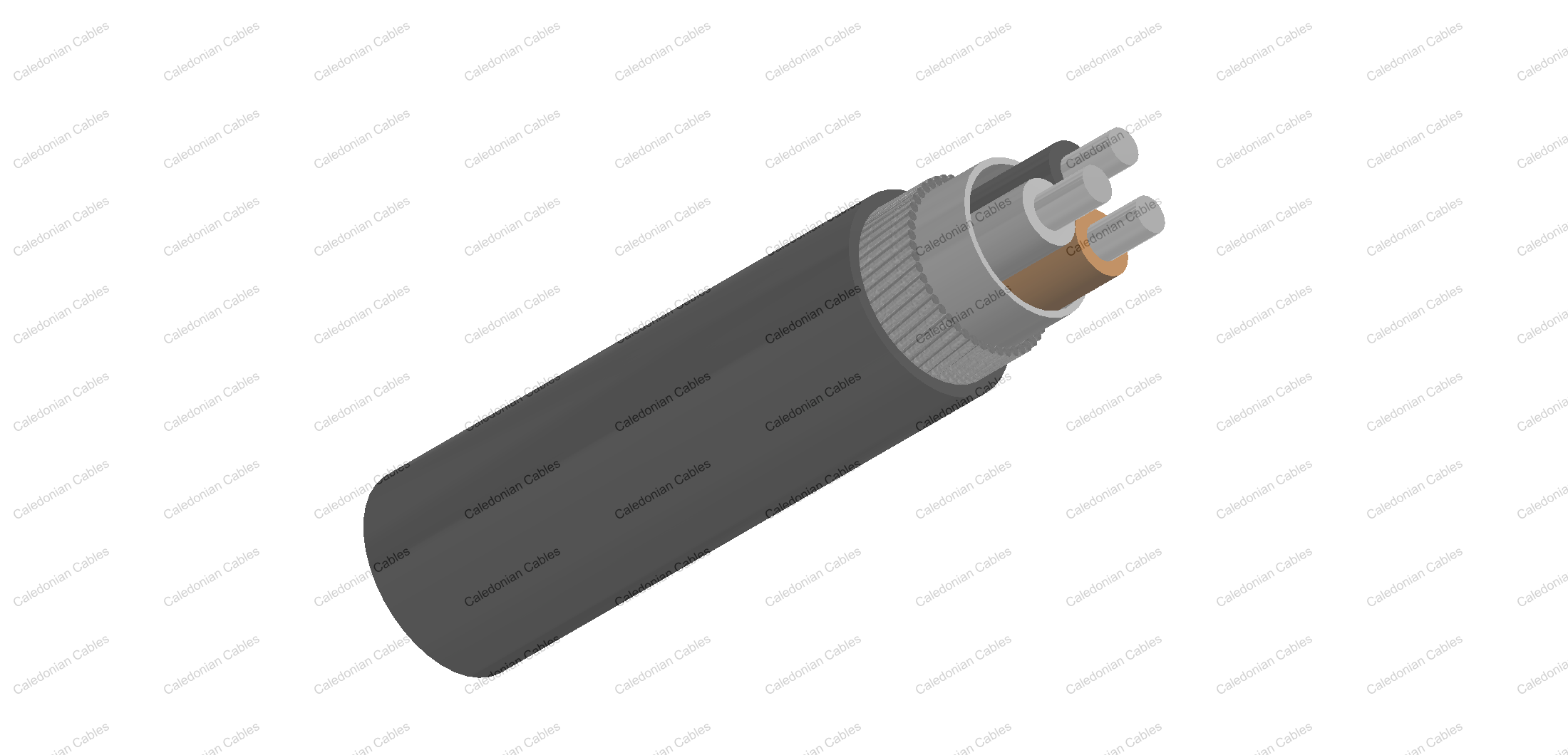

    Three-core 1900/3300 V cables with solid aluminum conductors

    APPLICATION

    These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour, so they are well adapted to underground use in industrial applications, in moist areas.

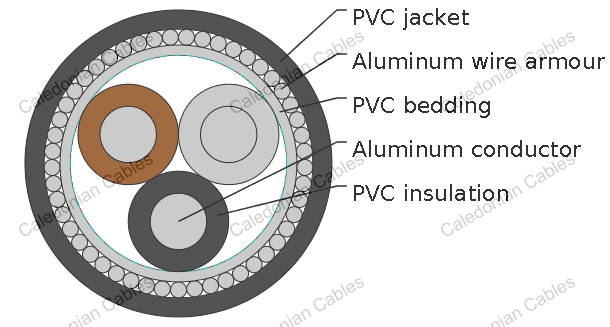

    CONSTRUCTION

    Conductor Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
    Insulation PVC(Polyvinyl Chloride) type TI1
    Colour Code 1 Core : Brown
    2 Cores : Brown or Blue
    3 Cores : Brown, Black, Grey
    4 Cores : Blue, Brown, Black, Grey
    5 Cores : Green-yellow, Blue, Brown, Black, Grey
    Above 5 Cores : White Cores with black numbers
    Filler(optional) PVC or Polypropylene yarn
    Binder Tape(optional) Polyester (Mylar) tape
    Inner Sheath/Bedding PVC (Polyvinyl Chloride)
    Armour Single Core : AWA (Aluminum WireArmour)
    Multi Core : SWA (Steel Wire or Tape Armour)
    Outer Sheath PVC(Polyvinyl Chloride), type TM1

    TECHNICAL INFORMATION

    Voltage rating 1900/3300V
    Temperature rating -20°C to +60°C
    Bending radius Single core : 10 x overall diameter
    Multicores : 8 x overall diameter
    Flame retardant IEC60332 part 1, BS4066 part 1

    CABLE PARAMETER

    Nominal cross-sectional area Nominal insulation thickness Nominal bedding thickness Nominal Armor dia. Nominal sheath thickness Approx.overall diameter Approx.cable weight
    mm² mm mm mm mm mm kg/mm
    3x16 2.2 1.0 1.6 1.8 28.9 1630
    3x25 2.2 1.0 1.6 1.8 31.3 1880
    3x35 2.2 1.0 1.6 1.9 33.7 2145
    3x35* 2.2 1.0 1.6 1.9 30.6 2145
    3x50* 2.2 1.2 2.0 2.0 33.9 2880
    3x70* 2.2 1.2 2.0 2.1 36.9 3340
    3x95* 2.2 1.2 2.0 2.2 40.0 3870
    3x120* 2.2 1.4 2.5 2.3 44.0 4980
    3x150* 2.2 1.4 2.5 2.4 46.5 5585
    3x185* 2.2 1.4 2.5 2.5 49.6 6250
    3x240* 2.2 1.6 2.5 2.6 54.2 7315
    3x300* 2.4 1.6 2.5 2.8 59.2 8365
