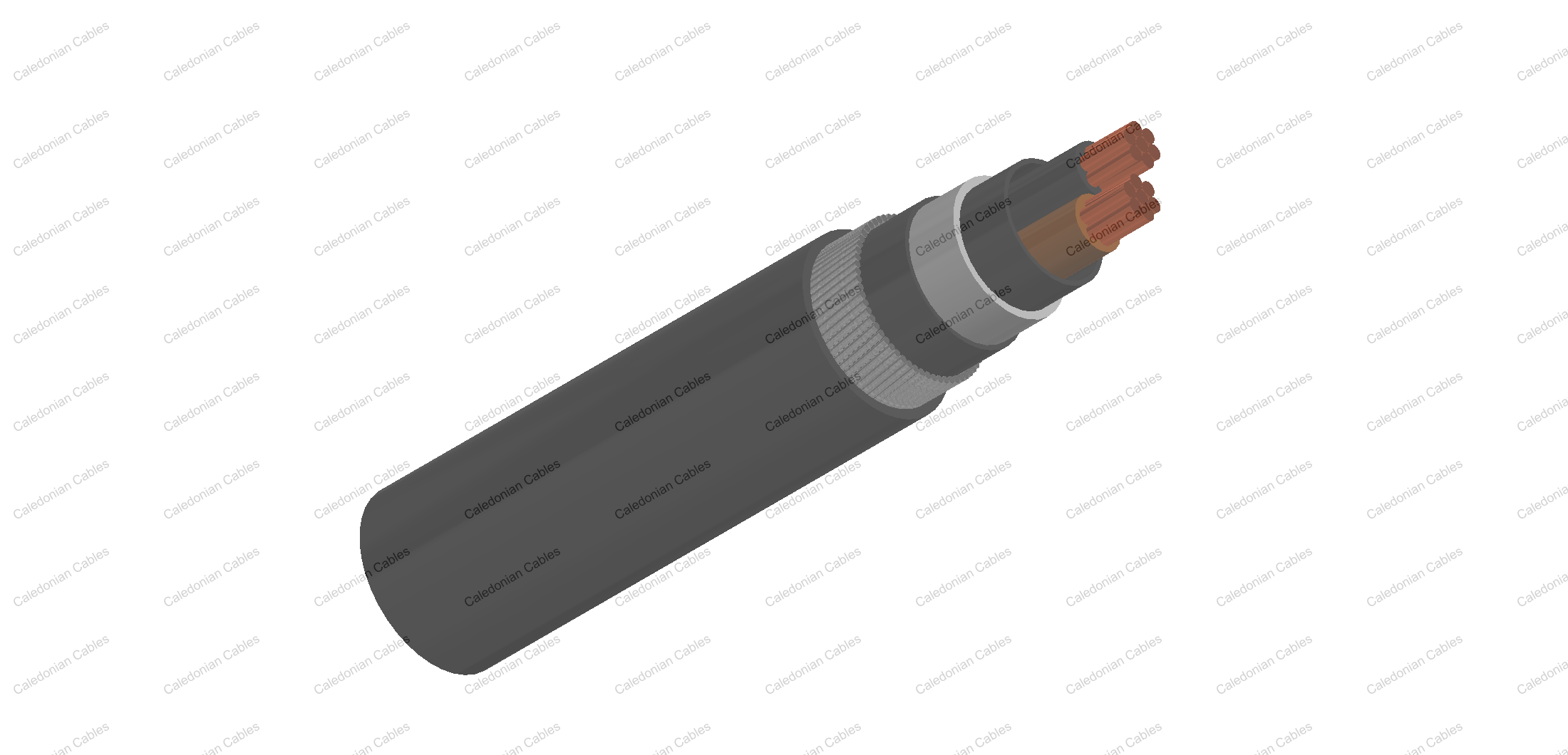

    EEMUA 133 Lead covered armoured Power Cables to BS 5467, 600/1000V

    APPLICATION

    These power and control cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications, in moist areas, where hydrocarbon and mechanical protections are needed and are protected against solvent penetration and corrosive attacks. The lead cover brings an enhanced resistance to aromatic hydrocarbons.

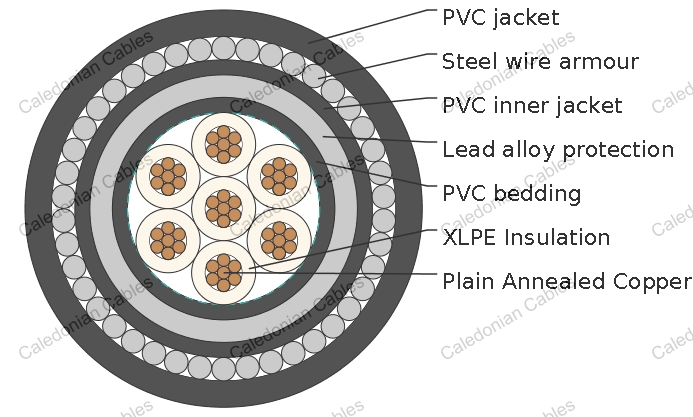

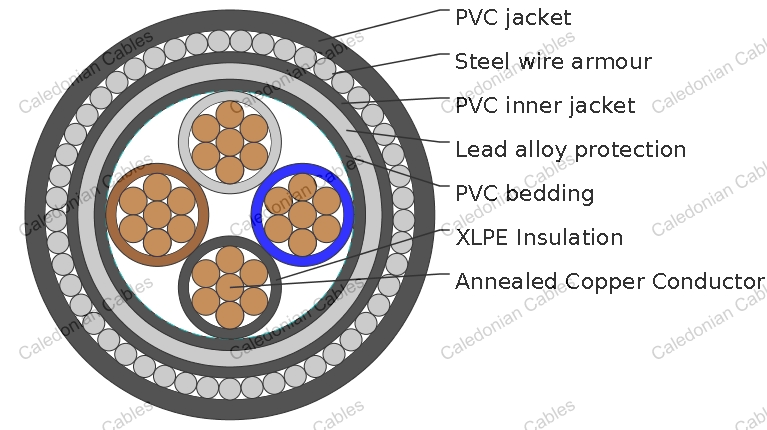

    CONSTRUCTION

    Conductor Annealed Copper conductor, circular or shaped, Class 2 to BS EN60228.
    Insulation XLPE (Cross-Linked Polyethylene) Type GP 8 conforming to BS 7655-1.3 or type GP 6 conforming to BS 7655-1.2.
    Colour Code 1 Core : Brown or Blue
    2 Cores : Brown, Blue
    3 Cores : Brown, Black, Grey
    4 Cores : Blue, Brown, Black, Grey
    5 Cores : Green/Yellow, Blue, Brown, Black, Grey
    Above 5 Cores : White Cores with black numerals
    Bedding PVC (Polyvinyl Chloride)
    Protection LC (Lead alloy 'E') sheathed
    Inner Sheath PVC (Polyvinyl Chloride)
    Armour Single Core : AWA (Aluminum Wire Armour)
    Multi Core : GSWA (Galvanized Steel Wire Armour)
    Outer Sheath PVC(Polyvinyl Chloride), or anti-rodent and anti-termite PVC(optional)

    TECHNICAL INFORMATION

    Voltage rating 600/1000V
    Temperature rating 0°C to +90°C
    Bending radius 12 x overall diameter
    Flame retardant BS EN 60332-1-2

    CABLE PARAMETER

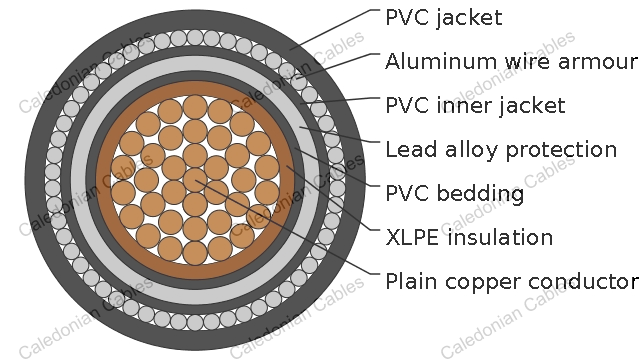

    Single-core 600/1000 V cables with lead sheath

    Nominal Cross-sectional Area Strand Type Nominal Insulation thickness Nominal Lead sheath thickness Nominal Inner Sheath thickness Nominal Alum wire Armor dia. Nominal Outer Sheath thickness Approx. Overall Diameter Aprrox Weight
    mm² No./mm mm mm mm mm mm mm kg/km
    1x50 19/1.78 1 1.2 0.8 1.37 1.5 20 1285
    1x70 19/2.14 1.1 1.2 0.8 1.37 1.5 22 1605
    1x95 19/2.52 1.1 1.2 0.8 1.37 1.6 24 1965
    1x120 37/2.03 1.2 1.3 0.8 1.37 1.6 25.5 2365
    1x150 37/2.25 1.4 1.3 1 1.37 1.7 28 2800
    1x185 37/2.52 1.6 1.4 1 1.72 1.8 31 3490
    1x240 61/2.25 1.7 1.5 1 1.72 1.8 34 4300
    1x300 61/2.52 1.8 1.6 1 1.72 1.9 37 5203
    1x400 61/2.85 2 1.7 1.2 2.14 2 42 6615

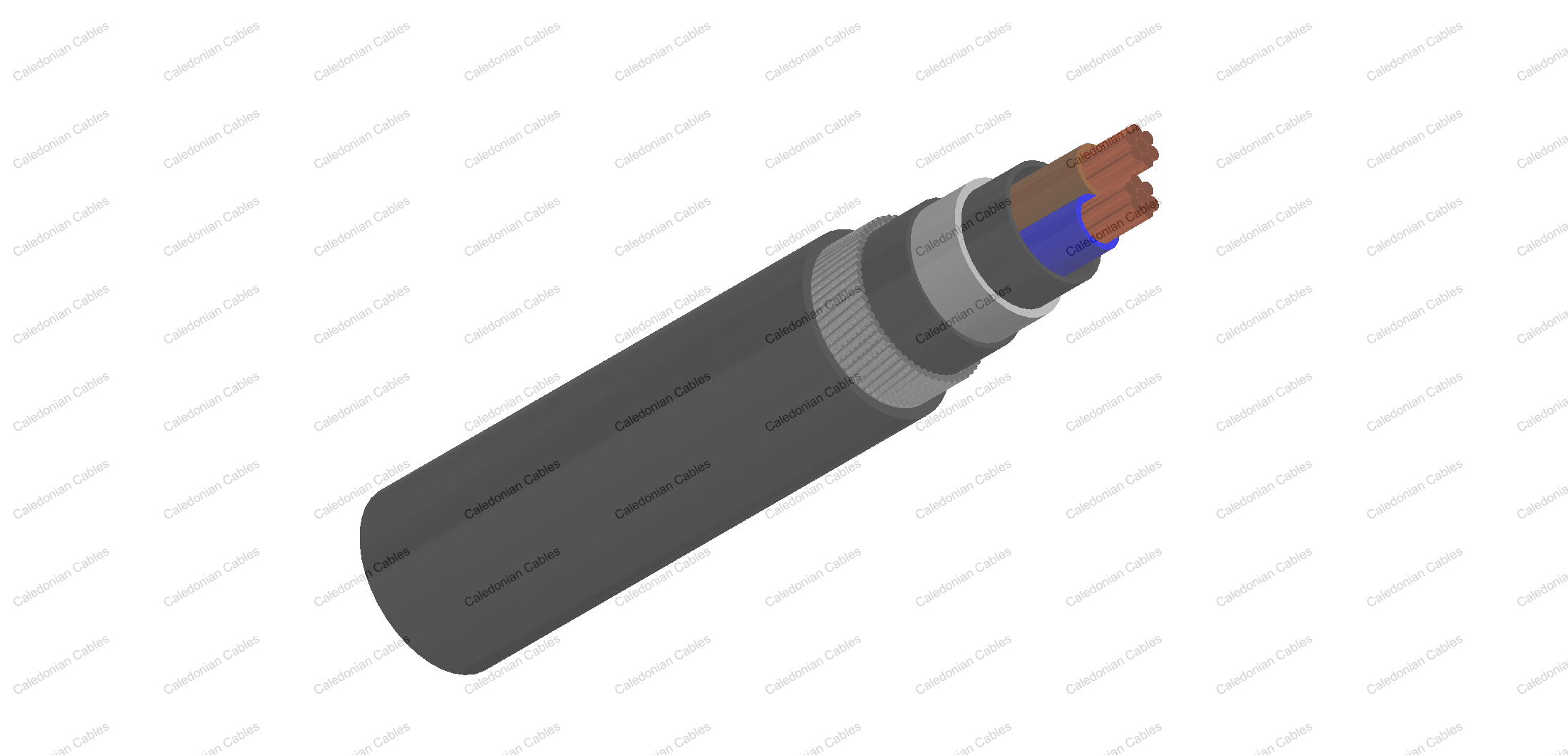

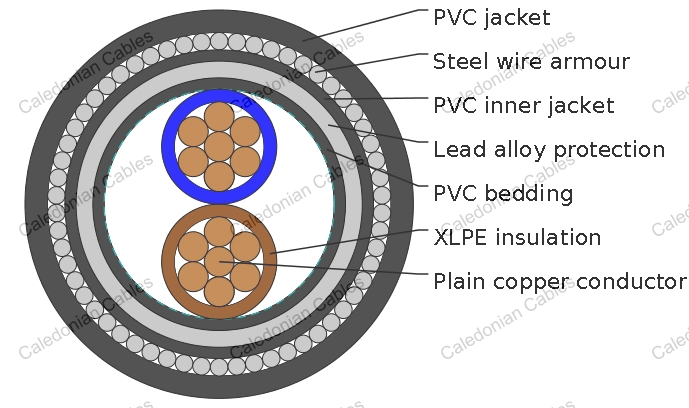

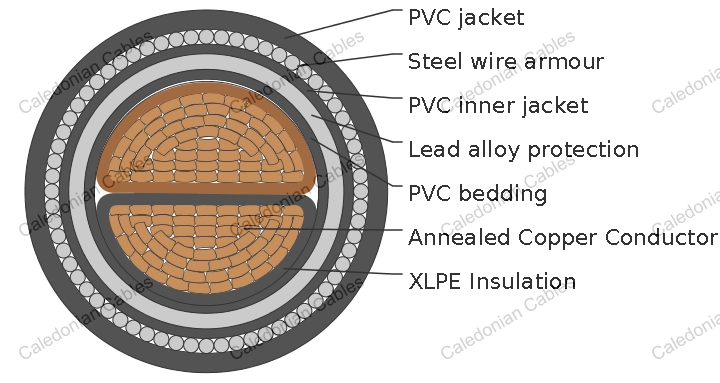

    Two-core 600/1000 V cables with lead sheath

    Nominal Cross-sectional Area Strand Type Nominal Insulation thick-ness Nominal Lead sheath thickness Nominal Inner Sheath thickness Nominal Steel Wire Armor dia. Nominal Outer Sheath thickness Approx. Overall Diameter Aprrox Weight
    mm² No./mm mm mm mm mm mm mm kg/km
    2x1.5 7/0.53 0.6 1.2 0.8 0.9 1.3 16.5 780
    2x2.5 7/0.67 0.7 1.2 0.8 0.9 1.4 17.2 985
    2x4 7/0.85 0.7 1.2 0.8 0.9 1.4 18.4 1100
    2x6 7/1.04 0.7 1.2 0.8 0.9 1.4 19.6 1240
    2x10 7/1.35 0.7 1.2 0.8 0.9 1.5 20.8 1430
    2x16 7/1.70 0.7 1.2 0.8 1.25 1.5 21.8 1700
    2x25 7/2.14 0.9 1.2 0.8 1.25 1.6 25.5 2060
    2x35* 7/2.52 0.9 1.3 1 1.6 1.7 29.4 2670
    2x50* 19/1.78 1.0 1.2 1 1.6 1.8 27.2 2640
    2x70* 19/2.14 1.1 1.3 1 1.6 1.9 30.5 3400
    2x95* 19/2.52 1.1 1.4 1.2 2.0 2.0 34.5 4530
    2x120* 37/2.03 1.2 1.4 1.2 2.0 2.1 37.8 5170
    2x150* 37/2.25 1.4 1.5 1.2 2.0 2.2 41.1 6120
    2x185* 37/2.52 1.6 1.6 1.4 2.5 2.4 46.3 7710
    2x240* 61/2.25 1.7 1.8 1.4 2.5 2.5 51.7 9650
    2x300* 61/2.52 1.8 1.9 1.6 2.5 2.6 56.3 11510

    * D-shaped stranded conductor

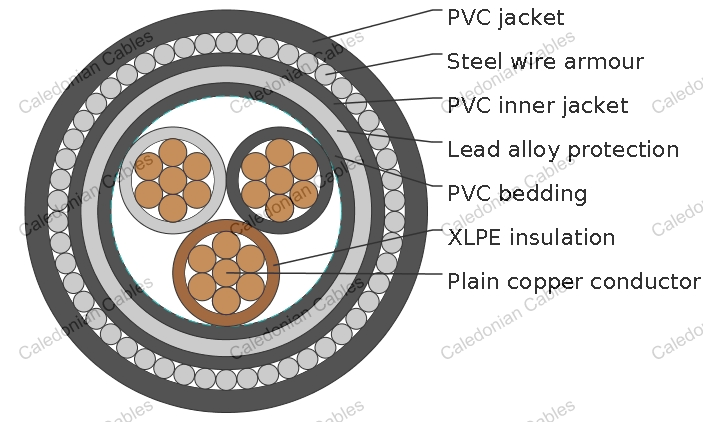

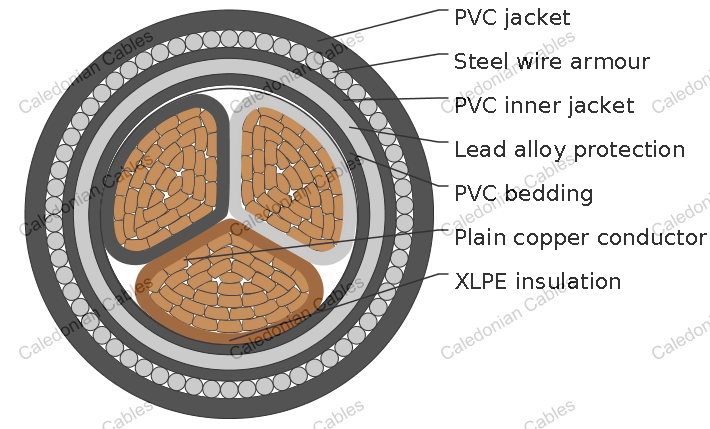

    Three-core 600/1000 V cables with lead sheath

    Nominal Cross-sectional Area Strand Type Nominal Insulation thickness Nominal Lead sheath thickness Nominal Inner Sheath thickness Nominal Steel Wire Armor dia. Nominal Outer Sheath thickness Approx. Overall Diameter Aprrox Weight
    mm² No./mm mm mm mm mm mm mm kg/km
    3x1.5 7/0.53 0.7 1.2 0.8 0.9 1.3 17 945
    3x2.5 7/0.67 0.7 1.2 0.8 1.25 1.4 19 1160
    3x4 7/0.85 0.7 1.2 0.8 1.25 1.4 20.5 1325
    3x6 7/1.04 0.7 1.2 0.8 1.25 1.4 21.5 1490
    3x10 7/1.35 0.7 1.2 0.8 1.25 1.5 23 1750
    3x16 7/1.70 0.7 1.2 0.8 1.6 1.6 26.5 2150
    3x25 7/2.14 0.9 1.3 1 1.6 1.7 31 3175
    3x35 7/2.52 0.9 1.3 1 1.6 1.8 33 3500
    3x50* 19/1.78 1 1.4 1 1.6 1.8 33.5 3905
    3x70* 19/2.14 1.1 1.5 1 2 1.9 37.5 5195
    3x95* 19/2.52 1.1 1.5 1.2 2 2.1 41.5 6365
    3x120* 37/2.03 1.2 1.6 1.2 2.5 2.2 45.5 7935
    3x150* 37/2.25 1.4 1.8 1.4 2.5 2.3 50.5 9645
    3x185* 37/2.52 1.6 1.9 1.4 3.15 2.4 56.5 12195
    3x240* 61/2.25 1.7 2 1.4 3.15 2.6 62 14765
    3x300* 61/2.52 1.8 2.2 1.6 3.5 2.7 68.5 18300

    * Shaped stranded conductor

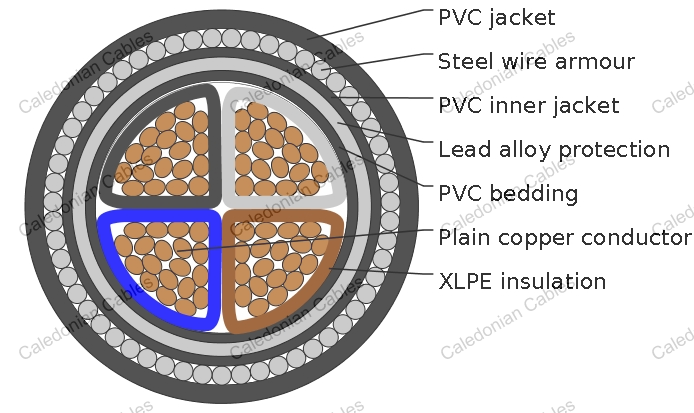

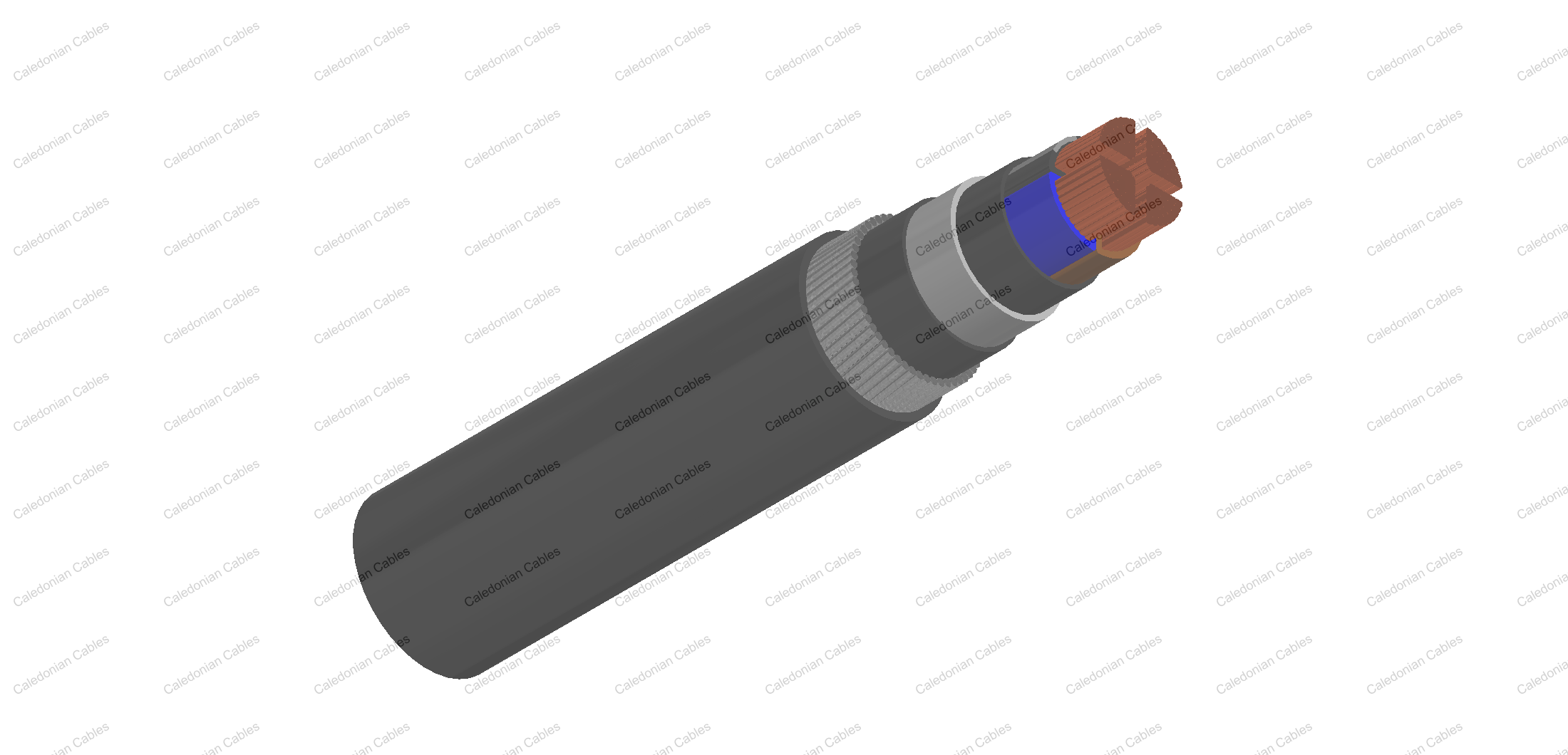

    Four-core 600/1000 V cables with lead sheath

    Nominal Cross-sectional Area Strand Type Nominal Insulation thickness Nominal Lead sheath thickness Nominal Inner Sheath thickness Nominal Steel Wire Armor dia. Nominal Outer Sheath thickness Approx. Overall Diameter Aprrox Weight
    mm² No./mm mm mm mm mm mm mm kg/km
    4x1.5 7/0.53 0.7 1.2 0.8 1.25 1.4 19 1140
    4x2.5 7/0.67 0.7 1.2 0.8 1.25 1.4 20 1270
    4x4 7/0.85 0.7 1.2 0.8 1.25 1.4 21.5 1455
    4x6 7/1.04 0.7 1.2 0.8 1.25 1.5 22.5 1650
    4x10 7/1.35 0.7 1.2 0.8 1.6 1.5 25 2130
    4x16 7/1.70 0.7 1.2 0.8 1.6 1.6 28 2640
    4x25 7/2.14 0.9 1.3 1 1.6 1.7 33 3635
    4x35 7/2.52 0.9 1.5 1 2 1.8 36.5 4535
    4x50* 19/1.78 1.0 1.4 1 2 1.9 38 5000
    4x70* 19/2.14 1.1 1.6 1.2 2 2.1 42 6455
    4x95* 19/2.52 1.1 1.7 1.2 2.5 2.2 47.5 8535
    4x120* 37/2.03 1.2 1.8 1.4 2.5 2.3 52 10155
    4x150* 37/2.25 1.4 1.9 1.4 3.15 2.4 58.5 12735
    4x185* 37/2.52 1.6 2.1 1.4 3.15 2.6 63.5 15344
    4x240* 61/2.25 1.7 2.2 1.6 3.5 2.7 71.5 19382
    4x300* 61/2.52 1.8 2.4 1.6 4 2.9 78 21150

    * Shaped stranded conductor

    Multi-core 600/1000 V cables with lead sheath

    Nominal Cross-sectional Area Strand Type Nominal Insulation thickness Nominal Lead sheath thickness Nominal Inner Sheath thickness Nominal Steel Wire Armor dia. Nominal Outer Sheath thickness Approx. Overall Diameter Aprrox Weight
    mm² No./mm mm mm mm mm mm mm kg/km
    7x1.5 7/0.53 0.7 1.2 0.8 1.25 1.4 20.5 1290
    12x1.5 7/0.53 0.7 1.2 0.8 1.6 1.5 23.5 1395
    19x1.5 7/0.53 0.7 1.2 0.8 1.6 1.6 26.5 1720
    27x1.5 7/0.53 0.7 1.3 1 1.6 1.7 30.5 1695
    37x1.5 7/0.53 0.7 1.5 1 1.6 1.8 34 1960
    7x2.5 7/0.67 0.7 1.2 0.8 1.25 1.4 21 1341
    12x2.5 7/0.67 0.7 1.2 0.8 1.6 1.6 25.5 2070
    19x2.5 7/0.67 0.7 1.3 1 1.6 1.7 29 2545
    27x2.5 7/0.67 0.7 1.4 1 1.6 1.8 33.5 3205
    37x2.5 7/0.67 0.7 1.5 1 2 1.8 37.5 2660
    7x4 7/0.85 0.7 1.2 0.8 1.25 1.5 23.5 1605
    12x4 7/0.85 0.7 1.3 1 1.6 1.6 28.5 2538
    19x4 7/0.85 0.7 1.4 1 1.6 1.7 32.5 3310
    27x4 7/0.85 0.7 1.5 1 2 1.9 38.5 4215
    37x4 7/0.85 0.7 1.6 1.2 2 2 42.5 5440
