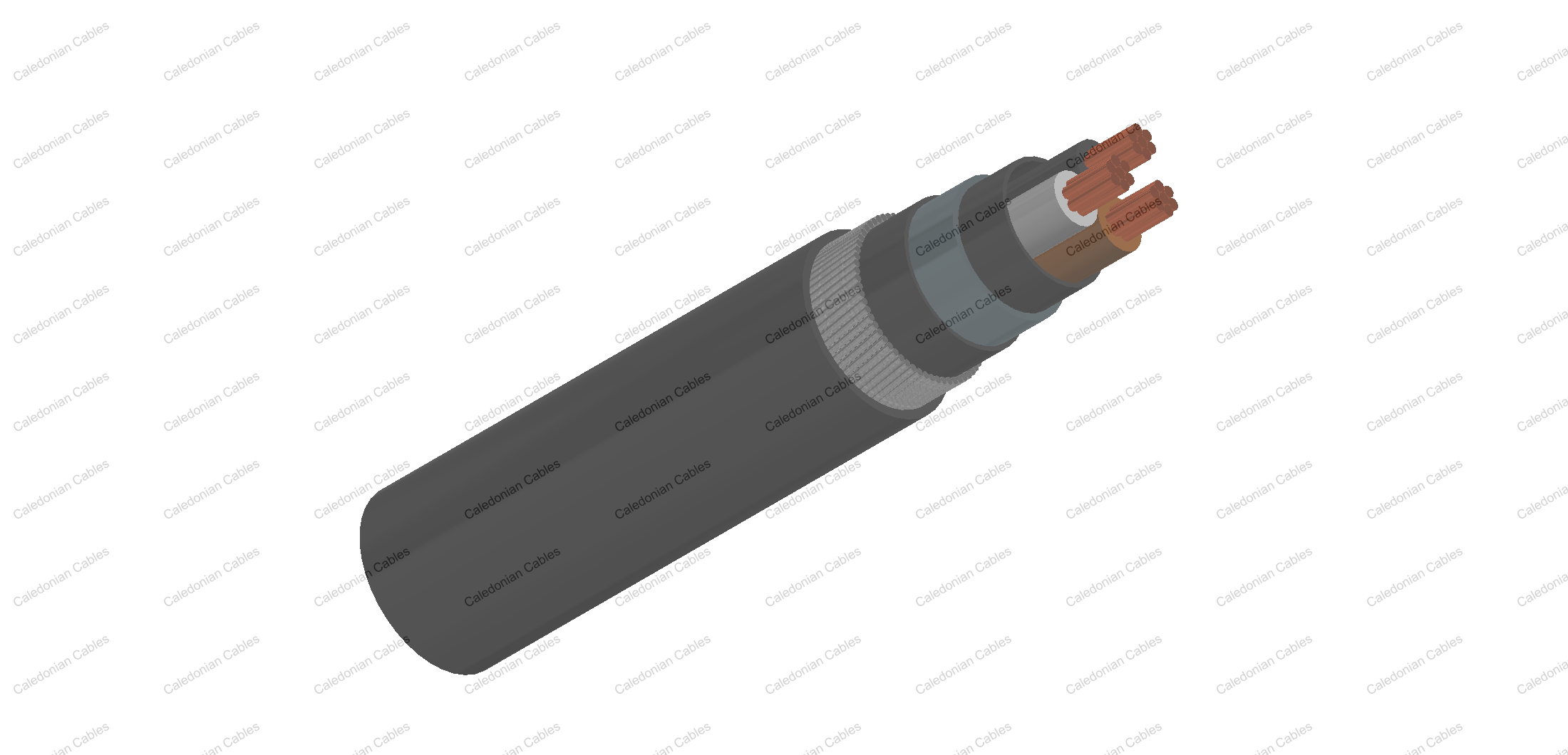

    EEMUA 133 Lead covered armoured Power Cables to BS 5467, 1900/3300V

    APPLICATION

    These power and control cables are well adapted to underground use in industrial applications, in moist areas, where hydrocarbon and mechanical protections are needed and are protected against solvent penetration and corrosive attacks. The lead cover brings an enhanced resistance to aromatic hydrocarbons.

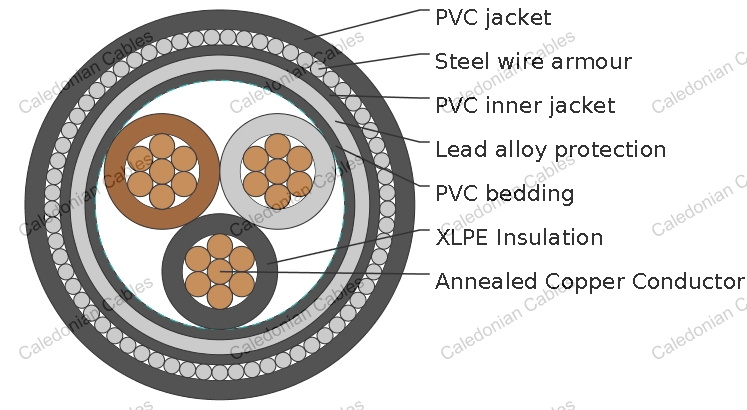

    CONSTRUCTION

    Conductor Annealed Copper conductor, circular or shaped, Class 2 to BS EN60228.
    Insulation XLPE (Cross-Linked Polyethylene) Type GP 8 conforming to BS 7655-1.3 or type GP 6 conforming to BS 7655-1.2.
    Colour Code 3 Cores : Brown, Black, Grey
    Bedding PVC (Polyvinyl Chloride)
    Protection LC (Lead alloy 'E') sheathed
    Inner Sheath PVC (Polyvinyl Chloride)
    Armour Multi Core : GSWA (Galvanized Steel Wire Armour)
    Outer Sheath PVC(Polyvinyl Chloride), or anti-rodent and anti-termite PVC(optional)

    TECHNICAL INFORMATION

    Voltage rating 1900/3300V
    Temperature rating 0°C to +90°C
    Bending radius 12 x overall diameter
    Flame retardant BS EN 60332-1-2

    CABLE PARAMETER

    Three-core 1900/3300 V cables with lead sheath

    Nominal Cross-sectional Area Strand Type Nominal Insulation thickness Nominal Lead sheath thickness Nominal Inner Sheath thickness Nominal Steel Wire Armor dia. Nominal Outer Sheath thickness Approx. Overall Diameter Aprrox Weight
    mm² No./mm mm mm mm mm mm mm kg/km
    3x16 7/1.70 2 1.3 1 1.6 1.8 31.8 2750
    3x25 7/2.14 2 1.4 1 1.6 1.8 34.9 3412
    3x35 7/2.52 2 1.5 1 1.6 1.9 37.6 4045
    3x50* 19/1.78 2 1.5 1.2 2 2 40.2 4822
    3x70* 19/2.14 2 1.5 1.2 2 2.1 41.7 5560
    3x95* 19/2.52 2 1.6 1.2 2 2.2 43.5 6582
    3x120* 37/2.03 2 1.7 1.4 2.5 2.3 50.4 8440
    3x150* 37/2.25 2 1.8 1.4 2.5 2.4 52.7 9540
    3x185* 37/2.52 2 1.9 1.4 2.5 2.5 56.6 11272
    3x240* 61/2.25 2 2 1.6 2.5 2.6 62.3 13819
    3x300* 61/2.52 2 2.2 1.6 2.5 2.7 66.9 16456
    3x400* 61/2.85 2 2.3 1.6 2.5 2.9 71.4 20900

    * Shaped stranded conductor
