    BS 5467 Armoured Power Cables, 1900/3300V

    APPLICATION

    These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground.

    CONSTRUCTION

    Conductor Solid Aluminum or Annealed Copper conductor, circular or shaped, Class 2 to BS EN60228.
    Insulation XLPE (Cross-Linked Polyethylene) Type GP 8 conforming to BS 7655-1.3 or type GP 6 conforming to BS 7655-1.2.
    Colour Code 1 Core : Brown
    3 Cores : Brown, Black, Grey
    Bedding The bedding shall consist of an extruded layer of polymeric material consistent with the operating temperature of the cable.
    Armour Single Core : AWA (Aluminum Wire Armour)
    Multi Core : GSWA (Galvanized Steel Wire Armour)
    Outer Sheath Extruded PVC, type 9 specified in BS7655-4.2.

    TECHNICAL INFORMATION

    Voltage rating 1900/3300V
    Temperature rating 0°C to +90°C
    Bending radius 1.5mm² to 16mm² : 6 x overall diameter
    25mm² and above : 8 x overall diameter
    Flame retardant BS EN 60332-1-2

    CABLE PARAMETER

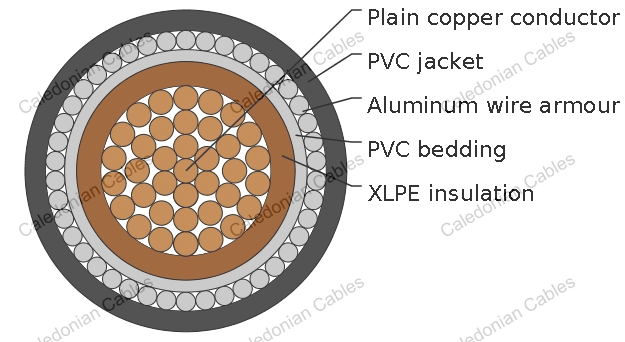

    Single-core 1900/3300 V cables with circular stranded copper conductor

    Nominal Cross-sectional Area Strand Type Nominal Insulation thickness Nominal Bedding thickness Nominal Alum Wire Armor dia. Nominal Sheath thickness Approx. Overall Diameter Aprrox Weight
    mm² No./mm mm mm mm mm mm kg/km
    1x50 19/1.78 2 0.8 1.25 1.6 20.6 790
    1x70 19/2.14 2 0.8 1.25 1.6 22.4 1040
    1x95 19/2.52 2 0.8 1.25 1.6 24.3 1330
    1x120 37/2.03 2 1 1.6 1.7 27.2 1680
    1x150 37/2.25 2 1 1.6 1.7 28.8 1970
    1x185 37/2.52 2 1 1.6 1.8 30.8 2370
    1x240 61/2.25 2 1 1.6 1.8 33.5 2960
    1x300 61/2.52 2 1 1.6 1.9 36.1 3610
    1x400 61/2.85 2 1.2 2 2 40.5 4600
    1x500 61/3.20 2.2 1.2 2 2.1 44.2 5680
    1x630 127/2.52 2.4 1.2 2 2.2 48.8 7160
    1x800 127/2.85 2.6 1.4 2.5 2.4 55.4 9150
    1x1000 127/3.20 2.8 1.4 2.5 2.5 60.6 11270

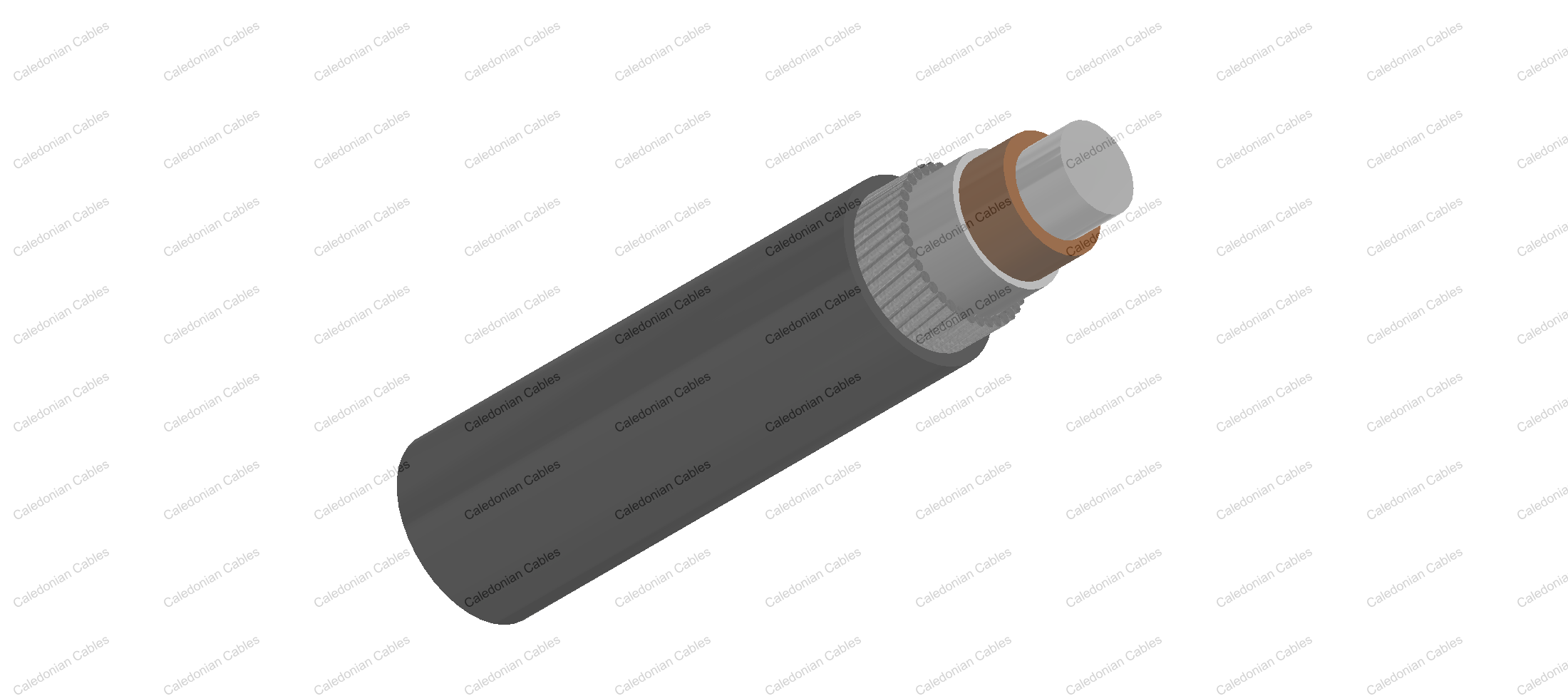

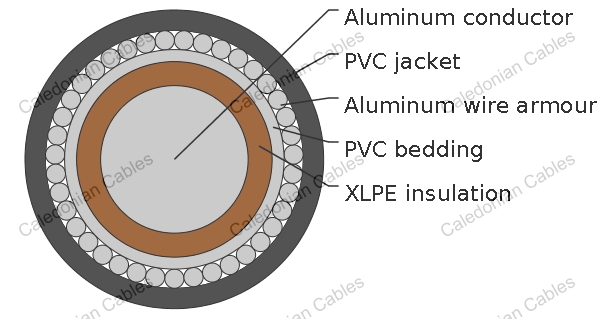

    Single-core 1900/3300 V cables with solid aluminum conductor

    Nominal Cross-sectional Area Nominal Insulation thickness Nominal bedding thickness Nominal Alum Wire Armor dia. Nominal Sheath thickness Approx. Overall Diameter Aprrox Weight
    mm² mm mm mm mm mm kg/km
    1x50 2 0.8 1.25 1.6 19.4 600
    1x70 2 0.8 1.25 1.6 20.9 710
    1x95 2 0.8 1.25 1.6 22.5 810
    1x120 2 1 1.6 1.7 25.2 1065
    1x150 2 1 1.6 1.7 26.5 1210
    1x185 2 1 1.6 1.8 28.3 1390
    1x240 2 1 1.6 1.8 30.5 1630
    1x300 2 1 1.6 1.9 32.8 1900

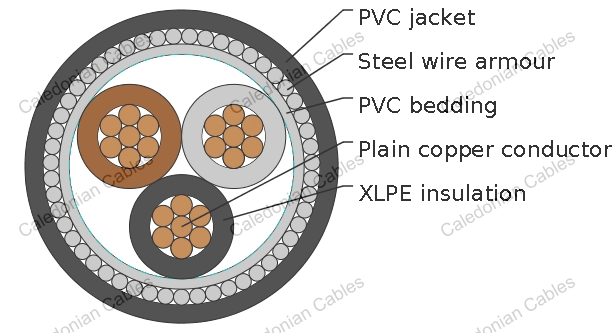

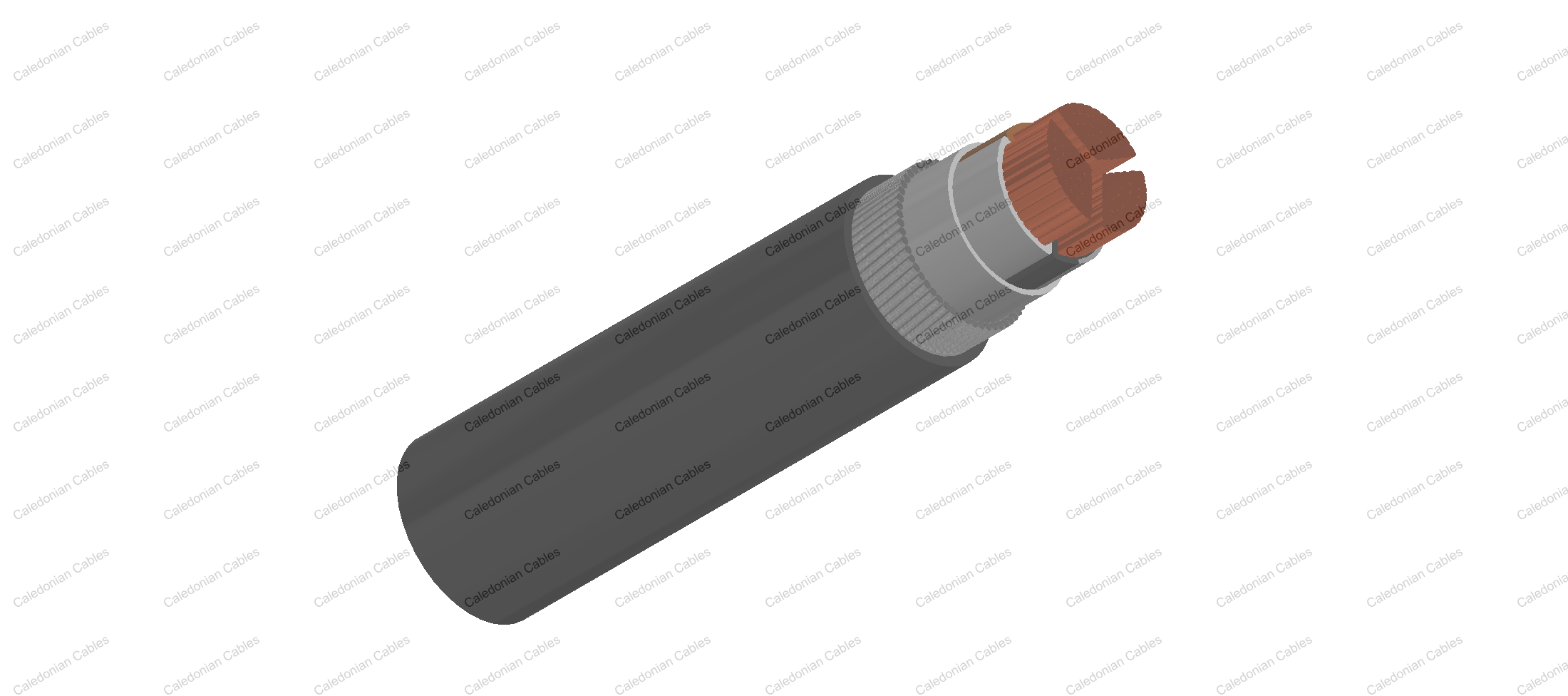

    Three-core 1900/3300 V cables with stranded copper conductors

    Nominal Cross-sectional Area Strand Type Nominal Insulation thickness Nominal Bedding thickness Nominal Steel Wire Armor dia. Nominal Sheath thickness Approx. Overall Diameter Aprrox Weight
    mm² No./mm mm mm mm mm mm kg/km
    3x16 7/1.70 2 1 1.6 1.8 29.3 1600
    3x25 7/2.14 2 1 1.6 1.8 32.2 2060
    3x35 7/2.52 2 1 1.6 1.9 34.8 2400
    3x35* 7/2.52 2 1 1.6 1.9 31.1 2400
    3x50* 19/1.78 2 1.2 2 2 34.7 3200
    3x70* 19/2.14 2 1.2 2 2.1 38 3800
    3x95* 19/2.52 2 1.2 2 2.2 41.4 4730
    3x120* 37/2.03 2 1.4 2.5 2.3 45.7 6070
    3x150* 37/2.25 2 1.4 2.5 2.4 48.5 7010
    3x185* 37/2.52 2 1.4 2.5 2.5 51.9 8270
    3x240* 61/2.25 2 1.6 2.5 2.6 56.9 10310
    3x300* 61/2.52 2 1.6 2.5 2.7 61.2 12300
    3x400* 61/2.85 2 1.6 2.5 2.9 66.6 14500

    * Shaped stranded conductor (class 2)

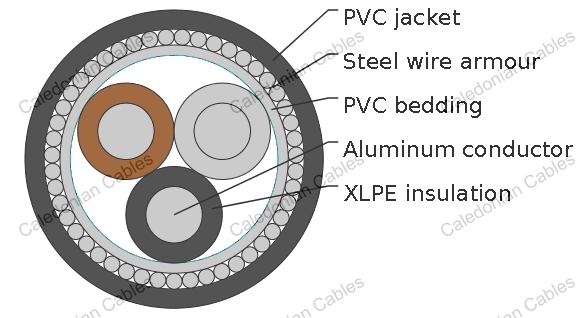

    Three-core 1900/3300 V cables with solid aluminum conductors

    Nominal Cross-sectional Area Nominal Insulation thickness Nominal Bedding thickness Nominal Steel Wire Armor dia. Nominal Sheath thickness Approx. Overall Diameter Aprrox Weight
    mm² mm mm mm mm mm kg/km
    3x16 2 1 1.6 1.8 27.9 1540
    3x25 2 1 1.6 1.8 30.4 1780
    3x35 2 1 1.6 1.9 32.7 2040
    3x35* 2 1 1.6 1.9 29.7 2040
    3x50* 2 1.2 2 2 33 2760
    3x70* 2 1.2 2 2.1 36 3210
    3x95* 2 1.2 2 2.2 39.1 3625
    3x120* 2 1.4 2.5 2.3 43.1 4820
    3x150* 2 1.4 2.5 2.4 45.6 5410
    3x185* 2 1.4 2.5 2.5 48.7 6070
    3x240* 2 1.6 2.5 2.6 53.2 7150
    3x300* 2 1.6 2.5 2.7 57.2 8120

    * Solid shaped conductor (class 1)
