These cables are flame retardant, low smoke, halogen free and mud resistant, used for instrumentation, communication, control and alarm systems.
IEC 60092-376
IEC 60092-360
IEC 60332-1
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606:2016

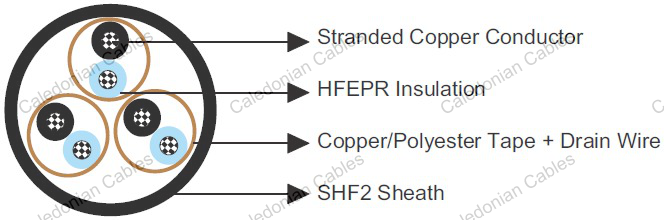

Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2 or class 5.
Insulation : Halogen free EPR compound or XLPE.
Twinning : Colour coded cores twisted together.
Individual Shielding : Each pairs/triples are screened by copper backed polyester tape in contact with a stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
Outer Sheath : Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).
| Nominal Cross Section Area | mm² | 0.75 | 1.0 | 1.5 | 2.5 |
|---|---|---|---|---|---|
| Nominal Conductor Diameter | mm | 1.1 | 1.3 | 1.6 | 2.0 |
| Maximum Resistant@20℃ | Ω/km | 26.3 | 19.3 | 12.9 | 8.02 |
| Mutual Capacitance | nF/km | 90 | 100 | 110 | 120 |
| Nominal Inductance@1KHz | MH/km | 0.686 | 0.649 | 0.637 | 0.598 |
| Maximum L/R@1KHz | μH/Ω | 20 | 25 | 35 | 50 |
| Operating Voltage | V | 250 | 250 | 250 | 250 |
Bending Radius : 8×OD (during installation); 6×OD (fixed installed)
Temperature Range : -20℃ ~ +90℃
| Construction No. of elements × No. of cores in element × Cross section | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| mm² | mm | mm | mm | kg/km |
| 1×2×0.75 | 0.6 | 1.0 | 7.6 | 95 |
| 2×2×0.75 | 0.6 | 1.1 | 9.7 | 180 |
| 4×2×0.75 | 0.6 | 1.2 | 12.1 | 255 |
| 7×2×0.75 | 0.6 | 1.3 | 14.4 | 380 |
| 8×2×0.75 | 0.6 | 1.3 | 15.6 | 425 |
| 12×2×0.75 | 0.6 | 1.5 | 19.0 | 610 |
| 16×2×0.75 | 0.6 | 1.5 | 21.0 | 785 |
| 19×2×0.75 | 0.6 | 1.6 | 22.4 | 895 |
| 24×2×0.75 | 0.6 | 1.7 | 25.6 | 1135 |
| 32×2×0.75 | 0.6 | 1.8 | 28.4 | 1440 |
| 1×3×0.75 | 0.6 | 1.0 | 8.0 | 110 |
| 2×3×0.75 | 0.6 | 1.2 | 11.0 | 180 |
| 3×3×0.75 | 0.6 | 1.2 | 12.7 | 265 |
| 4×3×0.75 | 0.6 | 1.2 | 13.8 | 325 |
| 7×3×0.75 | 0.6 | 1.4 | 16.7 | 500 |
| 8×3×0.75 | 0.6 | 1.4 | 18.0 | 540 |
| 12×3×0.75 | 0.6 | 1.6 | 22.2 | 815 |
| 16×3×0.75 | 0.6 | 1.6 | 24.7 | 1045 |
| 19×3×0.75 | 0.6 | 1.7 | 26.2 | 1205 |
| 24×3×0.75 | 0.6 | 1.9 | 30.5 | 1545 |
| 1×2×1.0 | 0.6 | 1.0 | 8.1 | 110 |
| 2×2×1.0 | 0.6 | 1.1 | 10.4 | 215 |
| 4×2×1.0 | 0.6 | 1.2 | 12.9 | 310 |
| 7×2×1.0 | 0.6 | 1.4 | 15.5 | 475 |
| 8×2×1.0 | 0.6 | 1.4 | 17.0 | 540 |
| 12×2×1.0 | 0.6 | 1.5 | 20.5 | 760 |
| 16×2×1.0 | 0.6 | 1.5 | 22.9 | 995 |
| 19×2×1.0 | 0.6 | 1.7 | 24.1 | 1135 |
| 24×2×1.0 | 0.6 | 1.8 | 27.8 | 1450 |
| 32×2×1.0 | 0.6 | 1.9 | 30.8 | 1850 |
| 1×3×1.0 | 0.6 | 1.0 | 8.5 | 125 |
| 3×3×1.0 | 0.6 | 1.3 | 13.4 | 320 |
| 4×3×1.0 | 0.6 | 1.3 | 14.8 | 395 |
| 7×3×1.0 | 0.6 | 1.5 | 17.9 | 615 |
| 12×3×1.0 | 0.6 | 1.6 | 23.7 | 990 |
| 16×3×1.0 | 0.6 | 1.7 | 26.5 | 1295 |
| 19×3×1.0 | 0.6 | 1.8 | 28.0 | 1475 |
| 24×3×1.0 | 0.6 | 2.0 | 32.6 | 1900 |
| 1×2×1.5 | 0.7 | 1.0 | 9.1 | 140 |
| 2×2×1.5 | 0.7 | 1.2 | 11.7 | 280 |
| 4×2×1.5 | 0.7 | 1.3 | 14.9 | 410 |
| 7×2×1.5 | 0.7 | 1.5 | 18.0 | 635 |
| 8×2×1.5 | 0.7 | 1.5 | 19.7 | 720 |
| 12×2×1.5 | 0.7 | 1.6 | 23.8 | 1015 |
| 16×2×1.5 | 0.7 | 1.6 | 26.6 | 1330 |
| 19×2×1.5 | 0.7 | 1.9 | 28.3 | 1525 |
| 24×2×1.5 | 0.7 | 2.0 | 32.6 | 1945 |
| 32×2×1.5 | 0.7 | 2.2 | 36.1 | 2475 |
| 1×3×1.5 | 0.7 | 1.0 | 9.5 | 160 |
| 2×3×1.5 | 0.7 | 1.3 | 14.0 | 285 |
| 3×3×1.5 | 0.7 | 1.3 | 15.5 | 425 |
| 4×3×1.5 | 0.7 | 1.3 | 17.0 | 525 |
| 7×3×1.5 | 0.7 | 1.6 | 20.9 | 830 |
| 8×3×1.5 | 0.7 | 1.6 | 22.5 | 900 |
| 12×3×1.5 | 0.7 | 1.8 | 27.6 | 1340 |
| 16×3×1.5 | 0.7 | 1.9 | 31.1 | 1770 |
| 19×3×1.5 | 0.7 | 2.0 | 32.8 | 2020 |
| 24×3×1.5 | 0.7 | 2.2 | 38.4 | 2610 |
| 1×2×2.5 | 0.7 | 1.0 | 9.8 | 175 |
| 1×3×2.5 | 0.7 | 1.2 | 10.4 | 205 |
