P113 RFOU 18/30(36)kV

These cables are flame retardant, low smoke, halogen free and mud resistant, used for fixed installation for medium voltage power.

IEC 60092-354

IEC 60092-360

IEC 60332-1

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606:2016

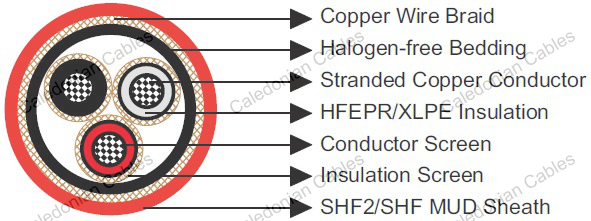

Conductors : Circular tinned annealed stranded copper to IEC 60228 class 2 or class 5.

Conductor Screen : Semi conducting material.

Insulation : Halogen-free EPR. XLPE can be offered as an option (for TFOU cable).

Insulation Screen : Semi conducting material and tinned copper wire braid.

Bedding : Halogen free compound.

Armour : Tinned copper wire braid in accordance with IEC 60092-350.

Outer Sheath : Halogen free thermosetting compound, SHF2 ,coloured red.

Nominal Cross Section Area	mm²	16	25	35	50	70	95	120	150	185	240	300
Nominal Conductor Diameter	mm	5.1	6.5	7.4	8.7	10.3	12.2	13.8	15.1	17.0	19.6	21.9
Maximum DC Resistant@20℃	Ω/km	1.16	0.734	0.529	0.391	0.27	0.195	0.154	0.126	0.1	0.0762	0.0607
Continuous Current Rating@45℃ 1 Core	A	96	127	157	196	242	293	339	389	444	522	601
Continuous Current Rating@45℃ 3 Core	A	67	89	110	137	169	205	237	272	311	365	421
Short Circuit Current 1s	A	2290	3580	5010	7150	10020	13590	17170	21460	26470	34340	42930
Operating Voltage	KV	18/30	18/30	18/30	18/30	18/30	18/30	18/30	18/30	18/30	18/30	18/30

Ambient Temperature Correction Factors	35	40	45	50	55	60	65	70	75	80
Rating Factor	1.1	1.05	1.0	0.94	0.88	0.82	0.74	0.67	0.58	0.47

Bending Radius : 15×OD (during installation); 9×OD (fixed installed)

Temperature Range : -20℃ ~ +90℃

Construction No. of cores × Cross section	Nominal Insulation Thickness	Diameter under Armour	Nominal Overall Diameter	Nominal Weight
mm²	mm	mm	mm	kg/km
1×50	8.0	33.8	41	2390
1×70	8.0	35.5	43	2700
1×95	8.0	37.3	45	3100
1×120	8.0	38.7	46	3430
1×150	8.0	40.1	48	3790
1×185	8.0	42.0	50	4310
1×240	8.0	45.5	53	5170
1×300	8.0	48.8	57	6020
3×50	8.0	70.6	81	7470
3×70	8.0	74.2	85	8530
3×95	8.0	78.1	89	9790
3×120	8.0	81.1	92	10760
3×150	8.0	84.2	95	11980
