P101 (Formerly P1 or P1/P8) RFOU/TFOU 0.6/1KV

Applications

These cables are flame retardant, low smoke, halogen free and mud resistant, used for control, power and lighting systems.

Standards

IEC 60092-353

IEC 60092-360

IEC 60332-1

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606:2016

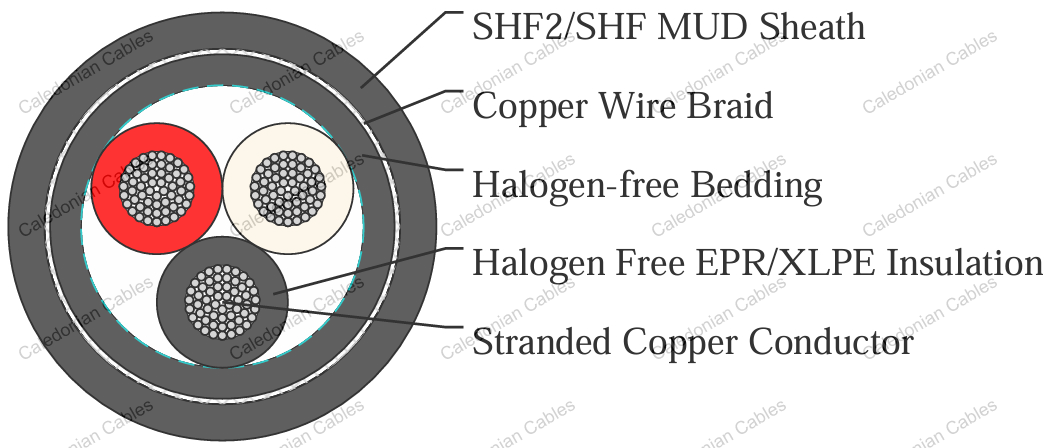

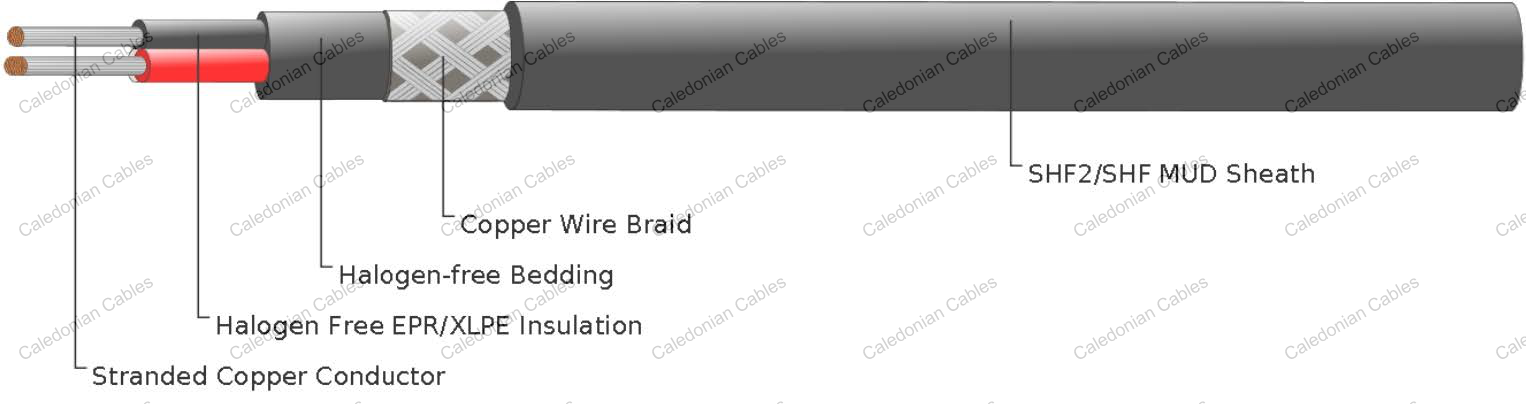

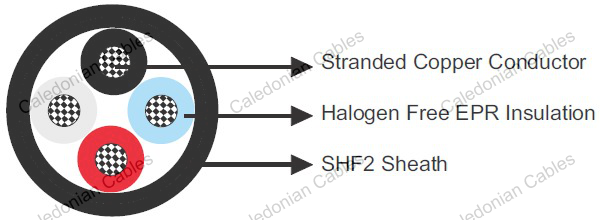

Construction

Conductors : Tinned annealed stranded copper to IEC 60228 class 2 or class 5.

Insulation : Halogen-free EPR or XLPE.

Bedding : Extruded halogen free compound.

Armour : Tinned copper wire braid in accordance with IEC 60092-350.

Outer Sheath : Halogen free thermosetting compound, SHF2 (TYPE 101, formerly TYPE P1). Halogen free, mud resistant thermosetting compound, SHF MUD (formerly TYPE P1/P8), coloured black.

Electrical Characteristics

Nominal Cross Section Area	mm²	1.5	2.5	4	6	10	16	25	35	50	70	95	120	150	185	240	300	400	500	630
Nominal Conductor Diameter	mm	1.6	2.1	2.6	3.2	4.0	5.1	6.5	7.4	8.7	10.3	12.2	13.8	15.1	17.0	19.6	21.9	24.6	27.6	32.5
Maximum DC Resistant@20℃	Ω/km	12.2	7.56	4.7	3.11	1.84	1.16	0.734	0.529	0.391	0.27	0.195	0.154	0.126	0.1	0.0762	0.0607	0.0475	0.0369	0.0286
Continuous Current Rating@45℃ 1 Core	A	23	30	40	52	72	96	127	157	196	242	293	339	389	444	522	601	690	780	890
Continuous Current Rating@45℃ 2 Core	A	20	26	34	44	61	82	108	133	167	206	249	288	331	444	444	511	587	663	757
Continuous Current Rating@45℃ 3&4 Core	A	16	21	28	36	50	67	89	110	137	169	205	237	272	311	365	421	483	546	623
Short Circuit Current 1s	A	210	360	570	860	1430	2290	3580	5010	7150	10020	13590	17170	21460	26470	34340	42930	57230	71540	90140
Operating Voltage	KV	0.6/1	0.6/1	0.6/1	0.6/1	0.6/1	0.6/1	0.6/1	0.6/1	0.6/1	0.6/1	0.6/1	0.6/1	0.6/1	0.6/1	0.6/1	0.6/1	0.6/1	0.6/1	0.6/1

Note: For more than 4-cores, the current ratings may be calculated from the following formula (I_N=I₁/ ³√N ), I₁= Current rating for 1-core, N = Number of cores.

Ambient Temperature Correction Factors

Ambient Temperature Correction Factors	35	40	45	50	55	60	65	70	75	80
Rating Factor	1.1	1.05	1.0	0.94	0.88	0.82	0.74	0.67	0.58	0.47

Mechanical and Thermal Properties

Bending Radius : 8×OD (during installation); 6×OD (fixed installed).

Temperature Range : -20℃ ~ +90℃.

Dimensions and Weight

Construction No. of cores×Cross section	Nominal Insulation Thickness	Nominal Sheath Thickness		Nominal Overall Diameter	Nominal Weight
Construction No. of cores×Cross section	Nominal Insulation Thickness	Inner	Outer	Nominal Overall Diameter	Nominal Weight
mm²	mm	mm	mm	mm	kg/km
1×1.5	1.0	1.1	1.1	8.9	135
1×2.5	1.0	1.1	1.1	9.3	150
1×4	1.0	1.1	1.1	9.9	180
1×6	1.0	1.1	1.1	10.4	205
1×10	1.0	1.1	1.2	12.2	295
1×16	1.0	1.1	1.2	13.5	385
1×25	1.2	1.1	1.2	15.4	525
1×35	1.2	1.1	1.3	16.9	685
1×50	1.4	1.1	1.4	18.7	870
1×70	1.4	1.1	1.4	20.4	1105
1×95	1.6	1.1	1.5	22.8	1435
1×120	1.6	1.2	1.6	24.9	1745
1×150	1.8	1.2	1.6	26.8	2055
1×185	2.0	1.2	1.7	29.3	2560
1×240	2.2	1.2	1.8	32.5	3190
1×300	2.4	1.2	1.9	35.2	3935
1×400	2.4	1.4	2.1	40.5	5060
1×500	2.4	1.4	2.2	44.0	6180
1×630	2.4	1.4	2.3	48.0	7620
2×1.5	1.0	1.1	1.2	13.6	295
2×2.5	1.0	1.1	1.2	14.4	335
2×4	1.0	1.1	1.3	16.1	445
2×6	1.0	1.1	1.3	17.1	520
2×10	1.0	1.1	1.4	19.3	680
2×16	1.0	1.1	1.5	21.7	955
2×25	1.2	1.2	1.6	25.9	1335
2×35	1.2	1.2	1.7	27.9	1595
2×50	1.4	1.2	1.9	31.9	2250
2×70	1.4	1.2	2.1	35.8	2795
2×95	1.6	1.2	2.3	41.2	3780
2×120	1.6	1.4	2.4	44.8	4560
2×150	1.8	1.4	2.6	49.2	5500
2×185	2.0	1.4	2.7	53.8	6675
2×240	2.2	1.6	3.0	61.0	8605
2×300	2.4	1.6	3.2	67.0	10510
3×1.5	1.0	1.1	1.2	14.2	320
3×2.5	1.0	1.1	1.3	15.6	415
3×4	1.0	1.1	1.3	16.8	500
3×6	1.0	1.1	1.4	18.1	605
3×10	1.0	1.1	1.4	20.3	795
3×16	1.0	1.1	1.5	22.8	1125
3×25	1.2	1.2	1.6	27.5	1620
3×35	1.2	1.2	1.7	29.6	1955
3×50	1.4	1.2	1.9	33.9	2730
3×70	1.4	1.4	2.0	38.4	3655
3×95	1.6	1.4	2.2	43.8	4885
3×120	1.6	1.4	2.3	47.6	6000
3×150	1.8	1.6	2.5	52.4	7300
3×185	2.0	1.6	2.7	58.6	8960
3×240	2.2	1.8	2.9	66.1	11610
3×300	2.2	1.8	3.4	71.9	13490
4×1.5	1.0	1.1	1.3	15.7	350
4×2.5	1.0	1.1	1.3	16.6	425
4×4	1.0	1.1	1.4	18.1	590
4×6	1.0	1.1	1.4	19.5	725
4×10	1.0	1.1	1.5	22.1	955
4×16	1.0	1.2	1.6	25.2	1375
4×25	1.2	1.2	1.7	30.0	1965
4×35	1.2	1.2	1.8	32.4	2410
4×50	1.4	1.4	2.0	37.3	3365
4×70	1.4	1.4	2.2	42.1	4580
4×95	1.6	1.4	2.4	48.2	6020
4×120	1.6	1.6	2.5	52.7	7440
4×150	1.8	1.6	2.9	58.3	8800
4×185	2.0	1.6	3.1	64.0	10760
4×240	2.2	1.8	3.4	72.4	13890
4×300	2.4	1.8	3.7	79.8	17405
5×1.5	1.0	1.1	1.3	16.7	420
6×1.5	1.0	1.1	1.3	17.8	495
7×1.5	1.0	1.1	1.3	17.8	540
8×1.5	1.0	1.1	1.5	20.3	645
9×1.5	1.0	1.1	1.5	21.5	675
10×1.5	1.0	1.1	1.5	21.8	705
12×1.5	1.0	1.1	1.5	22.5	805
14×1.5	1.0	1.1	1.6	23.6	860
16×1.5	1.0	1.1	1.7	24.9	940
19×1.5	1.0	1.1	1.7	26.0	1100
20×1.5	1.0	1.1	1.7	27.2	1130
23×1.5	1.0	1.1	1.8	29.3	1285
24×1.5	1.0	1.1	1.8	30.0	1305
27×1.5	1.0	1.1	1.9	30.8	1460
30×1.5	1.0	1.1	1.9	31.8	1520
33×1.5	1.0	1.2	2.0	33.5	1670
37×1.5	1.0	1.2	2.0	34.6	1840
44×1.5	1.0	1.2	2.2	39.2	2210
5×2.5	1.0	1.1	1.4	18.0	555
6×2.5	1.0	1.1	1.4	19.2	590
7×2.5	1.0	1.1	1.4	19.2	655
8×2.5	1.0	1.1	1.5	21.8	775
9×2.5	1.0	1.1	1.6	23.3	785
10×2.5	1.0	1.1	1.6	23.6	865
12×2.5	1.0	1.1	1.6	24.5	955
14×2.5	1.0	1.1	1.7	25.5	1070
16×2.5	1.0	1.1	1.7	26.7	1155
19×2.5	1.0	1.1	1.8	28.2	1360
20×2.5	1.0	1.1	1.8	29.5	1410
23×2.5	1.0	1.1	1.9	31.8	1610
24×2.5	1.0	1.2	2.0	33.2	1690
27×2.5	1.0	1.2	2.0	33.9	1815
30×2.5	1.0	1.2	2.0	34.9	1960
33×2.5	1.0	1.2	2.1	36.7	2190
37×2.5	1.0	1.2	2.1	38.0	2370
44×2.5	1.0	1.2	2.3	42.6	2795
