    [FA-] TTYS, TTYCS, TTYCYS
    [FA-] TTPYS, TTPYCS, TTPYCYS

    250V

    • 250V JIS Shipboard Cables

    STANDARDS

    JISC 3410-1999

    IEC 60332-1

    IEC 60332-3 Cat.A(for FA-type)

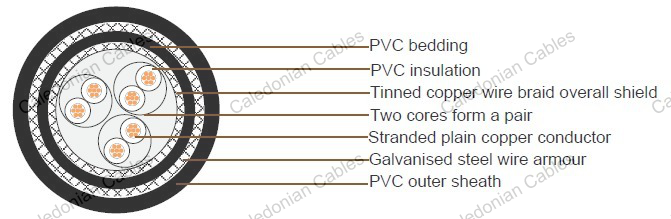

    CABLE CONSTRUCTION

    Conductor TT/TTP Tinned annealed stranded copper (TTY-type) Tinned annealed stranded copper (TTPY-type), class 2 according to IEC 60228
    Insulation   60°C PVC(TTY-type)/ 85°C EPR(TTPY-type) as per JIS C 3401
    Twisting   Two Insulated cores shall be twisted together to form a pair
    Cabling

    Twisted pairs shall be cabled.

    Flame retardant & non-hygroscopic fillers may be used
    Overall shield S Tinned copper wire braid
    Bedding Y PVC as per JIS C 3401
    Armor C Galvanized steel wire braid
    Sheath Y PVC as per JIS C 3401
    Core identification

    Printed pair number and Alphabet letter on the white insulation.

    ex) 4P : (1A, 1B), (2A, 2B), (3A, 3B), (4A, 4B) - 1T, 1Q cable shall be identified by the black number on the white insulation
    Outer sheath color   Black

    CABLE PARAMETER

    (FA-) TTYS,TTPYS

    No. of pair, Triad or Quad Conductor Thick. of insulation Dia. of shield wire Thick. of bedding (FA-) TTYS,TTPYS
    Size Construction O.D Nom. overall dia Tolerance Cable Weight
    mm² No./mm mm mm mm mm mm mm kg/km
    1 0.75 7/0.37 1.1 0.7 0.14 1.1 8.8 0.4 120
    1T 0.75 7/0.37 1.1 0.7 0.14 1.1 9.3 0.4 140
    1Q 0.75 7/0.37 1.1 0.7 0.14 1.1 10 0.5 160
    2 0.75 7/0.37 1.1 0.7 0.16 1.2 13 0.6 200
    4 0.75 7/0.37 1.1 0.7 0.16 1.3 15 0.7 300
    7 0.75 7/0.37 1.1 0.7 0.16 1.4 17.7 0.8 420
    10 0.75 7/0.37 1.1 0.7 0.18 1.6 22.8 1.0 640
    14 0.75 7/0.37 1.1 0.7 0.18 1.6 24.4 1.0 770
    19 0.75 7/0.37 1.1 0.7 0.18 1.8 27.5 1.2 970
    24 0.75 7/0.37 1.1 0.7 0.2 2 33.1 1.4 1290
    30 0.75 7/0.37 1.1 0.7 0.26 2.1 35.5 1.5 1620
    37 0.75 7/0.37 1.1 0.7 0.26 2.2 38.4 1.6 1890
    48 0.75 7/0.37 1.1 0.7 0.26 2.4 44.3 1.7 2420

    (FA-) TTYCS,TTPYCS

    No. of pair, Triad or Quad Conductor Thick. of insulation Dia. of shield wire Thick. of bedding Dia. of steel wire (FA-) TTYCS,TTPYCS
    Size Construction O.D Nom. overall dia Tolerance Cable Weight
    mm² No./mm mm mm mm mm mm mm mm kg/km
    1 0.75 7/0.37 1.1 0.7 0.14 1.1 0.3 10.1 0.4 180
    1T 0.75 7/0.37 1.1 0.7 0.14 1.1 0.3 10.6 0.4 205
    1Q 0.75 7/0.37 1.1 0.7 0.14 1.1 0.3 11.3 0.5 230
    2 0.75 7/0.37 1.1 0.7 0.16 1.2 0.3 14.6 0.7 230
    4 0.75 7/0.37 1.1 0.7 0.16 1.3 0.3 16.3 0.7 405
    7 0.75 7/0.37 1.1 0.7 0.16 1.4 0.3 19 0.7 545
    10 0.75 7/0.37 1.1 0.7 0.18 1.6 0.3 24.1 1 800
    14 0.75 7/0.37 1.1 0.7 0.18 1.6 0.3 25.7 1 935
    19 0.75 7/0.37 1.1 0.7 0.18 1.8 0.3 28.8 1.2 1160
    24 0.75 7/0.37 1.1 0.7 0.2 2 0.4 34.9 1.4 1600
    30 0.75 7/0.37 1.1 0.7 0.26 2.1 0.4 37.3 1.5 1950
    37 0.75 7/0.37 1.1 0.7 0.26 2.2 0.4 40.2 1.6 2250
    48 0.75 7/0.37 1.1 0.7 0.26 2.4 0.4 46.1 1.7 2830

    (FA-) TTYCYS,TTPYCYS

    No. of pair, Triad or Quad Conductor Thick. of insulation Dia. of shield wire Thick. of bedding Dia. of steel wire Thick. of covering (FA-) TTYCYS,TTPYCYS
    Size Construction O.D Nom. overall dia Tolerance Cable Weight
    mm² No./mm mm mm mm mm mm mm mm mm kg/km
    1 0.75 7/0.37 1.1 0.7 0.14 1.1 0.3 0.9 12.1 0.5 230
    1T 0.75 7/0.37 1.1 0.7 0.14 1.1 0.3 0.9 12.6 0.5 255
    1Q 0.75 7/0.37 1.1 0.7 0.14 1.1 0.3 0.9 13.3 0.5 285
    2 0.75 7/0.37 1.1 0.7 0.16 1.2 0.3 1 16.7 0.7 285
    4 0.75 7/0.37 1.1 0.7 0.16 1.3 0.3 1 18.5 0.7 490
    7 0.75 7/0.37 1.1 0.7 0.16 1.4 0.3 1.1 21.4 0.9 650
    10 0.75 7/0.37 1.1 0.7 0.18 1.6 0.3 1.2 26.7 1.1 945
    14 0.75 7/0.37 1.1 0.7 0.18 1.6 0.3 1.2 28.3 1.1 1090
    19 0.75 7/0.37 1.1 0.7 0.18 1.8 0.3 1.3 31.6 1.3 1340
    24 0.75 7/0.37 1.1 0.7 0.2 2 0.4 1.5 38.3 1.5 1860
    30 0.75 7/0.37 1.1 0.7 0.26 2.1 0.4 1.5 40.7 1.6 2230
    37 0.75 7/0.37 1.1 0.7 0.26 2.2 0.4 1.6 43.8 1.7 2570
    48 0.75 7/0.37 1.1 0.7 0.26 2.4 0.4 1.8 50.1 1.8 3240
