These cables are used for fixed installations on ships and offshore units in all locations and on open deck. The good screening qualities of the copper braid also reduce radio interference and electrical influences to electronics installations. These cables are flame retardant, low smoke & halogen free.
DIN 89160/98
IEC 60092-353
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

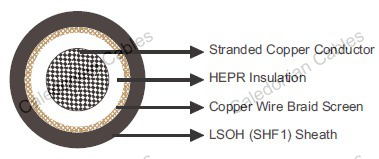

Conductors : Class 2 stranded copper conductor.
Insulation : HEPR.
Overall Screen : Copper wire braid.
Outer Sheath : LSOH (SHF1).
Single core : Natural colour (beige).
Bending Radius for Fixed Installations : 6×OD
Temperature Range : -20℃ ~ +75℃
| Part No. | Construction No. of cores × Cross section | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| mm² | mm | mm | mm | kg/km | |
| MTX300-1G7MZ1-R-1C4 | 1×4 | 0.7 | 1.2 | 7.3 | 110 |
| MTX300-1G7MZ1-R-1C6 | 1×6 | 0.7 | 1.2 | 8.3 | 140 |
| MTX300-1G7MZ1-R-1C10 | 1×10 | 0.7 | 1.2 | 9.3 | 190 |
| MTX300-1G7MZ1-R-1C16 | 1×16 | 0.7 | 1.2 | 10.3 | 270 |
| MTX300-1G7MZ1-R-1C25 | 1×25 | 0.9 | 1.2 | 12.3 | 380 |
| MTX300-1G7MZ1-R-1C35 | 1×35 | 0.9 | 1.2 | 13.3 | 480 |
| MTX300-1G7MZ1-R-1C50 | 1×50 | 1.0 | 1.3 | 15.3 | 660 |
| MTX300-1G7MZ1-R-1C70 | 1×70 | 1.1 | 1.4 | 17.3 | 900 |
| MTX300-1G7MZ1-R-1C95 | 1×95 | 1.1 | 1.4 | 19.5 | 1170 |
| MTX300-1G7MZ1-R-1C120 | 1×120 | 1.2 | 1.5 | 21.0 | 1410 |
| MTX300-1G7MZ1-R-1C150 | 1×150 | 1.4 | 1.6 | 22.8 | 1750 |
| MTX300-1G7MZ1-R-1C185 | 1×185 | 1.6 | 1.6 | 24.8 | 2160 |
| MTX300-1G7MZ1-R-1C240 | 1×240 | 1.7 | 1.7 | 27.8 | 2770 |
| MTX300-1G7MZ1-R-1C300 | 1×300 | 1.8 | 1.8 | 30.3 | 3440 |
