    BI/BU (MFX300) 0.6/1 KV Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed Fire Resistant Power & Control Cables (Single Core)

    BI/BU (MFX300) 0.6/1 KV Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed Fire Resistant Power & Control Cables (Single Core)

    Application

    These unarmoured fire resistant cables are used on board of ships in all locations for fixed installations where cable protection is not required. These cables are fire resistant, flame retardant, low smoke & halogen free.

    Standards

    IEC 60092-350/353/360

    IEC 60331-21

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

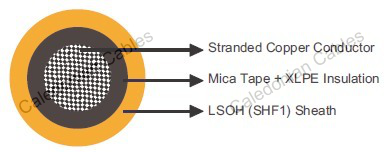

    Construction

    Conductors : Class 2 stranded copper conductor. Class 5 stranded conductors can be offered upon request.

    Insulation : Mica tape + XLPE.

    Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.

    Core Identification

    Single core : Black.

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 6×OD (OD>25mm); 4×OD (OD ≤25mm)

    Temperature Range : -30℃ ~ +80℃

    Dimensions and Weight

    MFX300 1mRZ1-R Single Core 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MFX300-1mRZ1-R-1C25 1×25 0.9 1.1 10.7 310
    MFX300-1mRZ1-R-1C35 1×35 0.9 1.1 12.0 410
    MFX300-1mRZ1-R-1C50 1×50 1.0 1.2 13.6 560
    MFX300-1mRZ1-R-1C70 1×70 1.1 1.3 15.8 780
    MFX300-1mRZ1-R-1C95 1×95 1.1 1.3 17.7 1030
    MFX300-1mRZ1-R-1C120 1×120 1.2 1.4 19.7 1290
