These Cat5e SF/UTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class D applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 100MHz.
EN 50173-1
EN 50288-2-1
ISO/IEC 11801
IEC 61156-5
TIA/EIA-568-B.2
IEC 60332-1 (for PVC & LSOH & FRLSOH Sheath)
IEC 60754-2 (for LSOH & FRLSOH Sheath)
IEC 61034 (for LSOH & FRLSOH Sheath)
IEC 60332-3-24 (for FRLSOH Sheath)

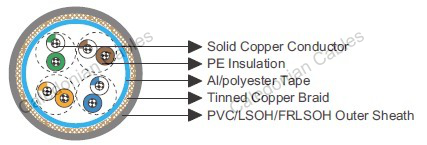

Conductors | Bare copper conductor. |
Insulation | PE. |
Twinning | Two coloured insulated conductors twisted together to form a pair. |
Overall Screen1 | Al/polyester tape. |
Overall Screen2 | Tinned copper wire braid. |
Outer Sheath | PVC/LSOH/FRLSOH. |
Pair 1 | White/Blue, Blue |
Pair 2 | White/Orange, Orange |
Pair 3 | White/Green, Green |
Pair 4 | White/Brown, Brown |
Maximum Loop Resistance | Ω/km | 190 |
---|---|---|
Maximum Resistance Unbalance | 2% | |
Minimum Insulation Resistance | MΩ.km | 1000 |
Nominal Capacitance @800Hz | nF/km | 48 |
Maximum Capacitance Unbalance (pair to ground) | pF/km | 1500 |
Characteristic Impedance @1-100MHz | Ω | 100 ± 15 |
Nominal Velocity of Propagation | ca. 67% | |
Maximum Propagation Delay | ns/100 m | 535 |
Maximum Delay Skew | ns/100 m | 20 |
Maximum Transfer Impedance @1MHz | mΩ /m | 20 |
Maximum Transfer Impedance @10MHz | mΩ /m | 20 |
Maximum Transfer Impedance @30MHz | mΩ /m | 30 |
Maximum Transfer Impedance @100MHz | mΩ /m | 60 |
Minimum Coupling Attenuation | dB | 75 |
F | Attenuation | NEXT | PS-NEXT | ACR | PS-ACR | ELFEXT | PS-ELFEXT | Return Loss |
---|---|---|---|---|---|---|---|---|
MHz | dB/100m | dB | dB | dB/100m | dB/100m | dB/100m | dB/100m | dB |
1 | 1.9 | 71 | 68 | 69.1 | 66.1 | 68 | 65 | 20 |
4 | 3.7 | 62 | 59 | 58.3 | 55.3 | 56 | 53 | 23 |
10 | 6.0 | 56 | 53 | 50 | 47.0 | 48 | 45 | 25 |
16 | 7.6 | 53 | 50 | 45.4 | 42.4 | 44 | 41 | 25 |
20 | 8.5 | 51 | 48 | 42.5 | 39.5 | 42 | 39 | 25 |
31.2 | 10.7 | 49 | 46 | 38.3 | 35.3 | 38 | 35 | 24 |
62.5 | 15.7 | 44 | 41 | 28.2 | 25.3 | 32 | 29 | 22 |
100 | 19.8 | 41 | 38 | 21.2 | 18.2 | 28 | 25 | 20 |
125.0 | 22.3 | 40 | 37 | 17.7 | 14.7 | 26 | 23 | 19 |
155.5 | 24.2 | 38 | 35 | 13.8 | 10.8 | 24 | 21 | |
175.0 | 25.7 | 37 | 34 | 11.3 | 8.3 | 23 | 20 | |
200.0 | 27.5 | 36 | 33 | 8.5 | 5.5 | 22 | 19 | |
250.0 | 29.2 | 35 | 32 | 5.8 | 2.8 | 20 | 17 | |
300.0 | 32.0 | 34 | 31 | 2.0 | -1.0 | 16 | 13 |
Bending Radius : 8×OD (during installation); 4×OD (fixed installed)
Temperature Range: -20℃ ~ +60℃
Part No. | Construction No. of elements × No. of cores in element × Cross section | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
---|---|---|---|---|---|
mm² | mm | mm | mm | kg/km | |
MLN-SF/UTPCAT5E4P24 | 4×2×24AWG | 0.29 | 0.6 | 6.4 | 47 |

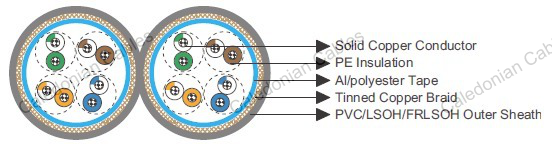

MLN-SF/UTPCAT5E8P24 | 2×(4×2×24AWG) | 0.29 | 0.6 | 13.0×6.4 | 94 |
