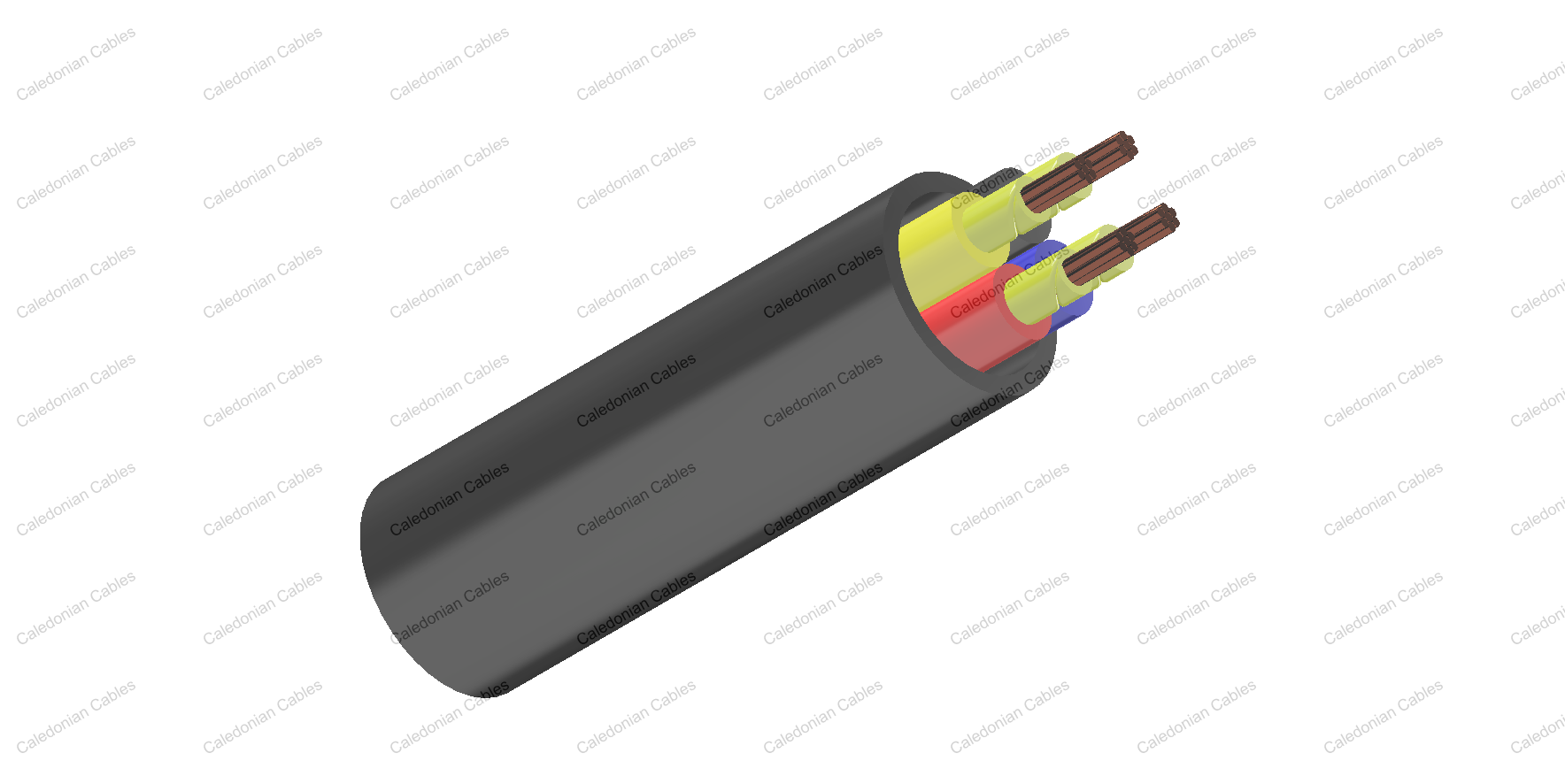

These fire resistant elastomeric insulated cables are designed for fixed wiring in ships and on mobile offshore units, suitable for use in power and control applications where fire integrity is essential.
BS 7917
IEC 60331-31 Fire resistant
IEC 60332-3A Flame retardant
IEC 60754-1; IEC 60754-2 Corrosivity
IEC 61034-2 Smoke density
Cold bend and impact (-40°C) (on request)
CSA C22.2 No. 38-95 (on request)

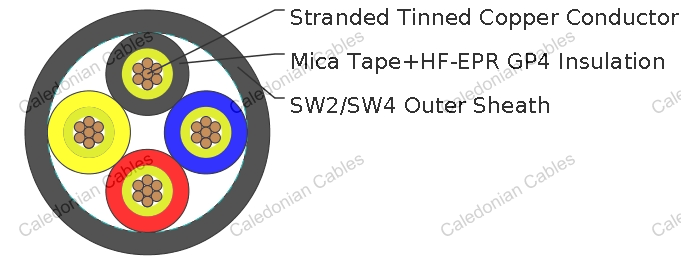

Conductor : Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228.
Insulation : Mica tape + HF-EPR GP4 according to BS 7655 1.2.
Sheath : Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.
Minimum Internal Bending Radius : 6×OD (OD>25mm); 4×OD (OD ≤25mm)
Temperature Range : -40℃ ~ +90℃
| Construction No. of cores×Cross section | Nominal Insulation Thickness | Nominal Sheath Thickness | Minimum Overall Diameter | Maximum Overall Diameter | Approx. Weight |
|---|---|---|---|---|---|
| mm² | mm | mm | mm | mm | kg/km |
| 1×4 | 1.0 | 1.0 | 6.7 | 8.0 | 90 |
| 1×6 | 1.0 | 1.0 | 7.2 | 8.5 | 135 |
| 1×10 | 1.0 | 1.0 | 8.1 | 9.5 | 180 |
| 1×16 | 1.0 | 1.1 | 9.3 | 10.7 | 315 |
| 1×25 | 1.2 | 1.2 | 11.5 | 13.2 | 550 |
| 1×35 | 1.2 | 1.2 | 12.3 | 14.1 | 715 |
| 1×50 | 1.4 | 1.3 | 14.1 | 15.9 | 830 |
| 1×70 | 1.4 | 1.3 | 15.8 | 17.8 | 1110 |
| 1×95 | 1.6 | 1.4 | 18.1 | 20.2 | 1470 |
| 1×120 | 1.6 | 1.5 | 20.0 | 22.4 | 2130 |
| 1×150 | 1.8 | 1.6 | 22.0 | 24.6 | 2475 |
| 1×185 | 2.0 | 1.7 | 24.4 | 27.0 | 2870 |
| 1×240 | 2.2 | 1.8 | 27.5 | 30.3 | 3120 |
| 1×300 | 2.4 | 1.9 | 30.4 | 33.6 | 4060 |
| Construction No. of cores×Cross section | Nominal Insulation Thickness | Nominal Sheath Thickness | Minimum Overall Diameter | Maximum Overall Diameter | Approx. Weight |
|---|---|---|---|---|---|
| mm² | mm | mm | mm | mm | kg/km |
| 2×1.5 | 0.8 | 1.1 | 9.0 | 10.4 | 145 |
| 2×2.5 | 0.8 | 1.1 | 9.8 | 11.4 | 180 |
| 2×4 | 1.0 | 1.2 | 11.8 | 13.5 | 260 |
| 2×6 | 1.0 | 1.2 | 12.9 | 14.6 | 325 |
| 2×10 | 1.0 | 1.3 | 14.9 | 16.8 | 445 |
| 2×16 | 1.0 | 1.4 | 17.1 | 19.1 | 630 |
| 2×25 | 1.2 | 1.5 | 21.2 | 23.7 | 930 |
| 2×35 | 1.2 | 1.6 | 23.1 | 25.7 | 1210 |
| 2×50 | 1.4 | 1.7 | 26.5 | 29.2 | 1630 |
| 2×70 | 1.4 | 1.9 | 30.3 | 33.5 | 2210 |
| 2×95 | 1.6 | 2.1 | 34.9 | 38.2 | 3010 |
| 2×120 | 1.6 | 2.2 | 38.4 | 42.2 | 3690 |
| 3×1.5 | 0.8 | 1.1 | 9.6 | 11.0 | 170 |
| 3×2.5 | 0.8 | 1.1 | 10.4 | 12.1 | 210 |
| 3×4 | 1.0 | 1.2 | 12.6 | 14.3 | 310 |
| 3×6 | 1.0 | 1.2 | 13.8 | 15.5 | 395 |
| 3×10 | 1.0 | 1.3 | 15.9 | 17.8 | 590 |
| 3×16 | 1.0 | 1.4 | 18.2 | 20.3 | 830 |
| 3×25 | 1.2 | 1.6 | 22.9 | 25.4 | 1270 |
| 3×35 | 1.2 | 1.7 | 24.9 | 27.6 | 1540 |
| 3×50 | 1.4 | 1.8 | 28.5 | 31.3 | 2100 |
| 3×70 | 1.4 | 2.0 | 32.7 | 35.9 | 2870 |
| 3×95 | 1.6 | 2.2 | 37.5 | 41.0 | 3910 |
| 3×120 | 1.6 | 2.3 | 41.3 | 45.3 | 4800 |
| 3×150 | 1.8 | 2.5 | 45.8 | 49.9 | 5810 |
| 3×185 | 2.0 | 2.7 | 50.9 | 55.5 | 7290 |
| 3×240 | 2.2 | 2.9 | 57.5 | 62.4 | 9440 |
| 4×1.5 | 0.8 | 1.1 | 10.5 | 12.1 | 200 |
| 4×2.5 | 0.8 | 1.1 | 11.4 | 13.1 | 250 |
| 4×4 | 1.0 | 1.2 | 13.8 | 15.6 | 375 |
| 4×6 | 1.0 | 1.3 | 15.3 | 17.3 | 495 |
| 4×10 | 1.0 | 1.4 | 17.7 | 19.7 | 740 |
| 4×16 | 1.0 | 1.5 | 20.3 | 22.8 | 1050 |
| 4×25 | 1.2 | 1.7 | 25.5 | 28.1 | 1580 |
| 4×35 | 1.2 | 1.8 | 27.7 | 30.5 | 1960 |
| 4×50 | 1.4 | 1.9 | 31.8 | 35.0 | 2570 |
| 4×70 | 1.4 | 2.1 | 36.3 | 39.7 | 3530 |
| 4×95 | 1.6 | 2.3 | 41.7 | 45.7 | 4850 |
| 4×120 | 1.6 | 2.5 | 46.2 | 50.3 | 5990 |
| 5×1.5 | 0.8 | 1.1 | 11.4 | 13.1 | 220 |
| 7×1.5 | 0.8 | 1.2 | 12.6 | 14.4 | 285 |
| 12×1.5 | 0.8 | 1.3 | 16.8 | 18.8 | 465 |
| 19×1.5 | 0.8 | 1.4 | 19.9 | 22.4 | 680 |
| 27×1.5 | 0.8 | 1.6 | 24.3 | 26.9 | 960 |
| 37×1.5 | 0.8 | 1.7 | 27.4 | 30.4 | 1260 |
| 5×2.5 | 0.8 | 1.2 | 12.7 | 14.4 | 310 |
| 7×2.5 | 0.8 | 1.2 | 13.9 | 15.6 | 375 |
| 12×2.5 | 0.8 | 1.4 | 18.7 | 20.8 | 610 |
| 19×2.5 | 0.8 | 1.5 | 22.1 | 24.7 | 895 |
