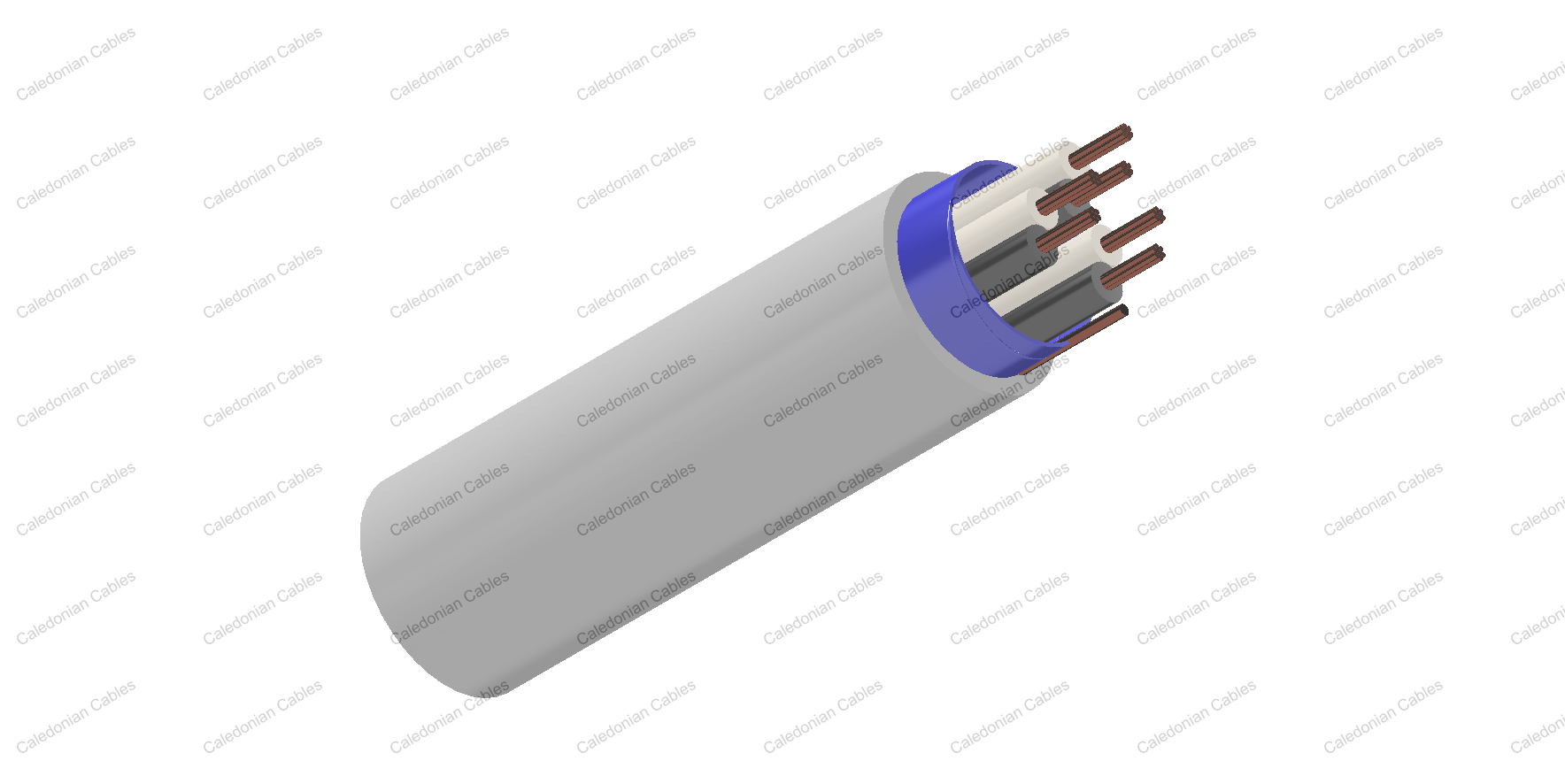

    150/250V HF-EPR Insulated, SW2/SW4 Sheathed, Collectively Screened Unarmoured Flame Retardant Instrumentation & Control Cables

    Application and Description

    These elastomeric insulated cables are designed for fixed wiring in ships and on mobile offshore units, suitable for use in instrumentation, lighting and control circuits.

    Standards

    BS 6883

    IEC 60332-3A Flame retardant

    IEC 60754-1; IEC 60754-2 Corrosivity

    IEC 61034-2 Smoke density

    Cold bend and impact (-40°C) (on request)

    CSA C22.2 No. 38-95 (on request)

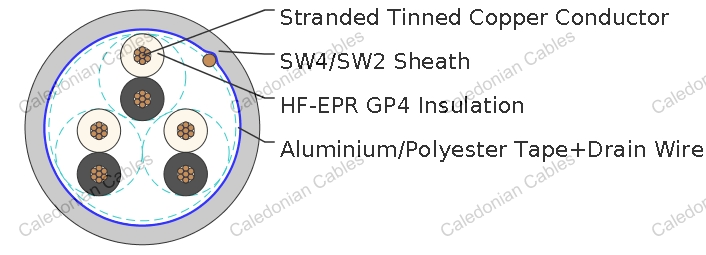

    Construction

    Conductor : Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228

    Insulation : HF-EPR GP4 according to BS 7655 1.2.

    Lay-up : Pairs, triples.

    Collective Screen : Aluminium/polyester tape + drain wire tinned copper

    Sheath : Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.

    Mechanical and Thermal Properties

    Minimum Internal Bending Radius : 8×OD

    Temperature Range : -40℃ ~ +90℃

    Dimensions and Weight

    Construction No. of cores×Cross section Nominal Insulation Thickness Nominal Sheath Thickness Minimum Overall Diameter Maximum Overall Diameter Approx. Weight
    mm² mm mm mm mm kg/km
    Multipair
    3×2×0.75 0.8 1.2 12.6 14.5 175
    7×2×0.75 0.8 1.4 16.6 18.7 330
    12×2×0.75 0.8 1.6 21.7 24.2 530
    20×2×0.75 0.8 1.8 27.3 30.1 830
    27×2×0.75 0.8 1.9 31.1 34.2 1070
    37×2×0.75 0.8 2.1 34.4 37.7 1430
    3×2×1 0.8 1.2 13.3 15.3 185
    7×2×1 0.8 1.4 17.6 19.8 360
    12×2×1 0.8 1.6 23.1 25.7 590
    20×2×1 0.8 1.8 29.1 31.9 920
    27×2×1 0.8 2.0 33.3 36.6 1220
    37×2×1 0.8 2.2 36.9 40.3 1630
    Multitriple
    3×3×0.75 0.8 1.3 14.2 16.2 230
    7×3×0.75 0.8 1.4 19.4 21.9 440
    12×3×0.75 0.8 1.7 24.2 26.8 730
    3×3×1 0.8 1.3 15.1 17.1 260
    7×3×1 0.8 1.5 20.9 23.4 510
    12×3×1 0.8 1.7 25.8 28.5 840
