3.8/6.6kV, 6.35/11kV, 8.7/15kV HF-EPR Insulated, SW2/SW4 Sheathed Armoured Flame Retardant Power & Control Cables (Radial Field)

Application and Description

These medium voltage elastomeric insulated cables are designed for fixed wiring in ships and on mobile offshore units, suitable for use in power and control applications.

Standards

BS 6883

IEC 60332-3A Flame retardant

IEC 60754-1; IEC 60754- 2 Corrosivity

IEC 61034-2 Smoke density

Cold bend and impact (-40°C) (on request)

CSA C22.2 No. 38-95 (on request)

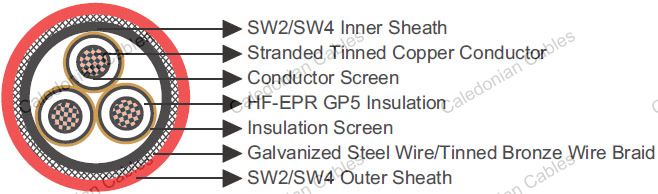

Construction

Conductor : Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228.

Conductor Screen : Semiconducting layer or tape.

Insulation : HF-EPR GP5 according to BS 7655 1.2.

Insulation Screen : Semiconducting layer or tape +Tinned copper tape.

Inner Sheath : Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.

Armour : Galvanized steel wire braid or tinned bronze wire braid (single core).

Outer Sheath : Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.

Mechanical and Thermal Properties

Minimum Internal Bending Radius : 15×OD (single core); 20×OD (three core)

Temperature Range : -40℃ ~ +90℃

Dimensions and Weight

3.8/6.6kV

Construction No. of cores×Cross section	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Minimum Diameter Over Inner Sheath	Maximum Diameter Over Inner Sheath	Nominal Armour Wire Diameter	Nominal Outer Sheath Thickness	Minimum Overall Diameter	Maximum Overall Diameter	Approx. Weight
mm²	mm	mm	mm	mm	mm	mm	mm	mm	kg/km
1×16	3.0	1.3	16.0	18.0	0.3	1.4	20.2	23.0	790
1×25	3.0	1.3	17.6	19.7	0.3	1.5	21.9	24.9	950
1×35	3.0	1.4	18.7	20.8	0.3	1.5	23.0	26.0	1060
1×50	3.0	1.4	19.9	22.3	0.3	1.6	24.4	27.4	1320
1×70	3.0	1.5	21.8	24.3	0.3	1.7	26.5	29.6	1610
1×95	3.0	1.6	23.7	26.3	0.3	1.8	28.6	31.8	1930
1×120	3.0	1.6	25.4	28.0	0.3	1.8	30.2	33.9	2260
1×150	3.0	1.7	27.0	29.8	0.45	1.9	32.8	36.6	2760
1×185	3.0	1.8	29.0	32.1	0.45	2.0	35.0	38.9	3210
1×240	3.0	1.9	31.7	35.0	0.45	2.1	37.9	41.9	3960
1×300	3.0	2.0	34.3	37.6	0.45	2.2	40.6	45.1	4660
1×400	3.0	2.1	37.6	41.4	0.45	2.4	44.4	49.0	5470
1×500	3.2	2.3	41.4	45.4	0.45	2.5	48.4	53.6	6610
1×630	3.2	2.4	45.1	49.2	0.45	2.7	52.4	57.8	8230
3×16	3.0	1.8	32.7	36.0	0.45	2.1	38.9	43.3	2610
3×25	3.0	2.0	36.5	39.9	0.45	2.2	42.9	47.5	3220
3×35	3.0	2.0	38.4	41.9	0.45	2.3	44.9	49.6	3700
3×50	3.0	2.2	41.3	45.3	0.45	2.4	48.1	53.3	4360
3×70	3.0	2.3	45.3	49.4	0.45	2.6	52.4	57.4	5410
3×95	3.0	2.5	49.3	53.9	0.45	2.8	56.8	62.4	6710
3×120	3.0	2.6	53.1	57.8	0.45	2.9	60.8	67.0	7770
3×150	3.0	2.7	56.6	61.4	0.45	3.1	64.6	70.9	9160
3×185	3.0	2.9	60.8	66.1	0.45	3.2	69.1	76.0	10430
3×240	3.0	3.1	66.6	72.2	0.45	3.5	75.5	82.6	12840

6.35/11kV

Construction No. of cores×Cross section	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Minimum Diameter Over Inner Sheath	Maximum Diameter Over Inner Sheath	Nominal Armour Wire Diameter	Nominal Outer Sheath Thickness	Minimum Overall Diameter	Maximum Overall Diameter	Approx. Weight
mm²	mm	mm	mm	mm	mm	mm	mm	mm	kg/km
1×16	3.4	1.3	16.8	18.8	0.3	1.5	21.1	24	810
1×25	3.4	1.4	18.6	20.7	0.3	1.5	22.9	25.9	980
1×35	3.4	1.4	19.4	21.9	0.3	1.6	24.0	27.0	1110
1×50	3.4	1.5	20.8	23.3	0.3	1.6	25.3	28.4	1360
1×70	3.4	1.5	22.6	25.1	0.3	1.7	27.3	30.4	1660
1×95	3.4	1.6	24.4	27.1	0.3	1.8	29.3	33.0	1970
1×120	3.4	1.7	26.3	29.0	0.45	1.9	32.1	35.9	2360
1×150	3.4	1.7	27.8	30.6	0.45	2.0	33.8	37.6	2810
1×185	3.4	1.8	29.8	32.9	0.45	2.0	35.8	39.7	3260
1×240	3.4	1.9	32.5	35.8	0.45	2.2	38.9	43.3	4020
1×300	3.4	2.0	35.0	38.4	0.45	2.3	41.6	46.1	4760
1×400	3.4	2.1	38.4	41.9	0.45	2.4	45.1	49.8	5610
1×500	3.4	2.3	41.8	45.8	0.45	2.5	48.8	54.0	6820
1×630	3.4	2.4	45.5	49.6	0.45	2.7	52.8	58.2	8480
3×16	3.4	1.9	34.5	37.9	0.45	2.1	40.7	45.2	2660
3×25	3.4	2.0	38.2	41.6	0.45	2.3	44.7	49.4	3310
3×35	3.4	2.1	40.2	44.1	0.45	2.4	47.0	51.7	3960
3×50	3.4	2.2	43.0	47.0	0.45	2.5	50.0	55.2	4570
3×70	3.4	2.4	47.1	51.3	0.45	2.7	54.4	59.9	5610
3×95	3.4	2.5	51.0	55.6	0.45	2.8	58.5	64.5	6820
3×120	3.4	2.7	55.0	59.8	0.45	3.0	62.9	69.1	8070
3×150	3.4	2.8	58.4	63.3	0.45	3.1	66.5	72.8	9260
3×185	3.4	3.0	62.7	68.1	0.45	3.3	71.2	78.1	10960
3×240	3.4	3.2	68.5	74.1	0.45	3.6	77.5	85.2	13390

8.7/15kV

Construction No. of cores×Cross section	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Minimum Diameter Over Inner Sheath	Maximum Diameter Over Inner Sheath	Nominal Armour Wire Diameter	Nominal Outer Sheath Thickness	Minimum Overall Diameter	Maximum Overall Diameter	Approx. Weight
mm²	mm	mm	mm	mm	mm	mm	mm	mm	kg/km
1×25	4.5	1.5	20.9	23.4	0.3	1.6	25.4	28.5	1150
1×35	4.5	1.5	21.7	24.3	0.3	1.7	26.4	29.6	1260
1×50	4.5	1.5	22.9	25.5	0.3	1.7	27.6	30.8	1510
1×70	4.5	1.6	24.9	27.5	0.3	1.8	29.8	33.4	1770
1×95	4.5	1.7	26.7	29.5	0.45	1.9	32.6	36.3	2270
1×120	4.5	1.8	28.6	31.4	0.45	2.0	34.6	38.5	2730
1×150	4.5	1.8	30.1	33.3	0.45	2.1	36.3	40.2	3020
1×185	4.5	1.9	32.1	35.3	0.45	2.1	38.3	42.3	3490
1×240	4.5	2.0	34.8	38.2	0.45	2.2	41.2	45.7	4260
1×300	4.5	2.1	37.3	40.8	0.45	2.4	44.1	48.7	4810
1×400	4.5	2.2	40.7	44.6	0.45	2.5	47.6	52.4	6160
1×500	4.5	2.4	44.1	48.2	0.45	2.6	51.3	56.6	7330
1×630	4.5	2.5	47.8	52.0	0.45	2.8	55.3	60.8	8800
3×25	4.5	2.2	43.1	47.1	0.45	2.5	50.1	55.4	3610
3×35	4.5	2.3	45.2	49.2	0.45	2.6	52.3	57.7	4510
3×50	4.5	2.4	47.9	52.1	0.45	2.7	55.3	60.8	5210
3×70	4.5	2.6	52.1	56.7	0.45	2.9	59.8	65.9	6390
3×95	4.5	2.7	55.9	60.7	0.45	3.0	63.8	70.1	7660
3×120	4.5	2.9	59.9	64.9	0.45	3.2	68.2	75.1	8810
3×150	4.5	3.0	63.3	68.7	0.45	3.3	71.8	78.8	10070
3×185	4.5	3.2	67.6	73.2	0.45	3.5	76.5	83.7	11420
