Shore Cables MY11Y 0.6/1 kV PVC Insulated, PUR Sheathed Flame Retardant Power & Control Cables (Multicore)
Applications
These cables are used as fixed installation cables in various electromechanical and electronic equipments on shore. They are usable at all conditions in marine environment such as dry, wet or oily locations. Polyurethane compound outer sheath provides mechanical resistance.
Standards
- IEC 60092-350
- IEC 60092-353

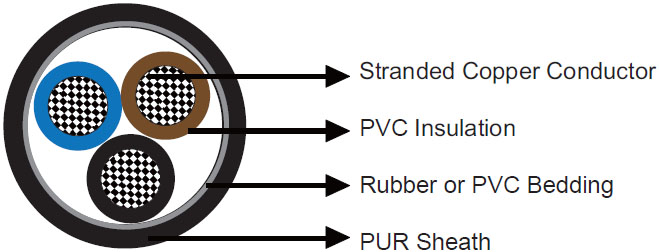

Construction
| Conductors |
Class 5 stranded copper conductor. |
| Insulation |
PVC. |
| Bedding |
Rubber or PVC compound. |
| Outer Sheath |
PUR. yellow, orange or black. |
Core Identification
| Two cores |
Black, Blue. |
| Three cores |
Black, Blue, Brown. |
| Four cores |
Black, Blue, Brown, Black. |
| Five cores |
Black, Blue, Brown, Black, Black. |
| Multi cores |
All cores natural coloured, printed with numbers, starting in center with number 1. |
| |
Cables with 3 cores and more also with green/yellow core (has to be stated in order). |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations |
6×OD (OD>25mm); 4×OD (OD ≤25mm) |
| Temperature Range |
-35℃ ~ +90℃ |
Dimensions and Weight
| Part No. |
Construction No. of elements×No. of cores in element×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
mm² |
mm |
mm |
mm |
kg/km |
| MY11Y-2C0.75 |
2×0.75 |
0.7 |
0.8 |
6.6 |
60 |
| MY11Y-2C1.0 |
2×1.0 |
0.7 |
0.9 |
6.8 |
70 |
| MY11Y-2C1.5 |
2×1.5 |
0.7 |
1.0 |
7.8 |
90 |
| MY11Y-2C2.5 |
2×2.5 |
0.7 |
1.1 |
9.3 |
130 |
| MY11Y-2C4 |
2×4 |
0.7 |
1.1 |
10.8 |
175 |
| MY11Y-2C6 |
2×6 |
0.7 |
1.2 |
12.0 |
230 |
| MY11Y-2C10 |
2×10 |
0.7 |
1.2 |
16.4 |
455 |
| MY11Y-3C0.75 |
3C0.75 |
0.7 |
0.8 |
7.2 |
75 |
| MY11Y-3C1.0 |
3C1.0 |
0.7 |
0.9 |
7.4 |
85 |
| MY11Y-3C1.5 |
3×1.5 |
0.7 |
1.1 |
8.7 |
110 |
| MY11Y-3C2.5 |
3×2.5 |
0.7 |
1.1 |
10.2 |
155 |
| MY11Y-3C4 |
3×4 |
0.7 |
1.1 |
11.7 |
225 |
| MY11Y-3C6 |
3×6 |
0.7 |
1.2 |
13.0 |
295 |
| MY11Y-3C10 |
3×10 |
0.7 |
1.3 |
17.8 |
580 |
| MY11Y-3C16 |
3×16 |
0.7 |
1.4 |
20.1 |
790 |
| MY11Y-3C25 |
3×25 |
0.9 |
1.5 |
25.6 |
1280 |
| MY11Y-3C35 |
3×35 |
0.9 |
1.6 |
28.4 |
1640 |
| MY11Y-3C50 |
3×50 |
1.0 |
1.8 |
33.3 |
2300 |
| MY11Y-3C70 |
3×70 |
1.1 |
2.0 |
38.0 |
3165 |
| MY11Y-3C95 |
3×95 |
1.1 |
2.1 |
42.8 |
4050 |
| MY11Y-4C0.75 |
4×0.75 |
0.7 |
0.9 |
8.1 |
95 |
| MY11Y-4C1.0 |
4×1.0 |
0.7 |
1.0 |
8.5 |
105 |
| MY11Y-4C1.5 |
4×1.5 |
0.7 |
1.1 |
9.9 |
145 |
| MY11Y-4C2.5 |
4×2.5 |
0.7 |
1.1 |
11.4 |
205 |
| MY11Y-4C4 |
4×4 |
0.7 |
1.2 |
13.0 |
285 |
| MY11Y-4C6 |
4×6 |
0.7 |
1.2 |
14.4 |
375 |
| MY11Y-4C10 |
4×10 |
0.7 |
1.3 |
19.5 |
725 |
| MY11Y-4C16 |
4×16 |
0.7 |
1.4 |
123.0 |
1035 |
| MY11Y-4C25 |
4×25 |
0.9 |
1.6 |
28.3 |
1600 |
| MY11Y-4C35 |
4×35 |
0.9 |
1.7 |
31.8 |
2110 |
| MY11Y-4C50 |
4×50 |
1.0 |
1.9 |
37.0 |
2915 |
| MY11Y-4C70 |
4×70 |
1.1 |
2.1 |
39.5 |
3725 |
| MY11Y-4C95 |
4×95 |
1.1 |
2.3 |
47.5 |
5150 |
