FMGCH 150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cables (Multipair/Multitriple)
Applications
These armoured cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
Standards
- IEC 60092-350/351/376/359
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

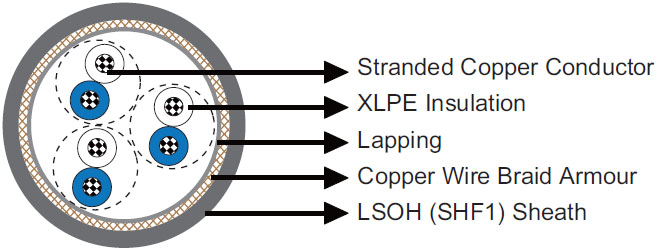

Construction
| Conductors |
Class 2 stranded copper conductor. |
| Insulation |
XLPE. |
| Cabling Element |
Pair/Triple. |
| Inner Covering |
Lapped polyester tape. |
| Armour |
Copper wire braid. |
| Outer Sheath |
LSOH (SHF1). |
Core Identification
| Pair |
White/blue with printed pair number and core number. |
| Triple |
White/blue/red with printed triple number. |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations |
6×OD |
| Temperature Range |
-30℃ ~ +80℃ |
Dimensions and Weight
| Part No. |
Construction No. of elements×No. of cores in element×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
mm² |
mm |
mm |
mm |
kg/km |
| FMGCH -1P0.75 |
1×2×0.75 |
0.5 |
1.2 |
8.1 |
90 |
| FMGCH -2P0.75 |
2×2×0.75 |
0.5 |
1.3 |
9.3 |
130 |
| FMGCH -3P0.75 |
3×2×0.75 |
0.5 |
1.4 |
12.4 |
200 |
| FMGCH -4P0.75 |
4×2×0.75 |
0.5 |
1.4 |
13.1 |
230 |
| FMGCH -5P0.75 |
5×2×0.75 |
0.5 |
1.8 |
15.2 |
320 |
| FMGCH -6P0.75 |
6×2×0.75 |
0.5 |
1.8 |
16.1 |
350 |
| FMGCH -7P0.75 |
7×2×0.75 |
0.5 |
1.8 |
16.1 |
370 |
| FMGCH -8P0.75 |
8×2×0.75 |
0.5 |
1.9 |
17.2 |
420 |
| FMGCH -10P0.75 |
10×2×0.75 |
0.5 |
1.9 |
19.1 |
500 |
| FMGCH -12P0.75 |
12×2×0.75 |
0.5 |
2.0 |
20.0 |
560 |
| FMGCH -14P0.75 |
14×2×0.75 |
0.5 |
2.0 |
20.6 |
610 |
| FMGCH -16P0.75 |
16×2×0.75 |
0.5 |
2.1 |
22.2 |
690 |
| FMGCH -19P0.75 |
19×2×0.75 |
0.5 |
2.1 |
23.6 |
790 |
| FMGCH -20P0.75 |
20×2×0.75 |
0.5 |
2.1 |
23.6 |
800 |
| FMGCH -24P0.75 |
24×2×0.75 |
0.5 |
2.2 |
26.8 |
980 |
| FMGCH -30P0.75 |
30×2×0.75 |
0.5 |
2.3 |
29.1 |
1160 |
| FMGCH -37P0.75 |
37×2×0.75 |
0.5 |
2.4 |
31.1 |
1360 |
| FMGCH -1P1.0 |
1×2×1.0 |
0.5 |
1.3 |
8.7 |
110 |
| FMGCH -2P1.0 |
2×2×1.0 |
0.5 |
1.3 |
9.7 |
150 |
| FMGCH -3P1.0 |
3×2×1.0 |
0.5 |
1.4 |
13.2 |
230 |
| FMGCH -4P1.0 |
4×2×1.0 |
0.5 |
1.8 |
14.6 |
310 |
| FMGCH -5P1.0 |
5×2×1.0 |
0.5 |
1.8 |
16.1 |
360 |
| FMGCH -6P1.0 |
6×2×1.0 |
0.5 |
1.9 |
17.3 |
420 |
| FMGCH -7P1.0 |
7×2×1.0 |
0.5 |
1.9 |
17.3 |
440 |
| FMGCH -8P1.0 |
8×2×1.0 |
0.5 |
1.9 |
18.3 |
490 |
| FMGCH -10P1.0 |
10×2×1.0 |
0.5 |
2.0 |
20.5 |
590 |
| FMGCH -12P1.0 |
12×2×1.0 |
0.5 |
2.0 |
21.3 |
660 |
| FMGCH -14P1.0 |
14×2×1.0 |
0.5 |
2.1 |
22.2 |
730 |
| FMGCH -16P1.0 |
16×2×1.0 |
0.5 |
2.1 |
23.7 |
820 |
| FMGCH -19P1.0 |
19×2×1.0 |
0.5 |
2.2 |
25.4 |
940 |
| FMGCH -20P1.0 |
20×2×1.0 |
0.5 |
2.2 |
25.4 |
960 |
| FMGCH -24P1.0 |
24×2×1.0 |
0.5 |
2.3 |
28.9 |
1170 |
| FMGCH -30P1.0 |
30×2×1.0 |
0.5 |
2.4 |
31.3 |
1400 |
| FMGCH -37P1.0 |
37×2×1.0 |
0.5 |
2.5 |
33.5 |
1640 |
| FMGCH -1P1.5 |
1×2×1.5 |
0.6 |
1.3 |
9.7 |
140 |
| FMGCH -2P1.5 |
2×2×1.5 |
0.6 |
1.3 |
10.9 |
190 |
| FMGCH -3P1.5 |
3×2×1.5 |
0.6 |
1.8 |
15.7 |
340 |
| FMGCH -4P1.5 |
4×2×1.5 |
0.6 |
1.9 |
16.8 |
400 |
| FMGCH -5P1.5 |
5×2×1.5 |
0.6 |
1.9 |
18.6 |
480 |
| FMGCH -6P1.5 |
6×2×1.5 |
0.6 |
2.0 |
20.0 |
550 |
| FMGCH -7P1.5 |
7×2×1.5 |
0.6 |
2.0 |
20.0 |
590 |
| FMGCH -8P1.5 |
8×2×1.5 |
0.6 |
2.0 |
21.2 |
650 |
| FMGCH -10P1.5 |
10×2×1.5 |
0.6 |
2.1 |
23.8 |
800 |
| FMGCH -12P1.5 |
12×2×1.5 |
0.6 |
2.2 |
24.9 |
900 |
| FMGCH -14P1.5 |
14×2×1.5 |
0.6 |
2.2 |
25.8 |
990 |
| FMGCH -16P1.5 |
16×2×1.5 |
0.6 |
2.3 |
27.8 |
1130 |
| FMGCH -19P1.5 |
19×2×1.5 |
0.6 |
2.3 |
29.6 |
1290 |
| FMGCH -20P1.5 |
20×2×1.5 |
0.6 |
2.3 |
29.6 |
1320 |
| FMGCH -24P1.5 |
24×2×1.5 |
0.6 |
2.5 |
33.9 |
1630 |
| FMGCH -30P1.5 |
30×2×1.5 |
0.6 |
2.8 |
37.3 |
2040 |
| FMGCH -37P1.5 |
37×2×1.5 |
0.6 |
2.9 |
39.9 |
2390 |
| FMGCH -1T0.75 |
1×3×0.75 |
0.5 |
1.3 |
8.7 |
110 |
| FMGCH -2T0.75 |
2×3×0.75 |
0.5 |
1.4 |
12.6 |
210 |
| FMGCH -3T0.75 |
3×3×0.75 |
0.5 |
1.4 |
13.3 |
240 |
| FMGCH -4T0.75 |
4×3×0.75 |
0.5 |
1.8 |
15.2 |
330 |
| FMGCH -5T0.75 |
5×3×0.75 |
0.5 |
1.9 |
16.8 |
400 |
| FMGCH -6T0.75 |
6×3×0.75 |
0.5 |
1.9 |
18.6 |
470 |
| FMGCH -7T0.75 |
7×3×0.75 |
0.5 |
1.9 |
18.6 |
490 |
| FMGCH -8T0.75 |
8×3×0.75 |
0.5 |
2.0 |
20.0 |
560 |
| FMGCH -10T0.75 |
10×3×0.75 |
0.5 |
2.1 |
22.5 |
690 |
| FMGCH -12T0.75 |
12×3×0.75 |
0.5 |
2.1 |
23.6 |
770 |
| FMGCH -14T0.75 |
14×3×0.75 |
0.5 |
2.1 |
24.5 |
850 |
| FMGCH -16T0.75 |
16×3×0.75 |
0.5 |
2.2 |
26.1 |
950 |
| FMGCH -19T0.75 |
19×3×0.75 |
0.5 |
2.3 |
28.2 |
1100 |
| FMGCH -20T0.75 |
20×3×0.75 |
0.5 |
2.3 |
28.6 |
1140 |
| FMGCH -24T0.75 |
24×3×0.75 |
0.5 |
2.4 |
31.1 |
1340 |
| FMGCH -30T0.75 |
30×3×0.75 |
0.5 |
2.5 |
34.3 |
1620 |
| FMGCH -32T0.75 |
32×3×0.75 |
0.5 |
2.5 |
35.4 |
1720 |
| FMGCH -1T1.0 |
1×3×1.0 |
0.5 |
1.3 |
9.1 |
130 |
| FMGCH -2T1.0 |
2×3×1.0 |
0.5 |
1.4 |
13.4 |
240 |
| FMGCH -3T1.0 |
3×3×1.0 |
0.5 |
1.8 |
14.9 |
320 |
| FMGCH -4T1.0 |
4×3×1.0 |
0.5 |
1.8 |
16.1 |
380 |
| FMGCH -5T1.0 |
5×3×1.0 |
0.5 |
1.9 |
17.8 |
460 |
| FMGCH -6T1.0 |
6×3×1.0 |
0.5 |
2.0 |
20.0 |
560 |
| FMGCH -7T1.0 |
7×3×1.0 |
0.5 |
2.0 |
20.0 |
590 |
| FMGCH -8T1.0 |
8×3×1.0 |
0.5 |
2.0 |
21.3 |
660 |
| FMGCH -10T1.0 |
10×3×1.0 |
0.5 |
2.1 |
24.0 |
810 |
| FMGCH -12T1.0 |
12×3×1.0 |
0.5 |
2.2 |
25.4 |
920 |
| FMGCH -14T1.0 |
14×3×1.0 |
0.5 |
2.2 |
26.4 |
1020 |
| FMGCH -16T1.0 |
16×3×1.0 |
0.5 |
2.3 |
28.1 |
1150 |
| FMGCH -19T1.0 |
19×3×1.0 |
0.5 |
2.4 |
30.3 |
1330 |
| FMGCH -20T1.0 |
20×3×1.0 |
0.5 |
2.4 |
30.8 |
1380 |
| FMGCH -24T1.0 |
24×3×1.0 |
0.5 |
2.5 |
33.5 |
1620 |
| FMGCH -30T1.0 |
30×3×1.0 |
0.5 |
2.8 |
37.5 |
2060 |
| FMGCH -32T1.0 |
32×3×1.0 |
0.5 |
2.9 |
38.9 |
2190 |
| FMGCH -1T1.5 |
1×3×1.5 |
0.6 |
1.3 |
10.2 |
160 |
| FMGCH -2T1.5 |
2×3×1.5 |
0.6 |
1.8 |
16.0 |
350 |
| FMGCH -3T1.5 |
3×3×1.5 |
0.6 |
1.9 |
17.1 |
430 |
| FMGCH -4T1.5 |
4×3×1.5 |
0.6 |
1.9 |
18.6 |
510 |
| FMGCH -5T1.5 |
5×3×1.5 |
0.6 |
2.0 |
20.6 |
620 |
| FMGCH -6T1.5 |
6×3×1.5 |
0.6 |
2.1 |
23.2 |
750 |
| FMGCH -7T1.5 |
7×3×1.5 |
0.6 |
2.1 |
23.2 |
800 |
| FMGCH -8T1.5 |
8×3×1.5 |
0.6 |
2.2 |
24.9 |
900 |
| FMGCH -10T1.5 |
10×3×1.5 |
0.6 |
2.3 |
28.1 |
1110 |
| FMGCH -12T1.5 |
12×3×1.5 |
0.6 |
2.3 |
29.6 |
1260 |
| FMGCH -14T1.5 |
14×3×1.5 |
0.6 |
2.4 |
31.0 |
1410 |
| FMGCH -16T1.5 |
16×3×1.5 |
0.6 |
2.5 |
33.0 |
1590 |
| FMGCH -19T1.5 |
19×3×1.5 |
0.6 |
2.5 |
35.4 |
1830 |
| FMGCH -20T1.5 |
20×3×1.5 |
0.6 |
2.8 |
36.7 |
2010 |
| FMGCH -24T1.5 |
24×3×1.5 |
0.6 |
2.9 |
39.9 |
2360 |
| FMGCH -30T1.5 |
30×3×1.5 |
0.6 |
3.1 |
44.2 |
2880 |
| FMGCH -32T1.5 |
32×3×1.5 |
0.6 |
3.1 |
45.7 |
3060 |
