CAN BUS CABLES 120Ω
Applications
These cables are dedicated to the shipbuilding industry.
Standards
- IEC 60092-350/351/352/353/359/370/376
- IEC 60332-1-2
- IEC 60754-1/2
- IEC 60332-3-22
- IEC 61034

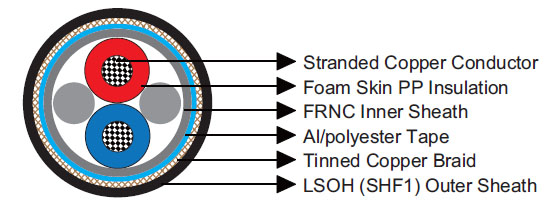

Construction
| Conductors |
Stranded bare copper copper 21AWG. |
| Insulation |
Foam skin PP. |
| Inner Sheath |
Thermoplastic copolymer (FRNC). |
| Overall Screen1 |
Aluminium/polyester tape. |
| Overall Screen2 |
Tinned copper braid. |
| Outer Sheath |
LSOH (SHF1). |
Core Identification
| Pair 1 |
Blue, Red |
| Pair 2 |
Brown, Green |
Electrical Characteristics
| Characteristic Impedance |
Ω |
120 ±18 |
| Mutual Capacitance @1KHz |
nF/km |
36 |
| Insulation Resistance |
GΩ.km |
5 |
| |
|
1 pair |
2 pair |
| Attenuation @0.1MHz |
dB/100m |
0.65 |
0.3 |
| Attenuation @1MHz |
dB/100m |
1.9 |
1.1 |
| Attenuation @5MHz |
dB/100m |
4.3 |
2.8 |
| Attenuation @10MHz |
dB/100m |
8.1 |
3.9 |
| Attenuation @20MHz |
dB/100m |
10.5 |
5.7 |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations |
10×OD |
| Temperature Range |
-30℃ ~ +80℃ |
Dimensions and Weight
| Part No. |
Construction No. of elements×No. of cores in element×Cross section |
Core Diameter |
Nominal Overall Diameter |
Nominal Weight |
| |
mm² |
mm |
mm |
kg/km |
| MLN-09YSH(ST)CH-1×2×21A |
1×2×21 AWG |
2.4 |
7.7 |
79 |
| MLN-09YSH(ST)CH-2×2×21A |
2×2×21 AWG |
2.2 |
8.4 |
90 |
