RG Series Coaxial Cables 50 Ω/75 Ω

Applications

These radio frequency cables are suitable for high frequency data transmission (communication equipment, radar, instrumentation equipment) and video signal transmission.

Standards

  • MIL C 17 (RG)
  • IEC 60092-359
  • IEC 60332-1
  • IEC 60754-1/2
  • IEC 61034

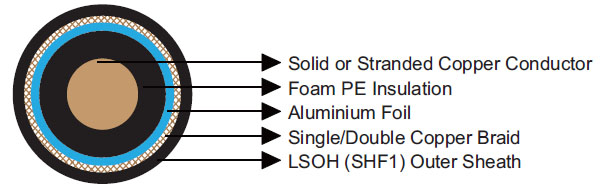

Construction

  RG Series Coaxial Cables 50 Ω/75 Ω
Conductors Solid or stranded TC (Tinned copper), BC (Bare copper), BCW (Bare copperweld),
  SC (Silvered copper) and SPCCS (Silver plated copper on steel).
Insulation Foam PE.
Fire Barriers Aluminium foil.
Screen Single or double braid. Bare, tinned or silvered copper.
Outer Sheath LSOH (SHF1).

Electrical Characteristics

    RG 178 RG 58 RG 174 RG 213 RG 214 RG 59 RG 223 RG 6 RG 11
Capacitance pF/m 100 100 100 100 100 67 100 52 53
Impedance @200MHz Ω 50 ±2 50 ±2 50 ±2 50 ±2 50 ±2 75 ±3 50 ±2 75 ±3 75 ±3
Attenuation @50MHz dB/100m 38 13 21 3 5 10 15 4.6 2.8
Attenuation @100MHz dB/100m 52 21 32 7 8 14 21 6.4 4.1
Attenuation @200MHz dB/100m 74 34 46 13 13 20 30 9.0 5.9
Attenuation @400MHz dB/100m 108 55 82 15 22 29 39 12.8 8.5
Attenuation @1000MHz dB/100m 170 91 147 29 39 52 68 20.8 14.3

Mechanical and Thermal Properties

Bending Radius for Fixed Installations 10×OD
Temperature Range -30℃ ~ +60℃

Dimensions and Weight

50 Ω

Part No. Cable Type Conductor Stranding Conductor Diameter Dielectric Diameter Nominal Overall Diameter Nominal Weight
    No.×mm mm mm mm kg/km
MLN-RG58C RG 58 CU 19×0.18 TC 0.90 3.0 4.95 40
MLN-RG174A RG 174 AU 7×0.16 BCW 0.48 1.55 2.8 10
MLN-RG213U RG 213 U 7×0.75 BC 2.25 7.3 10.3 157
MLN-RG214U RG 214 U 7×0.75 SC 2.25 7.3 10.8 195
MLN-RG178U RG 178 U 7×0.10 SPCCS 0.30 0.9 1.8 7
MLN-RG223U RG 223 U 1×0.90 SC 0.90 3.02 5.38 55

75 Ω

Part No. Cable Type Conductor Stranding Conductor Diameter Dielectric Diameter Nominal Overall Diameter Nominal Weight
    No.×mm mm mm mm kg/km
MLN-RG6 RG 6 1 x 1.0 BC 1.0 4.5 7.1 80
MLN-RG59 RG 59 1 x 0.57 BCW 0.57 3.75 6.15 53
MLN-RG11 RG 11 1 x 1.6 BC 1.6 7.2 10.3 135
