MTX400 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed Flame Retardant Power & Control Cables (Multicore)
Applications
These unarmoured power & control cables are used on board of ships in all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free.
Standards
- IEC 60092-350/351/353/359
- IEC 60332-1
- IEC 60332-3-22
- IEC 60754-1/2
- IEC 61034

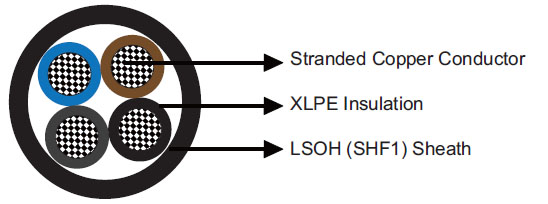

Construction
| Conductors |
Class 2 stranded copper conductor, round or sector shaped. |
| |
Class 5 stranded conductors can be offered upon request. |
| Insulation |
XLPE. |
| Filler (optional) |
Halogen free filling compound. |
| Outer Sheath |
LSOH (SHF1). SHF2 can be offered upon request. |
Core Identification
| Two cores |
Blue, Brown. |
| Three cores |
Brown, Black, Grey. |
| Four cores |
Blue, Brown, Black, Grey. |
| Five cores |
Blue, Brown, Black, Grey, Black. |
| Multi cores |
White with black numbers. |
With yellow/green (optional)
| Two cores + earth (3G) |
Yellow/green, Blue, Brown. |
| Three cores + earth (4G) |
Yellow/green, Brown, Black, Grey. |
| Four cores + earth (5G) |
Yellow/green, Blue, Brown, Black, Grey. |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations |
6×OD (OD>25mm) |
| |
4×OD (OD ≤25mm) |
| Temperature Range |
-30℃ ~ +80℃ |
Dimensions and Weight
MTX400 1RZ1-R Multicore 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)
| Part No. |
Construction No. of cores×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
mm² |
mm |
mm |
mm |
kg/km |
| MTX400-1RZ1-R-2C1.5 |
2×1.5 |
0.7 |
1.1 |
8.4 |
80 |
| MTX400-1RZ1-R-2C2.5 |
2×2.5 |
0.7 |
1.1 |
9.2 |
100 |
| MTX400-1RZ1-R-2C4 |
2×4 |
0.9 |
1.1 |
11.1 |
135 |
| MTX400-1RZ1-R-2C6 |
2×6 |
0.9 |
1.2 |
12.4 |
185 |
| MTX400-1RZ1-R-2C10 |
2×10 |
0.9 |
1.2 |
14.1 |
270 |
| MTX400-1RZ1-R-2C16 |
2×16 |
0.9 |
1.3 |
16.4 |
400 |
| MTX400-1RZ1-R-2C25 |
2×25 |
0.9 |
1.3 |
18.8 |
700 |
| MTX400-1RZ1-R-2C35 |
2×35 |
0.9 |
1.3 |
21.4 |
930 |
| MTX400-1RZ1-R-2C50 |
2×50 |
1.0 |
1.3 |
24.2 |
1290 |
| MTX400-1RZ1-R-3C1.5(3G1.5) |
3×(G)1.5 |
0.7 |
1.1 |
8.8 |
100 |
| MTX400-1RZ1-R-3C2.5(3G2.5) |
3×(G)2.5 |
0.7 |
1.1 |
9.8 |
130 |
| MTX400-1RZ1-R-3C4(3G4) |
3×(G)4 |
0.9 |
1.2 |
12.0 |
190 |
| MTX400-1RZ1-R-3C6(3G6) |
3×(G)6 |
0.9 |
1.2 |
13.2 |
250 |
| MTX400-1RZ1-R-3C10 |
3×10 |
0.9 |
1.3 |
15.2 |
380 |
| MTX400-1RZ1-R-3C16(3G16) |
3×16 |
0.9 |
1.3 |
17.5 |
560 |
| MTX400-1RZ1-R-3C25 |
3×25 |
0.9 |
1.5 |
20.7 |
875 |
| MTX400-1RZ1-R-3C35 |
3×35 |
0.9 |
1.6 |
23.5 |
1220 |
| MTX400-1RZ1-R-3C35S |
3×35 (sector shaped) |
0.9 |
1.5 |
20.1 |
1135 |
| MTX400-1RZ1-R-3C50 |
3×50 |
1.0 |
1.7 |
26.7 |
1780 |
| MTX400-1RZ1-R-3C50S |
3×50 (sector shaped) |
1.0 |
1.7 |
22.8 |
1530 |
| MTX400-1RZ1-R-3C70S |
3×70 (sector shaped) |
1.1 |
1.8 |
26.7 |
2150 |
| MTX400-1RZ1-R-3C95S |
3×95 (sector shaped) |
1.1 |
1.9 |
30.2 |
2900 |
| MTX400-1RZ1-R-3C120S |
3×120 (sector shaped) |
1.2 |
2.1 |
34.0 |
3675 |
| MTX400-1RZ1-R-4C1.5(4G1.5) |
4×(G)1.5 |
0.7 |
1.1 |
9.6 |
120 |
| MTX400-1RZ1-R-4C2.5(4G2.5) |
4×(G)2.5 |
0.7 |
1.1 |
10.7 |
165 |
| MTX400-1RZ1-R-4C4(4G4) |
4×(G)4 |
0.9 |
1.2 |
13.2 |
240 |
| MTX400-1RZ1-R-4C6(4G6) |
4×(G)6 |
0.9 |
1.2 |
14.5 |
320 |
| MTX400-1RZ1-R-4C10(4G10) |
4×(G)10 |
0.9 |
1.3 |
16.7 |
490 |
| MTX400-1RZ1-R-4C16(4G16) |
4×(G)16 |
0.9 |
1.4 |
19.5 |
740 |
| MTX400-1RZ1-R-4C25(4G25) |
4×(G)25 |
0.9 |
1.5 |
22.8 |
1145 |
| MTX400-1RZ1-R-4G35 |
4G35 |
0.9 |
1.7 |
26.0 |
1515 |
| MTX400-1RZ1-R-4G50 |
4G50 |
1.0 |
1.8 |
29.7 |
2340 |
| MTX400-1RZ1-R-5C1.5(5G1.5) |
5×(G)1.5 |
0.7 |
1.1 |
10.5 |
145 |
| MTX400-1RZ1-R-5C2.5(5G2.5) |
5×(G)2.5 |
0.7 |
1.2 |
11.9 |
205 |
| MTX400-1RZ1-R-5G6 |
5G6 |
0.9 |
1.3 |
16.1 |
400 |
| MTX400-1RZ1-R-5G16 |
5G16 |
0.9 |
1.5 |
21.6 |
920 |
| MTX400-1RZ1-R-6C1.5 |
6×1.5 |
0.7 |
1.2 |
11.6 |
180 |
| MTX400-1RZ1-R-7C1.5 |
7×1.5 |
0.7 |
1.2 |
11.7 |
195 |
| MTX400-1RZ1-R-8C1.5(8G1.5) |
8×(G)1.5 |
0.7 |
1.2 |
12.7 |
225 |
| MTX400-1RZ1-R-10C1.5 |
10×1.5 |
0.7 |
1.3 |
14.8 |
275 |
| MTX400-1RZ1-R-12C1.5 |
12×1.5 |
0.7 |
1.3 |
15.3 |
315 |
| MTX400-1RZ1-R-16C1.5 |
16×1.5 |
0.7 |
1.4 |
17.2 |
410 |
| MTX400-1RZ1-R-19C1.5 |
19×1.5 |
0.7 |
1.4 |
18.1 |
470 |
| MTX400-1RZ1-R-24C1.5 |
24×1.5 |
0.7 |
1.5 |
21.3 |
620 |
| MTX400-1RZ1-R-5C2.5 |
5×2.5 |
0.7 |
1.2 |
11.9 |
210 |
| MTX400-1RZ1-R-7C2.5 |
7×2.5 |
0.7 |
1.2 |
13.2 |
280 |
| MTX400-1RZ1-R-12C2.5 |
12×2.5 |
0.7 |
1.3 |
17.4 |
460 |
| MTX400-1RZ1-R-19C2.5 |
19×2.5 |
0.7 |
1.4 |
20.6 |
690 |
| MTX400-1RZ1-R-24C2.5 |
24×2.5 |
0.7 |
1.5 |
24.3 |
880 |
| MTX400-1RZ1-R-27C2.5 |
27×2.5 |
0.7 |
1.5 |
24.6 |
970 |
| MTX400-1RZ1-R-37C2.5 |
37×2.5 |
0.7 |
1.6 |
27.7 |
1300 |
