Cat 6 SF/UTP 24AWG 4P/8P
Applications
These Cat6 SF/UTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class E applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 250MHz.
Standards
- EN 50288
- ISO 11801
- IEC 61156-5
- IEC 60332-1
- IEC 60754-1/2
- IEC 61034

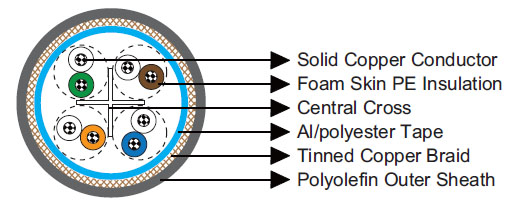

Construction
| Central Cross |
|
| Conductors |
Solid bare copper conductor. |
| Insulation |
Foam skin PE. |
| Twinning |
Two coloured insulated conductors twisted together to form a pair. |
| Overall Screen1 |
Al/polyester tape. |
| Overall Screen2 |
Tinned copper wire braid. |
| Outer Sheath |
Polyolefin. |
Core Identification
| Pair 1 |
White, Blue |
| Pair 2 |
White Orange |
| Pair 3 |
White, Green |
| Pair 4 |
White, Brown |
Electrical Properties
| Characteristic Impedance(1-250MHz) |
Ω |
100±15 |
| Nominal Velocity of Propagation(NVP) |
|
69% |
| Maximum Mutual Capacitance |
nF/100m |
5.6 |
| Maximum Capacitance Unbalance |
pF/100m |
330 |
| Maximum Resistance Unbalance |
|
3% |
| Maximum Propagation Delay Skew(1-125MHz) |
ns/100m |
30 |
| Maximum Propagation Delay@100MHz |
ns/100m |
536 |
Nominal Transmission Characteristics @20℃
| FREQ |
NEXT |
Attenuation |
RL |
ACR |
ELFEXT |
PSNEXT |
PSACR |
PSELFEXT |
| MHz |
dB/100m |
dB/100m |
dB/100m |
dB/100m |
dB/100m |
dB/100m |
dB/100m |
dB/100m |
| 1 |
74.3 |
2 |
20 |
72.2 |
67.8 |
72.3 |
70.2 |
64.8 |
| 4 |
65.3 |
3.8 |
23 |
61.4 |
55.8 |
63.3 |
59.5 |
52.8 |
| 8 |
60.8 |
5.3 |
24.5 |
55.4 |
49.7 |
58.8 |
53.5 |
46.7 |
| 10 |
59.3 |
6 |
25 |
53.3 |
47.8 |
57.3 |
51.3 |
44.8 |
| 16 |
56.2 |
7.6 |
25 |
48.6 |
43.7 |
54.2 |
46.6 |
40.7 |
| 20 |
54.8 |
8.5 |
25 |
46.3 |
41.8 |
52.8 |
44.3 |
38.8 |
| 25 |
53.3 |
9.5 |
24.3 |
43.8 |
39.8 |
51.3 |
41.8 |
36.8 |
| 31.3 |
51.9 |
10.7 |
23.6 |
41.1 |
37.9 |
49.9 |
39.1 |
34.9 |
| 62.5 |
47.4 |
15.4 |
21.5 |
31.9 |
31.9 |
45.4 |
29.9 |
28.9 |
| 100 |
44.3 |
19.8 |
20.1 |
24.4 |
27.8 |
42.3 |
22.4 |
24.8 |
| 200 |
39.8 |
29 |
18 |
10.6 |
21.8 |
37.8 |
8.6 |
18.8 |
| 250 |
38.3 |
32.8 |
17.3 |
5.3 |
19.8 |
36.3 |
3.3 |
16.8 |
| 300 |
37.1 |
36.4 |
16.8 |
0.5 |
18.3 |
35.1 |
-1.5 |
15.3 |
| 350 |
36.1 |
39.8 |
16.3 |
-3.8 |
16.9 |
34.1 |
-5.8 |
13.9 |
| 400 |
35.3 |
43 |
15.9 |
-7.9 |
15.8 |
33.3 |
-9.9 |
12.8 |
| 450 |
34.5 |
46.3 |
15.5 |
-10.5 |
14.7 |
32.5 |
-12.5 |
11.7 |
| 500 |
33.8 |
48.9 |
15.2 |
-15.3 |
13.8 |
31.8 |
-17.3 |
10.8 |
| 550 |
33.2 |
51.8 |
14.9 |
-18.6 |
12.9 |
31.2 |
-20.6 |
9.9 |
| 600 |
32.4 |
54.5 |
14.7 |
-21.9 |
12.2 |
30.6 |
-23.9 |
9.2 |
*Data for 250MHz above are for reference only
Mechanical and Thermal Properties
| Bending Radius |
8×OD (during installation); |
| |
4×OD (fixed installed) |
| Temperature Range |
-20℃ ~ +60℃ |
Dimensions and Weight
| Part No. |
Construction No. of elements×No. of cores in element×Cross section |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
| |
mm² |
mm |
mm |
mm |
kg/km |
| MLN-SF/UTPCAT64P24 |
4×2×24AWG |
0.31 |
1.2 |
7.6 |
60 |
| MLN-SF/UTPCAT68P24 |
2×(4×2×24AWG) |
0.31 |
1.2 |
15.2×7.6 |
120 |
