Armoured PROFIBUS 1 Pair 22 AWG
Applications
These profibus cables are dedicated for fixed installation on board of ship, used as connection cables for digital signals up to 12MBd.
Standards
- IEC 60332-1&2
- IEC 60754-1/2
- IEC 61034
- IEC 60092

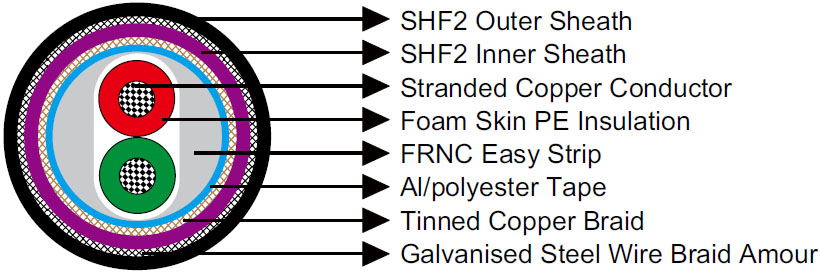

Construction
| Conductors |
Stranded bare copper 22 AWG. |
| Insulation |
Foam skin PE. |
| Easy Strip |
Thermoplastic copolymer (FRNC). |
| Overall Screen1 |
Aluminium/polyester tape. |
| Overall Screen2 |
Tinned copper braid. |
| Inner Sheath |
SHF2. |
| Armour |
Galvanised Steel Wire Braid. |
| Outer Sheath |
SHF2. |
Core Identification
Electrical Characteristics
| Characteristic Impedance |
Ω |
150 ±15 |
| Mutual Capacitance @1KHz |
nF/km |
28.5 |
| Insulation Resistance |
MΩ.km |
16000 |
| Attenuation @9.6kHz |
dB/km |
2.5 |
| Attenuation @38.4kHz |
dB/km |
4 |
| Attenuation @4kHz |
dB/km |
22 |
| Attenuation @16kHz |
dB/km |
42 |
Mechanical and Thermal Properties
| Bending Radius for Fixed Installations |
10×OD |
| Temperature Range |
-30℃ ~ +75℃ |
Dimensions and Weight
| Part No. |
Construction No. of elements×No. of cores in element×Cross section |
Core Diameter |
Nominal Overall Diameter |
Nominal Weight |
| |
mm² |
mm |
mm |
kg/km |
| MLN-02YSH(ST)CHSWBH-1×2×22A |
1×2×22 AWG |
2.55 |
10.65 |
180 |
