Application

These cables are double shielded, large gauge size PVC motor supply cable. Polypropylene insulation over very fine stranded copper provides a low-loss transfer of power, excellent low capacitance performance and superior flexibility when compared to conventional PVC cables. The applications include frequency converters, motor runs, connections with high electromagnetic interference. Found in the automotive, paper and food industry, environmental technology, packaging industry, machine tools and handling equipment. The overall foil and braid shield offer excellent protection against electromagnetic and electrical interferences. For medium mechanical stresses found indoors in dry, moist and wet areas.

Standard

UL AWM 2570 or 20886, VW-1; CSA AWM I/II A/B, FT-1; UL/CSA rated 1kV 80 Deg C.; VDE 0250, VDE 0207, VDE 0276; EMC to EN 55011; EMC to VDE-0875 part-11; CE Low Voltage Directive 73/23/EEC and 93/68/EEC, ROHS compliant

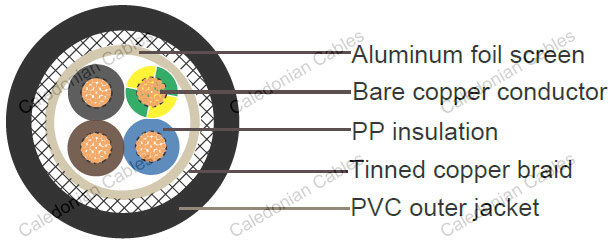

Cable construction

Stranded bare copper conductor according to DIN VDE 0295, IEC60228 cl. 5

Polypropylene (PP) insulation

Colours according to HD 308 S2(VDE 0293- 308)

Special aluminum foil screening

Tinned copper braiding, coverage approx. 85%

Transparent PVC sheath made of PVC compound YM2 acc. VDE 0207 -5, leadfree, flame retardant & selfextinguishing

Technical Characteristics

Working voltage : IEC 600/1000V / UL & CSA 1000V

Test voltage : 4000 volts

Minimum bending radius : 15 x Ø

Flexing temperature : -5ºC to +80ºC

Fixed installation temperature : - 40ºC to +80ºC

Flame retardant : IEC 60332.1 VW-1

Insulation resistance : >20 GΩ x km

Cable Parameter
