Applications
These cables are used for the connection of electrical operating equipment inindustrial water, notably for submersible pumps.3-core cables without earth cores are used where theascending pipe serves as earth conductor.
Standards
VDE 0250 Part 812 VDE 0250 Part 813

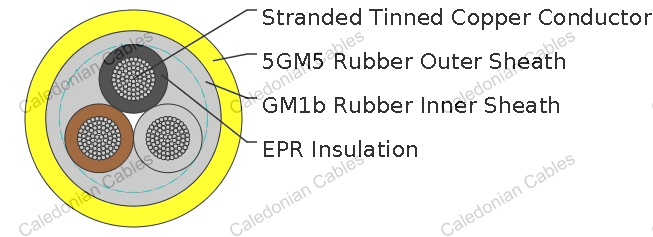

Construction
Conductors:
Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295. Insulation:
Heat resistant EPR. InnerSheath:
Rubbertype GM1b. Outer Sheath:
Chlorinated rubber type 5GM5, abrasion and tear resistant, oil resistant and flame retardant (for 0.6/1kV). Chlorinated rubber type 5GM3, oil resistant and flame retardant (for 1.8/3kV, 3.6/6kV). Dimensions and Weight
NSSHOEU 0.6/1kV
| Number of Cores×Nominal Cross Section | Nominal Overall Diameter | Nominal Weight |
| No. ×mm² | mm | kg/km |
| 3×4 | 17.0 | 400 |
| 3×10 | 22.0 | 720 |
| 3×16 | 26.0 | 1050 |
| 3×25 | 31.0 | 1500 |
| 3×35 | 35.0 | 2050 |
| 3×50 | 41.0 | 2820 |
| 3×70 | 45.0 | 3540 |
| 3×95 | 52.0 | 4750 |
| 4×25 | 35.0 | 2010 |
| 4×35 | 38.0 | 2530 |
| 4×50 | 45.0 | 3500 |
| 3×70/35 | 49.0 | 4190 |
NTSWOEU 1.8/3kV
| Number of Cores×Nominal Cross Section | Nominal Overall Diameter | Nominal Weight |
| No. ×mm² | mm | kg/km |
| 3×25 | 35.0 | 1840 |
| 3×35 | 39.0 | 2410 |
| 3×50 | 43.0 | 3040 |
| 3×70 | 48.0 | 3920 |
| 3×95 | 53.0 | 4950 |
NTSWOEU 3.6/6kV
| Number of Cores×Nominal Cross Section | Nominal Overall Diameter | Nominal Weight |
| No. ×mm² | mm | kg/km |
| 3×25 | 45.0 | 2690 |
| 3×35 | 47.0 | 3180 |
| 3×50 | 51.0 | 3860 |
| 3×70 | 56.0 | 4870 |
| 3×95 | 60.0 | 5870 |
