Applications
These cables are used for connection of large mobile equipment such asexcavators and spreaders, gantrycranes, etc., under very highmechanical loads,suitablefor motorised reeling on monospiralor level-wind reelers.
Standards
Based on VDE 0250 Part 813

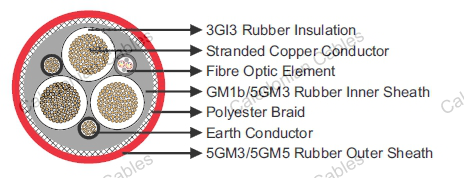

Construction
Conductors: Flexible strandedcopper conductor, class 5 according to DIN VDE 0295.
Inner Conductor Layer: Semiconductive layer.
Insulation: EPR type 3GI3.
Outer Conductor Layer:Semiconductive layer.
Earth Conductor: Split into two in the outer interstices.
InnerSheath: Rubber type GM1b/5GM3.
Fiber Optics: 12 FO 50/125 or 62.5/125 orE9/125μm within protection sheath.
Reinforcement:Polyester anti-torsion braid.
Dimensions and Weight
3.6/6 kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×25+2×25/2+12×LWL | 39.0 | 42.0 | 2410 |
| 3×35+2×25/2+12×LWL | 42.0 | 45.0 | 2995 |
| 3×50+2×25/2+12×LWL | 45.0 | 48.0 | 3645 |
| 3×70+2×35/2+12×LWL | 50.0 | 54.0 | 4760 |
| 3×95+2×50/2+12×LWL | 54.0 | 58.0 | 5580 |
| 3×120+2×70/2+12×LWL | 58.0 | 62.0 | 6690 |
| 3×150+2×70/2+12×LWL | 63.0 | 67.0 | 7990 |
| 3×185+2×95/2+12×LWL | 67.0 | 72.0 | 9330 |
6/10 kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×25+2×25/2+12×LWL | 40.0 | 43.0 | 2450 |
| 3×35+2×25/2+12×LWL | 43.0 | 46.0 | 3035 |
| 3×50+2×25/2+12×LWL | 46.0 | 49.0 | 3690 |
| 3×70+2×35/2+12×LWL | 51.0 | 55.0 | 4800 |
| 3×95+2×50/2+12×LWL | 55.0 | 59.0 | 5620 |
| 3×120+2×70/2+12×LWL | 59.0 | 63.0 | 6740 |
| 3×150+2×70/2+12×LWL | 64.0 | 68.0 | 8040 |
| 3×185+2×95/2+12×LWL | 68.0 | 72.0 | 9380 |
12/20 kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×25+2×25/2+12×LWL | 46.0 | 49.0 | 3050 |
| 3×35+2×25/2+12×LWL | 49.0 | 52.0 | 3490 |
| 3×50+2×25/2+12×LWL | 53.0 | 57.0 | 4340 |
| 3×70+2×35/2+12×LWL | 57.0 | 61.0 | 5320 |
| 3×95+2×50/2+12×LWL | 61.0 | 65.0 | 6360 |
| 3×120+2×70/2+12×LWL | 67.0 | 71.0 | 7810 |
| 3×150+2×70/2+12×LWL | 70.0 | 74.0 | 8900 |
| 3×185+2×95/2+12×LWL | 76.0 | 80.0 | 10700 |
18/30 kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No.×mm² | mm | mm | kg/km |
| 3×25+2×25/2+12×LWL | 55.0 | 59.0 | 3960 |
| 3×35+2×25/2+12×LWL | 58.0 | 62.0 | 4550 |
| 3×50+2×25/2+12×LWL | 63.0 | 67.0 | 5510 |
| 3×70+2×35/2+12×LWL | 66.0 | 70.0 | 6560 |
| 3×95+2×50/2+12×LWL | 71.0 | 75.0 | 7850 |
| 3×120+2×70/2+12×LWL | 76.0 | 80.0 | 10690 |
| 3×185+2×95/2+12×LWL | 86.0 | 90.0 | 12550 |
