    Type 209 1.1 to 11KV

    Applications

    Type 209 series cable is mainly used as a flexible feeder to machinery, more suitable as a trailing cable rather than for reeling. Smaller cables are used for drills and hand held tools and equipment.

    Standards

    AS/NZS 1802:2003

    AS/NZS 1125

    AS/NZS 3808

    AS/NZS 5000.1

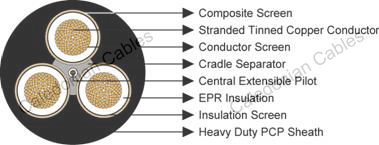

    Construction

    3×Conductors: Flexible stranded tinned annealed copper conductor.

    Conductor Screen: 1.1/1.1kV - polyester barrier tape, 3.3/3.3kV and above - polyester barrier tape and extruded semiconductive tape.

    Insulation: EPR.

    Insulation Screen: Semiconductive tape.

    Composite Screen (earth conductor):Tinned annealed copper braiding interwove with polyester yarn.

    Cradle Separator: Semiconductive PCP.

    1×Central Extensible Pilot:EPR covered flexible stranded tinned copper conductor.

    Sheath: Heavy duty PCP sheath.

    Dimensions and Weight

    Nominal Conductor Area

    Strand Size

    Insulation Thickness

    Core screen

    Pilot Conductor

    Thickness of Sheath

    Nominal Overall Diameter

    Nominal Weight

    Strand Size

    Area of Screen

    Strand Size

    Thickness of Covering

    mm²

    No/mm

    mm

    No/mm

    mm²

    No/mm

    mm

    mm

    mm

    kg/100m

    Type 209.1

    6

    84/0.30

    1.5

    7/0.25

    7.2

    24/0.20

    0.8

    3.8

    30.0

    129

    10

    77/0.40

    1.5

    7/0.25

    8.6

    24/0.20

    0.8

    3.8

    32.6

    157

    16

    126/0.40

    1.6

    7/0.25

    9.6

    24/0.20

    0.8

    4.0

    35.8

    197

    25

    209/0.40

    1.6

    7/0.25

    11.3

    24/0.20

    0.8

    4.3

    39.7

    255

    35

    285/0.40

    1.6

    7/0.25

    12.4

    24/0.20

    0.8

    4.6

    43.1

    312

    50

    380/0.40

    1.7

    7/0.25

    14.1

    40/0.20

    0.8

    5.0

    47.7

    386

    70

    203/0.67

    1.8

    7/0.25

    16.5

    40/0.20

    0.8

    5.4

    54.0

    503

    95

    259/0.67

    2.0

    7/0.25

    18.2

    40/0.20

    0.8

    6.0

    58.6

    605

    120

    336/0.67

    2.1

    7/0.25

    20.3

    40/0.20

    0.8

    6.4

    64.4

    741

    150

    427/0.67

    2.3

    7/0.25

    22.3

    40/0.20

    0.8

    6.9

    70.2

    896

    185

    518/0.67

    2.5

    7/0.30

    30.2

    40/0.20

    0.8

    7.4

    77.4

    1092

    240

    672/0.67

    2.8

    7/0.30

    33.6

    40/0.20

    0.8

    8.2

    86.0

    1365

    300

    854/0.67

    3.0

    7/0.40

    50.1

    40/0.20

    0.8

    8.8

    95.1

    1715

    Type 209.3

    16

    126/0.40

    3.0

    7/0.25

    13.1

    24/0.20

    0.8

    5.3

    46.2

    301

    25

    209/0.40

    3.0

    7/0.25

    14.8

    24/0.20

    0.8

    5.6

    50.1

    369

    35

    285/0.40

    3.0

    7/0.25

    15.8

    24/0.20

    0.8

    5.9

    53.5

    431

    50

    380/0.40

    3.0

    7/0.25

    17.2

    40/0.20

    0.8

    6.3

    57.6

    507

    70

    203/0.67

    3.0

    7/0.25

    18.6

    40/0.20

    0.8

    6.6

    62.5

    624

    95

    259/0.67

    3.0

    7/0.25

    20.3

    40/0.20

    0.8

    7.1

    66.2

    719

    120

    336/0.67

    3.0

    7/0.30

    27.2

    40/0.20

    0.8

    7.4

    72.0

    876

    150

    427/0.67

    3.0

    7/0.40

    39.6

    40/0.20

    0.8

    7.8

    78.0

    1072

    185

    518/0.67

    3.0

    7/0.40

    42.2

    40/0.20

    0.8

    8.2

    83.4

    1236

    240

    672/0.67

    3.0

    7/0.40

    46.6

    40/0.20

    0.8

    8.8

    90.3

    1500

    300

    854/0.67

    3.0

    7/0.50

    63.2

    40/0.20

    0.8

    9.4

    98.4

    1840

    Type 209.6

    16

    126/0.40

    5.0

    7/0.25

    17.2

    24/0.20

    0.8

    6.4

    57.3

    435

    25

    209/0.40

    5.0

    7/0.25

    18.6

    24/0.20

    0.8

    6.7

    61.2

    512

    35

    285/0.40

    5.0

    7/0.25

    18.6

    24/0.20

    0.8

    7.0

    64.6

    582

    50

    380/0.40

    5.0

    7/0.25

    21.3

    40/0.20

    0.8

    7.3

    68.5

    668

    70

    203/0.67

    5.0

    7/0.25

    23.4

    40/0.20

    0.8

    7.7

    73.7

    799

    95

    259/0.67

    5.0

    7/0.30

    29.2

    40/0.20

    0.8

    8.1

    77.8

    935

    120

    336/0.67

    5.0

    7/0.30

    31.7

    40/0.20

    0.8

    8.5

    83.1

    1090

    150

    427/0.67

    5.0

    7/0.40

    45.7

    40/0.20

    0.8

    8.9

    89.1

    1310

    185

    518/0.67

    5.0

    7/0.40

    48.4

    40/0.20

    0.8

    9.3

    94.5

    1480

    240

    672/0.67

    5.0

    7/0.40

    52.8

    40/0.20

    0.8

    9.9

    101.4

    1750

    300

    854/0.67

    5.0

    7/0.50

    71.5

    40/0.20

    0.8

    10.4

    109.3

    2120

    Type 209.11

    25

    209/0.40

    7.6

    7/0.25

    23.7

    24/0.20

    0.8

    8.1

    75.6

    750

    35

    285/0.40

    7.6

    7/0.30

    30.2

    24/0.20

    0.8

    8.4

    79.7

    858

    50

    380/0.40

    7.6

    7/0.30

    31.7

    40/0.20

    0.8

    8.7

    83.6

    960

    70

    203/0.67

    7.6

    7/0.30

    34.1

    40/0.20

    0.8

    9.1

    88.8

    1093

    95

    259/0.67

    7.6

    7/0.40

    47.5

    40/0.20

    0.8

    9.6

    93.7

    1267

    120

    336/0.67

    7.6

    7/0.40

    51.0

    40/0.20

    0.8

    9.9

    98.8

    1436

    150

    427/0.67

    7.6

    7/0.40

    53.7

    40/0.20

    0.8

    10.3

    103.5

    1614

    185

    518/0.67

    7.6

    7/0.40

    57.2

    40/0.20

    0.8

    10.7

    108.8

    1830
