Military Cable

Application and Description:

These extruded thin wall PTFE (polyvinylidene fluoride) insulated single-core MIL-W-81822/4 cables are used in back panel wire wrap applications. these wires have increased cut-through and abrasion resistance. Solid conductors can be used in wire-wrap applications like back panel wiring.

Construction:

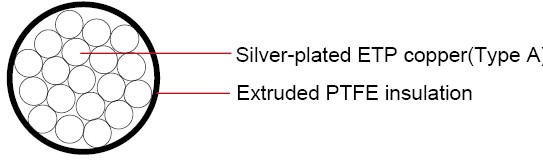

Conductor:

Type A: Silver-plated ETP copper

Type B: Silver-plated OFHC copper

Type C: Silver-plated High-Strength Copper Alloy

Insulation: Extruded PTFE/Polyimide

Characteristics:

Temperature Range: 200ºC

Voltage Rating: 300 volts

MIL-W-81822/4 Wire Wrap – PTFE/Polyimide

SAE AS81822/4

Color Code:MIIL-STD-104(See page 65)

Dimensions and Weight:

AWG Size	Conductor Stranding	Conductor Diam.		Insulation Diam. Min.		Insulation Diam. Max.		Max. Resistance @ 20°C OHMS/MFT	Approx LBS/MFT
		in	mm	in	mm	in	mm
Type A
20	Solid	0.0320	0.813	0.044	1.120	0.048	1.220	10.40	4.2
22	Solid	0.0253	0.643	0.037	0.940	0.041	1.040	16.80	2.8
24	Solid	0.0201	0.511	0.0325	0.826	0.0355	0.902	26.50	1.9
26	Solid	0.0159	0.404	0.028	0.711	0.031	0.787	42.70	1.3
28	Solid	0.0126	0.320	0.025	0.635	0.028	0.711	68.00	1.0
30	Solid	0.0100	0.254	0.0185	0.47	0.0205	0.521	108.00	0.6
Type B
20	Solid	0.032	0.813	0.0440	1.120	0.0480	1.220	10.40	4.2
22	Solid	0.0253	0.643	0.0370	0.940	0.0410	1.040	16.80	2.8
24	Solid	0.0201	0.511	0.0325	0.826	0.0355	0.902	26.50	1.9
26	Solid	0.0159	0.404	0.0280	0.711	0.0310	0.787	42.70	1.3
28	Solid	0.0126	0.320	0.0250	0.635	0.0280	0.711	68.00	1.0
30	Solid	0.0100	0.254	0.0185	0.470	0.020	0.521	108.00	0.6
Type C
20	Solid	0.0320	0.813	0.0440	1.120	0.0480	1.220	12.20	4.2
22	Solid	0.025	0.643	0.0370	0.940	0.0410	1.040	19.70	2.8
24	Solid	0.0201	0.511	0.0325	0.826	0.0355	0.902	31.00	1.9
26	Solid	0.0159	0.404	0.0280	0.711	0.0310	0.787	50.40	1.3
28	Solid	0.0126	0.320	0.0250	0.635	0.0280	0.711	79.40	1.0
30	Solid	0.0100	0.254	0.0185	0.470	0.0205	0.521	126.00	0.6
