Military Cable
MIL-W-81822/13
Application and Description:
These extruded ETFE (polyvinylidene fluoride) insulated single-core MIL-W-81822/13 cables are used for aerospace and other applications where light weight, tight jacket diameter tolerances and mechanical toughness are required. ETFE insulation also provides exceptional resistance to radiation and chemicals.

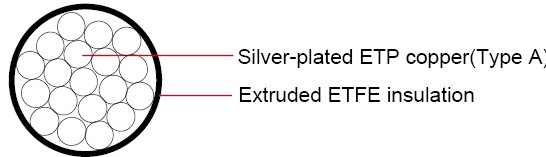

Construction:
Conductor:
Type A: Silver-plated ETP copper
Type B: Silver-plated OFHC copper
Type C: Silver-plated High-Strength Copper Alloy
Insulation: Extruded ETFE
Characteristics:
Temperature Range: -55˚C to 150°C
Voltage Rating: 300 volts
SAE AS81822/13
Color code: MIIL-STD-104(See page 65)
Dimensions and Weight:
AWG Size |
Conductor Stranding |
Conductor Diam. |
Insulation Diam. Min. |
Insulation Diam. Max. |
Max. Resistance @ 20°C OHMS/MFT |
Approx LBS/MFT |
|||
|
|
in |
mm |
in |
mm |
in |
mm |
|
|
Type A |
|||||||||
20 |
Solid |
0.0320 |
0.813 |
0.0440 |
1.120 |
0.0480 |
1.220 |
10.40 |
4.1 |
22 |
Solid |
0.0253 |
0.643 |
0.0370 |
0.940 |
0.0410 |
1.040 |
16.80 |
2.5 |
24 |
Solid |
0.0201 |
0.511 |
0.0325 |
0.826 |
0.0355 |
0.902 |
26.50 |
1.7 |
24 |
Solid |
0.0201 |
0.511 |
0.0285 |
0.724 |
0.0315 |
0.800 |
26.50 |
1.7 |
26 |
Solid |
0.0159 |
0.404 |
0.0280 |
0.711 |
0.031 |
0.787 |
42.70 |
1.1 |
26 |
Solid |
0.0159 |
0.404 |
0.0245 |
0.622 |
0.0275 |
0.699 |
42.70 |
1.1 |
28 |
Solid |
0.0126 |
0.320 |
0.0250 |
0.635 |
0.0280 |
0.711 |
68.00 |
0.8 |
28 |
Solid |
0.0126 |
0.320 |
0.0215 |
0.546 |
0.0245 |
0.622 |
68.00 |
0.8 |
30 |
Solid |
0.0100 |
0.254 |
0.0185 |
0.470 |
0.0205 |
0.521 |
108.0 |
0.5 |
Type B |
|||||||||
20 |
Solid |
0.0320 |
0.813 |
0.0440 |
1.120 |
0.0480 |
1.220 |
10.40 |
3.6 |
22 |
Solid |
0.0253 |
0.643 |
0.0370 |
0.940 |
0.0410 |
1.040 |
16.80 |
2.5 |
24 |
Solid |
0.0201 |
0.511 |
0.0325 |
0.826 |
0.0355 |
0.902 |
26.50 |
1.7 |
24 |
Solid |
0.0201 |
0.511 |
0.028 |
0.724 |
0.0315 |
0.800 |
26.50 |
1.7 |
26 |
Solid |
0.0159 |
0.404 |
0.0280 |
0.711 |
0.0310 |
0.787 |
42.70 |
1.1 |
26 |
Soli |
0.0159 |
0.404 |
0.0245 |
0.622 |
0.0275 |
0.699 |
42.70 |
1.1 |
28 |
Solid |
0.0126 |
0.320 |
0.0250 |
0.635 |
0.0280 |
0.711 |
68.00 |
0.8 |
28 |
Solid |
0.0126 |
0.320 |
0.0215 |
0.546 |
0.0245 |
0.622 |
68.00 |
0.8 |
30 |
Solid |
0.0100 |
0.254 |
0.0185 |
0.470 |
0.0205 |
0.521 |
108.00 |
0.5 |
Type C |
|||||||||
20 |
Solid |
0.0320 |
0.813 |
0.0440 |
1.120 |
0.0480 |
1.220 |
12.20 |
4.1 |
22 |
Solid |
0.0253 |
0.643 |
0.0370 |
0.940 |
0.0410 |
1.040 |
19.70 |
2.5 |
24 |
Solid |
0.0201 |
0.511 |
0.0325 |
0.826 |
0.0355 |
0.902 |
31.00 |
1.7 |
24 |
Solid |
0.0201 |
0.511 |
0.0285 |
0.724 |
0.0315 |
0.800 |
31.00 |
1.6 |
26 |
Solid |
0.0159 |
0.404 |
0.0280 |
0.711 |
0.0310 |
0.787 |
50.40 |
1.1 |
26 |
Solid |
0.0159 |
0.404 |
0.0245 |
0.622 |
0.0275 |
0.699 |
50.40 |
1.1 |
28 |
Solid |
0.0126 |
0.320 |
0.0250 |
0.635 |
0.0280 |
0.711 |
76.40 |
0.8 |
28 |
Solid |
0.0126 |
0.320 |
0.0215 |
0.546 |
0.0245 |
0.622 |
79.40 |
0.8 |
30 |
Solid |
0.0100 |
0.254 |
0.0185 |
0.470 |
0.0205 |
0.521 |
126.00 |
0.5 |
