Military Cable

Application and Description:

These PVC insulated single-core MIL-W-76B type MW cables are used for internal wiring of electrical and electronic equipment. It is flame and ozone resistant and inert to most chemicals, oils, and solvents.

Construction:

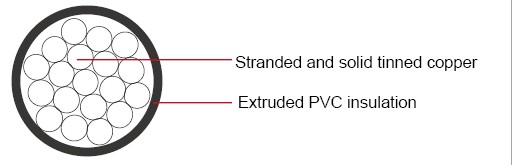

Conductor: Stranded and solid tinned copper conductor

Insulation: Extruded PVC Insulation

Characteristics:

Temperature Range: -40ºC to +80ºC

Voltage Rating: 1000 volts

Dimensions and Weight:

AWG Size	Conductor Stranding	Insulation Thickness		Nom. O.D.		Approx LBS/MFT
		in	mm	in	mm
