MIL-W-76B type HW
Application and Description:
These chemical and moisture resistant PVC insulated single-core MIL-W-76B type HW purpose heavy wall cables are used for internal wiring of electrical and electronic equipment. It is also resistant to water, oil, acids, solvents and fungus.
Construction:

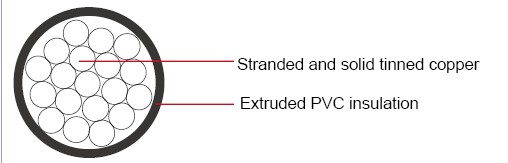

Conductor: Stranded Tinned Copper
Insulation: Chemical and moisture resistant PVC.
Characteristics:
Temperature Range: -55ºC to +90ºC
Voltage Rating:
2500 Volt RMS - 22AWG to 16AWG
600 Volt RMS - 14AWG
Dimensions and Weight:
AWG Size |
Conductor Stranding |
Conductor Diam. |
Nom. O.D. |
Approx LBS/MFT |
||
|
in |
mm |
in |
mm |
||
22 |
7/30 |
0.030 |
0.762 |
0.092 |
2.337 |
6.0 |
20 |
10/30 |
0.037 |
0.940 |
0.099 |
2.515 |
7.6 |
18 |
16/30 |
0.045 |
1.143 |
0.107 |
2.718 |
10.3 |
16 |
19/29 |
0.059 |
1.499 |
0.120 |
3.048 |
12.9 |
14 |
19/27 |
0.073 |
1.854 |
0.163 |
4.140 |
22.1 |
12 |
19/25 |
0.092 |
2.337 |
0.182 |
4.623 |
32.1 |
10 |
37/26 |
0.115 |
2.921 |
0.205 |
5.207 |
43.6 |
8 |
133/29 |
0.166 |
4.216 |
0.258 |
6.553 |
74.8 |
6 |
133/27 |
0.210 |
5.334 |
0.300 |
7.620 |
101.3 |
