Military Cable
MIL-W-16878/11 Type K Wire
Application and Description:
These FEP insulated single-core MIL-W-16878/11 (Type K) wires are used in electronic equipment, motor leads and computer back panels.

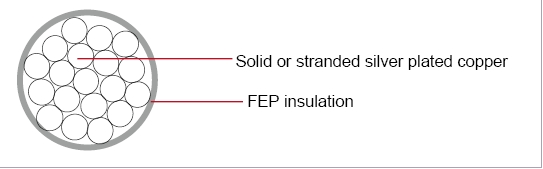

Construction:
Conductor: Solid or stranded silver plated copper
(These wires also have tin-plated copper conductors for economy)
Insulation: Extruded FEP
Insulation Wall Thickness: 0.010”
Characteristics:
Temperature Range: -55°C to +200°C
Voltage Rating: 600 volts
MIL-W-16878/11(Type K)
Color Code: MIL-STD-104 (See page 12)
10 basic colors(BLK,BRN,RED,ORN,YEL,GRN,BLU,VIO,GRY,WHT)
Dimensions and Weight:
AWG Size |
Conductor Stranding |
Conductor Diam. |
Nom. O.D. |
Approx LBS/MFT |
||
|
|
in |
mm |
in |
mm |
|
32 |
7/40 |
0.009 |
0.229 |
0.029 |
0.737 |
1.0 |
32 |
19/44 |
0.010 |
0.254 |
0.030 |
0.762 |
1.0 |
30 |
Solid |
0.010 |
0.254 |
0.030 |
0.762 |
1.0 |
30 |
7/38 |
0.012 |
0.305 |
0.032 |
0.813 |
1.0 |
30 |
16/42 |
0.012 |
0.305 |
0.032 |
0.813 |
1.0 |
28 |
Solid |
0.013 |
0.330 |
0.033 |
0.838 |
2.0 |
28 |
7/36 |
0.015 |
0.381 |
0.035 |
0.889 |
2.0 |
28 |
19/40 |
0.015 |
0.381 |
0.035 |
0.889 |
2.0 |
26 |
Solid |
0.016 |
0.406 |
0.036 |
0.914 |
2.0 |
26 |
7/34 |
0.019 |
0.483 |
0.039 |
0.991 |
2.0 |
26 |
19/38 |
0.019 |
0.483 |
0.039 |
0.991 |
2.0 |
24 |
Solid |
0.020 |
0.508 |
0.040 |
1.016 |
3.0 |
24 |
7/32 |
0.024 |
0.610 |
0.044 |
1.118 |
3.0 |
24 |
19/36 |
0.024 |
0.610 |
0.044 |
1.118 |
3.0 |
22 |
Solid |
0.025 |
0.635 |
0.045 |
1.143 |
4.0 |
22 |
7/30 |
0.030 |
0.762 |
0.050 |
1.270 |
4.0 |
22 |
19/34 |
0.030 |
0.762 |
0.050 |
1.270 |
4.0 |
20 |
Solid |
0.032 |
0.813 |
0.050 |
1.270 |
5.0 |
20 |
7/28 |
0.036 |
0.914 |
0.058 |
1.473 |
5.0 |
20 |
19/32 |
0.038 |
0.965 |
0.058 |
1.473 |
5.0 |
18 |
7/26 |
0.048 |
1.219 |
0.069 |
1.753 |
8.0 |
18 |
19/30 |
0.047 |
1.194 |
0.069 |
1.753 |
8.0 |
16 |
19/29 |
0.053 |
1.346 |
0.080 |
2.032 |
10.0 |
14 |
19/27 |
0.067 |
1.702 |
0.094 |
2.388 |
15.0 |
12 |
19/25 |
0.084 |
2.134 |
0.113 |
2.870 |
23.0 |
10 |
37/26 |
0.110 |
2.794 |
0.132 |
3.353 |
35.0 |
8 |
133/29 |
0.162 |
4.115 |
0.190 |
4.826 |
60.0 |
