Military Cable
M81381/19
Application and Description:
These FEP/polyimide/FEP tape insulated single-core M81381/19 cables are used in aerospace applications and other challenging applications. It is well-suited to applications concerned with smoke emission and overload stability.

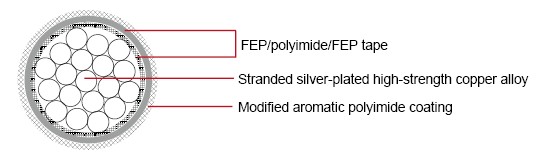

Construction:
Conductor: Stranded silver-plated high-strength copper alloy conductor
Insulation: FEP/polyimide/FEP tape insulation
Insulation Wall Thickness: 0.0065”
Jacket: modified aromatic polyimide coating
Characteristics:
Temperature Range: -55°C + 200°C
Voltage Rating: 600 volts
Color Code: MIL-STD-104 (See page 42 )
10 basic colors(BLK,BRN,RED,ORN,YEL,GRN,BLU,VIO,GRY,WHT)
Dimensions and Weight:
AWG Size |
Conductor Stranding |
Conductor Diam. Max. |
Conductor Diam. Min. |
Max. O.D. |
Min. O.D. |
Maximum Resistance (Ohm/1000' @ 20°C) |
Approx LBS/MFT |
||||
in |
mm |
in |
mm |
in |
mm |
in |
mm |
|
|||
30 |
7/38 |
0.012 |
0.300 |
0.011 |
0.280 |
0.024 |
0.610 |
0.021 |
0.533 |
117.40 |
0.6 |
28 |
7/36 |
0.150 |
0.380 |
0.014 |
0.360 |
0.027 |
0.686 |
0.024 |
0.610 |
74.40 |
0.8 |
26 |
19/38 |
0.200 |
0.510 |
0.018 |
0.460 |
0.030 |
0.762 |
0.028 |
0.711 |
44.80 |
1.2 |
24 |
19/36 |
0.024 |
0.610 |
0.023 |
0.580 |
0.035 |
0.889 |
0.032 |
0.813 |
28.40 |
1.8 |
22 |
19/34 |
0.031 |
0.790 |
0.029 |
0.740 |
0.041 |
1.041 |
0.038 |
0.965 |
17.50 |
2.6 |
20 |
19/32 |
0.039 |
0.990 |
0.037 |
0.940 |
0.050 |
1.270 |
0.047 |
1.194 |
10.70 |
4.1 |
