Military Cable
M81381/18
Application and Description:
These FEP/polyimide/FEP tape insulated single-core M81381/18 cables are used in aerospace applications and other challenging applications. It is well-suited to applications concerned with smoke emission and overload stability.
Construction:

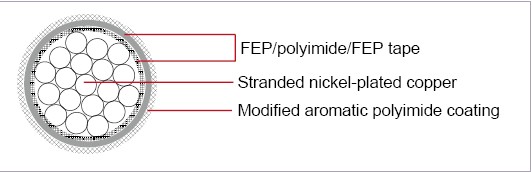

Conductor: Stranded nickel-plated copper conductor
Insulation: FEP/polyimide/FEP tape insulation
Insulation Wall Thickness: 0.0065”
Jacket: modified aromatic polyimide coating
Characteristics:
Temperature Range: -55°C + 200°C
Voltage Rating: 600 volts
Color Code: MIL-STD-104 (See page 42 )
10 basic colors(BLK,BRN,RED,ORN,YEL,GRN,BLU,VIO,GRY,WHT)
Dimensions and Weight:
AWG Size |
Conductor Stranding |
Conductor Diam. Max. |
Conductor Diam. Min. |
Max. O.D. |
Min. O.D. |
Maximum Resistance (Ohm/1000' @ 20°C) |
Approx LBS/MFT |
||||
in |
mm |
in |
mm |
in |
mm |
in |
mm |
|
|||
26 |
19/38 |
0.020 |
0.510 |
0.018 |
0.460 |
0.030 |
0.762 |
0.028 |
0.711 |
42.20 |
1.2 |
24 |
19/36 |
0.024 |
0.610 |
0.023 |
0.580 |
0.035 |
0.889 |
0.032 |
0.813 |
25.90 |
1.8 |
22 |
19/34 |
0.031 |
0.790 |
0.029 |
0.740 |
0.041 |
1.041 |
0.038 |
0.965 |
16.00 |
2.6 |
20 |
19/32 |
0.039 |
0.990 |
0.037 |
0.940 |
0.049 |
1.245 |
0.046 |
1.168 |
9.77 |
4.1 |
18 |
19/30 |
0.049 |
1.240 |
0.046 |
1.170 |
0.058 |
1.473 |
0.055 |
1.397 |
6.10 |
6.3 |
16 |
19/29 |
0.055 |
1.400 |
0.052 |
1.320 |
0.065 |
1.651 |
0.062 |
1.575 |
4.76 |
7.9 |
14 |
19/27 |
0.069 |
1.750 |
0.065 |
1.650 |
0.078 |
1.981 |
0.075 |
1.905 |
3.00 |
12.3 |
12 |
37/28 |
0.089 |
2.260 |
0.084 |
2.130 |
0.098 |
2.489 |
0.094 |
2.388 |
1.98 |
19.0 |
