Military Cable
M81381/10
Application and Description:
These FEP/polyimide/FEP tape insulated single-core M81381/10 cables are used in aerospace applications and other challenging applications. It is well-suited to applications concerned with smoke emission and overload stability.
Construction:

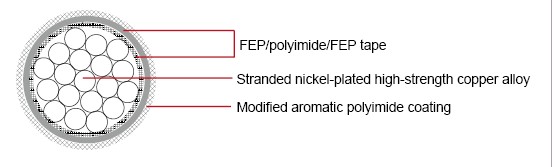

Conductor: Stranded nickel-plated high-strength copper alloy conductor
Insulation: FEP/polyimide/FEP tape insulation
Insulation Wall Thickness: 0.0065”
Jacket: modified aromatic polyimide coating
Characteristics:
Temperature Range: -55°C + 200°C
Voltage Rating: 600 volts
Color Code: MIL-STD-104 (See page 42 )
10 basic colors(BLK,BRN,RED,ORN,YEL,GRN,BLU,VIO,GRY,WHT)
Dimensions and Weight:
AWG Size |
Conductor Stranding |
Conductor Diam. Max. |
Conductor Diam. Min. |
Max. O.D. |
Min. O.D. |
Maximum Resistance (Ohm/1000' @ 20°C) |
Approx LBS/MFT |
||||
in |
mm |
in |
mm |
in |
mm |
in |
mm |
|
|||
30 |
7/38 |
0.013 |
0.330 |
0.011 |
0.280 |
0.027 |
0.686 |
0.230 |
5.842 |
129.60 |
0.7 |
28 |
7/36 |
0.016 |
0.410 |
0.014 |
0.360 |
0.030 |
0.762 |
0.026 |
0.660 |
79.00 |
1.0 |
26 |
19/38 |
0.020 |
0.510 |
0.018 |
0.460 |
0.034 |
0.864 |
0.031 |
0.787 |
49.40 |
1.2 |
24 |
19/36 |
0.025 |
0.640 |
0.023 |
0.580 |
0.037 |
0.940 |
0034 |
0.864 |
30.10 |
1.8 |
22 |
19/34 |
0.031 |
0.790 |
0.029 |
0.740 |
0.041 |
1.041 |
0.041 |
1.041 |
18.60 |
2.7 |
20 |
19/32 |
0.040 |
1.020 |
0.037 |
0.940 |
0.049 |
1.245 |
0.049 |
1.245 |
11.40 |
4.2 |
