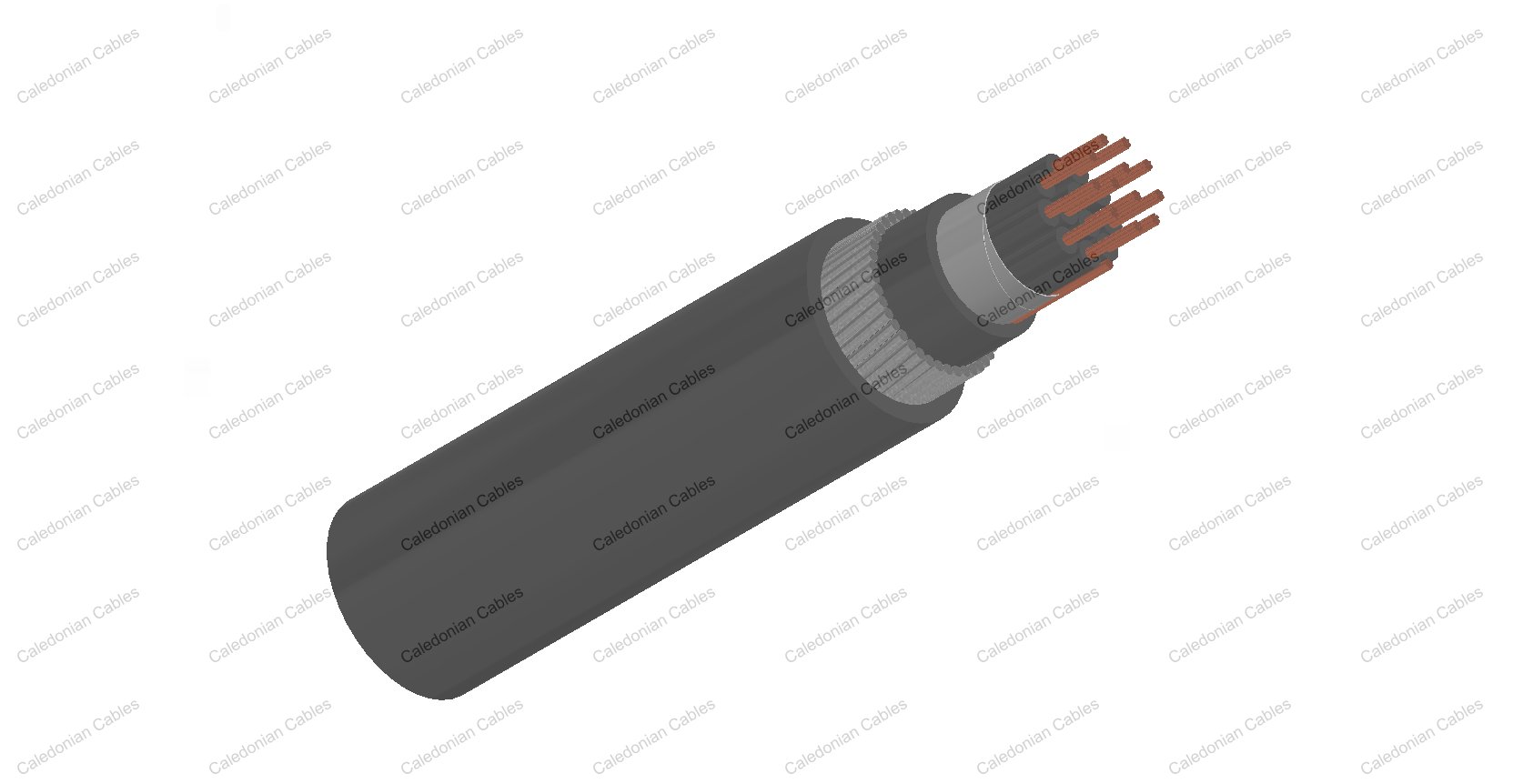

    XLPE Insulated, PVC Sheathed, Overall Screened & Armoured Instrumentation Cables (Multicore)

    APPLICATION

    For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

    STANDARDS

    Basic design to EN 50288-7

    FIRE PERFORMANCE

    Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
    Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)*** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
    Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
    Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
    No Toxic gases NES 02-713; NF C 20-454

    Note: Asterisk * denotes superseded standard, *** denotes optional.

    VOLTAGE RATING

    500V

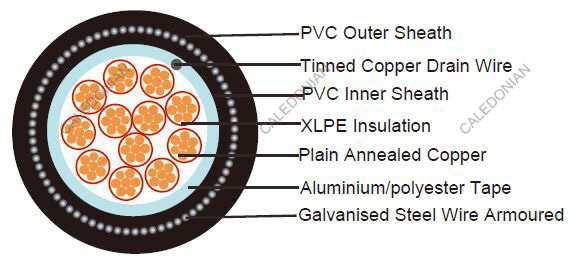

    CABLE CONSTRUCTION

    EN50288-7

    • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
    • Insulation: Extruded cross-linked XLPE compound as per EN 50290-2-29.
    • Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
    • Inner Sheath: Thermoplastic PVC compound
    • Armouring: Galvanised steel wire
    • Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

    COLOUR CODE

    • Insulation: Black numbered
    • Outer Sheath: Black, blue for intrinsically safe systems

    PHYSICAL and THERMAL PROPERTIES

    • Temperature Range During Operation (Fixed State): -30°C – +90°C
    • Temperature Range During Installation (Mobile State): -5°C – +50°C
    • Minimum Bending Radius: 10 X Overall Diameter
    • Sunlight Resistance: UL 1581 section 1200
    • Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

    ELECTRICAL ROPERTIES

    CONDUCTOR AREA SIZE MM2 0.5 0.75 1.0 1.3 1.5 2.5
    INSULATION THICKNESS (NOMINAL) MM 0.55 0.55 0.55 0.6 0.6 0.7
    CONDUCTOR RESISTANCE (20°C) Ω/KM 36.7 25.0 18.5 14.2 12.3 7.4
    INSULATION RESISTANCE (20°C) MΩ.KM(MIN.) 5000
    MUTUAL CAPACITANCE (1 KHZ) PF/M(MAX.) 115
    CAPACITANCE UNBALANCE(1 KHZ) PF/500 M (MAX.) 500
    INDUCTANCE MH/KM(MAX.) 1
    L / R (RATIO) (MAX.) ΜH/Ω 25 25 25 40 40 40
    OPERATING VOLTAGE V 500
    TEST VOLTAGE URMS CORE TO CORE V 2000
    CORE TO SCREEN V 2000

    CONSTRUCTION PARAMETERS

    CALEDONIAN CABLE CODE RE-2X(ST)YSWAY
    NO. OF CORE X1XCROSS SECTION NOMINAL INSULATION THICK- NESS NOMINAL INNER SHEATH THICK- NESS NOMINALOVERALL DIAMETER OVER INNER SHEATH NOMINAL ARMOUR WIRE DIAMETER NOMINAL OUTER SHEATH THICK- NESS NOMINAL OVERALL DIAMETER APPROX. WEIGHT
      NO.X1XMM2 MM MM MM MM MM MM KG/KM
    0.5mm2, Multicore
    RE-2X(St)YSWAY 2C0.5 2x1x0.5 0.55 0.9 6.2 0.9 1.3 10.6 210
    RE-2X(St)YSWAY 3C0.5 3x1x0.5 0.55 0.9 6.5 0.9 1.3 10.9 230
    RE-2X(St)YSWAY 4C0.5 4x1x0.5 0.55 0.9 7.0 0.9 1.3 11.4 253
    RE-2X(St)YSWAY 5C0.5 5x1x0.5 0.55 0.9 7.6 0.9 1.3 12.0 283
    RE-2X(St)YSWAY 8C0.5 8x1x0.5 0.55 1.0 9.1 0.9 1.4 13.7 344
    RE-2X(St)YSWAY 10C0.5 10x1x0.5 0.55 1.0 10.4 0.9 1.4 15.0 399
    RE-2X(St)YSWAY 12C0.5 12x1x0.5 0.55 1.0 10.7 0.9 1.4 15.3 442
    RE-2X(St)YSWAY 14C0.5 14x1x0.5 0.55 1.0 11.3 0.9 1.4 15.9 474
    RE-2X(St)YSWAY 16C0.5 16x1x0.5 0.55 1.1 11.8 0.9 1.4 16.4 505
    RE-2X(St)YSWAY 20C0.5 20x1x0.5 0.55 1.1 13.3 0.9 1.5 18.1 569
    RE-2X(St)YSWAY 24C0.5 24x1x0.5 0.55 1.1 14.7 0.9 1.5 19.5 642
    RE-2X(St)YSWAY 27C0.5 27x1x0.5 0.55 1.2 15.0 0.9 1.5 19.8 808
    RE-2X(St)YSWAY 30C0.5 30x1x0.5 0.55 1.2 15.7 0.9 1.5 20.5 848
    RE-2X(St)YSWAY 37C0.5 37x1x0.5 0.55 1.2 16.9 0.9 1.6 21.9 963
    RE-2X(St)YSWAY 40C0.5 40x1x0.5 0.55 1.2 17.6 1.25 1.6 23.3 1014
    0.75mm2, Multicore
    RE-2X(St)YSWAY 2C0.75 2x1x0.75 0.55 0.9 6.5 0.9 1.3 10.9 230
    RE-2X(St)YSWAY 3C0.75 3x1x0.75 0.55 0.9 6.9 0.9 1.3 11.3 247
    RE-2X(St)YSWAY 4C0.75 4x1x0.75 0.55 0.9 7.4 0.9 1.3 11.8 278
    RE-2X(St)YSWAY 5C0.75 5x1x0.75 0.55 0.9 8.1 0.9 1.4 12.7 322
    RE-2X(St)YSWAY 8C0.75 8x1x0.75 0.55 1.0 9.7 0.9 1.4 14.3 383
    RE-2X(St)YSWAY 10C0.75 10x1x0.75 0.55 1.0 11.1 0.9 1.4 15.7 461
    RE-2X(St)YSWAY 12C0.75 12x1x0.75 0.55 1.0 11.5 0.9 1.4 16.1 477
    RE-2X(St)YSWAY 14C0.75 14x1x0.75 0.55 1.1 12.2 0.9 1.5 17.0 527
    RE-2X(St)YSWAY 16C0.75 16x1x0.75 0.55 1.1 12.9 0.9 1.5 17.7 572
    RE-2X(St)YSWAY 20C0.75 20x1x0.75 0.55 1.1 14.3 0.9 1.5 19.1 669
    RE-2X(St)YSWAY 24C0.75 24x1x0.75 0.55 1.2 16.0 0.9 1.5 20.8 877
    RE-2X(St)YSWAY 27C0.75 27x1x0.75 0.55 1.2 16.3 0.9 1.6 21.3 929
    RE-2X(St)YSWAY 30C0.75 30x1x0.75 0.55 1.2 16.9 0.9 1.6 21.9 986
    RE-2X(St)YSWAY 37C0.75 37x1x0.75 0.55 1.2 18.2 1.25 1.6 23.9 1102
    RE-2X(St)YSWAY 40C0.75 40x1x0.75 0.55 1.3 19.1 1.25 1.6 24.8 1181
    1.0mm2, Multicore
    RE-2X(St)YSWAY 2C1.0 2x1x1.0 0.55 0.9 6.9 0.9 1.3 11.3 247
    RE-2X(St)YSWAY 3C1.0 3x1x1.0 0.55 0.9 7.3 0.9 1.3 11.7 270
    RE-2X(St)YSWAY 4C1.0 4x1x1.0 0.55 0.9 7.9 0.9 1.4 12.5 299
    RE-2X(St)YSWAY 5C1.0 5x1x1.0 0.55 0.9 8.6 0.9 1.4 13.2 342
    RE-2X(St)YSWAY 8C1.0 8x1x1.0 0.55 1.0 10.3 0.9 1.4 14.9 424
    RE-2X(St)YSWAY 10C1.0 10x1x1.0 0.55 1.0 11.9 0.9 1.4 16.5 514
    RE-2X(St)YSWAY 12C1.0 12x1x1.0 0.55 1.0 12.2 0.9 1.5 17.0 548
    RE-2X(St)YSWAY 14C1.0 14x1x1.0 0.55 1.1 13.0 0.9 1.5 17.8 590
    RE-2X(St)YSWAY 16C1.0 16x1x1.0 0.55 1.1 13.7 0.9 1.5 18.5 649
    RE-2X(St)YSWAY 20C1.0 20x1x1.0 0.55 1.1 15.2 0.9 1.5 20.0 864
    RE-2X(St)YSWAY 24C1.0 24x1x1.0 0.55 1.2 17.0 0.9 1.6 22.0 1005
    RE-2X(St)YSWAY 27C1.0 27x1x1.0 0.55 1.2 17.4 1.25 1.6 23.1 1058
    RE-2X(St)YSWAY 30C1.0 30x1x1.0 0.55 1.2 18.0 1.25 1.6 23.7 1113
    RE-2X(St)YSWAY 37C1.0 37x1x1.0 0.55 1.2 19.6 1.25 1.6 25.3 1271
    RE-2X(St)YSWAY 40C1.0 40x1x1.0 0.55 1.3 20.4 1.25 1.7 26.3 1351
    1.3mm2, Multicore
    RE-2X(St)YSWAY 2C1.3 2x1x1.3 0.6 0.9 7.4 0.9 1.3 11.8 275
    RE-2X(St)YSWAY 3C1.3 3x1x1.3 0.6 0.9 7.9 0.9 1.3 12.3 ??
    RE-2X(St)YSWAY 4C1.3 4x1x1.3 0.6 0.9 8.5 0.9 1.4 13.1 340
    RE-2X(St)YSWAY 5C1.3 5x1x1.3 0.6 1.0 9.5 0.9 1.4 14.1 383
    RE-2X(St)YSWAY 8C1.3 8x1x1.3 0.6 1.0 11.2 0.9 1.4 15.8 483
    RE-2X(St)YSWAY 10C1.3 10x1x1.3 0.6 1.1 13.2 0.9 1.5 18.0 578
    RE-2X(St)YSWAY 12C1.3 12x1x1.3 0.6 1.1 13.6 0.9 1.5 18.4 633
    RE-2X(St)YSWAY 14C1.3 14x1x1.3 0.6 1.1 14.3 0.9 1.5 19.1 698
    RE-2X(St)YSWAY 16C1.3 16x1x1.3 0.6 1.1 15.0 0.9 1.5 19.8 870
    RE-2X(St)YSWAY 20C1.3 20x1x1.3 0.6 1.2 16.9 0.9 1.6 21.9 1014
    RE-2X(St)YSWAY 24C1.3 24x1x1.3 0.6 1.2 18.7 1.25 1.6 24.4 1163
    RE-2X(St)YSWAY 27C1.3 27x1x1.3 0.6 1.3 19.3 1.25 1.6 25.0 1227
    RE-2X(St)YSWAY 30C1.3 30x1x1.3 0.6 1.3 20.0 1.25 1.6 25.7 1305
    RE-2X(St)YSWAY 37C1.3 37x1x1.3 0.6 1.3 21.6 1.25 1.7 27.5 1504
    RE-2X(St)YSWAY 40C1.3 40x1x1.3 0.6 1.4 22.7 1.25 1.7 28.6 1584
    1.5mm2, Multicore
    RE-2X(St)YSWAY 2C1.5 2x1x1.5 0.6 0.9 7.7 0.9 1.3 12.1 279
    RE-2X(St)YSWAY 3C1.5 3x1x1.5 0.6 0.9 8.1 0.9 1.4 12.7 322
    RE-2X(St)YSWAY 4C1.5 4x1x1.5 0.6 0.9 8.8 0.9 1.4 13.4 347
    RE-2X(St)YSWAY 5C1.5 5x1x1.5 0.6 1.0 9.8 0.9 1.4 14.4 392
    RE-2X(St)YSWAY 8C1.5 8x1x1.5 0.6 1.0 11.6 0.9 1.4 16.2 518
    RE-2X(St)YSWAY 10C1.5 10x1x1.5 0.6 1.1 13.7 0.9 1.5 18.5 614
    RE-2X(St)YSWAY 12C1.5 12x1x1.5 0.6 1.1 14.1 0.9 1.5 18.9 670
    RE-2X(St)YSWAY 14C1.5 14x1x1.5 0.6 1.1 14.8 0.9 1.5 19.6 742
    RE-2X(St)YSWAY 16C1.5 16x1x1.5 0.6 1.1 15.6 0.9 1.5 20.4 925
    RE-2X(St)YSWAY 20C1.5 20x1x1.5 0.6 1.2 17.6 1.25 1.6 23.3 1062
    RE-2X(St)YSWAY 24C1.5 24x1x1.5 0.6 1.3 19.6 1.25 1.6 25.3 1218
    RE-2X(St)YSWAY 27C1.5 27x1x1.5 0.6 1.3 20.1 1.25 1.6 25.8 1289
    RE-2X(St)YSWAY 30C1.5 30x1x1.5 0.6 1.3 20.8 1.25 1.7 26.7 1418
    RE-2X(St)YSWAY 37C1.5 37x1x1.5 0.6 1.4 22.6 1.25 1.7 28.5 1586
    RE-2X(St)YSWAY 40C1.5 40x1x1.5 0.6 1.4 23.6 1.25 1.7 29.5 1687
    2.52, Multicore
    RE-2X(St)YSWAY 2C2.5 2x1x2.5 0.7 0.9 8.9 0.9 1.4 13.5 364
    RE-2X(St)YSWAY 3C2.5 3x1x2.5 0.7 1.0 9.7 0.9 1.4 14.3 389
    RE-2X(St)YSWAY 4C2.5 4x1x2.5 0.7 1.0 10.5 0.9 1.4 15.1 430
    RE-2X(St)YSWAY 5C2.5 5x1x2.5 0.7 1.0 11.9 0.9 1.4 16.5 547
    RE-2X(St)YSWAY 8C2.5 8x1x2.5 0.7 1.1 13.9 0.9 1.5 18.7 684
    RE-2X(St)YSWAY 10C2.5 10x1x2.5 0.7 1.2 16.3 0.9 1.6 21.3 952
    RE-2X(St)YSWAY 12C2.5 12x1x2.5 0.7 1.2 16.9 0.9 1.6 21.9 1012
    RE-2X(St)YSWAY 14C2.5 14x1x2.5 0.7 1.2 17.7 1.25 1.6 23.4 1126
    RE-2X(St)YSWAY 16C2.5 16x1x2.5 0.7 1.3 18.9 1.25 1.6 24.6 1252
    RE-2X(St)YSWAY 20C2.5 20x1x2.5 0.7 1.3 21.1 1.25 1.7 27.0 1456
    RE-2X(St)YSWAY 24C2.5 24x1x2.5 0.7 1.4 23.6 1.25 1.7 29.5 1644
    RE-2X(St)YSWAY 27C2.5 27x1x2.5 0.7 1.4 24.1 1.25 1.8 30.2 1811
    RE-2X(St)YSWAY 30C2.5 30x1x2.5 0.7 1.5 25.2 1.25 1.8 31.3 2154
    RE-2X(St)YSWAY 37C2.5 37x1x2.5 0.7 1.5 27.2 1.25 1.8 33.3 2477
    RE-2X(St)YSWAY 40C2.5 40x1x2.5 0.7 1.6 28.5 1.25 1.9 34.8 2614

    Note : Other conductor sizes & core configurations are available upon request.
