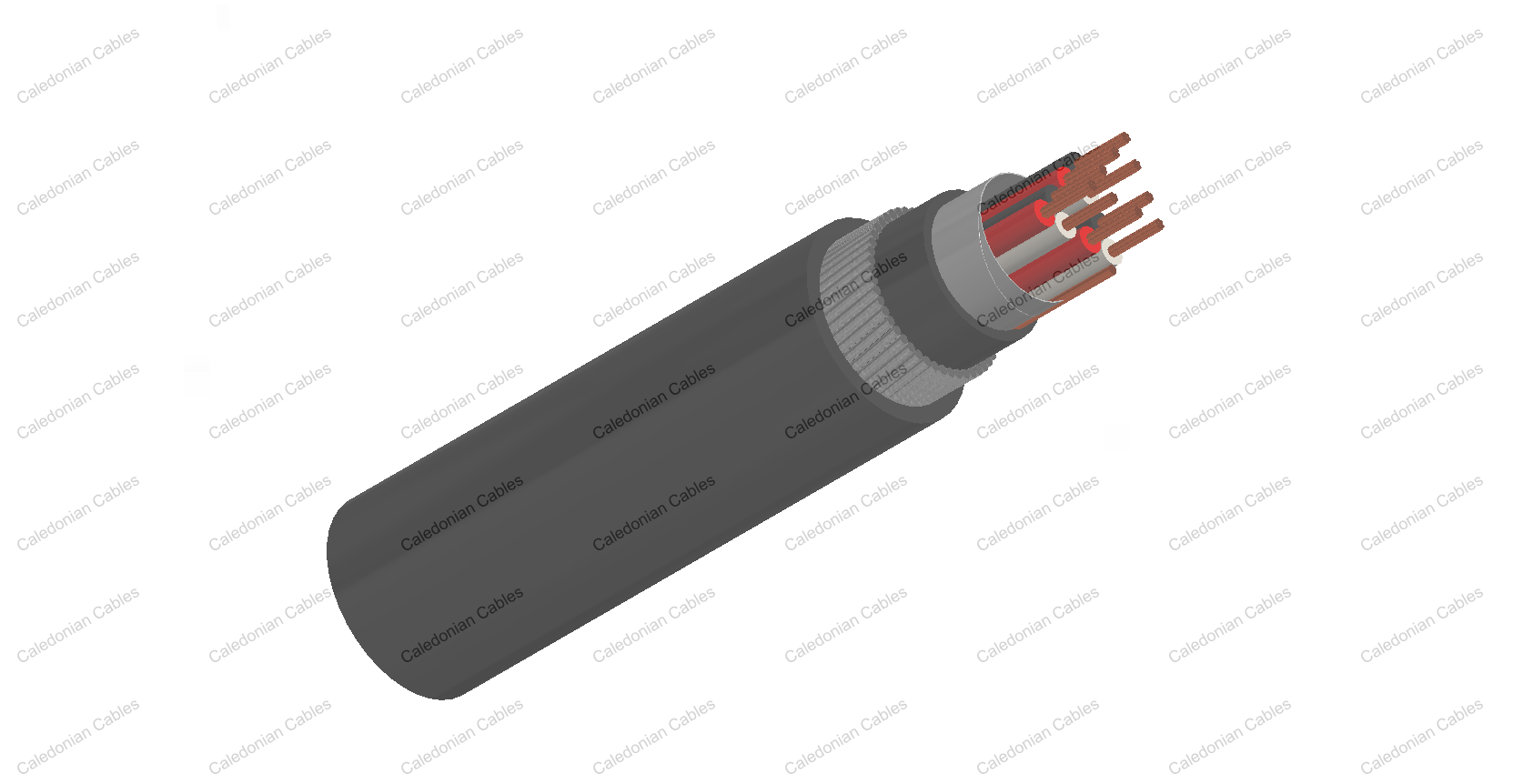

XLPE Insulated, PVC Sheathed, Overall Screened & Armoured Instrumentation Cables (Multi-triple)

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)***	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

300V

CABLE CONSTRUCTION

Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: Extruded cross-linked XLPE compound as per EN 50290-2-29.
Pair:Two conductors twisted to form a pair
Lay-up: Pairs laid up in layers of optimum pitch
Separator: Polyester tape
Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
Inner Sheath: Thermoplastic PVC compound
Armour: Galvenized round steel wire, EN 10257-1
Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 7.5 X Overall Diameter
Sunlight Resistance: UL 1581 section 1200
Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

CONDUCTOR AREA SIZE		MM2	0.5	0.75	1.0	1.3	1.5
INSULATION THICKNESS (NOMINAL)		MM	0.35	0.38	0.4	0.45	0.45
CONDUCTOR RESISTANCE (20°C)		Ω/KM	36.7	25	18.5	14.2	12.3
INSULATION RESISTANCE (20°C)		MΩ.KM (MIN.)	5000
MUTUAL CAPACITANCE (1KHZ)		PF/M (MAX.)
		≤4 PAIRS	90	90	90	102	102
		ALL OTHER PAIRS	75	75	75	85	85
CAPACITANCE UNBALANCE (1KHZ)		PF/500M (MAX.)	500
L/R (RATIO) (MAX.)		ΜH/Ω	25	25	25	40	40
INDUCTANCE		MH/KM (MAX.)	1
OPERATING VOLTAGE URMS		V	300
TEST VOLTAGE	CORE TO CORE	V	1500
TEST VOLTAGE	CORE TO SCREEN	V	1500

CONSTRUCTION PARAMETERS

CALEDONIAN CABLE CODE	RE-2X(ST)HSWAH
CALEDONIAN CABLE CODE	NO.OFTRIPLES X3XCROSSSECTION	NOMINAL INSULATION THICK-NESS	NOMINAL INNERSHEATH THICK -NESS	NOMINALOVERALL DIAMETER OVER INNER SHEATH	NOMINAL ARMOUR WIRE DIAMETER	NOMINAL OUTER SHEATH THICK-NESS	NOMINAL OVERALL DIAMETER	APPROX. WEIGHT
	NO.X3XMM2	MM	MM	MM	MM	MM	MM	KG/KM
0.5mm2,Multi-striple
RE-2X(St)HSWAH2T0.5	2x3x0.5	0.35	0.9	8.4	0.9	1.4	13.0	326
RE-2X(St)HSWAH4T0.5	4x3x0.5	0.35	1.0	9.8	0.9	1.4	14.4	386
RE-2X(St)HSWAH5T0.5	5x3x0.5	0.35	1.0	10.8	0.9	1.4	15.4	454
RE-2X(St)HSWAH6T0.5	6x3x0.5	0.35	1.0	12.1	0.9	1.4	16.7	513
RE-2X(St)HSWAH8T0.5	8x3x0.5	0.35	1.1	13.1	0.9	1.5	17.9	570
RE-2X(St)HSWAH10T0.5	10x3x0.5	0.35	1.1	14.7	0.9	1.5	19.5	658
RE-2X(St)HSWAH12T0.5	12x3x0.5	0.35	1.1	15.2	0.9	1.5	20.0	844
RE-2X(St)HSWAH16T0.5	16x3x0.5	0.35	1.2	17.4	0.9	1.6	22.4	1001
RE-2X(St)HSWAH20T0.5	20x3x0.5	0.35	1.2	19.1	1.25	1.6	24.8	1177
RE-2X(St)HSWAH24T0.5	24x3x0.5	0.35	1.3	20.9	1.25	1.7	26.8	1327
0.75mm2,Multi-striple
RE-2X(St)HSWAH2T0.75	2x3x0.75	0.38	1.0	10.6	0.9	1.4	13.9	369
RE-2X(St)HSWAH4T0.75	4x3x0.75	0.38	1.1	12.4	0.9	1.4	15.5	462
RE-2X(St)HSWAH5T0.75	5x3x0.75	0.38	1.1	13.7	0.9	1.4	16.6	526
RE-2X(St)HSWAH6T0.75	6x3x0.75	0.38	1.1	15.4	0.9	1.5	18.5	614
RE-2X(St)HSWAH8T0.75	8x3x0.75	0.38	1.2	16.7	0.9	1.5	19.5	697
RE-2X(St)HSWAH10T0.75	10x3x0.75	0.38	1.3	19.0	0.9	1.5	21.5	918
RE-2X(St)HSWAH12T0.75	12x3x0.75	0.38	1.3	19.7	0.9	1.7	22.3	1027
RE-2X(St)HSWAH16T0.75	16x3x0.75	0.38	1.4	22.5	1.25	1.6	25.4	1237
RE-2X(St)HSWAH20T0.75	20x3x0.75	0.38	1.5	24.9	1.25	1.7	27.6	1443
RE-2X(St)HSWAH24T0.75	24x3x0.75	0.38	1.6	27.2	1.25	1.7	29.6	1628
1.0mm2,Multi-striple
RE-2X(St)HSWAH2T1.0	2x3x1	0.4	1.0	11.5	0.9	1.4	15.0	403
RE-2X(St)HSWAH4T1.0	4x3x1	0.4	1.1	13.4	0.9	1.4	16.5	528
RE-2X(St)HSWAH5T1.0	5x3x1	0.4	1.1	14.8	0.9	1.5	18.0	619
RE-2X(St)HSWAH6T1.0	6x3x1	0.4	1.2	16.9	0.9	1.5	19.8	829
RE-2X(St)HSWAH8T1.0	8x3x1	0.4	1.2	18.1	0.9	1.5	20.9	945
RE-2X(St)HSWAH10T1.0	10x3x1	0.4	1.3	20.7	0.9	1.6	24.1	1074
RE-2X(St)HSWAH12T1.0	12x3x1	0.4	1.3	21.4	1.25	1.6	24.7	1212
RE-2X(St)HSWAH16T1.0	16x3x1	0.4	1.4	24.4	1.25	1.7	27.6	1478
RE-2X(St)HSWAH20T1.0	20x3x1	0.4	1.5	27.1	1.25	1.7	30.0	1736
RE-2X(St)HSWAH24T1.0	24x3x1	0.4	1.6	29.6	1.25	1.8	32.2	2197
1.3mm2,Multi-striple
RE-2X(St)HSWAH2T1.3	2x3x1,3	0.45	1.1	12.8	0.9	1.4	16.1	488
RE-2X(St)HSWAH4T1.3	4x3x1,3	0.45	1.1	14.7	0.9	1.5	18.2	620
RE-2X(St)HSWAH5T1.3	5x3x1,3	0.45	1.2	16.5	0.9	1.5	19.6	720
RE-2X(St)HSWAH6T1.3	6x3x1,3	0.45	1.3	18.8	0.9	1.5	21.7	952
RE-2X(St)HSWAH8T1.3	8x3x1,3	0.45	1.3	20.1	0.9	1.6	23.8	1076
RE-2X(St)HSWAH10T1.3	10x3x1,3	0.45	1.4	23.0	1.25	1.7	26.6	1320
RE-2X(St)HSWAH12T1.3	12x3x1,3	0.45	1.5	24.0	1.25	1.7	27.3	1454
RE-2X(St)HSWAH16T1.3	16x3x1,3	0.45	1.6	27.4	1.25	1.8	30.5	1785
RE-2X(St)HSWAH20T1.3	20x3x1,3	0.45	1.7	30.4	1.25	1.8	33.2	2323
RE-2X(St)HSWAH24T1.3	24x3x1,3	0.45	1.8	33.1	1.60	1.9	36.6	2633
1.5mm2,Multi-striple
RE-2X(St)HSWAH2T1.5	2x3x1,5	0.45	1.1	13.2	0.9	1.4	16.5	491
RE-2X(St)HSWAH4T1.5	4x3x1,5	0.45	1.2	15.4	0.9	1.5	18.8	673
RE-2X(St)HSWAH5T1.5	5x3x1,5	0.45	1.2	17.1	0.9	1.5	20.2	894
RE-2X(St)HSWAH6T1.5	6x3x1,5	0.45	1.3	19.5	0.9	1.6	22.6	1021
RE-2X(St)HSWAH8T1.5	8x3x1,5	0.45	1.4	21.1	1.25	1.6	24.8	1208
RE-2X(St)HSWAH10T1.5	10x3x1,5	0.45	1.5	24.1	1.25	1.7	27.5	1433
RE-2X(St)HSWAH12T1.5	12x3x1,5	0.45	1.5	24.9	1.25	1.7	28.4	1565
RE-2X(St)HSWAH16T1.5	16x3x1,5	0.45	1.6	28.4	1.25	1.8	31.8	2157
RE-2X(St)HSWAH20T1.5	20x3x1,5	0.45	1.7	31.6	1.25	1.9	34.9	2510
RE-2X(St)HSWAH24T1.5	24x3x1,5	0.45	1.8	34.4	1.60	2.0	38.3	2873

Note : Other conductor sizes & core configurations are available upon request.
