XLPE Insulated, PVC Sheathed & CWB Screened Instrumentation Cables (Multipair)

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)***	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

300V

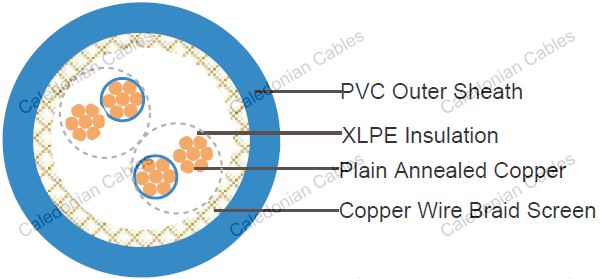

CABLE CONSTRUCTION

Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: Extruded cross-linked XLPE compound as per EN 50290-2-29.
Pair:Two conductors twisted to form a pair
Lay-up: Pairs laid up in layers of optimum pitch
Separator: Polyester tape
Overall Screen: Tinned copper wire braid
Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair.
Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 7.5 X Overall Diameter
Sunlight Resistance: UL 1581 section 1200
Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

CONDUCTOR AREA SIZE		MM2	0.5	0.75	1.0	1.3	1.5
INSULATION THICKNESS (NOMINAL)		MM	0.4	0.4	0.4	0.45	0.45
CONDUCTOR RESISTANCE (20°C)		Ω/KM	36.7	25	18.5	14.2	12.3
INSULATION RESISTANCE (20°C)		MΩ.KM (MIN.)	5000
MUTUAL CAPACITANCE (1KHZ)		PF/M (MAX.)
		≤4 PAIRS	115	115	115	120	120
		ALL OTHER PAIRS	90	90	90	105	105
CAPACITANCE UNBALANCE (1KHZ)		PF/500M (MAX.)	300
L/R (RATIO) (MAX.)		ΜH/Ω	25	25	25	40	40
OPERATING VOLTAGE URMS		V	300
TEST VOLTAGE	CORE TO CORE	V	1500
TEST VOLTAGE	CORE TO SCREEN	V	1500

CONSTRUCTION PARAMETERS

CALEDONIAN CABLE CODE	RE-2X(C)Y
CALEDONIAN CABLE CODE	NO. OF PAIRS X2XCROSS SECTION	COPPERWEIGHT	APPROX. WEIGHT
	NO.X2XMM2	KG/KM	KG/KM
0.5mm2, Multipair
RE-2X(C)Y 2P0.5	2x2x0.50	10.7	143
RE-2X(C)Y 4P0.5	4x2x0.50	11.1	159
RE-2X(C)Y 5P0.5	5x2x0.50	11.9	181
RE-2X(C)Y 6P0.5	6x2x0.50	13.6	230
RE-2X(C)Y 8P0.5	8x2x0.50	14.2	264
RE-2X(C)Y 12P0.5	12x2x0.50	16.4	343
RE-2X(C)Y 16P0.5	16x2x0.50	18.2	418
RE-2X(C)Y 20P0.5	20x2x0.50	19.7	487
RE-2X(C)Y 24P0.5	24x2x0.50	21.1	557
0.75mm2, Multipair
RE-2X(C)Y 2P0.75	2x2x0.75	11.4	160
RE-2X(C)Y 3P0.75	3x2x0.75	11.9	185
RE-2X(C)Y 4P0.75	4x2x0.75	12.7	214
RE-2X(C)Y 6P0.75	6x2x0.75	14.6	278
RE-2X(C)Y 8P0.75	8x2x0.75	15.4	324
RE-2X(C)Y 12P0.75	12x2x0.75	17.8	427
RE-2X(C)Y 16P0.75	16x2x0.75	19.8	526
RE-2X(C)Y 20P0.75	20.x2x0.75	21.5	623
RE-2X(C)Y 24P0.75	24x2x0.75	23.1	714
1.0mm2, Multipair
RE-2X(C)Y 2P1.0	2x2x1.0	12.3	184
RE-2X(C)Y 3P1.0	3x2x1.0	12.8	214
RE-2X(C)Y 4P1.0	4x2x1.0	13.7	251
RE-2X(C)Y 6P1.0	6x2x1.0	15.6	326
RE-2X(C)Y 8P1.0	8x2x1.0	16.4	382
RE-2X(C)Y 12P1.0	12x2x1.0	19.0	511
RE-2X(C)Y 16P1.0	16x2x1.0	21.2	636
RE-2X(C)Y 20P1.0	20.x2x1.0	23.5	775
RE-2X(C)Y 24P1.0	24x2x1.0	25.3	892
1.3mm2, Multipair
RE-2X(C)Y 2P1.3	2x2x1.3	12.9	204
RE-2X(C)Y 3P1.3	3x2x1.3	13.5	242
RE-2X(C)Y 4P1.3	4x2x1.3	14.5	285
RE-2X(C)Y 6P1.3	6x2x1.3	16.7	375
RE-2X(C)Y 8P1.3	8x2x1.3	17.4	444
RE-2X(C)Y 12P1.3	12x2x1.3	20.2	599
RE-2X(C)Y 16P1.3	16x2x1.3	22.6	750
RE-2X(C)Y 20P1.3	20x2x1.3	25.1	916
RE-2X(C)Y 24P1.3	24x2x1.3	27.0	1064

Note : Other conductor sizes & core configurations are available upon request.
