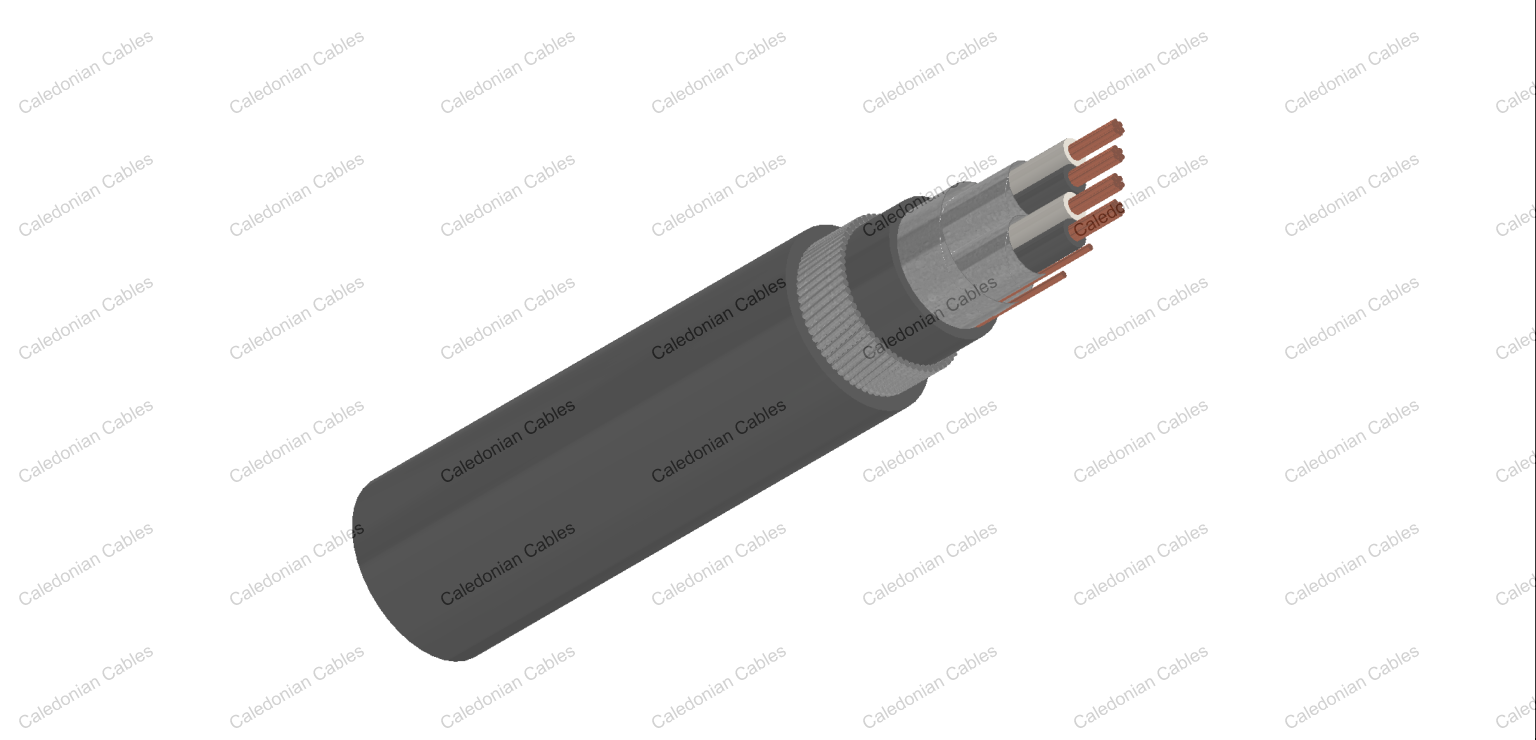

XLPE Insulated, LSZH Sheathed, Individual and Overall Screened & Armoured Instrumentation Cables (Multipair)

Application

The armoured LSZH sheathed cables are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial processmanufacturing plants for communication, data and voice transmission signals and services. Also used for theinterconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

Standards

Basic design to EN 50288-7

Fire Performance

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation(Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454
Sunlight Resistance	UL 1581 section 1200
Oil Resistance	ICEA S-73-532**

Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.

Voltage Rating

300

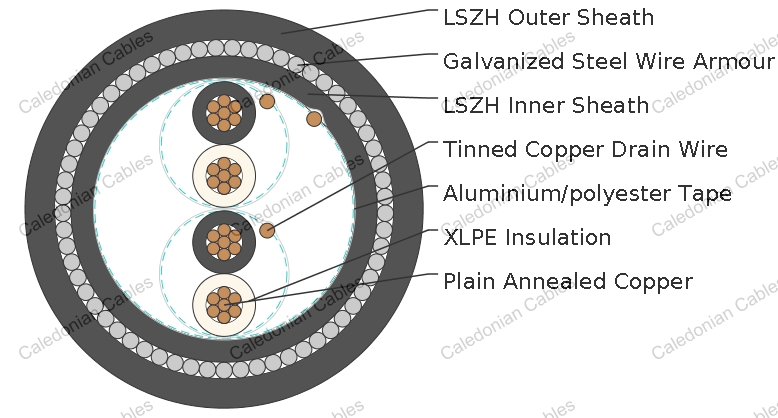

Cable Construction

Conductor : Annealed copper solid or plain copper stranded to IEC 60228 Class 2.

Insulation : Extruded cross-linked XLPE compound, EN 50290. 2-29.

Pairs : Two insulated conductors uniformly twisted together with a lay not exceeding 100mmIndividual.

Screen : Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm².

Binder tape : PETP transparent tape.

Overall Screen : Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm².

Inner Sheath : LSZH(Low Smoke Zero Halogen) sheath.

Amouring : Galvanized steel wire armour.

Outer Sheath : Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

Colour Code

Insulation : Black / White, continuously numbered on white core (1, 2..) for multipair.

Outer Sheath : Black or blue for intrinsically safe systems.

Physical and Thermal Properties

Temperature Range During Operation (Fixed State) : -30°C – +90°C

Temperature Range During Installation (Mobile State) : -20°C – +50°C

Minimum Bending Radius : 10 × Overall Diameter

Electrical Roperties

Conductor Area Size		mm²	0.5	0.75	1.0	1.3	1.5
Insulation thickness (nominal)		mm	0.4	0.4	0.4	0.45	0.45
Conductor resistance (20°C)		Ω/km	36.7	25	18.5	14.2	12.3
Insulation resistance (20°C)		MΩ.km(Min.)	5000
Mutual Capacitance (1 kHz)		pF/m(Max.)	115
Inductance		mH/km (Max.)	1
L / R (ratio) (max.)		μH/Ω	25	25	25	40	40
Operating voltage Urms		V	300
Test Voltage	Core to Core	V	1500
	Core to Screen	V	1500

Construction Parameterst

Caledonian Cable Code	RE-2X(St)HSWAH PiMF
Caledonian Cable Code	No. of Pairs ×2×Cross Section	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Nominal Overall Diameter Over Inner Sheath	Nominal Armour Wire Diameter	Nominal Outer Sheath Thickness	Nominal Overall Diameter	Approx. Weight
	No.×2×mm²	mm	mm	mm	mm	mm	mm	kg/km
0.5mm2, Multipair
RE-2X(St)HSWAH PiMF 2P0.5	2x2x0.5	0.35	0.9	8.7	0.9	1.4	13.3	311
RE-2X(St)HSWAH PiMF 4P0.5	4x2x0.5	0.35	1.0	10.2	0.9	1.4	14.8	373
RE-2X(St)HSWAH PiMF 5P0.5	5x2x0.5	0.35	1.0	11.2	0.9	1.4	15.8	451
RE-2X(St)HSWAH PiMF 6P0.5	6x2x0.5	0.35	1.0	12.1	0.9	1.6	16.9	483
RE-2X(St)HSWAH PiMF 8P0.5	8x2x0.5	0.35	1.1	13.1	0.9	1.6	17.9	537
RE-2X(St)HSWAH PiMF 10P0.5	10x2x0.5	0.35	1.2	15.1	0.9	1.5	19.9	781
RE-2X(St)HSWAH PiMF 12P0.5	12x2x0.5	0.35	1.2	15.7	0.9	1.5	20.5	804
RE-2X(St)HSWAH PiMF 16P0.5	16x2x0.5	0.35	1.2	17.8	1.25	1.6	23.5	968
RE-2X(St)HSWAH PiMF 20P0.5	20x2x0.5	0.35	1.3	19.7	1.25	1.7	25.6	1143
RE-2X(St)HSWAH PiMF 24P0.5	24x2x0.5	0.35	1.4	21.5	1.25	1.7	27.4	1264
0.75mm2, Multipair
RE-2X(St)HSWAH PiMF 2P0.75	2x2x0.75	0.38	1.0	9.7	0.9	1.4	14.3	342
RE-2X(St)HSWAH PiMF 4P0.75	3x2x0.75	0.38	1.0	11.2	0.9	1.4	15.8	439
RE-2X(St)HSWAH PiMF 5P0.75	4x2x0.75	0.38	1.1	12.5	0.9	1.5	17.3	496
RE-2X(St)HSWAH PiMF 6P0.75	5x2x0.75	0.38	1.1	13.6	0.9	1.5	18.4	578
RE-2X(St)HSWAH PiMF 8P0.75	8x2x0.75	0.38	1.1	14.4	0.9	1.5	19.2	664
RE-2X(St)HSWAH PiMF 10P0.75	10x2x0.75	0.38	1.2	16.6	1.25	1.6	22.3	876
RE-2X(St)HSWAH PiMF 12P0.75	12x2x0.75	0.38	1.2	17.4	1.25	1.6	23.1	942
RE-2X(St)HSWAH PiMF 16P0.75	16x2x0.75	0.38	1.3	19.8	1.25	1.7	25.7	1130
RE-2X(St)HSWAH PiMF 20P0.75	20x2x0.75	0.38	1.4	22.0	1.25	1.7	27.9	1325
RE-2X(St)HSWAH PiMF 24P0.75	24x2x0.75	0.38	1.5	24.0	1.25	1.8	30.1	1490
1.0mm2, Multipair
RE-2X(St)HSWAH PiMF 2P1.0	2x2x1.0	0.4	1.0	10.4	0.9	1.4	15.0	382
RE-2X(St)HSWAH PiMF 4P1.0	3x2x1.0	0.4	1.0	12.1	0.9	1.4	16.7	487
RE-2X(St)HSWAH PiMF 5P1.0	4x2x1.0	0.4	1.1	13.5	0.9	1.5	18.3	566
RE-2X(St)HSWAH PiMF 6P1.0	5x2x1.0	0.4	1.1	14.7	0.9	1.5	19.5	641
RE-2X(St)HSWAH PiMF 8P1.0	8x2x1.0	0.4	1.2	15.8	0.9	1.5	20.6	718
RE-2X(St)HSWAH PiMF 10P1.0	10x2x1.0	0.4	1.2	18.0	1.25	1.6	23.7	994
RE-2X(St)HSWAH PiMF 12P1.0	12x2x1.0	0.4	1.3	19.0	1.25	1.7	24.7	1083
RE-2X(St)HSWAH PiMF 16P1.0	16x2x1.0	0.4	1.3	21.5	1.25	1.7	27.4	1361
RE-2X(St)HSWAH PiMF 20P1.0	20x2x1.0	0.4	1.4	23.9	1.25	1.7	29.8	1510
RE-2X(St)HSWAH PiMF 24P1.0	24x2x1.0	0.4	1.5	26.1	1.25	1.8	32.2	1902
1.3mm2, Multipair
RE-2X(St)HSWAH PiMF 2P1.3	2x2x1.3	0.45	1.0	11.4	0.9	1.4	16.0	452
RE-2X(St)HSWAH PiMF 4P1.3	3x2x1.3	0.45	1.1	13.4	0.9	1.5	18.2	576
RE-2X(St)HSWAH PiMF 5P1.3	4x2x1.3	0.45	1.1	14.8	0.9	1.5	19.6	647
RE-2X(St)HSWAH PiMF 6P1.3	5x2x1.3	0.45	1.2	16.3	0.9	1.6	21.3	857
RE-2X(St)HSWAH PiMF 8P1.3	8x2x1.3	0.45	1.3	17.6	1.25	1.6	23.3	980
RE-2X(St)HSWAH PiMF 10P1.3	10x2x1.3	0.45	1.3	20.0	1.25	1.7	25.9	1195
RE-2X(St)HSWAH PiMF 12P1.3	12x2x1.3	0.45	1.4	21.1	1.25	1.7	27.0	1256
RE-2X(St)HSWAH PiMF 16P1.3	16x2x1.3	0.45	1.5	24.1	1.25	1.8	30.2	1562
RE-2X(St)HSWAH PiMF 20P1.3	20x2x1.3	0.45	1.6	26.8	1.25	1.9	33.1	1958
RE-2X(St)HSWAH PiMF 24P1.3	24x2x1.3	0.45	1.7	29.2	1.25	2.0	36.4	2251
1.5mm2, Multipair
RE-2X(St)HSWAH PiMF 2P1.5	2x2x1.5	0.45	1.0	11.8	0.9	1.5	16.6	475
RE-2X(St)HSWAH PiMF 4P1.5	3x2x1.5	0.45	1.1	13.9	0.9	1.5	18.7	599
RE-2X(St)HSWAH PiMF 5P1.5	4x2x1.5	0.45	1.2	15.5	0.9	1.5	20.3	818
RE-2X(St)HSWAH PiMF 6P1.5	5x2x1.5	0.45	1.2	16.9	1.25	1.6	22.6	940
RE-2X(St)HSWAH PiMF 8P1.5	8x2x1.5	0.45	1.3	18.2	1.25	1.7	24.1	1037
RE-2X(St)HSWAH PiMF 10P1.5	10x2x1.5	0.45	1.4	21.0	1.25	1.7	26.9	1273
RE-2X(St)HSWAH PiMF 12P1.5	12x2x1.5	0.45	1.4	21.9	1.25	1.7	27.8	1353
RE-2X(St)HSWAH PiMF 16P1.5	16x2x1.5	0.45	1.5	25.1	1.25	1.8	31.2	1932
RE-2X(St)HSWAH PiMF 20P1.5	20x2x1.5	0.45	1.6	27.8	1.25	1.9	34.8	2224
RE-2X(St)HSWAH PiMF 24P1.5	24x2x1.5	0.45	1.7	30.4	1.25	2.0	37.6	2541
