PVC Insulated, PVC Sheathed & Overall Screened Instrumentation Cables (Multitriple)

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)***	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

300V

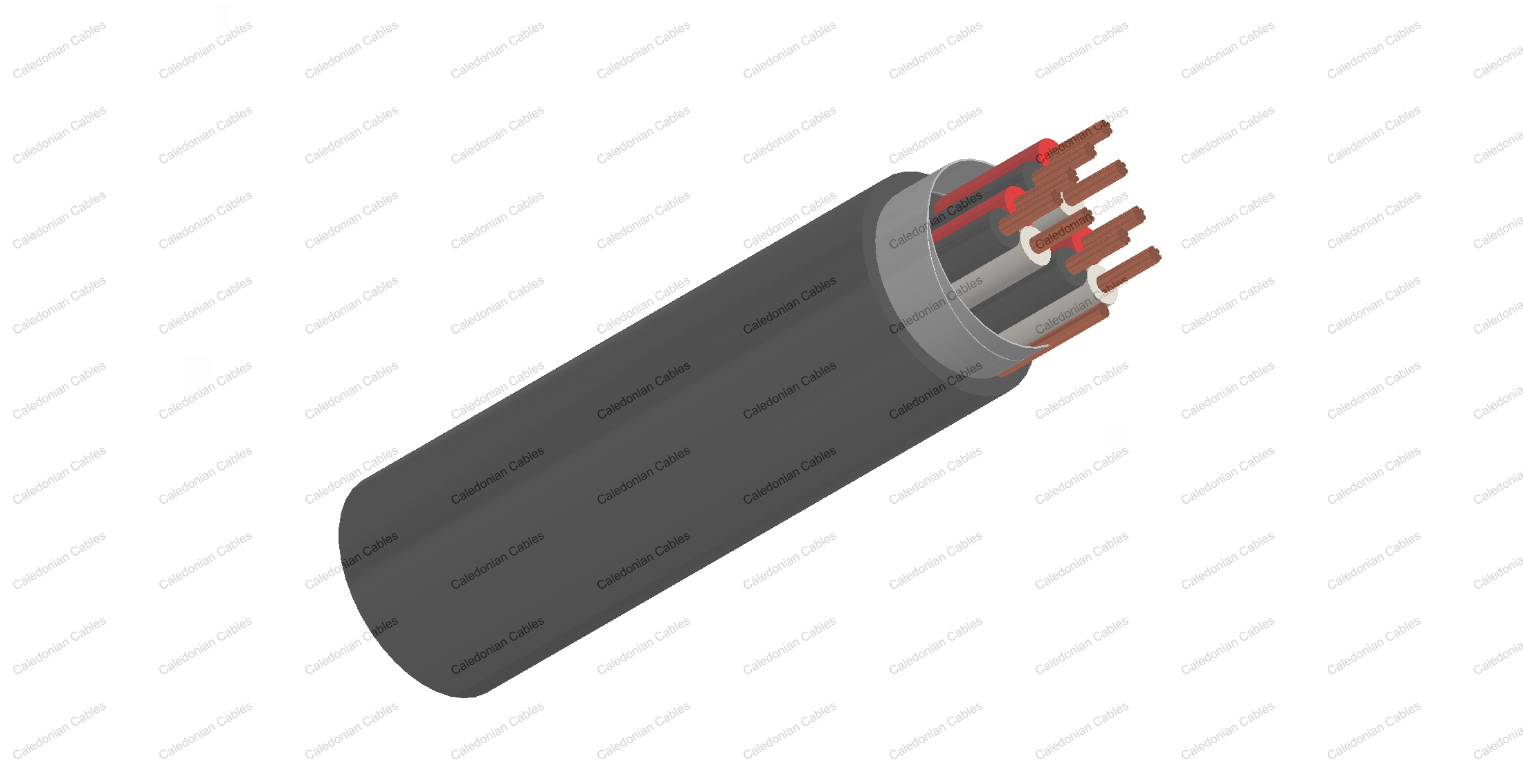

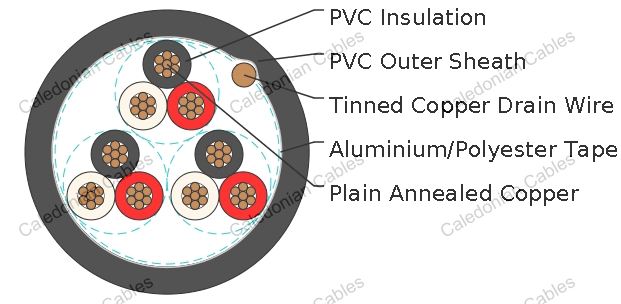

CABLE CONSTRUCTION

Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: PVC compound as per EN 50290-2-21.
Triple: Three conductors twisted to form a triple
Lay-up: Triples laid up in layers of optimum pitch
Separator: Polyester tape
Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 7.5 X Overall Diameter
Sunlight Resistance: UL 1581 section 1200
Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

CONDUCTORAREASIZE		2	0.5	0.75	1.0	1.3	1.5
INSULATIONTHICKNESS(NOMINAL)		MM	0.35	0.38	0.4	0.45	0.45
CONDUCTORRESISTANCE(20°C)		Ω/KM	36.7	25.0	18.5	14.2	12.3
INSULATIONRESISTANCE(20°C)		MΩ.KM(MIN.)	5000
MUTUALCAPACITANCE(1KHZ)		UPTO4TRPLESPF/M(MAX.)	90	90	90	102	102
		?ABOVE4TRPLESPF/M(MAX.)	75	75	75	85	85
INDUCTANCE		MH/KM(MAX.)	1
L/R(RATIO)(MAX.)		ΜH/Ω	25	25	25	40	40
OPERATINGVOLTAGE		V	300
TESTVOLTAGEURMS	CORETOCORE	V	1500
TESTVOLTAGEURMS	CORETOSCREEN	V	1500

CONSTRUCTION PARAMETERS

CALEDONIAN CABLE CODE	RE-Y(ST)Y
CALEDONIAN CABLE CODE	NO. OF TRIPLES X3XCROSS SECTION	NOMINAL INSULATION THICKNESS	NOMINAL OUTER SHEATH THICKNESS	NOMINAL OVERALL DIAMETER	APPROX. WEIGHT
?	NO.X3XMM2	MM	MM	MM	KG/KM
0.5mm2?, Multi-striple
RE-Y(St)Y 2T0.5	2x3x0,50	0.35	0.9	8.4	91
RE-Y(St)Y 4T0.5	4x3x0,50	0.35	1.0	9.8	123
RE-Y(St)Y 5T0.5	5x3x0,50	0.35	1.0	10.8	155
RE-Y(St)Y 6T0.5	6x3x0,50	0.35	1.0	12.1	185
RE-Y(St)Y 8T0.5	8x3x0,50	0.35	1.1	13.1	221
RE-Y(St)Y 10T0.5	10x3x0,50	0.35	1.1	14.7	275
RE-Y(St)Y 12T0.5	12x3x0,50	0.35	1.1	15.2	316
RE-Y(St)Y 16T0.5	16x3x0,50	0.35	1.2	17.4	414
RE-Y(St)Y 20T0.5	20x3x0,50	0.35	1.2	19.1	508
RE-Y(St)Y 24T0.5	24x3x0,50	0.35	1.3	20.9	594
0.75mm2?, Multi-striple
RE-Y(St)Y 2T0.75	2x3x0,75	0.38	0.9	9.3	114
RE-Y(St)Y 4T0.75	4x3x0,75	0.38	1.0	10.9	163
RE-Y(St)Y 5T0.75	5x3x0,75	0.38	1.0	12.0	199
RE-Y(St)Y 6T0.75	6x3x0,75	0.38	1.1	13.7	245
RE-Y(St)Y 8T0.75	8x3x0,75	0.38	1.1	14.7	296
RE-Y(St)Y 10T0.75	10x3x0,75	0.38	1.2	16.7	366
RE-Y(St)Y 12T0.75	12x3x0,75	0.38	1.2	17.3	423
RE-Y(St)Y 16T0.75	16x3x0,75	0.38	1.3	19.7	555
RE-Y(St)Y 20T0.75	20x3x0,75	0.38	1.3	21.7	681
RE-Y(St)Y 24T0.75	24x3x0,75	0.38	1.4	23.7	802
1.0mm2?, Multi-striple
RE-Y(St)Y 2T1.0	2x3x1	0.4	1.0	10.4	135
RE-Y(St)Y 4T1.0	4x3x1	0.4	1.0	11.9	202
RE-Y(St)Y 5T1.0	5x3x1	0.4	1.0	13.2	251
RE-Y(St)Y 6T1.0	6x3x1	0.4	1.1	15.0	303
RE-Y(St)Y 8T1.0	8x3x1	0.4	1.1	16.1	379
RE-Y(St)Y 10T1.0	10x3x1	0.4	1.2	18.4	461
RE-Y(St)Y 12T1.0	12x3x1	0.4	1.2	19.0	544
RE-Y(St)Y 16T1.0	16x3x1	0.4	1.3	21.7	717
RE-Y(St)Y 20T1.0	20x3x1	0.4	1.4	24.1	880
RE-Y(St)Y 24T1.0	24x3x1	0.4	1.4	26.1	1048
1.3mm2?, Multi-striple
RE-Y(St)Y 2T1.3	2x3x1,3	0.45	1.0	11.5	175
RE-Y(St)Y 4T1.3	4x3x1,3	0.45	1.1	13.4	258
RE-Y(St)Y 5T1.3	5x3x1,3	0.45	1.1	14.8	318
RE-Y(St)Y 6T1.3	6x3x1,3	0.45	1.2	16.9	387
RE-Y(St)Y 8T1.3	8x3x1,3	0.45	1.2	18.1	474
RE-Y(St)Y 10T1.3	10x3x1,3	0.45	1.3	20.7	589
RE-Y(St)Y 12T1.3	12x3x1,3	0.45	1.3	21.4	695
RE-Y(St)Y 16T1.3	16x3x1,3	0.45	1.4	24.4	918
RE-Y(St)Y 20T1.3	20x3x1,3	0.45	1.5	27.1	1124
RE-Y(St)Y 24T1.3	24x3x1,3	0.45	1.6	29.6	1336
1.5mm2?, Multi-striple
RE-Y(St)Y 2T1.5	2x3x1,5	0.45	1.0	11.9	191
RE-Y(St)Y 4T1.5	4x3x1,5	0.45	1.1	14.0	287
RE-Y(St)Y 5T1.5	5x3x1,5	0.45	1.1	15.4	355
RE-Y(St)Y 6T1.5	6x3x1,5	0.45	1.2	17.6	432
RE-Y(St)Y 8T1.5	8x3x1,5	0.45	1.3	19.1	540
RE-Y(St)Y 10T1.5	10x3x1,5	0.45	1.3	21.6	672
RE-Y(St)Y 12T1.5	12x3x1,5	0.45	1.4	22.5	779
RE-Y(St)Y 16T1.5	16x3x1,5	0.45	1.5	25.7	1031
RE-Y(St)Y 20T1.5	20x3x1,5	0.45	1.6	28.6	1265
RE-Y(St)Y 24T1.5	24x3x1,5	0.45	1.7	31.1	1508

Note : Other conductor sizes & core configurations are available upon request.
