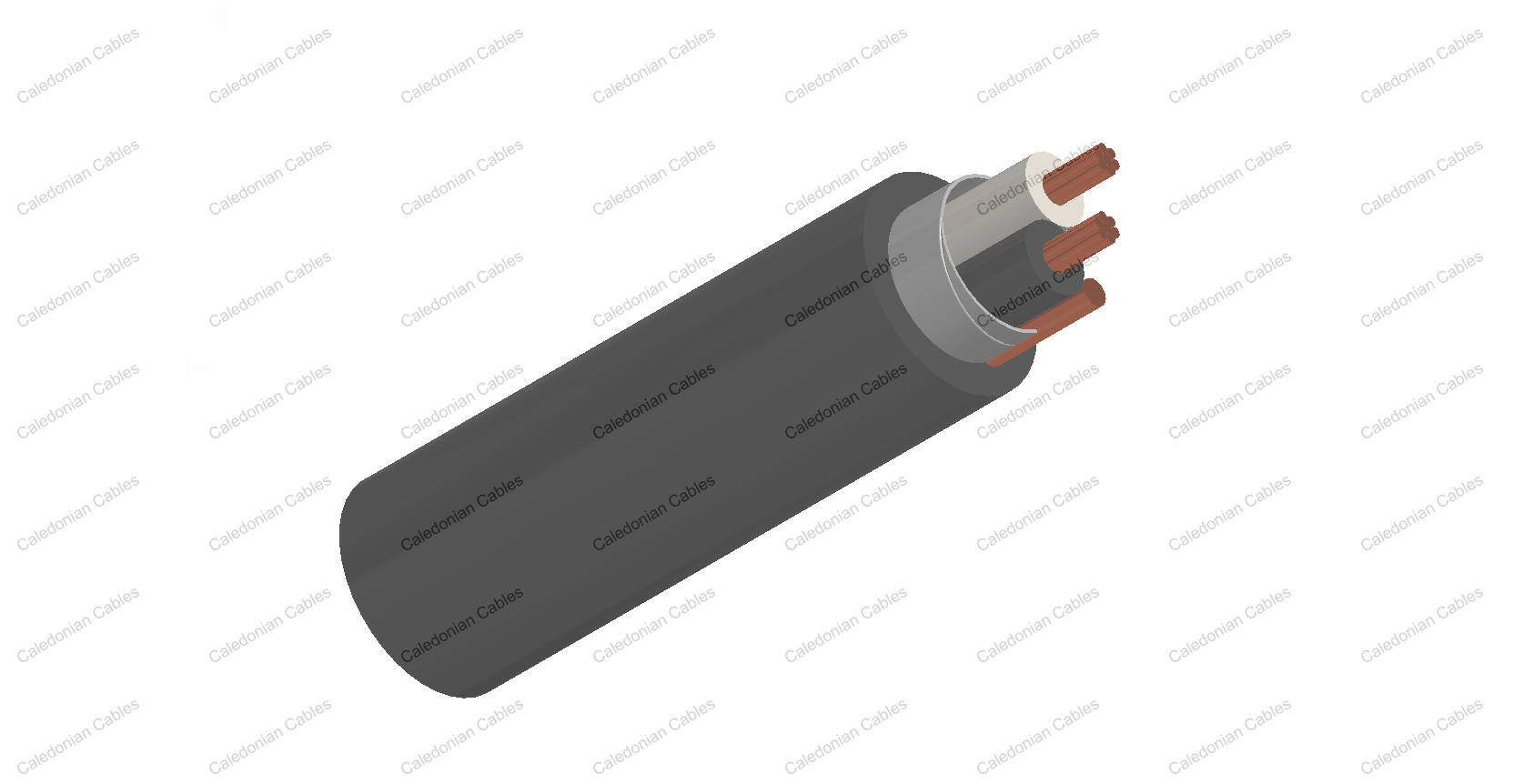

    PVC Insulated, PVC Sheathed & Overall Screened Instrumentation Cables (Multicore)

    APPLICATION

    For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

    STANDARDS

    Basic design to EN 50288-7

    FIRE PERFORMANCE

    Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
    Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)*** EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
    Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
    No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
    Minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
    No Toxic gases NES 02-713; NF C 20-454

    Note: Asterisk * denotes superseded standard, *** denotes optional.

    VOLTAGE RATING

    500V

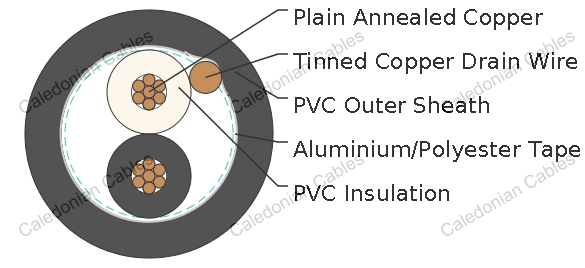

    CABLE CONSTRUCTION

    • Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
    • Insulation: PVC compound as per EN 50290-2-21.
    • Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
    • Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon< resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

    COLOUR CODE

    • Insulation: Black numbered
    • Outer Sheath: Black, blue for intrinsically safe systems

    PHYSICAL and THERMAL PROPERTIES

    • Temperature Range During Operation (Fixed State): -30°C – +90°C
    • Temperature Range During Installation (Mobile State): -5°C – +50°C
    • Minimum Bending Radius: 7.5 X Overall Diameter
    • Sunlight Resistance: UL 1581 section 1200
    • Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

    ELECTRICAL ROPERTIES

    CONDUCTOR AREA SIZE MM2 0.5 0.75 1.0 1.3 1.5 2.5
    INSULATION THICKNESS (NOMINAL) MM 0.55 0.55 0.55 0.6 0.6 0.7
    CONDUCTOR RESISTANCE (20°C) Ω/KM 36.7 25.0 18.5 14.2 12.3 7.4
    INSULATION RESISTANCE (20°C) MΩ.KM(MIN.) 5000
    MUTUAL CAPACITANCE (1 KHZ) PF/M(MAX.) 115
    CAPACITANCE UNBALANCE(1 KHZ) PF/500 M (MAX.) 500
    L / R (RATIO) (MAX.) ΜH/Ω 25 25 25 40 40 60
    OPERATING VOLTAGE V 500
    TEST VOLTAGE URMS CORE TO CORE V 2000
    CORE TO SCREEN V 2000

    CONSTRUCTION PARAMETERS

    CALEDONIAN CABLE CODE RE-Y(ST)Y
    NO. OF CORE X1XCROSS SECTION NOMINALINSULATION THICKNESS NOMINALSHEATH THICKNESS NOMINALOVERALL DIAMETER APPROX. WEIGHT
      NO.X1XMM2 MM MM MM KG/KM
    0.5mm2, Multicore
    RE-Y(St)Y 2C0.5 2x1x0.5 0.55 0.9 6.2 47
    RE-Y(St)Y 3C0.5 3x1x0.5 0.55 0.9 6.5 50
    RE-Y(St)Y 4C0.5 4x1x0.5 0.55 0.9 7.0 60
    RE-Y(St)Y 5C0.5 5x1x0.5 0.55 0.9 7.6 71
    RE-Y(St)Y 8C0.5 8x1x0.5 0.55 1.0 9.1 95
    RE-Y(St)Y 10C0.5 10x1x0.5 0.55 1.0 10.4 127
    RE-Y(St)Y 12C0.5 12x1x0.5 0.55 1.0 10.7 151
    RE-Y(St)Y 14C0.5 14x1x0.5 0.55 1.0 11.3 162
    RE-Y(St)Y 16C0.5 16x1x0.5 0.55 1.1 11.8 180
    RE-Y(St)Y 20C0.5 20x1x0.5 0.55 1.1 13.3 222
    RE-Y(St)Y 24C0.5 24x1x0.5 0.55 1.1 14.7 274
    RE-Y(St)Y 27C0.5 27x1x0.5 0.55 1.2 15.0 282
    RE-Y(St)Y 30C0.5 30x1x0.5 0.55 1.2 15.7 318
    RE-Y(St)Y 37C0.5 37x1x0.5 0.55 1.2 16.9 372
    RE-Y(St)Y 40C0.5 40x1x0.5 0.55 1.2 17.6 372
    0.75mm2, Multicore
    RE-Y(St)Y 2C0.75 2x1x0.75 0.55 0.9 6.5 51
    RE-Y(St)Y 3C0.75 3x1x0.75 0.55 0.9 6.9 62
    RE-Y(St)Y 4C0.75 4x1x0.75 0.55 0.9 7.4 74
    RE-Y(St)Y 5C0.75 5x1x0.75 0.55 0.9 8.1 96
    RE-Y(St)Y 8C0.75 8x1x0.75 0.55 1.0 9.7 126
    RE-Y(St)Y 10C0.75 10x1x0.75 0.55 1.0 11.1 156
    RE-Y(St)Y 12C0.75 12x1x0.75 0.55 1.0 11.5 183
    RE-Y(St)Y 14C0.75 14x1x0.75 0.55 1.1 12.2 200
    RE-Y(St)Y 16C0.75 16x1x0.75 0.55 1.1 12.9 224
    RE-Y(St)Y 20C0.75 20x1x0.75 0.55 1.1 14.3 284
    RE-Y(St)Y 24C0.75 24x1x0.75 0.55 1.2 16.0 324
    RE-Y(St)Y 27C0.75 27x1x0.75 0.55 1.2 16.3 363
    RE-Y(St)Y 30C0.75 30x1x0.75 0.55 1.2 16.9 396
    RE-Y(St)Y 37C0.75 37x1x0.75 0.55 1.2 18.2 472
    RE-Y(St)Y 40C0.75 40x1x0.75 0.55 1.3 19.1 514
    1.0mm2, Multicore
    RE-Y(St)Y 2C1.0 2x1x1.0 0.55 0.9 6.9 61
    RE-Y(St)Y 3C1.0 3x1x1.0 0.55 0.9 7.3 70
    RE-Y(St)Y 4C1.0 4x1x1.0 0.55 0.9 7.9 85
    RE-Y(St)Y 5C1.0 5x1x1.0 0.55 0.9 8.6 109
    RE-Y(St)Y 8C1.0 8x1x1.0 0.55 1.0 10.3 157
    RE-Y(St)Y 10C1.0 10x1x1.0 0.55 1.0 11.9 193
    RE-Y(St)Y 12C1.0 12x1x1.0 0.55 1.0 12.2 214
    RE-Y(St)Y 14C1.0 14x1x1.0 0.55 1.1 13.0 243
    RE-Y(St)Y 16C1.0 16x1x1.0 0.55 1.1 13.7 280
    RE-Y(St)Y 20C1.0 20x1x1.0 0.55 1.1 15.2 336
    RE-Y(St)Y 24C1.0 24x1x1.0 0.55 1.2 17.0 414
    RE-Y(St)Y 27C1.0 27x1x1.0 0.55 1.2 17.4 443
    RE-Y(St)Y 30C1.0 30x1x1.0 0.55 1.2 18.0 484
    RE-Y(St)Y 37C1.0 37x1x1.0 0.55 1.2 19.6 590
    RE-Y(St)Y 40C1.0 40x1x1.0 0.55 1.3 20.4 631
    1.3mm2, Multicore
    RE-Y(St)Y 2C1.3 2x1x1.3 0.6 0.9 7.4 69
    RE-Y(St)Y 3C1.3 3x1x1.3 0.6 0.9 7.9 83
    RE-Y(St)Y 4C1.3 4x1x1.3 0.6 0.9 8.5 105
    RE-Y(St)Y 5C1.3 5x1x1.3 0.6 1.0 9.5 135
    RE-Y(St)Y 8C1.3 8x1x1.3 0.6 1.0 11.2 186
    RE-Y(St)Y 10C1.3 10x1x1.3 0.6 1.1 13.2 228
    RE-Y(St)Y 12C1.3 12x1x1.3 0.6 1.1 13.6 269
    RE-Y(St)Y 14C1.3 14x1x1.3 0.6 1.1 14.3 305
    RE-Y(St)Y 16C1.3 16x1x1.3 0.6 1.1 15.0 351
    RE-Y(St)Y 20C1.3 20x1x1.3 0.6 1.2 16.9 423
    RE-Y(St)Y 24C1.3 24x1x1.3 0.6 1.2 18.7 507
    RE-Y(St)Y 27C1.3 27x1x1.3 0.6 1.3 19.3 558
    RE-Y(St)Y 30C1.3 30x1x1.3 0.6 1.3 20.0 611
    RE-Y(St)Y 37C1.3 37x1x1.3 0.6 1.3 21.6 743
    RE-Y(St)Y 40C1.3 40x1x1.3 0.6 1.4 22.7 796
    1.5mm2, Multicore
    RE-Y(St)Y 2C1.5 2x1x1.5 0.6 0.9 7.7 78
    RE-Y(St)Y 3C1.5 3x1x1.5 0.6 0.9 8.1 98
    RE-Y(St)Y 4C1.5 4x1x1.5 0.6 0.9 8.8 120
    RE-Y(St)Y 5C1.5 5x1x1.5 0.6 1.0 9.8 153
    RE-Y(St)Y 8C1.5 8x1x1.5 0.6 1.0 11.6 218
    RE-Y(St)Y 10C1.5 10x1x1.5 0.6 1.1 13.7 268
    RE-Y(St)Y 12C1.5 12x1x1.5 0.6 1.1 14.1 315
    RE-Y(St)Y 14C1.5 14x1x1.5 0.6 1.1 14.8 341
    RE-Y(St)Y 16C1.5 16x1x1.5 0.6 1.1 15.6 392
    RE-Y(St)Y 20C1.5 20x1x1.5 0.6 1.2 17.6 484
    RE-Y(St)Y 24C1.5 24x1x1.5 0.6 1.3 19.6 579
    RE-Y(St)Y 27C1.5 27x1x1.5 0.6 1.3 20.1 626
    RE-Y(St)Y 30C1.5 30x1x1.5 0.6 1.3 20.8 685
    RE-Y(St)Y 37C1.5 37x1x1.5 0.6 1.4 22.6 834
    RE-Y(St)Y 40C1.5 40x1x1.5 0.6 1.4 23.6 898
    2.52, Multicore
    RE-Y(St)Y 2C2.5 2x1x2.5 0.7 0.9 8.9 111
    RE-Y(St)Y 3C2.5 3x1x2.5 0.7 1.0 9.7 132
    RE-Y(St)Y 4C2.5 4x1x2.5 0.7 1.0 10.5 169
    RE-Y(St)Y 5C2.5 5x1x2.5 0.7 1.0 11.9 209
    RE-Y(St)Y 8C2.5 8x1x2.5 0.7 1.1 13.9 321
    RE-Y(St)Y 10C2.5 10x1x2.5 0.7 1.2 16.3 386
    RE-Y(St)Y 12C2.5 12x1x2.5 0.7 1.2 16.9 447
    RE-Y(St)Y 14C2.5 14x1x2.5 0.7 1.2 17.7 509
    RE-Y(St)Y 16C2.5 16x1x2.5 0.7 1.3 18.9 585
    RE-Y(St)Y 20C2.5 20x1x2.5 0.7 1.3 21.1 712
    RE-Y(St)Y 24C2.5 24x1x2.5 0.7 1.4 23.6 855
    RE-Y(St)Y 27C2.5 27x1x2.5 0.7 1.4 24.1 956
    RE-Y(St)Y 30C2.5 30x1x2.5 0.7 1.5 25.2 1049
    RE-Y(St)Y 37C2.5 37x1x2.5 0.7 1.5 27.2 1277
    RE-Y(St)Y 40C2.5 40x1x2.5 0.7 1.6 28.5 1370

    Note : Other conductor sizes & core configurations are available upon request.
