PVC Insulated, PVC Sheathed, Individual and Overall Screened & Double Steel Tape Armoured Instrumentation Cables (Multipair)

RE-Y(St)YDSTAY PIMF 90°C / 300V

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)***	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

300V

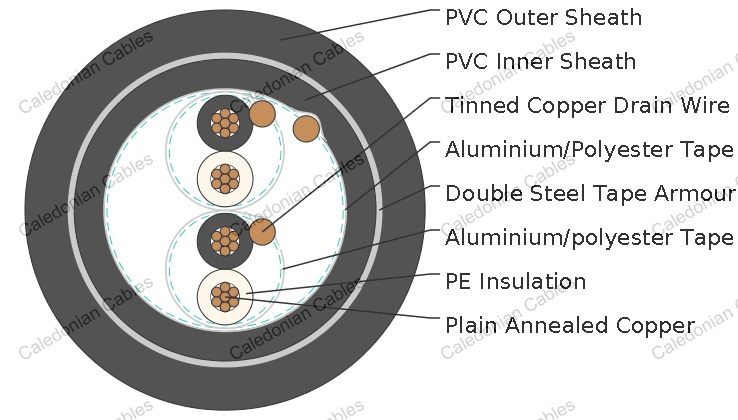

CABLE CONSTRUCTION

Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: PVC compound as per EN 50290-2-21.
Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Binder tape: Polyester (PEPT) Tape
Individual Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm2, covered with extruded PVC.
Binder tape: Polyester (PEPT) Tape
Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm2
Inner Sheath: PVC compound as per EN 50290-2-22.
Amouring: Double steel tape armour
Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation: Red / White
Outer Sheath: Gray

PHYSICAL and THERMAL PROPERTIES

Temperature Range During Operation (Fixed State): -30°C – +70°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 10 X Overall Diameter
Sunlight Resistance: UL 1581 section 1200
Oil Resistance: ASTM No: 2 (7 HRS 90°C)

ELECTRICAL ROPERTIES

CONDUCTOR AREA SIZE	MM2	0.5	0.75	1.0	1.3	1.5
INSULATION THICKNESS (NOMINAL)	MM	0.4	0.4	0.4	0.45	0.45
CONDUCTOR RESISTANCE (20°C)	Ω/KM	36.7	25	18.5	14.2	12.3
INSULATION RESISTANCE (20°C)	MΩ.KM(MIN.)
	INDIVIDUAL CONDUCTORS	1G
	INDIVIDUAL SCREENS	1M
MUTUAL CAPACITANCE (1 KHZ)	PF/M(MAX.)	<150
INDUCTANCE	MH/KM (MAX.)	1
L / R (RATIO) (MAX.)	ΜH/Ω	25	25	25	40	40
TEST VOLTAGE	V (1MIN)
	AC	2000
	DC	3000

CONSTRUCTION PARAMETERS

CALEDONIAN CABLE CODE	RE-Y(ST)YDSTAY PIMF
CALEDONIAN CABLE CODE	NO. OF PAIRS X2XCROSS SECTION	NOMINAL INSULATION THICK-NESS	NOMINAL INNER SHEATH THICK-NESS	NOMINAL OVERALL DIAMETER OVER INNER SHEATH	NOMINAL ARMOUR STEEL TAPE THICK -NESS	NOMINAL OVERALL DIAMETER OVER ARMOUR	NOMINAL OUTER SHEATH THICK-NESS	NOMINAL OVERALL DIAMETER	APPROX. WEIGHT
	NO.X2XMM2	MM	MM	MM	MM	MM	MM	MM	KG/KM
RE-Y(St)YDSTAY PiMF 2P1.5	2x2x1.5	0.6	1.2	14.0	0.2	14.8	1.5	17.8	390
