PVC Insulated, PVC Sheathed, Individual and Overall Screened & Armoured Instrumentation Cables (Multipair)

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)***	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

300V

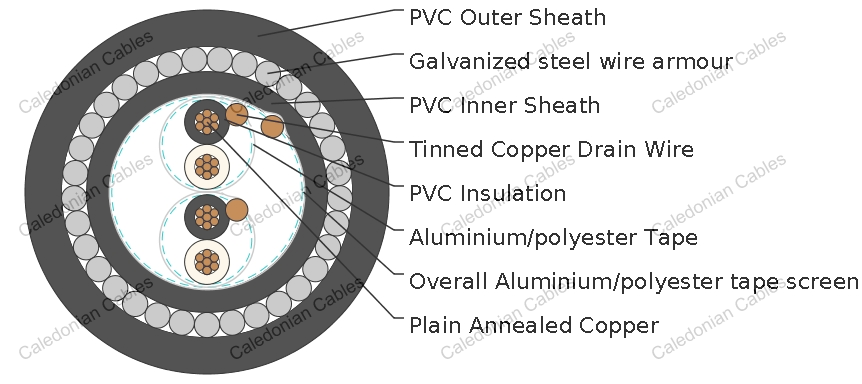

CABLE CONSTRUCTION

Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: PVC compound as per EN 50290-2-21.
Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Individual Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm2
Binder tape: PETP transparent tape
Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm2
Inner Sheath: PVC compound as per EN 50290-2-22.
Amouring: Galvanized steel wire armour
Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation: Black / White, continuously numbered on white core(1, 2..)for multipair.
Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 10 X Overall Diameter
Sunlight Resistance: UL 1581 section 1200
Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

CONDUCTOR AREA SIZE		MM2	0.5	0.75	1.0	1.3	1.5
INSULATION THICKNESS (NOMINAL)		MM	0.4	0.4	0.4	0.45	0.45
CONDUCTOR RESISTANCE (20°C)		Ω/KM	36.7	25	18.5	14.2	12.3
INSULATION RESISTANCE (20°C)		MΩ.KM(MIN.)	5000
MUTUAL CAPACITANCE (1 KHZ)		PF/M(MAX.)	115
INDUCTANCE		MH/KM (MAX.)	1
L / R (RATIO) (MAX.)		ΜH/Ω	25	25	25	40	40
OPERATING VOLTAGE URMS		V	300
TEST VOLTAGE	CORE TO CORE	V	1500
TEST VOLTAGE	CORE TO SCREEN	V	1500

CONSTRUCTION PARAMETERS

CALEDONIAN CABLE CODE	RE-Y(ST)YSWAY PIMF
CALEDONIAN CABLE CODE	NO. OF PAIRS X2XCROSS SECTION	NOMINAL INSULATION THICK-NESS	NOMINAL INNER SHEATH THICK-NESS	NOMINALOVERALL DIAMETER OVER INNER SHEATH	NOMINAL ARMOUR WIRE DIAMETER	NOMINAL OUTER SHEATH THICK-NESS	NOMINAL OVERALL DIAMETER	APPROX. WEIGHT
	NO.X2XMM2	MM	MM	MM	MM	MM	MM	KG/KM
0.5mm2, Multipair
RE-Y(St)YSWAY PiMF 2P0.5	2x2x0.5	0.35	0.9	8.7	0.9	1.4	13.3	311
RE-Y(St)YSWAY PiMF 4P0.5	4x2x0.5	0.35	1.0	10.2	0.9	1.4	14.8	373
RE-Y(St)YSWAY PiMF 5P0.5	5x2x0.5	0.35	1.0	11.2	0.9	1.4	15.8	451
RE-Y(St)YSWAY PiMF 6P0.5	6x2x0.5	0.35	1.0	12.1	0.9	1.6	16.9	483
RE-Y(St)YSWAY PiMF 8P0.5	8x2x0.5	0.35	1.1	13.1	0.9	1.6	17.9	537
RE-Y(St)YSWAY PiMF 10P0.5	10x2x0.5	0.35	1.2	15.1	0.9	1.5	19.9	781
RE-Y(St)YSWAY PiMF 12P0.5	12x2x0.5	0.35	1.2	15.7	0.9	1.5	20.5	804
RE-Y(St)YSWAY PiMF 16P0.5	16x2x0.5	0.35	1.2	17.8	1.25	1.6	23.5	968
RE-Y(St)YSWAY PiMF 20P0.5	20x2x0.5	0.35	1.3	19.7	1.25	1.7	25.6	1143
RE-Y(St)YSWAY PiMF 24P0.5	24x2x0.5	0.35	1.4	21.5	1.25	1.7	27.4	1264
0.75mm2, Multipair
RE-Y(St)YSWAY PiMF 2P0.75	2x2x0.75	0.38	1.0	9.7	0.9	1.4	14.3	342
RE-Y(St)YSWAY PiMF 4P0.75	3x2x0.75	0.38	1.0	11.2	0.9	1.4	15.8	439
RE-Y(St)YSWAY PiMF 5P0.75	4x2x0.75	0.38	1.1	12.5	0.9	1.5	17.3	496
RE-Y(St)YSWAY PiMF 6P0.75	5x2x0.75	0.38	1.1	13.6	0.9	1.5	18.4	578
RE-Y(St)YSWAY PiMF 8P0.75	8x2x0.75	0.38	1.1	14.4	0.9	1.5	19.2	664
RE-Y(St)YSWAY PiMF 10P0.75	10x2x0.75	0.38	1.2	16.6	1.25	1.6	22.3	876
RE-Y(St)YSWAY PiMF 12P0.75	12x2x0.75	0.38	1.2	17.4	1.25	1.6	23.1	942
RE-Y(St)YSWAY PiMF 16P0.75	16x2x0.75	0.38	1.3	19.8	1.25	1.7	25.7	1130
RE-Y(St)YSWAY PiMF 20P0.75	20x2x0.75	0.38	1.4	22.0	1.25	1.7	27.9	1325
RE-Y(St)YSWAY PiMF 24P0.75	24x2x0.75	0.38	1.5	24.0	1.25	1.8	30.1	1490
1.0mm2, Multipair
RE-Y(St)YSWAY PiMF 2P1.0	2x2x1.0	0.4	1.0	10.4	0.9	1.4	15.0	382
RE-Y(St)YSWAY PiMF 4P1.0	3x2x1.0	0.4	1.0	12.1	0.9	1.4	16.7	487
RE-Y(St)YSWAY PiMF 5P1.0	4x2x1.0	0.4	1.1	13.5	0.9	1.5	18.3	566
RE-Y(St)YSWAY PiMF 6P1.0	5x2x1.0	0.4	1.1	14.7	0.9	1.5	19.5	641
RE-Y(St)YSWAY PiMF 8P1.0	8x2x1.0	0.4	1.2	15.8	0.9	1.5	20.6	718
RE-Y(St)YSWAY PiMF 10P1.0	10x2x1.0	0.4	1.2	18.0	1.25	1.6	23.7	994
RE-Y(St)YSWAY PiMF 12P1.0	12x2x1.0	0.4	1.3	19.0	1.25	1.7	24.7	1083
RE-Y(St)YSWAY PiMF 16P1.0	16x2x1.0	0.4	1.3	21.5	1.25	1.7	27.4	1361
RE-Y(St)YSWAY PiMF 20P1.0	20x2x1.0	0.4	1.4	23.9	1.25	1.7	29.8	1510
RE-Y(St)YSWAY PiMF 24P1.0	24x2x1.0	0.4	1.5	26.1	1.25	1.8	32.2	1902
1.3mm2, Multipair
RE-Y(St)YSWAY PiMF 2P1.3	2x2x1.3	0.45	1.0	11.4	0.9	1.4	16.0	452
RE-Y(St)YSWAY PiMF 4P1.3	3x2x1.3	0.45	1.1	13.4	0.9	1.5	18.2	576
RE-Y(St)YSWAY PiMF 5P1.3	4x2x1.3	0.45	1.1	14.8	0.9	1.5	19.6	647
RE-Y(St)YSWAY PiMF 6P1.3	5x2x1.3	0.45	1.2	16.3	0.9	1.6	21.3	857
RE-Y(St)YSWAY PiMF 8P1.3	8x2x1.3	0.45	1.3	17.6	1.25	1.6	23.3	980
RE-Y(St)YSWAY PiMF 10P1.3	10x2x1.3	0.45	1.3	20.0	1.25	1.7	25.9	1195
RE-Y(St)YSWAY PiMF 12P1.3	12x2x1.3	0.45	1.4	21.1	1.25	1.7	27.0	1256
RE-Y(St)YSWAY PiMF 16P1.3	16x2x1.3	0.45	1.5	24.1	1.25	1.8	30.2	1562
RE-Y(St)YSWAY PiMF 20P1.3	20x2x1.3	0.45	1.6	26.8	1.25	1.9	33.1	1958
RE-Y(St)YSWAY PiMF 24P1.3	24x2x1.3	0.45	1.7	29.2	1.25	2.0	36.4	2251
1.5mm2, Multipair
RE-Y(St)YSWAY PiMF 2P1.5	2x2x1.5	0.45	1.0	11.8	0.9	1.5	16.6	475
RE-Y(St)YSWAY PiMF 4P1.5	3x2x1.5	0.45	1.1	13.9	0.9	1.5	18.7	599
RE-Y(St)YSWAY PiMF 5P1.5	4x2x1.5	0.45	1.2	15.5	0.9	1.5	20.3	818
RE-Y(St)YSWAY PiMF 6P1.5	5x2x1.5	0.45	1.2	16.9	1.25	1.6	22.6	940
RE-Y(St)YSWAY PiMF 8P1.5	8x2x1.5	0.45	1.3	18.2	1.25	1.7	24.1	1037
RE-Y(St)YSWAY PiMF 10P1.5	10x2x1.5	0.45	1.4	21.0	1.25	1.7	26.9	1273
RE-Y(St)YSWAY PiMF 12P1.5	12x2x1.5	0.45	1.4	21.9	1.25	1.7	27.8	1353
RE-Y(St)YSWAY PiMF 16P1.5	16x2x1.5	0.45	1.5	25.1	1.25	1.8	31.2	1932
RE-Y(St)YSWAY PiMF 20P1.5	20x2x1.5	0.45	1.6	27.8	1.25	1.9	34.8	2224
RE-Y(St)YSWAY PiMF 24P1.5	24x2x1.5	0.45	1.7	30.4	1.25	2.0	37.6	2541

Note: Other conductor sizes & core configurations are available upon request.
