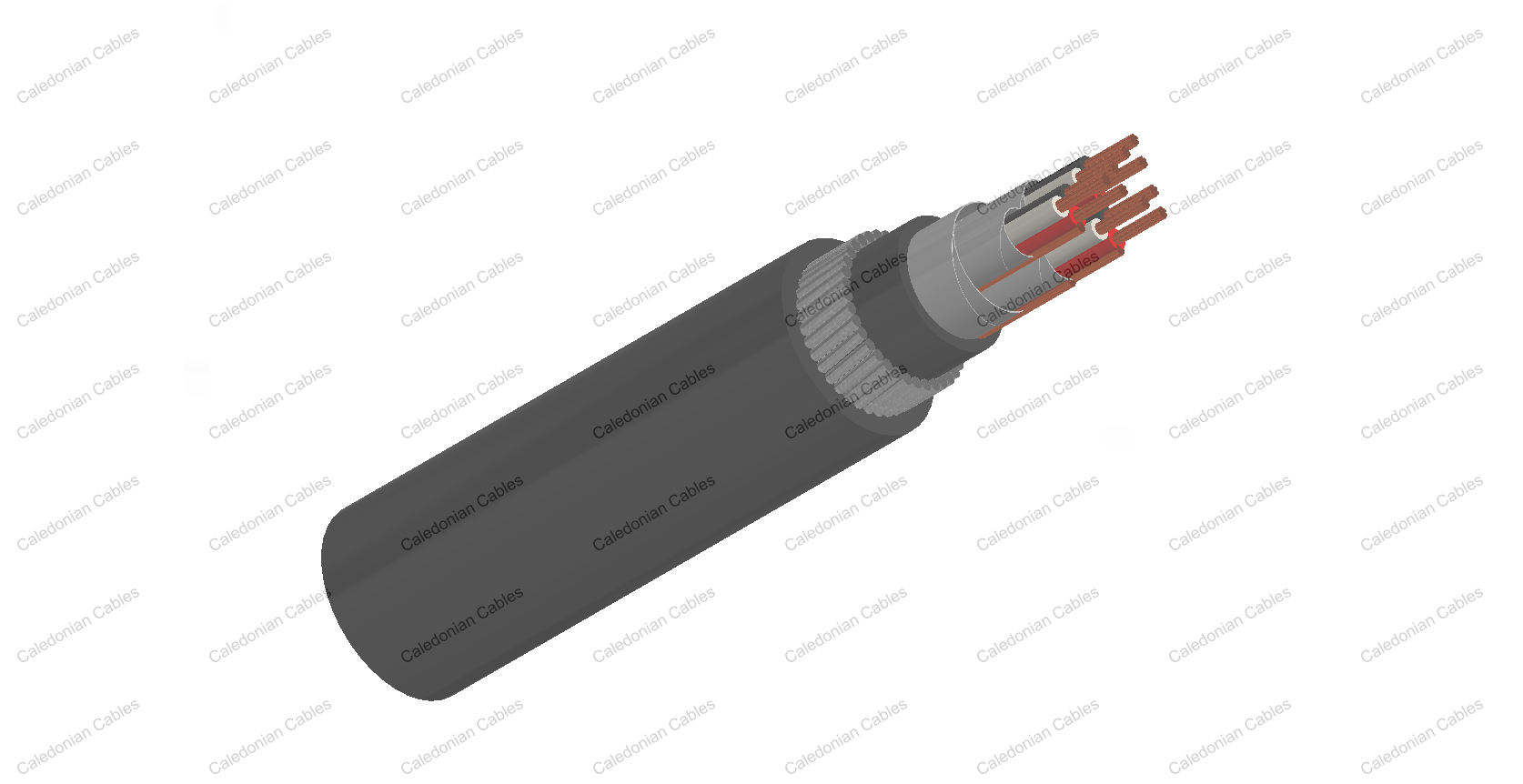

PVC Insulated, PVC Sheathed, Individual and Overall Screened & Armoured Instrumentation Cables (Multi-triple)

RE-Y(St)YSWAY-TIMF 70°C / 300 V

APPLICATION

For transmission of analogue and digital signals in instrument and control systems; allowed for use in zone 1 and zone 2, group II, classified areas (IEC 79-14), not allowed for direct connection to low impedance sources, e.g. public mains electricity supply. Recommended for indoor and outerdoor installation, on racks, trays, in conduits, in dry and wet locations; not for direct buiral. Recommended for use as fire protection messure for people and important material assets.

STANDARDS

Basic design to EN 50288-7

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation (Vertically-mounted bundled wires& cable test)***	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard, *** denotes optional.

VOLTAGE RATING

300V

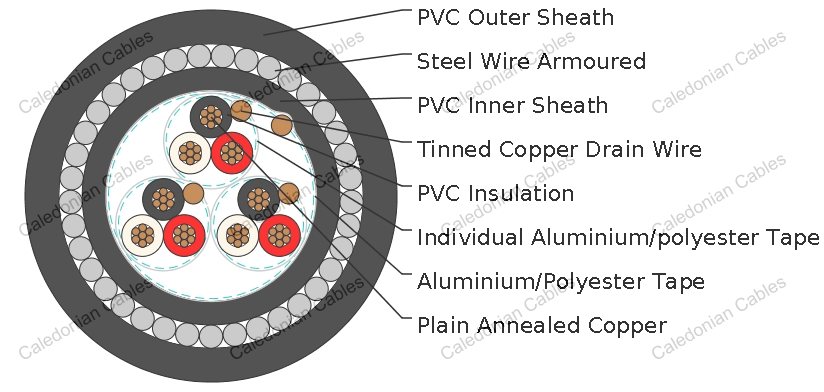

CABLE CONSTRUCTION

Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: PVC compound as per EN 50290-2-21.
Individual Screen: Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm2
Pair:Two conductors twisted to form a pair
Lay-up: Pairs laid up in layers of optimum pitch
Separator: Polyester tape
Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
Inner Sheath: Thermoplastic PVC compound
Armour: Galvenized round steel wire, EN 10257-1
Outer Sheath: Thermoplastic PVC compound as per EN 50290-2-22. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
Outer Sheath: Black or blue for intrinsically safe systems

PHYSICAL and THERMAL PROPERTIES

Temperature Range During Operation (Fixed State): -30°C – +70°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 7.5 X Overall Diameter
Sunlight Resistance: UL 1581 section 1200
Oil Resistance: ICEA S-73-532(Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation)

ELECTRICAL ROPERTIES

CONDUCTOR AREA SIZE		MM2	0.5	0.75	1.0	1.3	1.5
INSULATION THICKNESS (NOMINAL)		MM	0.4	0.4	0.4	0.45	0.45
CONDUCTOR RESISTANCE (20°C)		Ω/KM	36.7	25	18.5	14.2	12.3
INSULATION RESISTANCE (20°C)		MΩ.KM(MIN.)	5000
MUTUAL CAPACITANCE (1 KHZ)		PF/M(MAX.)	115
INDUCTANCE		MH/KM(MAX.)	1
CAPACITANCE UNBALANCE(1 KHZ)		PF/500 M (MAX.)	500
L / R (RATIO) (MAX.)		ΜH/Ω	25	25	25	40	40
OPERATING VOLTAGE URMSV			300
TEST VOLTAGE	CORE TO CORE	V	1500
TEST VOLTAGE	CORE TO SCREEN	V	1500

CONSTRUCTION PARAMETERS

CALEDONIAN CABLE CODE	RE-Y(ST)YSWAY-TIMF
CALEDONIAN CABLE CODE	NO. OF TRIPLES X3XCROSS SECTION	NOMINAL INSULATION THICK-NESS	NOMINAL INNER SHEATH THICK-NESS	NOMINALOVERALL DIAMETER OVER INNER SHEATH	NOMINAL ARMOUR WIRE DIAMETER	NOMINAL OUTER SHEATH THICK-NESS	NOMINAL OVERALL DIAMETER	APPROX. WEIGHT
	NO.X3XMM2	MM	MM	MM	MM	MM	MM	KG/KM
0.5mm2, Multi-striple
RE-Y(St)YSWAY-TiMF 2T0.5	2x3x0.5	0.35	1.0	9.7	0.9	1.4	14.3	363
RE-Y(St)YSWAY-TiMF 4T0.5	4x3x0.5	0.35	1.0	11.1	0.9	1.4	15.7	456
RE-Y(St)YSWAY-TiMF 5T0.5	5x3x0.5	0.35	1.1	12.4	0.9	1.5	17.2	516
RE-Y(St)YSWAY-TiMF 6T0.5	6x3x0.5	0.35	1.1	14.0	0.9	1.5	18.8	611
RE-Y(St)YSWAY-TiMF 8T0.5	8x3x0.5	0.35	1.1	14.9	0.9	1.5	19.7	766
RE-Y(St)YSWAY-TiMF 10T0.5	10x3x0.5	0.35	1.2	17.0	1.25	1.6	22.7	950
RE-Y(St)YSWAY-TiMF 12T0.5	12x3x0.5	0.35	1.2	17.6	1.25	1.6	23.3	975
RE-Y(St)YSWAY-TiMF 16T0.5	16x3x0.5	0.35	1.3	20.1	1.25	1.7	26.0	1169
RE-Y(St)YSWAY-TiMF 20T0.5	20x3x0.5	0.35	1.4	22.3	1.25	1.7	28.2	1365
RE-Y(St)YSWAY-TiMF 24T0.5	24x3x0.5	0.35	1.5	24.4	1.25	1.8	30.5	1604
0.75mm2, Multi-striple
RE-Y(St)YSWAY-TiMF 2T0.75	2x3x0.75	0.38	1.0	10.6	0.9	1.4	15.2	408
RE-Y(St)YSWAY-TiMF 4T0.75	4x3x0.75	0.38	1.1	12.4	0.9	1.5	17.2	521
RE-Y(St)YSWAY-TiMF 5T0.75	5x3x0.75	0.38	1.1	13.7	0.9	1.5	18.5	590
RE-Y(St)YSWAY-TiMF 6T0.75	6x3x0.75	0.38	1.1	15.4	0.9	1.5	20.2	819
RE-Y(St)YSWAY-TiMF 8T0.75	8x3x0.75	0.38	1.2	16.7	0.9	1.6	21.7	941
RE-Y(St)YSWAY-TiMF 10T0.75	10x3x0.75	0.38	1.3	19.0	1.25	1.6	24.7	1103
RE-Y(St)YSWAY-TiMF 12T0.75	12x3x0.75	0.38	1.3	19.7	1.25	1.7	25.6	1176
RE-Y(St)YSWAY-TiMF 16T0.75	16x3x0.75	0.38	1.4	22.5	1.25	1.7	28.4	1439
RE-Y(St)YSWAY-TiMF 20T0.75	20x3x0.75	0.38	1.5	24.9	1.25	1.8	31.0	1804
RE-Y(St)YSWAY-TiMF 24T0.75	24x3x0.75	0.38	1.6	27.2	1.25	1.9	33.5	2164
1.0mm2, Multi-striple
RE-Y(St)YSWAY-TiMF 2T1.0	2x3x1	0.4	1.0	11.5	0.9	1.4	16.1	447
RE-Y(St)YSWAY-TiMF 4T1.0	4x3x1	0.4	1.1	13.4	0.9	1.5	18.2	579
RE-Y(St)YSWAY-TiMF 5T1.0	5x3x1	0.4	1.1	14.8	0.9	1.5	19.6	688
RE-Y(St)YSWAY-TiMF 6T1.0	6x3x1	0.4	1.2	16.9	0.9	1.5	21.7	913
RE-Y(St)YSWAY-TiMF 8T1.0	8x3x1	0.4	1.2	18.1	1.25	1.6	23.8	1033
RE-Y(St)YSWAY-TiMF 10T1.0	10x3x1	0.4	1.3	20.7	1.25	1.7	26.6	1277
RE-Y(St)YSWAY-TiMF 12T1.0	12x3x1	0.4	1.3	21.4	1.25	1.7	27.3	1380
RE-Y(St)YSWAY-TiMF 16T1.0	16x3x1	0.4	1.4	24.4	1.25	1.7	30.3	1686
RE-Y(St)YSWAY-TiMF 20T1.0	20x3x1	0.4	1.5	27.1	1.25	1.8	33.2	2200
RE-Y(St)YSWAY-TiMF 24T1.0	24x3x1	0.4	1.6	29.6	1.6	1.9	36.6	2504
1.3mm2, Multi-striple
RE-Y(St)YSWAY-TiMF 2T1.3	2x3x1,3	0.45	1.1	12.8	0.9	1.5	17.6	532
RE-Y(St)YSWAY-TiMF 4T1.3	4x3x1,3	0.45	1.1	14.7	0.9	1.5	19.5	684
RE-Y(St)YSWAY-TiMF 5T1.3	5x3x1,3	0.45	1.2	16.5	0.9	1.6	21.5	924
RE-Y(St)YSWAY-TiMF 6T1.3	6x3x1,3	0.45	1.3	18.8	1.25	1.6	24.5	1089
RE-Y(St)YSWAY-TiMF 8T1.3	8x3x1,3	0.45	1.3	20.1	1.25	1.7	26.0	1249
RE-Y(St)YSWAY-TiMF 10T1.3	10x3x1,3	0.45	1.4	23.0	1.25	1.8	29.1	1482
RE-Y(St)YSWAY-TiMF 12T1.3	12x3x1,3	0.45	1.5	24.0	1.25	1.8	30.1	1592
RE-Y(St)YSWAY-TiMF 16T1.3	16x3x1,3	0.45	1.6	27.4	1.25	1.9	33.7	2222
RE-Y(St)YSWAY-TiMF 20T1.3	20x3x1,3	0.45	1.7	30.4	1.6	2.0	37.6	2592
RE-Y(St)YSWAY-TiMF 24T1.3	24x3x1,3	0.45	1.8	33.1	1.6	2.0	40.3	2957
1.5mm2, Multi-striple
RE-Y(St)YSWAY-TiMF 2T1.5	2x3x1,5	0.45	1.1	13.2	0.9	1.5	18.0	531
RE-Y(St)YSWAY-TiMF 4T1.5	4x3x1,5	0.45	1.2	15.4	0.9	1.5	20.2	817
RE-Y(St)YSWAY-TiMF 5T1.5	5x3x1,5	0.45	1.2	17.1	1.25	1.6	22.8	998
RE-Y(St)YSWAY-TiMF 6T1.5	6x3x1,5	0.45	1.3	19.5	1.25	1.6	25.2	1162
RE-Y(St)YSWAY-TiMF 8T1.5	8x3x1,5	0.45	1.4	21.1	1.25	1.7	27.0	1304
RE-Y(St)YSWAY-TiMF 10T1.5	10x3x1,5	0.45	1.5	24.1	1.25	1.8	30.2	1541
RE-Y(St)YSWAY-TiMF 12T1.5	12x3x1,5	0.45	1.5	24.9	1.25	1.8	31.0	1952
RE-Y(St)YSWAY-TiMF 16T1.5	16x3x1,5	0.45	1.6	28.4	1.6	1.9	35.4	2384
RE-Y(St)YSWAY-TiMF 20T1.5	20x3x1,5	0.45	1.7	31.6	1.6	2.0	38.8	2795
RE-Y(St)YSWAY-TiMF 24T1.5	24x3x1,5	0.45	1.8	34.4	1.6	2.1	41.8	3093

Note : Other conductor sizes & core configurations are available upon request.
