PE Insulated, LSZH Sheathed & Overall Screened Instrumentation Cables (Multitriple)

Application

These cables are used for transmission of analoge and digital signals in instrument and control systems at chemistryand petrochemistry industry plants, power plants, natural gas and petroluem plants, etc. These cables are used in the environments which have no corrosive gases are emitted in the event of fire. In case of fire, these cables inhibit the propagation of the flames whereby the development of smoke is extremely low. Instrumentation cables are not allowed for direct connection to a low impedance sources, e.g. public mains electricity supply. With blue sheath it is suitable for intrinsically safe systems. These cables are not recommended for direct burial. They are for indoor and outdoor installation, in dry and wet locations; on racks, trays, in conduits.

Standards

Basic design to EN 50288-7

Fire Performance

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation(Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454
Sunlight Resistance	UL 1581 section 1200
Oil Resistance	ICEA S-73-532**

Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.

Voltage Rating

300V

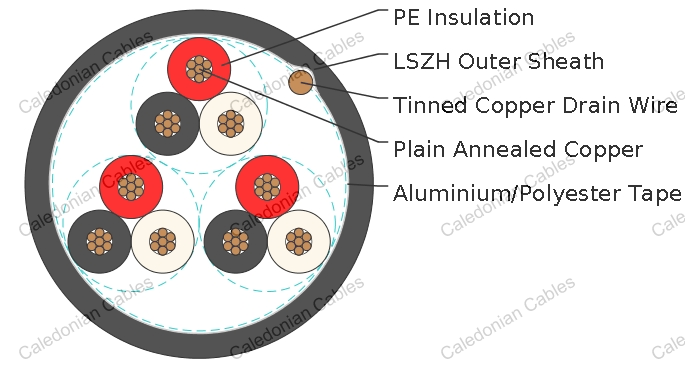

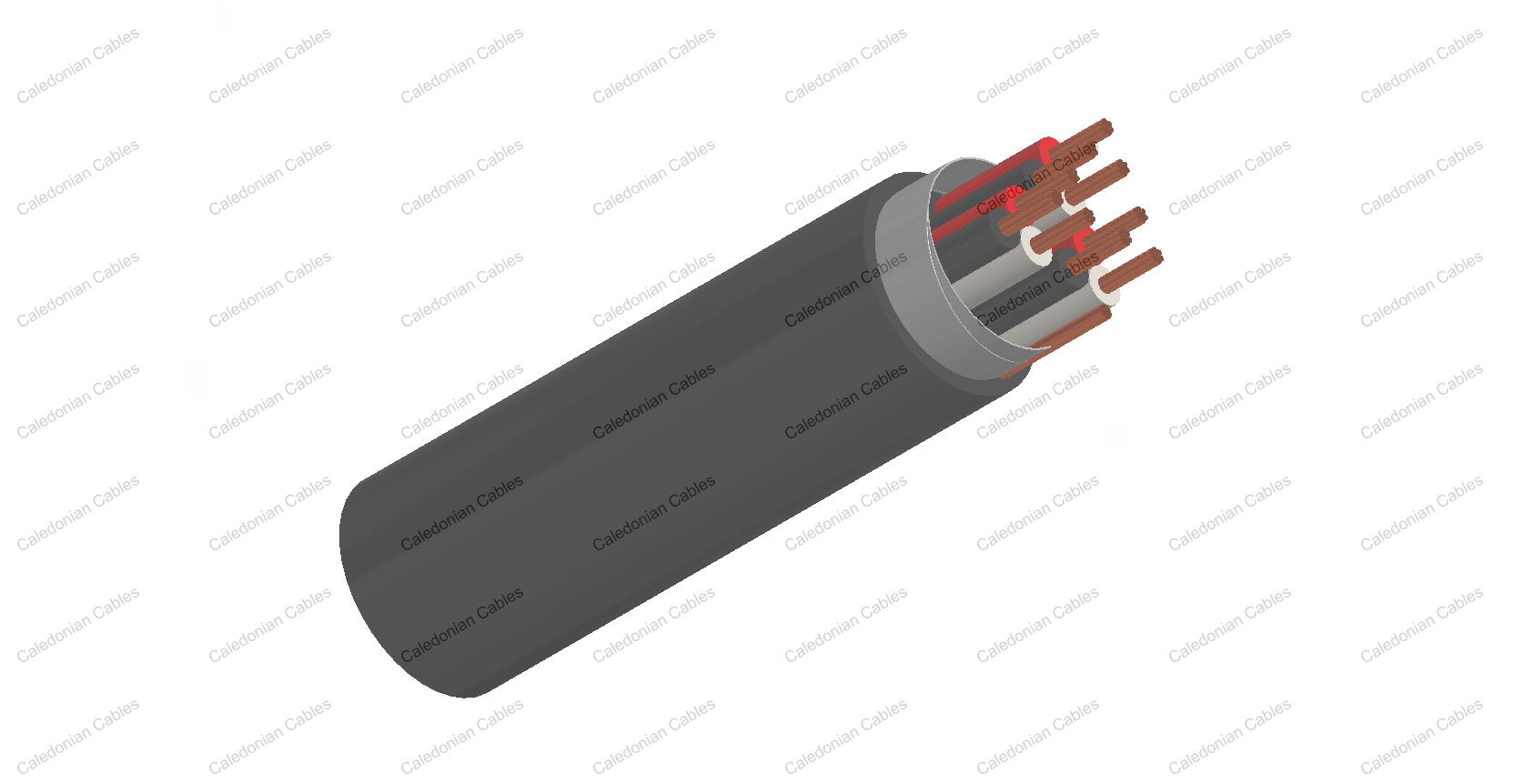

Cable Construction

Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: PE compound, EN 50290. 2-23.
Triple: Three conductors twisted to form a triple
Lay-up: Triples laid up in layers of optimum pitch
Separator: Polyester tape
Overall Screen: Aluminium/polyester tape with tinned copper drain wire, 0.5mm2
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and antitermite properties can be offered as option.

Colour Code

Insulation: Black / White / Red, continuously numbered on white core(1, 2..)for multitriples.
Outer Sheath: Black or Blue for intrinsically safe systems

Physical and Thermal Properties

Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 7.5X Overall Diameter

Electrical Roperties

Conductor Area Size		mm2	0.5	0.75	1.0	1.3	1.5
Insulation thickness (nominal)		mm	0.35	0.38	0.4	0.45	0.45
Conductor resistance (20°C)		Ω/km	36.0	24.5	18.1	13.9	12.1
Insulation resistance (20°C)		MΩ.km(Min.)	5000	5000	5000	5000	5000
Mutual Capacitance (1 kHz)		up to 4 trples pF/m(Max.)	90	90	90	102	102
		above 4 trples pF/m(Max.)	75	75	75	85	85
Inductance		mH/km(Max.)	1
L / R (ratio) (max.)		μH/Ω	25	25	25	40	40
Operating voltage		V	300
Test Voltage Urms	Core to Core	V	1500
Test Voltage Urms	Core to Screen	V	1500

Construction Parameterst

Caledonian Cable Code	RE-2Y(St)H
	No. of Triples x3xCross Section	Nominal Insulation Thickness	Nominal Outer Sheath Thickness	Nominal Overall Diameter	Approx. Weight
	No.x3xmm2	mm	mm	mm	kg/km
0.5mm2?, Multitriple
RE-2Y(St)H 2T0.5	2x3x0,50	0.35	0.9	8.4	92
RE-2Y(St)H 4T0.5	4x3x0,50	0.35	1.0	9.8	124
RE-2Y(St)H 5T0.5	5x3x0,50	0.35	1.0	10.8	155
RE-2Y(St)H 6T0.5	6x3x0,50	0.35	1.0	12.1	186
RE-2Y(St)H 8T0.5	8x3x0,50	0.35	1.1	13.1	222
RE-2Y(St)H 10T0.5	10x3x0,50	0.35	1.1	14.7	276
RE-2Y(St)H 12T0.5	12x3x0,50	0.35	1.1	15.2	325
RE-2Y(St)H 16T0.5	16x3x0,50	0.35	1.2	17.4	416
RE-2Y(St)H 20T0.5	20x3x0,50	0.35	1.2	19.1	510
RE-2Y(St)H 24T0.5	24x3x0,50	0.35	1.3	20.9	597
0.75mm2?, Multitriple
RE-2Y(St)H 2T0.75	2x3x0,75	0.38	0.9	9.3	114
RE-2Y(St)H 4T0.75	4x3x0,75	0.38	1.0	10.9	163
RE-2Y(St)H 5T0.75	5x3x0,75	0.38	1.0	12.0	199
RE-2Y(St)H 6T0.75	6x3x0,75	0.38	1.1	13.7	246
RE-2Y(St)H 8T0.75	8x3x0,75	0.38	1.1	14.7	297
RE-2Y(St)H 10T0.75	10x3x0,75	0.38	1.2	16.7	368
RE-2Y(St)H 12T0.75	12x3x0,75	0.38	1.2	17.3	425
RE-2Y(St)H 16T0.75	16x3x0,75	0.38	1.3	19.7	558
RE-2Y(St)H 20T0.75	20x3x0,75	0.38	1.3	21.7	685
RE-2Y(St)H 24T0.75	24x3x0,75	0.38	1.4	23.7	806
1.0mm2?, Multitriple
RE-2Y(St)H 2T1.0	2x3x1	0.4	1.0	10.4	135
RE-2Y(St)H 4T1.0	4x3x1	0.4	1.0	11.9	203
RE-2Y(St)H 5T1.0	5x3x1	0.4	1.0	13.2	252
RE-2Y(St)H 6T1.0	6x3x1	0.4	1.1	15.0	304
RE-2Y(St)H 8T1.0	8x3x1	0.4	1.1	16.1	381
RE-2Y(St)H 10T1.0	10x3x1	0.4	1.2	18.4	463
RE-2Y(St)H 12T1.0	12x3x1	0.4	1.2	19.0	546
RE-2Y(St)H 16T1.0	16x3x1	0.4	1.3	21.7	720
RE-2Y(St)H 20T1.0	20x3x1	0.4	1.4	24.1	884
RE-2Y(St)H 24T1.0	24x3x1	0.4	1.4	26.1	1053
1.3mm2?, Multitriple
RE-2Y(St)H 2T1.3	2x3x1,3	0.45	1.0	11.5	175
RE-2Y(St)H 4T1.3	4x3x1,3	0.45	1.1	13.4	252
RE-2Y(St)H 5T1.3	5x3x1,3	0.45	1.1	14.8	319
RE-2Y(St)H 6T1.3	6x3x1,3	0.45	1.2	16.9	388
RE-2Y(St)H 8T1.3	8x3x1,3	0.45	1.2	18.1	476
RE-2Y(St)H 10T1.3	10x3x1,3	0.45	1.3	20.7	591
RE-2Y(St)H 12T1.3	12x3x1,3	0.45	1.3	21.4	697
RE-2Y(St)H 16T1.3	16x3x1,3	0.45	1.4	24.4	921
RE-2Y(St)H 20T1.3	20x3x1,3	0.45	1.5	27.1	1128
RE-2Y(St)H 24T1.3	24x3x1,3	0.45	1.6	29.6	1341
1.5mm2?, Multitriple
RE-2Y(St)H 2T1.5	2x3x1,5	0.45	1.0	11.9	192
RE-2Y(St)H 4T1.5	4x3x1,5	0.45	1.1	14.0	288
RE-2Y(St)H 5T1.5	5x3x1,5	0.45	1.1	15.4	356
RE-2Y(St)H 6T1.5	6x3x1,5	0.45	1.2	17.6	433
RE-2Y(St)H 8T1.5	8x3x1,5	0.45	1.3	19.1	543
RE-2Y(St)H 10T1.5	10x3x1,5	0.45	1.3	21.6	675
RE-2Y(St)H 12T1.5	12x3x1,5	0.45	1.4	22.5	782
RE-2Y(St)H 16T1.5	16x3x1,5	0.45	1.5	25.7	1035
RE-2Y(St)H 20T1.5	20x3x1,5	0.45	1.6	28.6	1271
RE-2Y(St)H 24T1.5	24x3x1,5	0.45	1.7	31.1	1514
