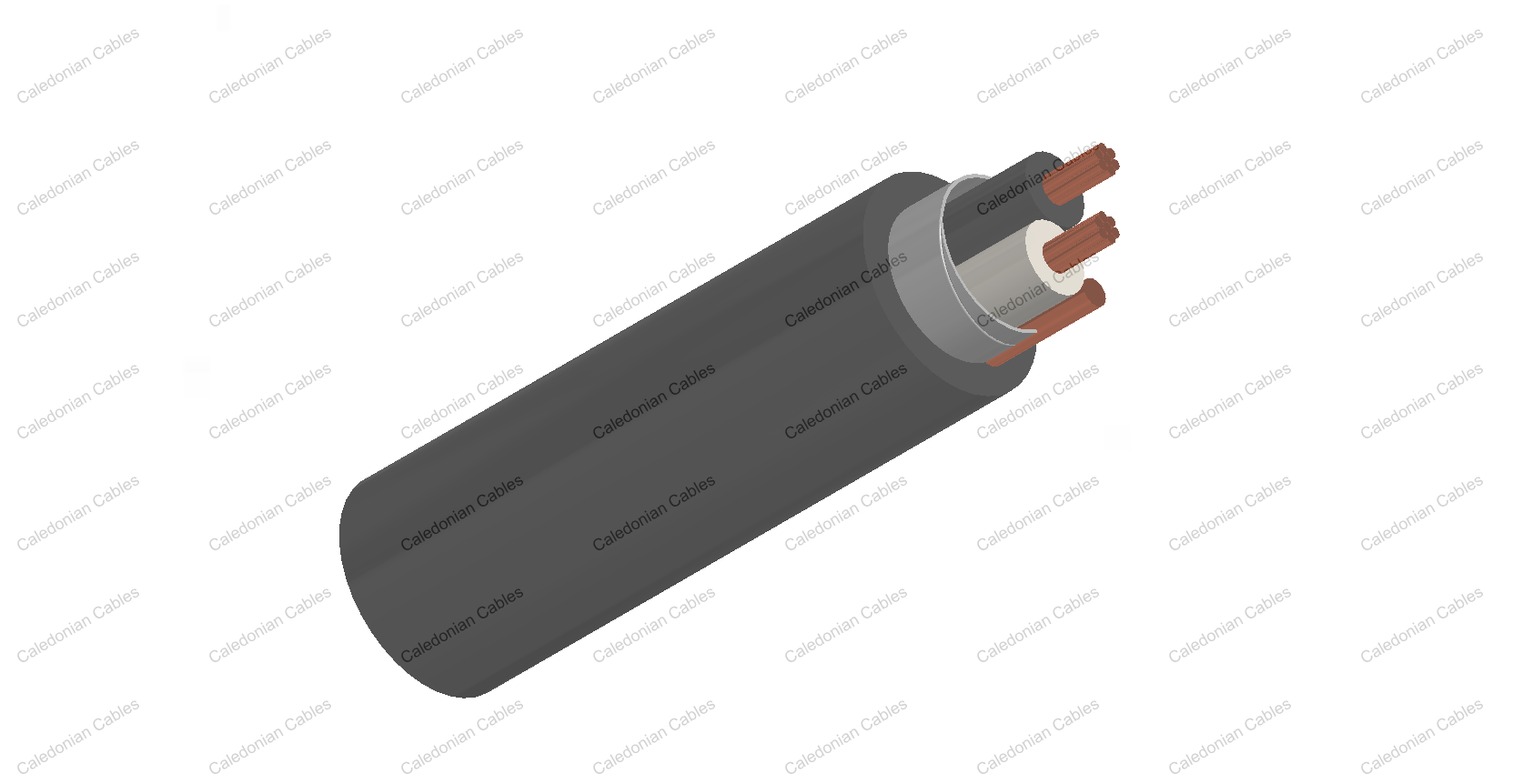

PE Insulated, LSZH Sheathed & Overall Screened Instrumentation Cables (Multicore)

Application

The LSZH sheathed cables are generally use for indoor installation and suitable for wet and damp areas. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

Standards

Basic design to EN 50288-7

Fire Performance

Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1; DIN VDE 0482-265-2-1
Reduced Fire Propagation(Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2; BS 7622-1&2
No Toxic gases	NES 02-713; NF C 20-454
Sunlight Resistance	UL 1581 section 1200
Oil Resistance	ICEA S-73-532**

Note: Asterisk * denotes superseded standard, ** denotes Test temperature +60°C, duration 4h. Retention: min 60% of tensile strength/min.60% of elongation, *** denotes optional.

Voltage Rating

500V

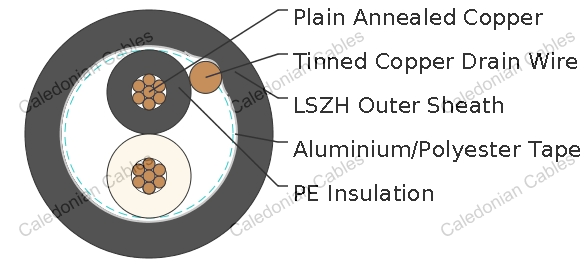

Cable Construction

Conductor: Annealed copper solid or plain copper stranded to IEC 60228 Class 2.
Insulation: PE compound, EN 50290. 2-23.
Overall Screen: Aluminium/polyester tape with 0.5mm2?screen (7/0.3mm) tinned copper drain wire.
Inner Sheath(optional): LSZH compound
Armouring(optional): Galvanised steel wire
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound typeSW2-SW4 as per BS 7655-2.6 can be offered.). UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option.

Colour Code

Insulation: Black numbered
Outer Sheath: Black, blue for intrinsically safe systems

Physical and Thermal Properties

Temperature Range During Operation (Fixed State): -30°C – +90°C
Temperature Range During Installation (Mobile State): -5°C – +50°C
Minimum Bending Radius: 7.5 X Overall Diameter

Electrical Roperties

Conductor Area Size		mm2	0.5	0.75	1.0	1.3	1.5	2.5
Insulation thickness (nominal)		mm	0.55	0.55	0.55	0.6	0.6	0.7
Conductor resistance (20°C)		Ω/km	36.0	24.5	18.1	13.9	12.1	7.4
Insulation resistance (20°C)		MΩ.km(Min.)	5000
Mutual Capacitance (1 kHz)		pF/m(Max.)	115
Capacitance unbalance(1 kHz)		pF/500 m (Max.)	500
L / R (ratio) (max.)		μH/Ω	25	25	25	40	40	60
Operating voltage		V	500
Test Voltage Urms	Core to Core	V	2000
Test Voltage Urms	Core to Screen	V	2000

Construction Parameterst

RE-2Y(St)H
cable code	No. of Pairs x2xCross Section	Nominal Insulation Thickness	Nominal Outer Sheath Thickness	Nominal Overall Diameter	Approx. Weight
cable code	No.x2xmm2	mm	mm	mm	kg/km
0.5mm2, Multicore
RE-2X(St)H 2C0.5	2x1x0.5	0.55	0.9	6.2	47
RE-2X(St)H 3C0.5	3x1x0.5	0.55	0.9	6.5	50
RE-2X(St)H 4C0.5	4x1x0.5	0.55	0.9	7	60
RE-2X(St)H 5C0.5	5x1x0.5	0.55	0.9	7.6	71
RE-2X(St)H 8C0.5	8x1x0.5	0.55	1	9.1	95
RE-2X(St)H 10C0.5	10x1x0.5	0.55	1	10.4	127
RE-2X(St)H 12C0.5	12x1x0.5	0.55	1	10.7	151
RE-2X(St)H 14C0.5	14x1x0.5	0.55	1	11.3	162
RE-2X(St)H 16C0.5	16x1x0.5	0.55	1.1	11.8	180
RE-2X(St)H 20C0.5	20x1x0.5	0.55	1.1	13.3	222
RE-2X(St)H 24C0.5	24x1x0.5	0.55	1.1	14.7	274
RE-2X(St)H 27C0.5	27x1x0.5	0.55	1.2	15	282
RE-2X(St)H 30C0.5	30x1x0.5	0.55	1.2	15.7	318
RE-2X(St)H 37C0.5	37x1x0.5	0.55	1.2	16.9	372
RE-2X(St)H 40C0.5	40x1x0.5	0.55	1.2	17.6	372
0.75mm2, Multicore
RE-2X(St)H 2C0.75	2x1x0.75	0.55	0.9	6.5	51
RE-2X(St)H 3C0.75	3x1x0.75	0.55	0.9	6.9	62
RE-2X(St)H 4C0.75	4x1x0.75	0.55	0.9	7.4	74
RE-2X(St)H 5C0.75	5x1x0.75	0.55	0.9	8.1	96
RE-2X(St)H 8C0.75	8x1x0.75	0.55	1	9.7	126
RE-2X(St)H 10C0.75	10x1x0.75	0.55	1	11.1	156
RE-2X(St)H 12C0.75	12x1x0.75	0.55	1	11.5	183
RE-2X(St)H 14C0.75	14x1x0.75	0.55	1.1	12.2	200
RE-2X(St)H 16C0.75	16x1x0.75	0.55	1.1	12.9	224
RE-2X(St)H 20C0.75	20x1x0.75	0.55	1.1	14.3	284
